COATING/DISPENSING MONITORING

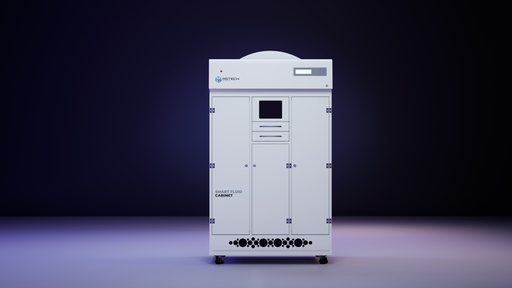

The SMART FLUID CABINET automates
the management and dispensing
of protective materials, optimizing
availability, inventory levels, and
minimizing waste.
FEATURES
» Automated fluid management with inventory
traceability and waste reduction.
» Versatile design for multi-fluid dispensing
applications.
» Efficient operations with automatic reservoir
swap and process monitoring.
» Optimized ergonomics & intuitive interface for
operators.
» Safe, clean environment with full compliance
to safety standards.

MSTECH Europe
OPTIMIZED PCB HANDLING WITH REPAIR ACCESS

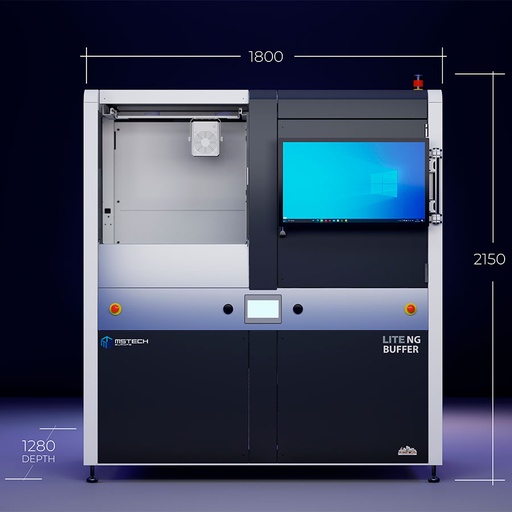

The LITE NG BUFFER is designed to be installed at the rear of an inspection machine. It automatically discharges good PCBs to the next process, while
loading NG (defective) PCBs onto a dedicated rack located on the upper
conveyor. This allows operators to easily access and repair defective boards,
improving efficiency and ensuring process stability

FEATURES
» PLC control for reliable automation.
» Total storage 5 slots 75 mm picht
each.
» LCD touch panel for easy operation.
» Individual lift rack operation.
» Repair zone (upper conveyor) for NG
PCBs.
» Safety-oriented design.
» Improved productivity with stable
quality.
» User-friendly interface

MSTECH Europe

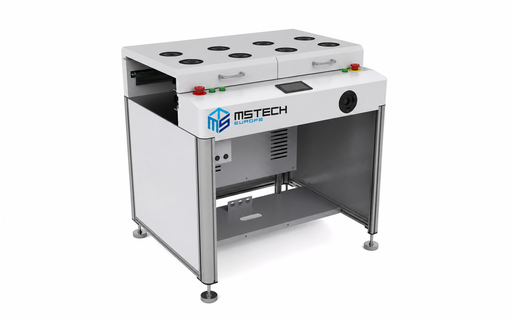

Classic LC10D-460F

Linking conveyor FLASH OFF / inspection UV conveyor, 1000mm length; Motorized width adjustment; FLASH OFF  PROCESS functions; PCB Max(mm): 500x460; PCB Min. (mm): 50x50; Machine Size (mm): 1000x950x1250

MSTECH Europe
[SNAP VISION]

Multi-purpose vision engine for ultra-high speed inspection.

SNAP VISION L semiconductor.
In-line 2D Automated Optical Inspection (AOI) system for real-time quality control in production environments.
It can be integrated into MSTECH Europe units or third-party machines.

MODEL:
Inspection Area (FOV): 300 x 130 mm.
- Working Distance: 490 mm
- Resolution: 24 μm.
Application: High-resolution inspection for semiconductor and fine-feature detection in compact dual lane configurations.

VISION TECHNOLOGY:
- Intuitive programming UI.
- Typical inspection time: under 4 seconds, depending on the application.
- Coatings thickness trend verification.
- UV traceable.
- Light source: multi-LED illumination.
- No periodical camera calibration needed.
- AI based diagnosis.
- Proactive analysis engine.
- Industry 4.0 MES/FIS and Data sharing.
- Fixed inline AOI module
- Single or dual lane configuration.
- Industrial rigid structure for vibration stability.
- Precision optical alignment.

MSTECH Europe
[SNAP VISION]

Multi-purpose vision engine for ultra-high speed inspection.

SNAP VISION XL for large-format PCBA.
In-line 2D Automated Optical Inspection (AOI) system for real-time quality control in production environments.
It can be integrated into MSTECH Europe units or third-party machines.

MODEL:

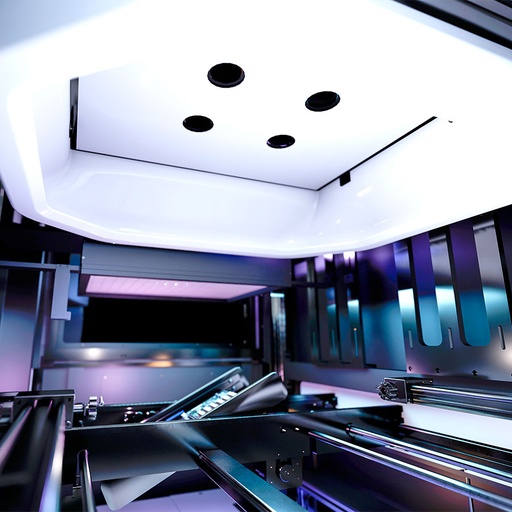

Inspection Area (FOV): 530 x 400 mm.
- Working Distance: 860 mm
- Resolution: 40 μm.
Application: Large-format PCBA inspection (coating, marking, general AOI) with extended coverage.

VISION TECHNOLOGY:
- Intuitive programming UI.
- Typical inspection time: under 4 seconds, depending on the application.
- Coatings thickness trend verification.
- UV traceable.
- Light source: multi-LED illumination.
- No periodical camera calibration needed.
- AI based diagnosis.
- Proactive analysis engine.
- Industry 4.0 MES/FIS and Data sharing.
- Fixed inline AOI module
- Single or dual lane configuration.
- Industrial rigid structure for vibration stability.
- Precision optical alignment.

SPARE PART
MSTECH Europe

LITE PLUS [SNAP VISION] [SNAP FLIP]

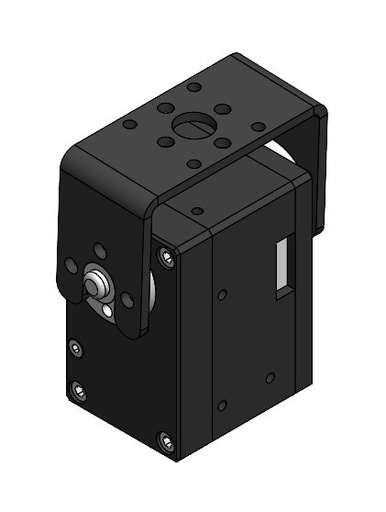

24V 45kg RS485 Modbus-RTU servo

SPARE PART
MSTECH Europe
IR3
Conveyor chain (301100025)

SPARE PART
MSTECH Europe

LITE PLUS [SNAP VISION] [SNAP FLIP]

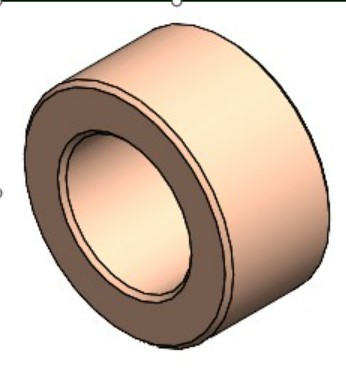

Bronze bushing

"SPARE PART
MSTECH Europe
IR4"
Conveyor Gear (301010619)

SPARE PART
MSTECH Europe
LITE PLUS [SNAP VISION] [SNAP FLIP]

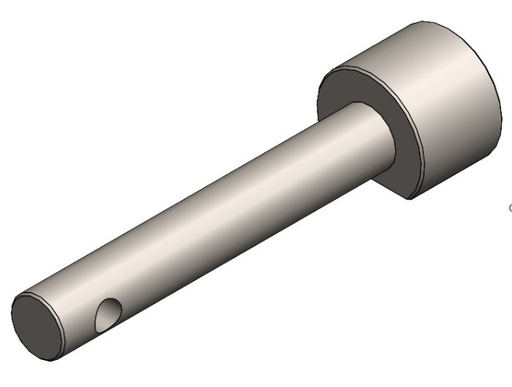

Stopper shaft

SPARE PART
MSTECH Europe
IR5
Drive chain (301100021)

SPARE PART
MSTECH Europe
IR6
Lower Drive Gear (301010226)

SPARE PART
MSTECH Europe

LITE PLUS [SNAP VISION] [SNAP FLIP]

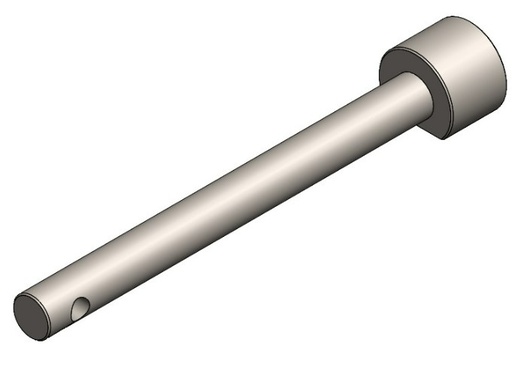

Stopper shaft

SPARE PART
MSTECH Europe
IR7
Top Drive Gear (301010225)

SPARE PART
MSTECH Europe

LITE PLUS [SNAP VISION] [SNAP FLIP]

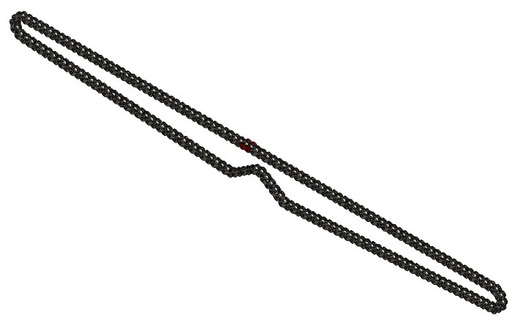

Flip conveyor chain

SPARE PART
MSTECH Europe
IR8
Motors door (302190017)

SPARE PART
MSTECH Europe
IR9
Stepper motor upper conveyor (302020002)

SPARE PART
MSTECH Europe

LITE PLUS [SNAP VISION] [SNAP FLIP]

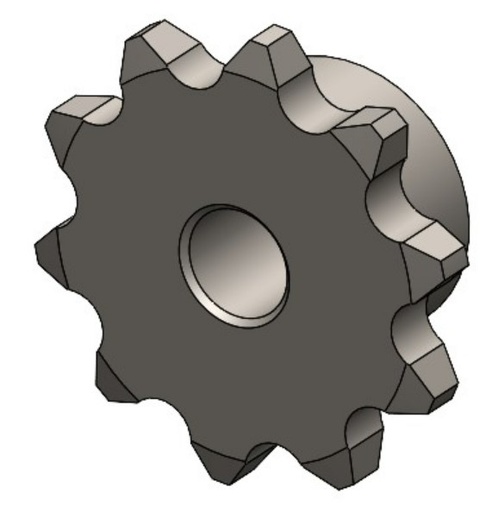

10T sprocket, 06C chain (ASA 35B)

SPARE PART
MSTECH Europe

LITE PLUS [SNAP VISION] [SNAP FLIP]

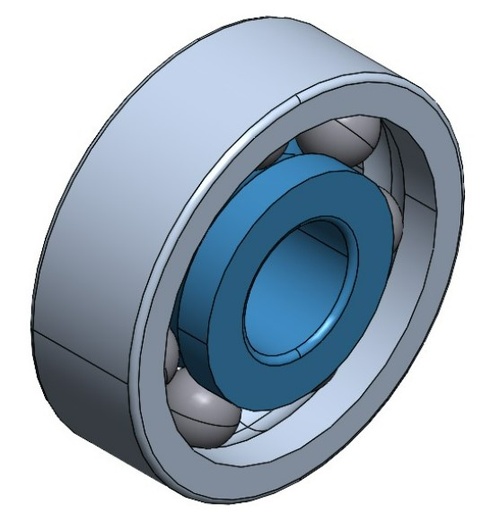

Bearing 626-2RSR

SPARE PART
MSTECH Europe
IR10
Stepper motor Widht ajust (302020034)
