MSTECH Europe
MST-[SNAPCURE] 365 XXL Gen7

UV LED Curing System, Controller: PLC + HMI, With UV sensor, With detection function( by voltage), without glass and Water Cooling,
Emitting window: 600x600mm, Wavelenght 365nm
365nm：1200mW/cm² (50mm)

MSTECH Europe

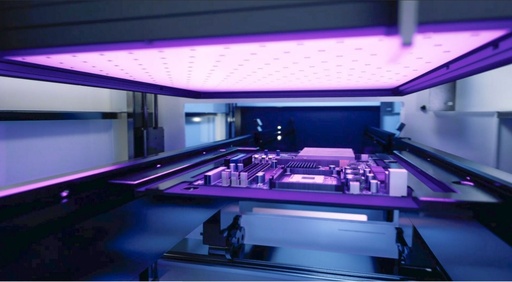

MST-[SNAPCURE] 395 L Gen5

UV LED Curing System, Controller: PLC + HMI, With UV sensor, With detection function( by voltage), 2 x Feane without glass Air Cooling,
Emitting window: 400x250mm, Wavelenght 395nm
395nm：600mW/cm² (50mm)

MSTECH Europe

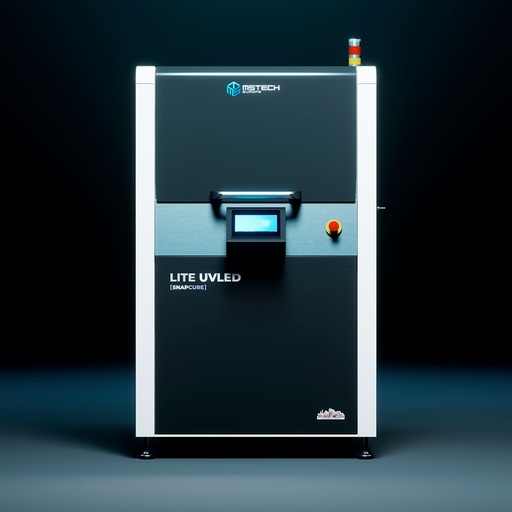

MST-[SNAPCURE] 395 XL Gen5

UV LED Curing System, Controller: PLC + HMI, With UV sensor, With detection function( by voltage), 2 x Feane without glass Air Cooling,
Emitting window: 500x400mm, Wavelenght Wavelenght 395nm
395nm：600mW/cm² (50mm)

MSTECH Europe
MST[SNAPCURE] 395 XXL Gen5

UV LED Curing System, Controller: PLC + HMI, With UV sensor, With detection function( by voltage), 2 x Feane without glass Air Cooling,
Emitting window: 600x600mm, Wavelenght Wavelenght 395nm
395nm：600mW/cm² (50mm)

MSTECH Europe
MST-[SNAPCURE] 395 L Gen7

UV LED Curing System, Controller: PLC + HMI, With UV sensor, With detection function( by voltage), without glass and Water Cooling,
Emitting window: 400x250mm, Wavelenght 395nm
395nm：1200mW/cm² (50mm)

MSTECH Europe
MST-[SNAPCURE] 395 XL Gen7

UV LED Curing System, Controller: PLC + HMI, With UV sensor, With detection function( by voltage), without glass and Water Cooling,
Emitting window: 500x400mm, Wavelenght 395nm
395nm：1200mW/cm² (50mm)

MSTECH Europe
MST-[SNAPCURE] 395 XXL Gen7

UV LED Curing System, Controller: PLC + HMI, With UV sensor, With detection function( by voltage), without glass and Water Cooling,
Emitting window: 600x600mm, Wavelenght 395nm
395nm：1200mW/cm² (50mm)

MSTECH Europe
MST-[SNAPCURE] UVC Multifrequence M

UV LED Curing System, Controller: PLC + HMI, 2 x Feane without glass Air Cooling
Emitting window: 125x100mm
235nm, 254nm, 275nm
around 20mW/cm2
3 wavelengths be controlled at the same time

MSTECH Europe
MST-[SNAPCURE] UVC Multifrequence L

UV LED Curing System, Controller: PLC + HMI, 2 x Feane without glass Air Cooling
Emitting window: 250x100mm
235nm, 254nm, 275nm
around 20mW/cm2
3 wavelengths be controlled at the same time

MSTECH Europe
MST-[SNAPCURE] UVC Multifrequence XL

UV LED Curing System, Controller: PLC + HMI, 2 x Feane without glass Air Cooling
Emitting window: 400x100mm
235nm, 254nm, 275nm
around 20mW/cm2
3 wavelengths be controlled at the same time

MSTECH Europe
MST-[SNAPCURE] UVC Multifrequence XXL

UV LED Curing System, Controller: PLC + HMI, 2 x Feane without glass Air Cooling
Emitting window: 600x100mm
235nm, 254nm, 275nm
around 20mW/cm2
3 wavelengths be controlled at the same time

Dimension: 5000 L x 1250 W x 1560 H
Pcb Dimension: Min: 50 L x 50 W / Max 405 W mm
Top/Bottom Max component height: 120 mm
Control System: PLC
Control Panel: Color Touch Screen
Operating System: Dedicated software real time operation
Tunnel composed of IR modules
Chain conveyor
Manual or auto adjustable conveyor width
USB port and LAN Port for loading and unloading profiles
Exahust OUTPUT
SMEMA Connected
Weight: 1600 Kg Approx

MSTECH Europe
LITE IR 2
Specification：
1. Maximum PCB Size: 740*510mm
2. Upper transmission height: 950±20mm Lower transmission height：350±20mm
3. Transmission method: Chain pin length 5mm
4. Maximum PCBA Height: ± 110mm
5. Control mode: touch screen + Panasonic PLC with network port
6. Rail fixing side: front rail
7. Heating zone: up 2/down 0 8.Signal Connection: SMEMA head
8. Dimension: 2000x1230x1400mm 10.Conveyor with auto type lifting door
9. There are 2 strips of LED lights on the door to show the status of the upper and lower boards.
10. CE standard electrical appliances and circuit design

Configuration：
1. Voltage: 3P 380V
2. Direction: Left to Right
3. Heating method: IR
4. Panasonic display

MSTECH Europe

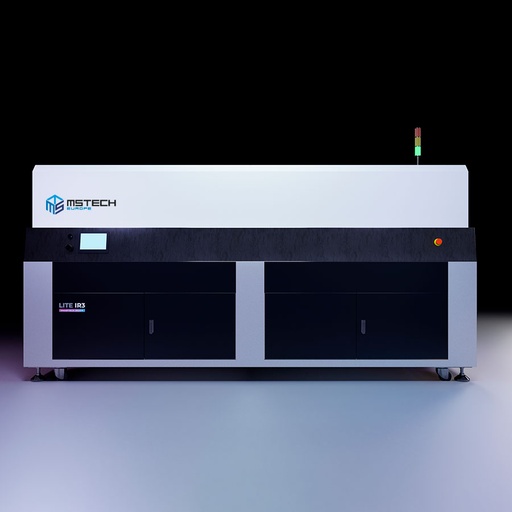

LITE IR 3

Specification：
1. Maximum PCB Size: 740*510mm
2. Upper transmission height: 950±20mm
Lower transmission height：350±20mm
3. Transmission method: Chain pin length 5mm
4. Maximum PCBA Height: ± 110mm
5. Control mode: touch screen + Panasonic PLC with network port
6. Rail fixing side: front rail
7. Heating zone: up 4/down 0
8. Signal Connection: SMEMA head
9. Dimension: 3000x1230x1400mm
10. Conveyor with auto type lifting door
11. There are 2 strips of LED lights on the door to show the status of the upper and lower boards.
12. CE standard electrical appliances and circuit design

Configuration：
1. Voltage: 3P 380V
2. Direction: Left to Right
3. Heating method: IR
4. Panasonic display

MSTECH Europe
LITE [SNAPCLEAN] USC

The MSTECH SNAP CLEAN Ultrasonic Dry Cleaning (USC) System is a precision solution designed for removing fine dust particles without contact or liquids.
Using ultrasonic vibration generated from compressed airflow, this system gently lifts micro-particles from the surface and immediately removes them באמצעות vacuum suction.
Its high efficiency on very small particles (down to a few microns) makes it ideal for sensitive and flat substrates such as PCBs, films, and optical components.
The USC system delivers clean, damage-free surfaces without water, solvents, or drying steps—perfect for high-tech manufacturing environments.

Key Features
✅ Ultrasonic dry cleaning technology
✅ Removes micro-particles (3–100 µm)
✅ Non-contact process → no surface damage
✅ No chemicals, no water, no drying required
✅ Closed-loop system → no secondary contamination
✅ High efficiency on flat surfaces
✅ Inline integration compatible
✅ Optional HEPA filtration

MSTECH Europe

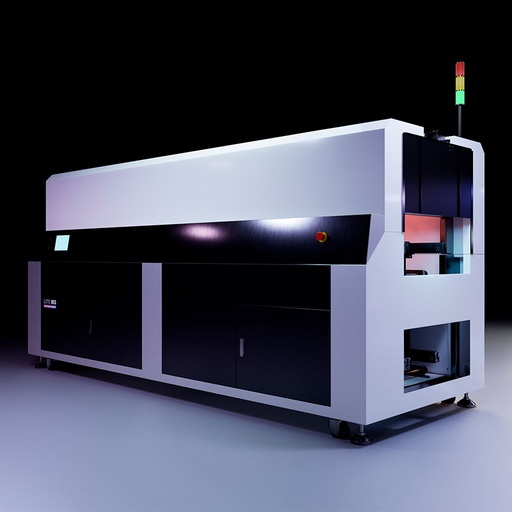

LITE IR 4

Dimension: 3900 L x 1250 W x 1560 H
Pcb Dimension: Min: 50 L x 50 W / Max 405 W mm
Top/Bottom Max component height: 120 mm
Control System: PLC
Control Panel: Color Touch Screen
Operating System: Dedicated software real time operation
Tunnel composed of IR modules
Chain conveyor
Manual or auto adjustable conveyor width
USB port and LAN Port for loading and unloading profiles
Exahust OUTPUT
SMEMA Connected
Weight: 1200 Kg Approx

MSTECH Europe
ULTRA-FAST CURING IN JUST 10 SECONDS

The UV Irradiation Source has world
best efficiency using high power UV
LED panel. It is available either as UV
single frequency or as multi-frequency
spectrum from 265 nm toward 405 nm.

MSTECH Europe

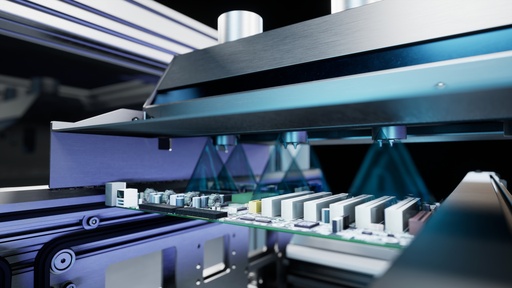

LITE [SNAPCLEAN] TYPHOON
NON-CONTACT CLEANING -SYSTEM WITH IONIZED AIR

The MSTECH SNAP CLEAN Typhoon System is a high-performance non-contact dry cleaning solution designed to remove dust, particles, and static electricity from surfaces in industrial environments.
Using a high-speed rotating air nozzle combined with a vacuum extraction chamber, the Typhoon system creates a powerful and controlled airflow to detach and eliminate contaminants.
Its ability to clean complex shapes and uneven surfaces makes it particularly suitable for advanced manufacturing processes where traditional cleaning methods are insufficient.
This solution ensures clean, particle-free surfaces, improving quality and reliability in downstream operations such as bonding, coating, and printing.


Key Features
✅ Non-contact dry cleaning technology
✅ High-speed rotating nozzle for efficient dust removal
✅ Integrated vacuum suction system
✅ Removes static electricity (ion bar integration)
✅ Suitable for complex geometries and 3D parts
✅ Closed-loop cleaning system (no recontamination)
✅ Compatible with inline production
✅ Adjustable cleaning width (up to 560 mm)

MSTECH Europe

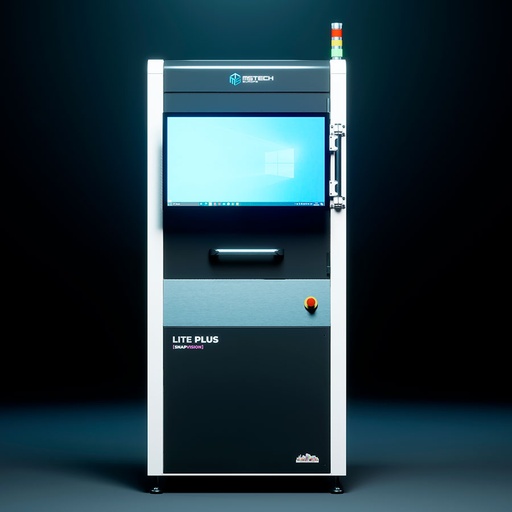

LITE PLUS SNAP VISION SNAP FLIP

Super-fast 2D AOI/ACI inspection
and image analysis with advanced
capabilities, including film thickness
measurement, for coating, dispensing,
component insertion, THT, and wave
soldering process lines.

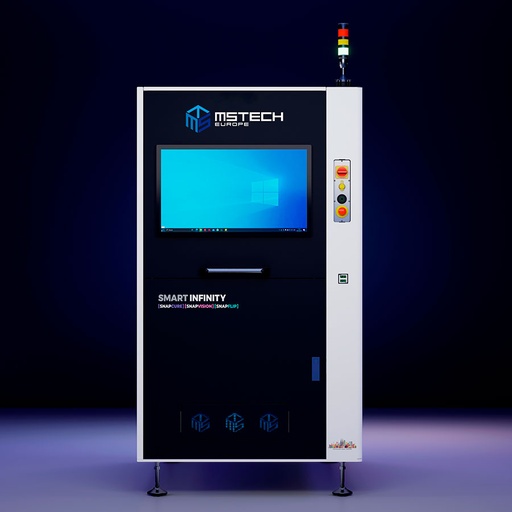

MSTECH Europe
SMART INFINITY SMNAP FLIP SNAP VISION SNAP CURE

CONFIGURATION FLEXIBILITY
» [SNAPVISION][SNAPCURE][SNAPFLIP] inside.
» Multi-language 32’’ tactile HMI.
» No air supply required.
» Multi process sensors closed loop process.
» High resolution multi type inspection.
» 1D/2D barcode reading.
» Multi wavelength curing.
» Single lane capability up to 510 x 460 mm.
PRODUCTIVITY
» Inspection time less than 4 seconds/side.
» Curing time approx. 5 seconds/side.
» Flip less than 2 seconds.
FULL INTERCONNECTED TRACEABILITY (
OPTION)
OPTIMIZATION
→ Floor space & Energy efficient. Eco-friendly.
UNIQUE CONCEPT
