MSTECH Europe

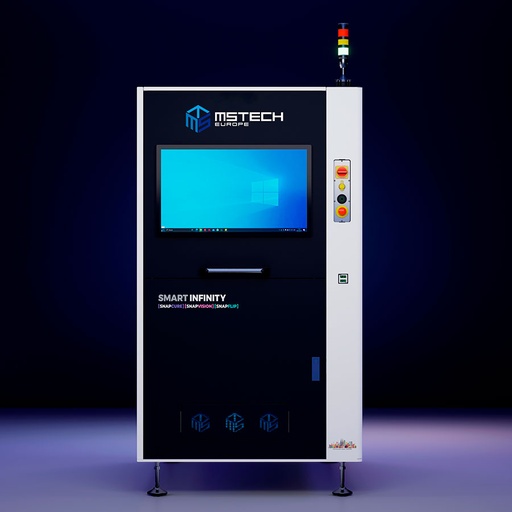

SMART INFINITY SMNAP FLIP SNAP VISION SNAP CURE

CONFIGURATION FLEXIBILITY
» [SNAPVISION][SNAPCURE][SNAPFLIP] inside.
» Multi-language 32’’ tactile HMI.
» No air supply required.
» Multi process sensors closed loop process.
» High resolution multi type inspection.
» 1D/2D barcode reading.
» Multi wavelength curing.
» Single lane capability up to 510 x 460 mm.
PRODUCTIVITY
» Inspection time less than 4 seconds/side.
» Curing time approx. 5 seconds/side.
» Flip less than 2 seconds.
FULL INTERCONNECTED TRACEABILITY (
OPTION)
OPTIMIZATION
→ Floor space & Energy efficient. Eco-friendly.
UNIQUE CONCEPT

MSTECH Europe

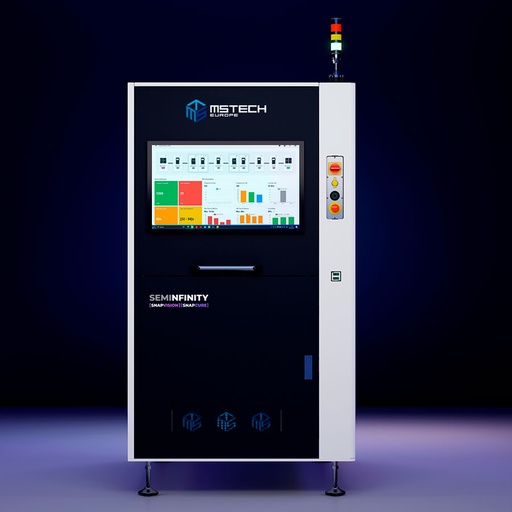

SEMI INFINITY

CONFIGURATION FLEXIBILITY
» [SNAPVISION][SNAPCURE] inside.
» Multi-language 32’’ tactile HMI.
» No air supply required.
» Multi closed-loop processor sensors.
» Fine pitch Datamatrix reading.
» ISO6 (Class 1000) / ESD Level 1 / Full CE / UL.
» Certification / Semi S2/S8 Compliant SECS.
» GEM ready / EMC / F47NPA79.
» Wavelenght controller and closed-loop.radiation.
PRODUCTIVITY
» Less than 2 seconds inspection time.
» Curing time under 5 seconds per tray.
FULL INTERCONNECTED TRACEABILITY (
OPTION)
OPTIMIZATION
» Floor space & Energy efficient. Eco-friendly.
UNIQUE CONCEPT

MSTECH Europe

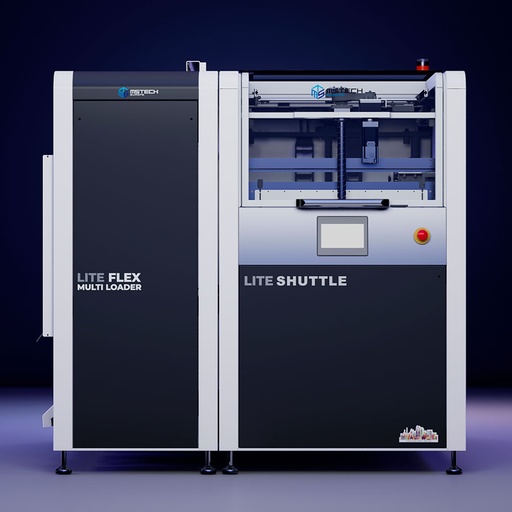

LITE FLEX MULTILOADER AGV

The loading station LITE FLEX
MULTI LOADER is designed to
automatically feed PCBs into
an SMT production line or into
individual process machines
such as depaneling, soldering,
PCBA protection, backend, or test
systems. Adjustable for pcb size since S to XL.

MSTECH Europe

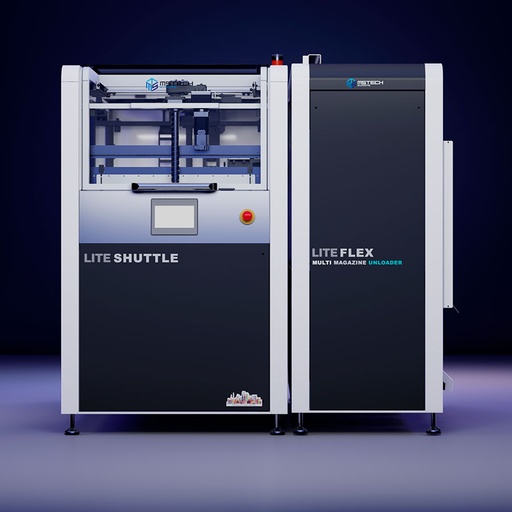

LITE FLEX MULTIUNLOADER AGV

PCBs are extracted from the
magazine by an extraction
mechanism and transferred onto
the handover conveyor. This
conveyor moves laterally on an
integrated shuttle to the handover
position, where the PCB is then
transferred to the next stage.

MSTECH Europe
LITE KIT 900 CHAIN

LITE KIT is an hyper-flexible,
cost-effective conveyor for PCB
transfer in SMT lines. Modular and
lightweight design enables easy
configuration, expansion, and
seamless integration.
600 mm
widths. Ensures smooth, stable,
and reliable product transfer
between processes.

MSTECH Europe

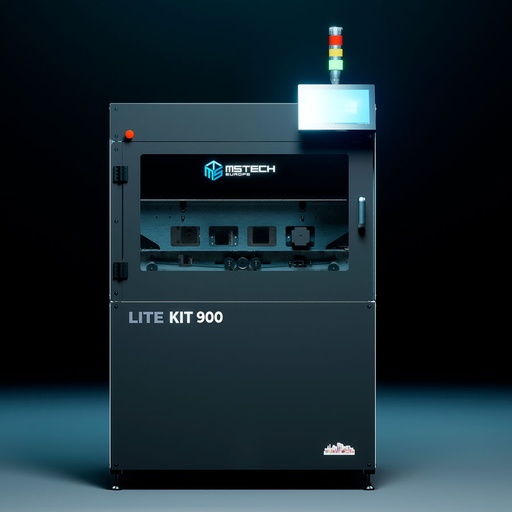

LITE KIT-LC900C

LITE KIT is an hyper-flexible,
cost-effective conveyor for PCB
transfer in SMT lines. Modular and
lightweight design enables easy
configuration, expansion, and
seamless integration.
900 mm
widths. Ensures smooth, stable,
and reliable product transfer
between processes

MSTECH Europe

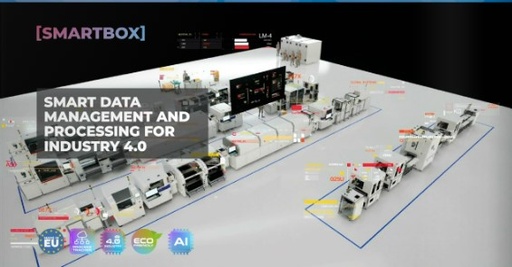

SMARTBOX

Hardware adapter SMEMA → IPC‑HERMES‑9852 to integrate legacy machines into Hermes lines without modifying firmware.
Includes:
Processor: Rockchip RK3562J (4x Cortex‑A53 @ 1.8GHz)
Memory + Storage: 2GB RAM + 16GB eMMC
OS: Embedded Linux
SCADA Platform: FUXA
Interface Types: Gigabit Ethernet / RS485 / RS232 / DI / DO / CAN / USB 2.0 / Type‑C / HDMI / 3.5mm Audio
Protocol Support (Representative): Modbus / OPC UA / EtherNet/IP / Siemens / Omron / MQTT / HTTP
Network Connectivity: 5G / 4G / Ethernet / Wi‑Fi / Bluetooth
IPC‑HERMES‑9852.

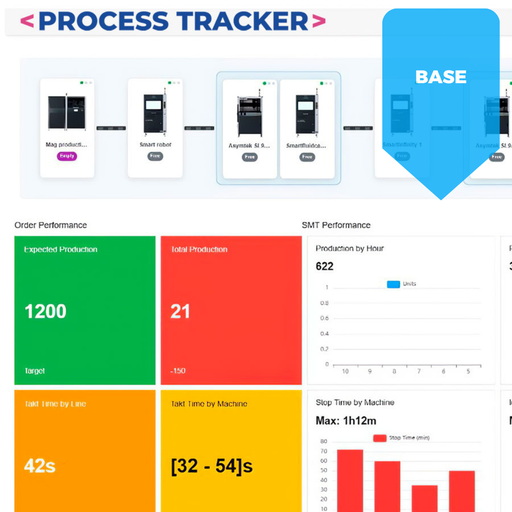

SOFTWARE ProcessTracker MES – Base

Industrial MES for real‑time PCB traceability, KPI calculation, and connection with corporate systems.
Common capabilities: Real‑Time PCB Tracking, universal connectors (Modbus TCP, IPC‑CFX, OPC‑UA, REST APIs), KPI dashboards, webhooks/ERP integration, line configuration & routing, and 24/7 industrial‑grade operation.
Includes Base: basic line traceability, main KPIs, and standard connectors.
Notes: Set‑Up and Installation service is not included; a dedicated offer will be provided according to the customer’s RFQ

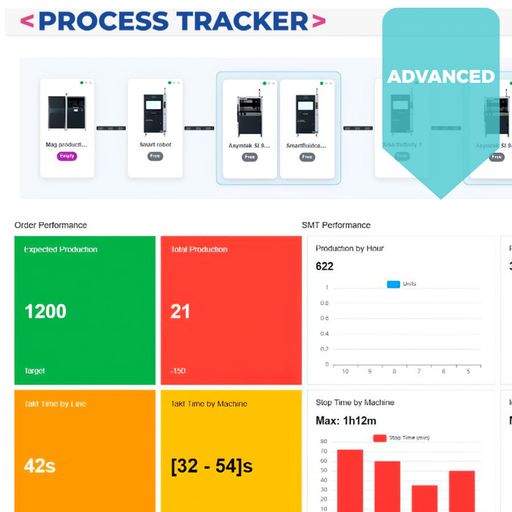

SOFTWARE ProcessTracker MES – Advanced

"MES industrial para trazabilidad PCB en tiempo real, cálculo de KPIs y conexión con sistemas corporativos. Incluye todo Base más más conectividad e integración, dashboards y reporting ampliados y escenario multi-línea inicial. Capacidades comunes: Real-Time PCB Tracking, conectores universales, dashboards KPI, webhooks/ERP integration, line configuration & routing y operación 24/7 industrial grade.
Notas: El sericio de Set Up y Installacion no esta includio; se realizara una oferta segun RFQ del cliente."

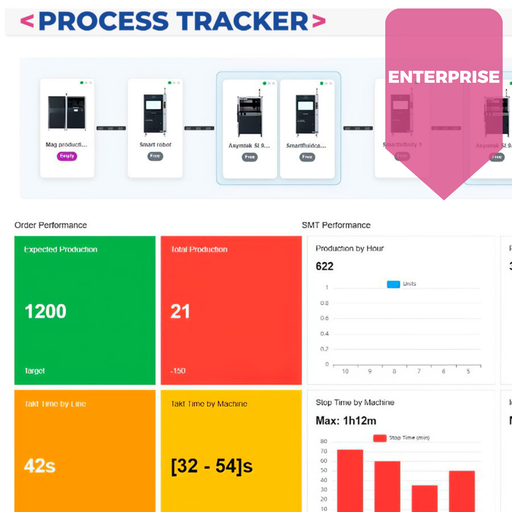

SOFTWARE ProcessTracker MES – Enterprise

Industrial MES for real‑time PCB traceability, KPI calculation, and connection with corporate systems.
Includes everything in Base and Advanced plus multi‑line/multi‑site deployment, increased governance and scalability, and extended corporate integration.
Common capabilities: Real‑Time PCB Tracking, universal connectors, KPI dashboards, webhooks/ERP integration, line configuration & routing, and 24/7 industrial‑grade operation.
Notes: Set‑Up and Installation service is not included; a dedicated offer will be provided according to the customer’s RFQ.

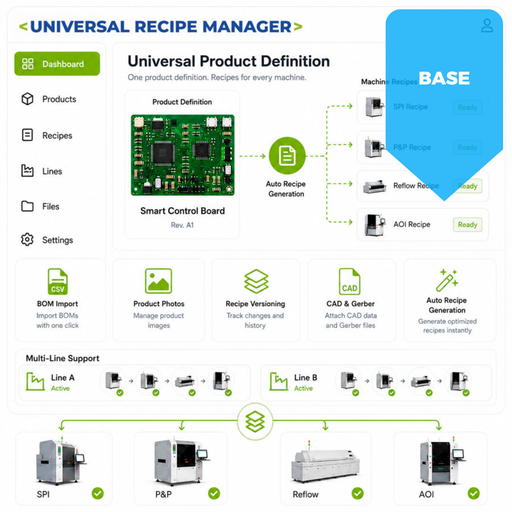

SOFTWARE Universal Recipe Manager – Base

Centralized manager for products, BOM, and recipes with versioning and multi‑machine output.
Common capabilities: centralized product definition, Excel/CSV BOM import, product and assembly photos, basic versioning, and multi‑machine output.
Includes Base: centralized definition, BOM import, photos, basic versioning, and multi‑machine output.

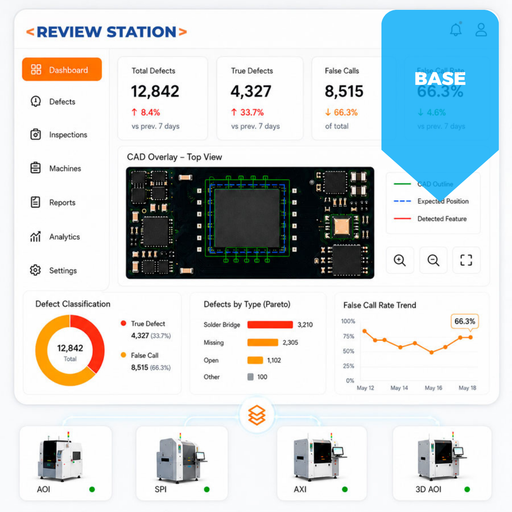

SOFTWARE Review Station – Base

Unified inspection review platform for AOI/SPI/ACI (MSTECH vendor) with defect classification and analytics.
Common capabilities: unified inspection review, revision, true/false classification, and standard defect taxonomy.
Includes Base: unified review, AOI/SPI/ACI data, true/false classification, and standard taxonomy.

• One single license for one single machine of one single process
• Unified inspection review in a single interface
• Multi‑vendor data integration (AOI/SPI)
• Defect classification (true / false)
• Standardization of defect taxonomies
• CAD overlay on inspection images
• Pareto analysis for defect prioritization
• Quality trend monitoring
• Quality comparison across production lines
• Advanced reporting and data visualization
• Integration with feedback systems for AI‑ready environments

SOFTWARE Review Station – Advanced

SOFTWARE Repair Station Doctor – Enterprise

Guided PCB repair station with component localization and full repair‑process traceability.
Includes everything in Base and Advanced plus consumables tracking, inventory integration, CAD‑based precision guidance, and multi‑station reporting.
Common capabilities: guided repair workflows, component localisation, defect‑to‑repair linkage, and full repair traceability.
Availability: Q1 2027 (image coming soon)

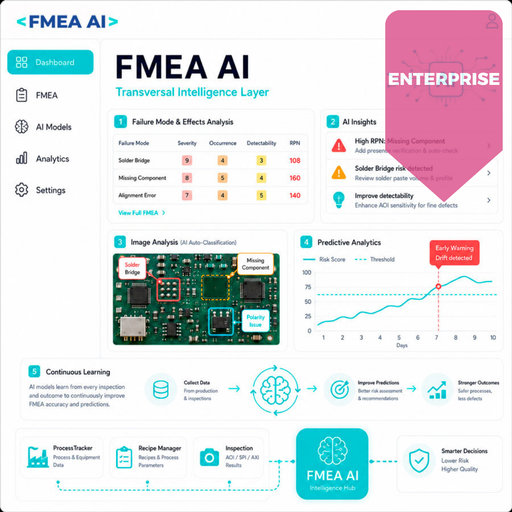

SOFTWARE FMEA AI – Enterprise

AI‑powered intelligence engine for AMFE/FMEA with assisted generation, RPN calculation, automatic classification, and predictive drift detection.
Includes everything in Base and Advanced plus deep‑learning image analysis, continuous learning models, and cross‑line knowledge transfer.
Common capabilities: AI‑assisted FMEA generation, S/O/D scoring, automatic RPN calculation, and corrective‑action suggestions.
Availability: Q3 2027 (image coming soon)

MSTECH Europe
MST-[SNAPCURE] 395 L Gen5

UV LED Curing System, Controller: PLC + HMI, With UV sensor, With detection function( by voltage), 2 x Feane without glass Air Cooling,
Emitting window: 400x250mm, Wavelenght 395nm
395nm：600mW/cm² (50mm)

MSTECH Europe x Peters

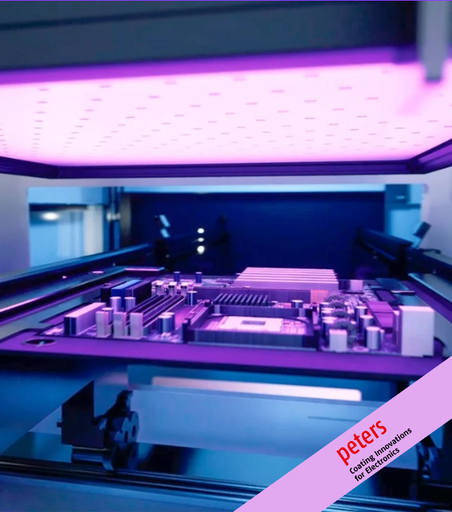

[SNAPCURE] 395 XL Gen5

UV LED Curing System, Controller: PLC + HMI, With UV sensor, With detection function( by voltage), 2 x Feane without glass Air Cooling,
Emitting window: 500x400mm, Wavelenght Wavelenght 395nm
395nm：600mW/cm² (50mm)

MSTECH Europe x Peters
MST[SNAPCURE] 395 XXL Gen5

UV LED Curing System, Controller: PLC + HMI, With UV sensor, With detection function( by voltage), 2 x Feane without glass Air Cooling,
Emitting window: 600x600mm, Wavelenght Wavelenght 395nm
395nm：600mW/cm² (50mm)

MSTECH Europe

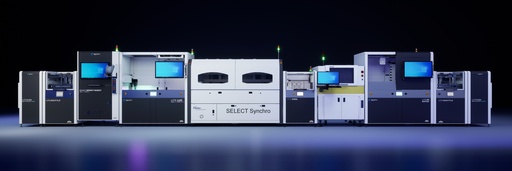

SOLDERING LINE

This soldering line is designed for high efficiency PCB assembly, integrating automation, precision soldering, and quality control. The concept focuses on flexibility, traceability, and zero-defect manufacturing, combining loading/ unloading systems, robotic handling, selective soldering, cooling, and advanced inspection.

MSTECH Europe

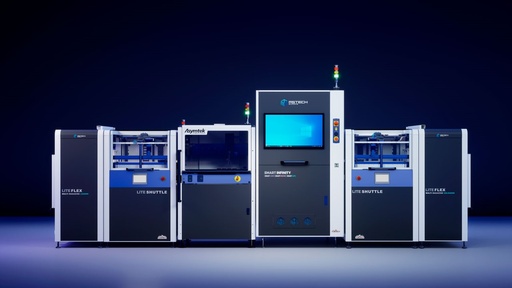

COATING LINE

This coating line is designed for automated conformal coating processes in electronics manufacturing. It integrates precision dispensing, curing, inspection, and board flipping to ensure complete coverage and high reliability. The concept emphasizes automation, flexibility, and traceability, reducing manual intervention and ensuring consistent quality.
