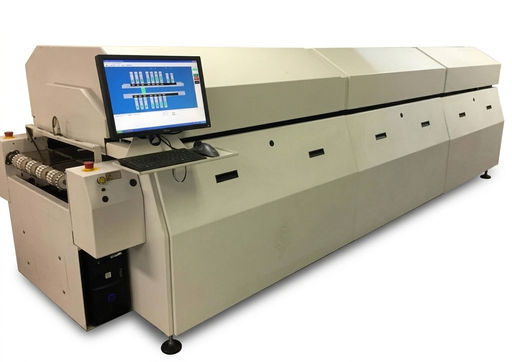

HORNO OMNIMAX 7
OMZ7-20011

IsoThermal Technology: Utilizes a patented, dual-patent IsoThermal chamber system. This delivers superior thermal performance and minimizes solder defects.
Energy Efficiency: Designed to operate with significantly lower electricity and nitrogen consumption compared to conventional models.
Production Capacity: Ideal for both high-volume production lines and densely populated, complex printed circuit boards.
Durable Construction: Features a stainless steel oven box and an easy-to-clean exhaust system to minimize maintenance time.

SC-900 AT022761 Seal UV Conveyor SC-900 for max PCB 450 mm MSTECH AT022761Specifications：
1. Maximum PCB width: 450mm
2. Transmission height: 900±20mm
3. Language: English，waterproof with UV light
4. Rail fixing side: front rail
5. Signal Connection: SMEMA head
6. Dimension:900*880*1330mm
7. Weight: 200Kg

Configuration：
1. Voltage: AC220V, 50/60Hz
2. Plug: European Standard
3. Direction: Left to Right

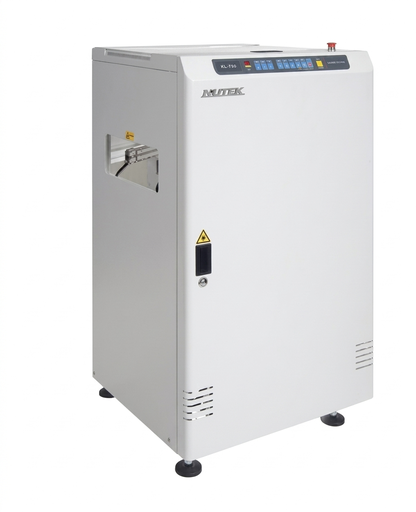

NTM310IL
2002-0409E02

Maximum PCB size: Supports boards with a length of 80 to 460 mm and a width of 50 to 407 mm.
Machine dimensions: Measures 653 mm long, 870 mm wide, and 1300 mm high.
Total weight: The equipment weighs approximately 120 kg.
Transport height: Adjusted to the industry standard of 950 mm (with an adjustment range of ± 25 mm).
Cycle time: Takes approximately 8 seconds to receive, flip, and deliver the board.

SC-900 AT022889 Seal UV Conveyor SC-900 for max PCB 450 mm MSTECH AT022889

Specifications：
1. Maximum PCB width: 450mm
2. Transmission height: 900±20mm
3. Language: English，waterproof with UV light
4. Rail fixing side: front rail
5. Signal Connection: SMEMA head
6. Dimension:900*880*1330mm
7. Weight: 200Kg

Configuration：
1. Voltage: AC220V, 50/60Hz
2. Plug: European Standard
3. Direction: Left to Right

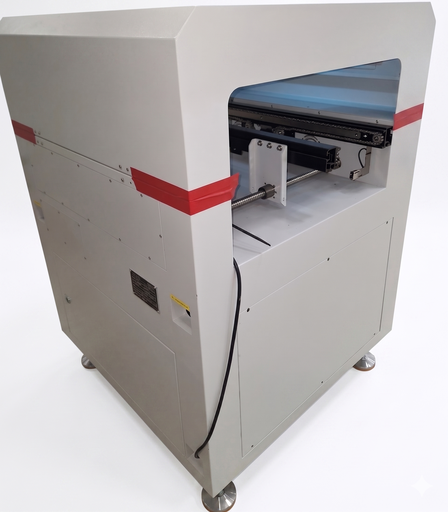

SC-900 AT022763 Seal UV Conveyor SC-900 for max PCB 450 mm MST AT022763

Specifications：
1. Maximum PCB width: 450mm
2. Transmission height: 900±20mm
3. Language: English，waterproof with UV light
4. Rail fixing side: front rail
5. Signal Connection: SMEMA head
6. Dimension:900*880*1330mm
7. Weight: 200Kg

Configuration：
1. Voltage: AC220V, 50/60Hz
2. Plug: European Standard
3. Direction: Left to Right

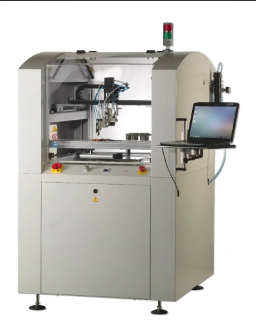

PROTECTOR AT021103 Protector Full Coating Machine MSTECH AT021103
Product Description
The MSTECH AT021103 Protector Full Coating Machine is a high‑precision automated system designed to apply uniform protective coatings on electronic assemblies. Engineered for industrial environments, it delivers consistent quality, high throughput, and maximum reliability for PCB protection.

Key Features
High‑accuracy coating system for PCBs and electronic components

Multi‑axis motion control for precise and repeatable application

Adjustable spray, jet, or film‑coating heads

Integrated curing options (UV / IR / thermal)

Closed‑loop process control ensuring stable coating thickness

Compatible with acrylic, silicone, urethane, and specialized coatings

Benefits
Protects electronics from humidity, dust, chemicals, and mechanical stress

Reduces manual labor and process variability

Ensures long‑term product reliability

Ideal for medium‑ and large‑scale production lines

Can operate as a standalone unit or fully inline

Applications
Consumer electronics manufacturing

Automotive electronics

Industrial control systems

Aerospace and defense electronics

LED and lighting modules

Why Choose This Model
The MSTECH AT021103 stands out for its precision, speed, and integration capabilities, making it a top choice for manufacturers seeking consistent coating quality and efficient production workflows.

PCB Size: 740*510 mm

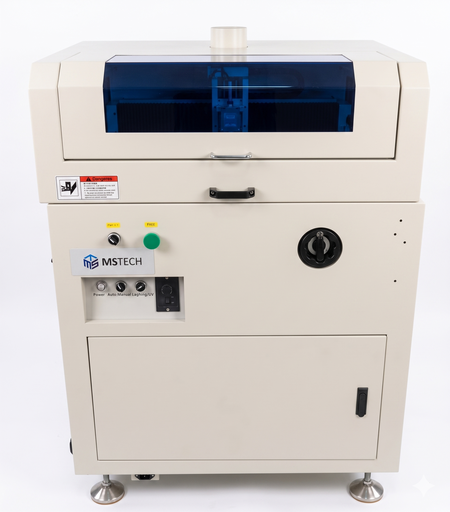

UV-900 AT021043 Curing Conveyor model: CC-900 MSTECH AT021043

Product Description
The MSTECH CC‑900 (AT021043) Curing Conveyor is a high‑performance inline system designed to cure, dry, or stabilize coatings and adhesives applied to electronic assemblies. Its controlled conveyor platform and optimized thermal or UV curing modules ensure consistent results, fast processing, and high reliability for industrial production environments.

Key Features
900 mm curing tunnel for medium‑to‑high production volumes

Adjustable conveyor speed for precise curing control

Uniform thermal or UV curing (depending on configuration)

Energy‑efficient heating and airflow system

Compatible with conformal coatings, adhesives, inks, and resins

Fully inline integration with coating, dispensing, and inspection equipment

Benefits
Ensures stable, repeatable curing quality

Reduces cycle time and increases throughput

Minimizes defects caused by improper drying

Supports continuous automated production

Durable, low‑maintenance industrial design

Applications
PCB conformal coating curing

Adhesive and sealant curing

UV ink and resin polymerization

Electronics assembly and protection processes

Automotive, LED, and industrial electronics manufacturing

Why Choose the CC‑900
The CC‑900 stands out for its precision, speed, and integration flexibility, making it ideal for manufacturers who need consistent curing performance and seamless inline automation.

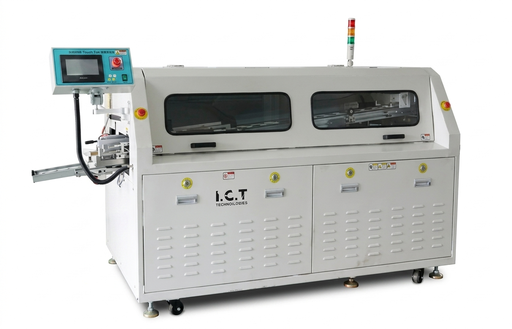

MSTW2
AT021368

2900x1160x1500mm
Weight: 790 kg 3P5W,
380/220V 50Hz 16kw 7kw
Specifications: Max:450x400mm
* With fluxer
* Without fingers
* Transport by chain

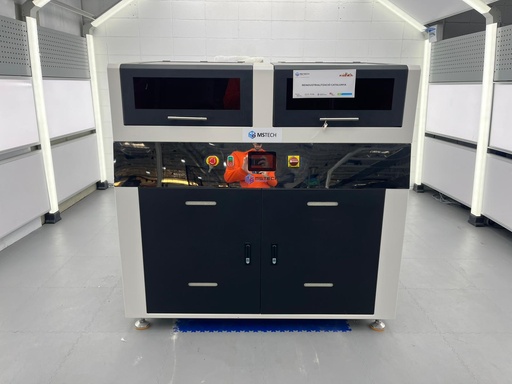

SC-1500
AT022868

Specifications:
1. Max.PCB Size: 740*510mm
2. Upper transmission height: 950±20mm
Lower transmission height：350±20mm
3. Transmission method: Chain pin length 5mm
4. Bearing capacity: 12KG
5. Language: All English logo
6. Rail fixing side: front rail
7. Signal connection: SMEMA head
8. Conveyor cover with saftey sensor(CE)
9. Conveyor with auto type lifting door
10. There are 2 strips of LED lights on the door to show the status of the upper and lower boards.
11. Panasonic touch screen
12. Panasonic PLC with network port
13. CE standard electrical appliances and circuit design
14. With UV detection lamp
15. Dimensions ：1500*1180*1480

Disposition:
1. Voltage: AC220V, 50/60Hz
2. Plug: European standard
3. Transfer direction: Left to Right
4. Panasonic display

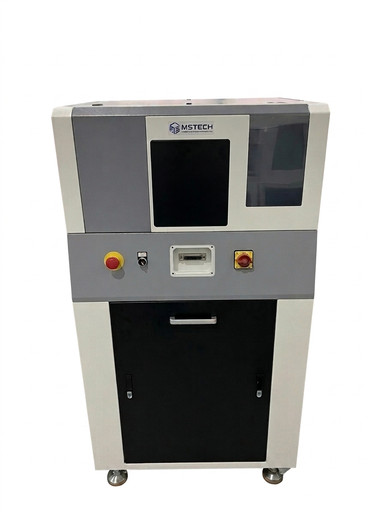

CFD - Flipper
AT022880

Supported PCB size range: Minimum 50 x 50 mm up to a maximum of 750 x 510 mm (or larger).
Track width adjustment: Automatically motorized via ball screw (controlled from the touchscreen) to accurately and evenly support the 510 mm width.
Flipping mechanism: Closed-loop servo motor instead of a standard pneumatic piston. This ensures a smooth, controlled, and vibration-free 180° rotation for large and heavy boards.
Board clamping: Pneumatic clamps or precision stops to prevent the 740 mm long PCB from slipping or warping during rotation.

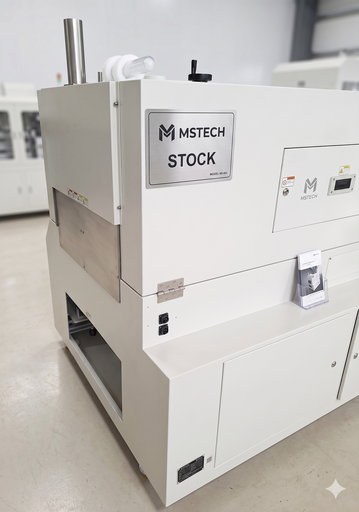

PCBA UVMERCUR AT021102 Curing Oven - UVMercury - Classic
The UVMercury Classic Curing Oven is a precision‑engineered thermal curing system built for industrial environments that demand reliability, uniform heat distribution, and long‑term durability. Its robust construction and optimized airflow ensure stable temperature performance, making it ideal for curing paints, resins, composites, inks, and UV‑sensitive materials.

Key Features
Uniform Heat Distribution — Advanced airflow design ensures consistent curing results across all surfaces.

High‑Efficiency Insulation — Minimizes heat loss and reduces energy consumption during continuous operation.

Digital Temperature Control — Accurate, programmable settings for precise curing cycles.

Durable Steel Construction — Built to withstand demanding industrial use with long service life.

Safety Protection System — Includes over‑temperature protection and secure door‑locking mechanisms.

Versatile Applications — Suitable for coatings, adhesives, UV materials, electronics, automotive parts, and more.
Typical Applications
Powder Coating

UV Resin Curing

Adhesive Bonding

Electronic Component Processing

Automotive Finishing


Technical Highlights (generic, adjustable to your model)
Temperature range: 50°C – 250°C

Heating method: Convection / UV‑assisted (depending on configuration)

Control panel: Digital PID controller

Chamber material: High‑grade stainless steel

Power options: Single‑phase or three‑phase

Optional: Timers, shelves, UV modules, exhaust system

Why Choose the UVMercury Classic?
The UVMercury Classic stands out for its reliability, precision, and adaptability. Whether used in small workshops or large‑scale production lines, it delivers repeatable curing quality and low maintenance requirements, making it a cost‑effective solution for professional manufacturing environments.

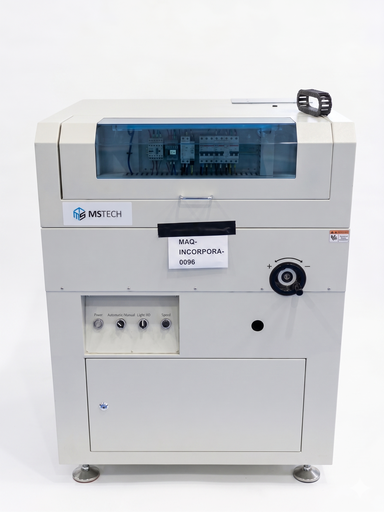

SC-900 AT022764 Seal UV Conveyor SC-900 for max PCB 450 mm MSTECH AT022764

Specifications：
1. Maximum PCB width: 450mm
2. Transmission height: 900±20mm
3. Language: English，waterproof with UV light
4. Rail fixing side: front rail
5. Signal Connection: SMEMA head
6. Dimension:900*880*1330mm
7. Weight: 200Kg

Configuration：
1. Voltage: AC220V, 50/60Hz
2. Plug: European Standard
3. Direction: Left to Right

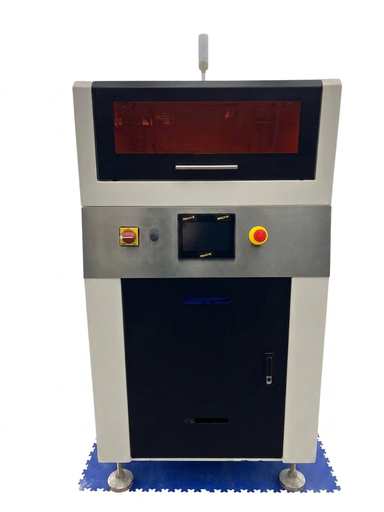

LIFTER
AT021096

Specifications:
1. Max.PCB Size: 740*510mm
2. Upper transmission height: 950±20mm
Lower transmission height：350±20mm
3. Transmission method: Chain pin length 5mm
4. Bearing capacity: 12KG
5. Language: All English logo
6. Rail fixing side: front rail
7. Signal connection: SMEMA head
8. Conveyor cover with saftey sensor(CE)
9. Conveyor with auto type lifting door
10. There are 2 strips of LED lights on the door to show the status of the upper and lower boards.
11.Panasonic touch screen
12.Panasonic PLC with network port
13.CE standard electrical appliances and circuit design
14.Dimensions ：800*1180*1480

Disposition:
1. Voltage: AC220V, 50/60Hz
2. Plug: European standard
3. Transfer direction: Left to Right
4. Panasonic display

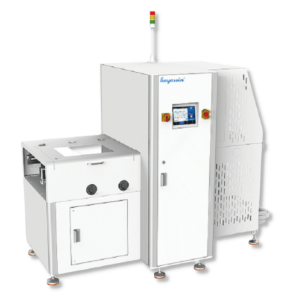

LD-LL AT022497 Loader model: LD-LL MSTECH AT022497
The LD‑LL MSTECH AT022497 is a high‑precision loading system designed for semiconductor and micro‑electronics production lines. It automates the transfer of wafers, substrates, or microchip panels into processing equipment, ensuring clean, stable, and contamination‑free handling throughout the manufacturing cycle.

Built for Class‑controlled environments, this loader delivers exceptional accuracy, smooth motion control, and high throughput, making it ideal for front‑end and back‑end semiconductor processes.

Cleanroom‑Ready Design — Materials and construction suitable for controlled environments used in microchip fabrication.

Precision Loading Mechanism — Ensures gentle, accurate handling of wafers or microchip panels.

Anti‑Static Protection — Prevents electrostatic discharge (ESD) that could damage semiconductor components.

Smart Control Interface — Digital or PLC‑based system for speed, timing, and process configuration.

High Throughput Operation — Optimized for continuous production with minimal downtime.

Seamless Equipment Integration — Compatible with ovens, inspection systems, etching machines, and assembly modules.

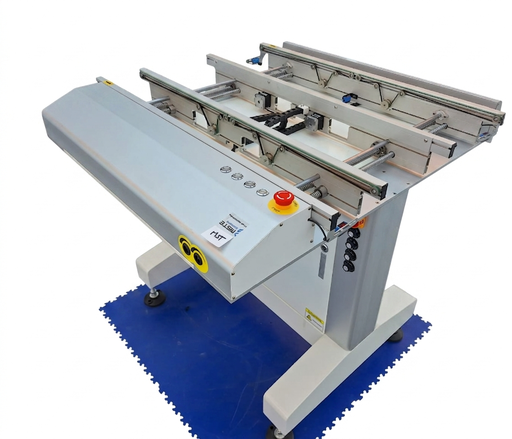

TN-BCH-280-1000D
BC240703310

Height & Frame: 1000mm high-version profile constructed with robust, anti-static materials.
Independent Tracking: Two distinct lanes that can handle different PCB boards simultaneously or run in parallel.
Control: Programmable Logic Controller (PLC) with an HMI Touch Screen interface for independent speed and width control.
Segmented Design: Twin-segment configuration that allows boards to be stopped or routed dynamically between connected workstations.
Max. PCB: 950x460mm

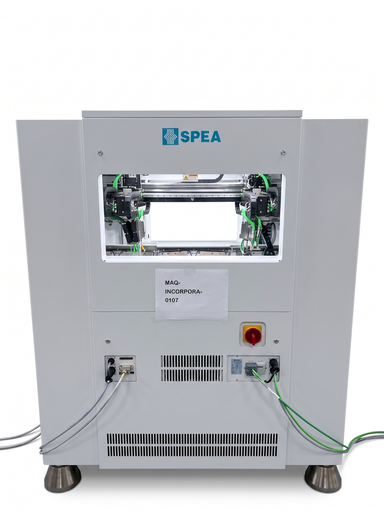

4050s2 FBZ313CB 4050S2 MSTECH FBZ313CB

The MSTECH 4050S2 FBZ313CB is a next‑generation semiconductor automation module designed to support high‑accuracy, contamination‑free handling of wafers, substrates, or microchip panels. Built for cleanroom environments, it ensures stable operation, precise alignment, and high throughput, making it ideal for both front‑end and back‑end microelectronics manufacturing.

Its reinforced structure, intelligent motion control, and ESD‑safe design guarantee consistent performance in demanding semiconductor workflows.

IR CURING OVEN-IR3 PC-2022-0138-03

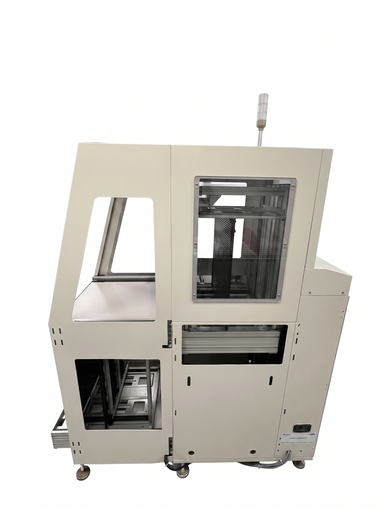

The ETA Holding UL‑LL MSTECH AT022498 is a cleanroom‑ready automated unloader designed for semiconductor, PCB, and micro‑electronics manufacturing. It safely removes processed panels, wafers, or substrates from upstream equipment—such as curing ovens, inspection systems, or assembly modules—while maintaining contamination‑free handling and high throughput.

Its precision motion system, ESD‑safe construction, and intelligent control interface ensure stable, repeatable performance, making it ideal for advanced microchip fabrication environments.

* with SMEMA

Specifications：
1. Maximum PCB width: 450mm
2. Transmission height: 900±20mm
3. Language: English，waterproof with UV light
4. Rail fixing side: front rail
5. Signal Connection: SMEMA head
6. Dimension:900*880*1330mm
7. Weight: 200Kg

Configuration：
1. Voltage: AC220V, 50/60Hz
2. Plug: European Standard
3. Direction: Left to Right

SC-1550 AT021488 Conveyor model: SC-1500 MSTECH

The SC‑1550 (AT021488), based on the SC‑1500 conveyor platform, is a high‑precision transfer conveyor designed for electronics and semiconductor manufacturing.
With its extended length and reinforced frame, it provides reliable board handling, excellent alignment stability, and seamless integration between upstream and downstream equipment such as loaders, unloaders, UV conveyors, curing ovens, and inspection modules.

Its adjustable width system allows it to accommodate a wide range of PCB sizes, making it ideal for modern SMT and microchip production environments that require high throughput and consistent transport quality.

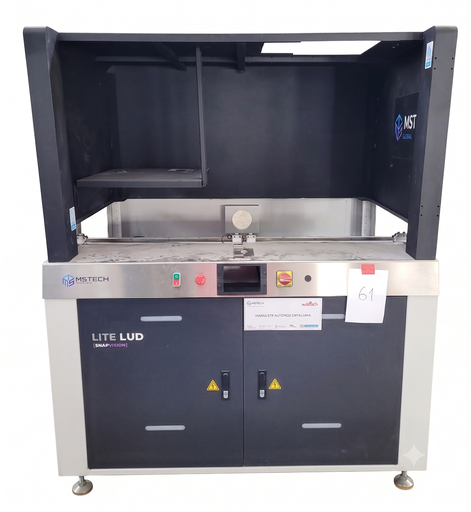

SC-1500 AT022869 Manual Loader-Unloader conveyor with UV light XL MSTECH AT022869
Specifications:
1. Max.PCB Size: 740*510mm
2. Upper transmission height: 950±20mm
Lower transmission height：350±20mm
3. Transmission method: Chain pin length 5mm
4. Bearing capacity: 12KG
5. Language: All English logo
6. Rail fixing side: front rail
7. Signal connection: SMEMA head
8. Conveyor cover with saftey sensor(CE)
9. Conveyor with auto type lifting door
10. There are 2 strips of LED lights on the door to show the status of the upper and lower boards.
11. Panasonic touch screen
12. Panasonic PLC with network port
13. CE standard electrical appliances and circuit design
14. With UV detection lamp
15. Dimensions ：1500*1180*1480

Disposition:
1. Voltage: AC220V, 50/60Hz
2. Plug: European standard
3. Transfer direction: Left to Right
4. Panasonic display
