SL-1040
S100011

With Select Coat SL-1040, we retained the time-tested functionality of the Select Coat SL-940 and added significant system-level advancements to enhance automation, control, accuracy, and preventative maintenance for improved performance and uptime.

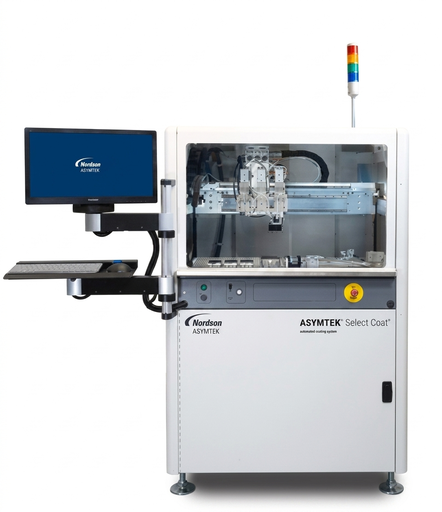

SL-1040
S100012

With Select Coat SL-1040, we retained the time-tested functionality of the Select Coat SL-940 and added significant system-level advancements to enhance automation, control, accuracy, and preventative maintenance for improved performance and uptime.

SP1-W
S5-0022-CB

±12.5μm at 6 Sigma
5 sec (Excl. Printing Time)
2 min
5 min
330 x 250mm
510(Length) x 460(Width)
50(Length) x 50(Width)
0,4mm to 4mm
1,500kg
Max. ±1.5mm (Excl. Board Thickness)
Left to Right
Right to Left (Option)
Automatic Width adjustment
3 Staged Conveyor. Front Stage, Working Stage, Rear Stage
By-Pass Conveyor (Option)
Edge Clamp + Top Stopper
Electric Clamp Force Regulating (Option)
PCB Vacuum (Option)
Back up Pins
Back up Block (Option)
Vacuum Block (Option)

Print Parameters
Speed: 0.1 ~ 20mm/sec
Distance: 0.2 ~ 3.0mm
Max. 200mm/sec
4 ~ 15kgf
Automatic
Screw + Electric Air Regulating
Single / Double Printing
Manual (Auto : Option)
Metal - 350mm, 250mm
650(Length)mm x 550(Width)mm
Vision
FOV - 10.6mm x 8.0mm
Circle, Triangle, Square, Diamond, Cross
0.5 ~ 4.0mm

Operator Interface
LCD Monitor, Mouse & Keyboard
Windows XP Embedded
Facilities
• Voltage : Single Phase. 220 / 240V (±5%)
• Frequency : 50/60Hz
• Power Consumption: 4.5 kVA
Pressure 4.5~7kgf/cm, Max. 700Nl/pm
1,895mm / 1,945mm (option). (Incl. Signal Lamp)
1,470mm
1,300mm
1,000mm
1,290kg

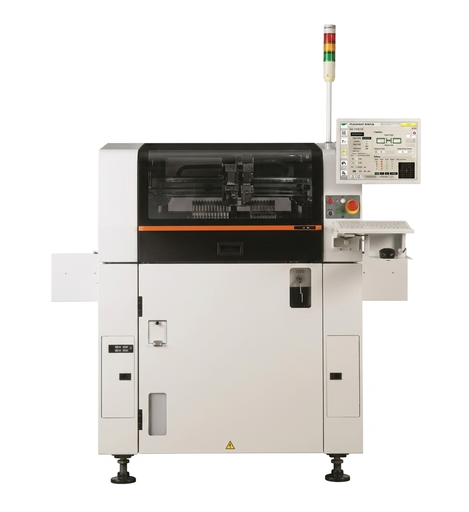

SP1-W
S5-0035-D7

±12.5μm at 6 Sigma
5 sec (Excl. Printing Time)
2 min
5 min
330 x 250mm
510(Length) x 460(Width)
50(Length) x 50(Width)
0,4mm to 4mm
1,500kg
Max. ±1.5mm (Excl. Board Thickness)
Left to Right
Right to Left (Option)
Automatic Width adjustment
3 Staged Conveyor. Front Stage, Working Stage, Rear Stage
By-Pass Conveyor (Option)
Edge Clamp + Top Stopper
Electric Clamp Force Regulating (Option)
PCB Vacuum (Option)
Back up Pins
Back up Block (Option)
Vacuum Block (Option)

Print Parameters
Speed: 0.1 ~ 20mm/sec
Distance: 0.2 ~ 3.0mm
Max. 200mm/sec
4 ~ 15kgf
Automatic
Screw + Electric Air Regulating
Single / Double Printing
Manual (Auto : Option)
Metal - 350mm, 250mm
650(Length)mm x 550(Width)mm
Vision
FOV - 10.6mm x 8.0mm
Circle, Triangle, Square, Diamond, Cross
0.5 ~ 4.0mm

Operator Interface
LCD Monitor, Mouse & Keyboard
Windows XP Embedded
Facilities
• Voltage : Single Phase. 220 / 240V (±5%)
• Frequency : 50/60Hz
• Power Consumption: 4.5 kVA
Pressure 4.5~7kgf/cm, Max. 700Nl/pm
1,895mm / 1,945mm (option). (Incl. Signal Lamp)
1,470mm
1,300mm
1,000mm
1,290kg

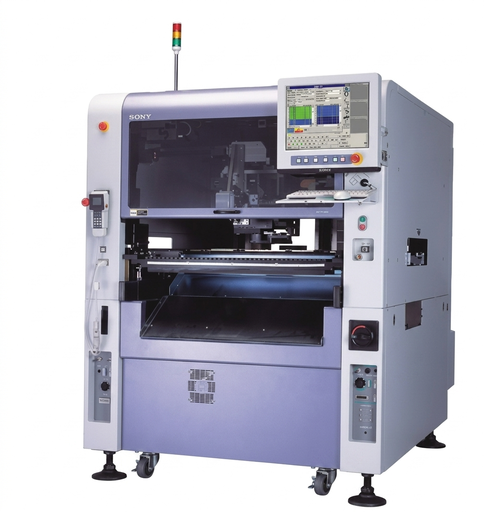

SI-F209
209741005

The Sony SI-F209 is a high-speed SMT pick and place machine designed to deliver precise, efficient, and stable component placement for modern PCB assembly lines. Based on Sony's proven high-speed assembly platform, the SI-F209 integrates an advanced vision alignment system, fast-moving placement heads, and a rigid mechanical structure to ensure consistent accuracy during continuous, high-throughput production. Supporting components from metric 0201 ultraminiature devices to medium-to-large-sized integrated circuits (ICs), BGAs, QFPs, connectors, and LED packages, the SI-F209 is suitable for both high-mix production environments and medium-to-high-volume SMT environments.

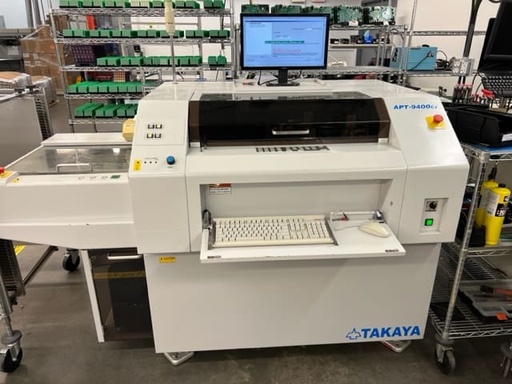

APT-9400CE-A
V2F0C103
The Takaya APT-9400CE-A is an advanced, high-precision flying probe tester manufactured. Takaya designed the APT-9400 series to deliver fixtureless electrical and mechanical testing for mounted printed circuit board (PCB) assemblies and electronic components

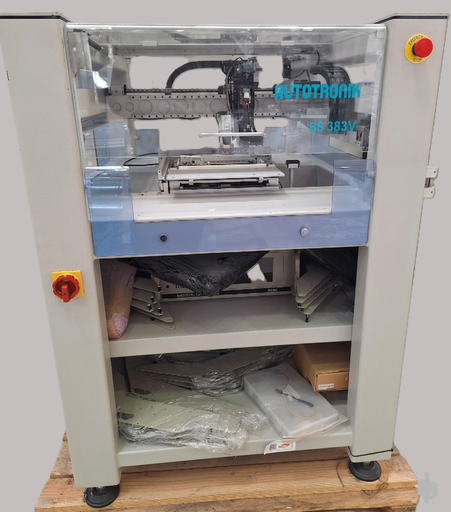

BS383V1-V
383N1V16V1046

- Fully Automated
- Windows 2000
- Ball Screw System
- Universal CAD Conversion
- Vision on the Fly Alignment System
- Bottom Vision Alignment System
- Built-in Camera System with Auto Fiducial Mark Learning

MU-560A-CT
CH1071901

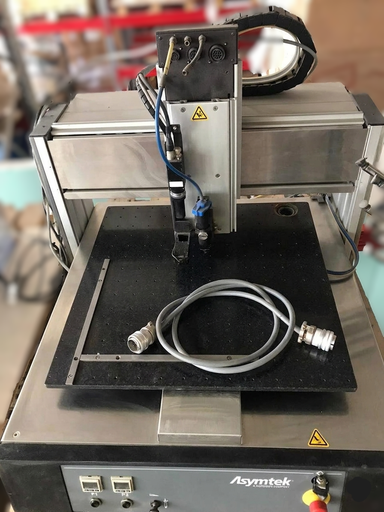

D-555
30359

The Nordson ASYMTEK D-555 is an automated, high-precision production system designed for PC board assembly, semiconductor packaging, and electronics manufacturing. It integrates dispensing, jetting, and coating capabilities into a single platform to apply fluids like adhesives, solder pastes, and encapsulants.

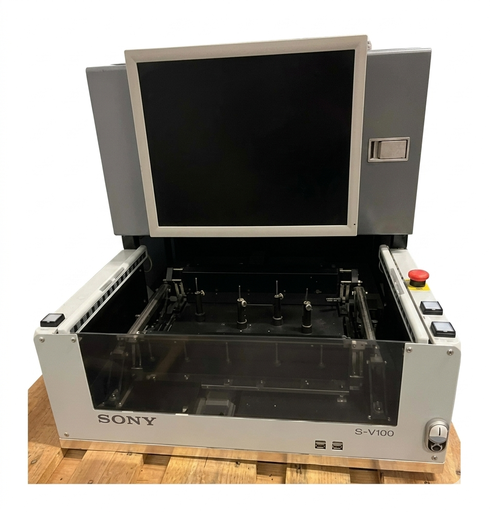

SI-V100
CD0134012

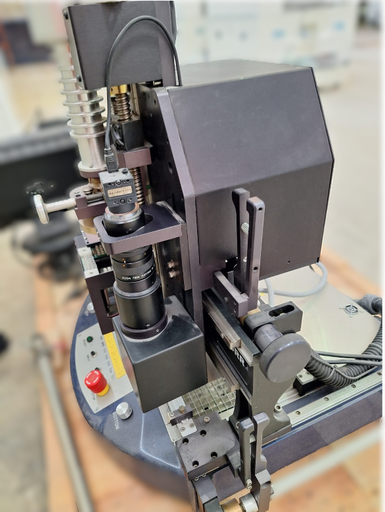

P400RR REWORK SYSTEMS
P400RR-3629
The VJ Electronix P400RR is a heavy-duty, semi-automated SMT rework workstation designed for high-thermal-mass PCBs and high-density array components
Driven by proprietary Windows-based control software (such as the SierraMate/1-2-3-GO suite) that automates profiling wizards, manages gas flow control, and logs comprehensive process data for strict traceability.

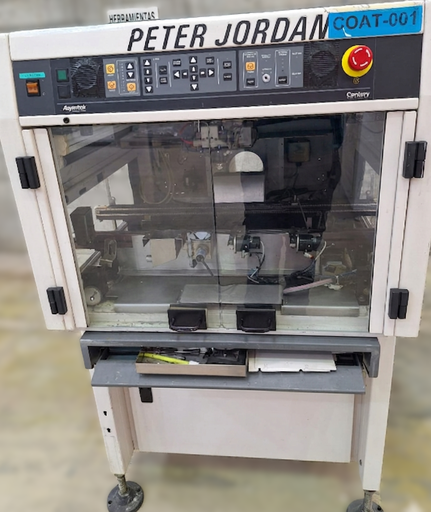

C-740
15792

Asymtek Nordson C-740 Conformal Coating Machine


The Century C-740 Series Selective Conformal Coating
system provides consistent, uniform dispensing of a variety
of conformal coating materials for inline coating applications.
The system virtually eliminates the requirement for labor-
intensive board masking, providing accurately controlled
patterns, film builds, and production flexibility in an
automated process.

Equipped with Easy Coat for Windows NT(ECNT) software,
uniquely designed for conformal coating applications, the
system offers increased coating flexibility. Multiple coating
commands can be edited simultaneously, minimizing the
time required to make programming and pattern changes.
Log files are configurable, allowing users to record system
events and parameters for process improvement and
analysis.

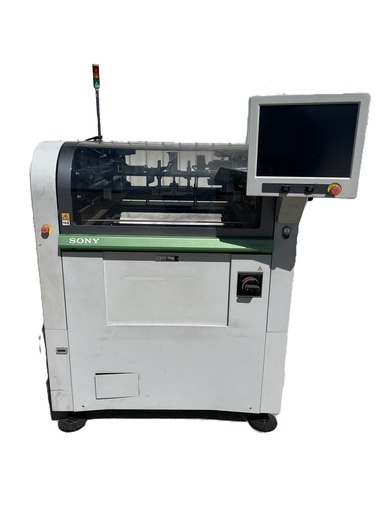

SPI-850
P0110107

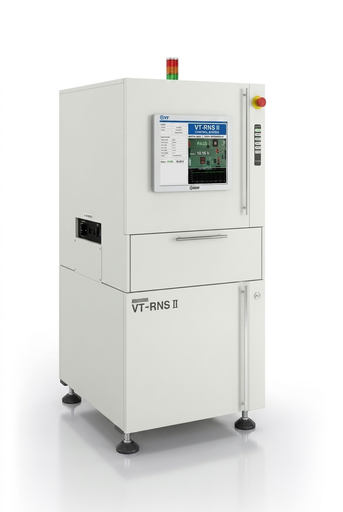

SOLDER INSPECTION EQUIPMENT VT
SOLDER VT-RNS II SPI
2503712-2347

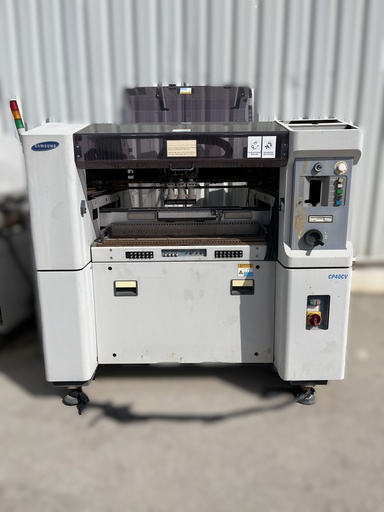

CP40CV
CC-0270-J4

The CP40CV is a high-speed, multi-functional pick and place machine. Designed for precision PCB assembly lines, it is widely used for automated, medium-to-high volume electronics manufacturing.
Can handle an exceptionally wide variety of parts, from tiny 0201 micro-components to square 35mm components (including QFPs, BGAs, and fine-pitch ICs).

UV-LED395 CHAIN
F1-0012-1901

The FAMECS F1-0012-1901 UV-LED 395 CHAIN ​​is an in-line (conveyor/chain) ultraviolet curing system manufactured by FAMECS. It operates at a wavelength of 395 nm and is typically used in SMT assembly lines for the rapid curing of temperature-sensitive adhesives, resins, and protective coatings.

UV-LED395 CHAIN
F1-0015-1901

The FAMECS F1-0012-1901 UV-LED 395 CHAIN ​​is an in-line (conveyor/chain) ultraviolet curing system manufactured by FAMECS. It operates at a wavelength of 395 nm and is typically used in SMT assembly lines for the rapid curing of temperature-sensitive adhesives, resins, and protective coatings.

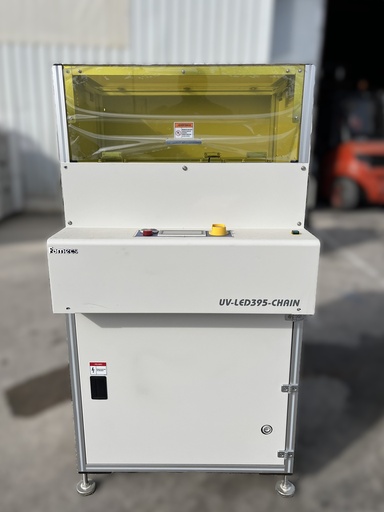

UV-LED395 CHAIN
F1-0014-1901

The FAMECS F1-0012-1901 UV-LED 395 CHAIN ​​is an in-line (conveyor/chain) ultraviolet curing system manufactured by FAMECS. It operates at a wavelength of 395 nm and is typically used in SMT assembly lines for the rapid curing of temperature-sensitive adhesives, resins, and protective coatings.

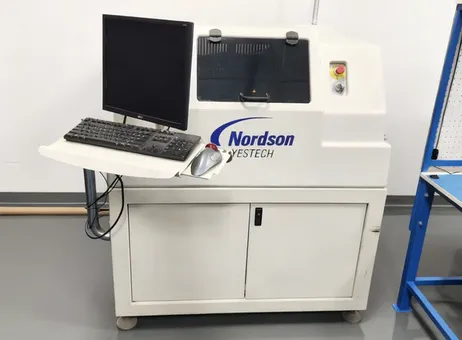

YTV-FX - INSPECCIÓN COATING
VX12021479

The Nordson YESTECH YTV-FX is an electronics inspection machine, designed for detailed 2D inspection tasks. It features a 5-megapixel color camera system that includes one top-down camera and four side-view cameras, allowing for comprehensive visual analysis from multiple angles. The system operates with YesVision Software version 2.8.3b Build 6067 on a Windows 7 platform, providing a robust software environment for inspection processes.

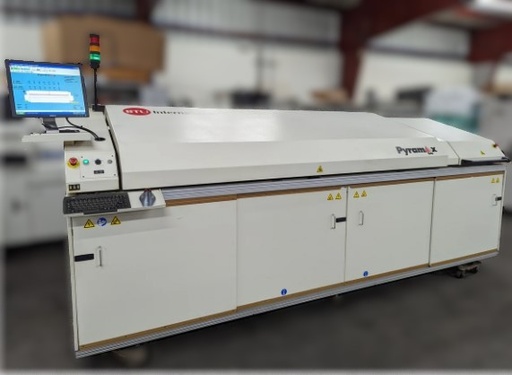

PYRAMAX 98A CONVECTION SOLDER REFLOW SYS
STDT-11

High-throughput forced-convection reflow oven widely used for PCB assembly and semiconductor packaging. Featuring a 98-inch heated length across 7 top and 7 bottom heating zones, it delivers optimized lead-free processing up to 350°C.
