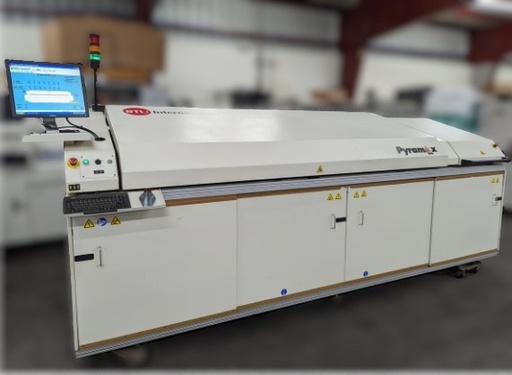

PYRAMAX 98
TELS-2

High-throughput forced-convection reflow oven widely used for PCB assembly and semiconductor packaging. Featuring a 98-inch heated length across 7 top and 7 bottom heating zones, it delivers optimized lead-free processing up to 350°C.

CHML-460A-CT
CH3831301

PCB Size: 535 x (50 - 460)mm
Magazine Rack: 535 x 530 x 570mm
PLC + Touch Screen Control
Option: cover (included)

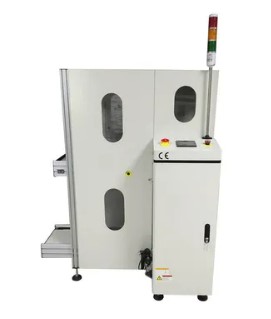

The Multi Magazine Loader is used at the starting of the line for loading of PCB’s to the production line. The unit loads the production line automatically by pushing PCB’s out of a magazine onto the conveyor of the downstream machine.

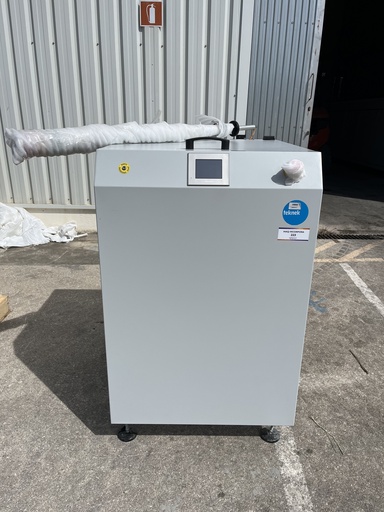

BOARD CLEANER BC460mm
BC460
20314

Teknek BC460 is a single-sided PCB/board cleaner designed to remove metallic and non-metallic particles. It uses tacky rollers and an integral anti-static system to prevent recontamination, ensuring maximum cleanliness before the solder screen printing process.

MR 3017
11061280924

It functions as a magazine unloader that physically separates circuits according to their approval status. Supported board sizes: It allows working with different board lengths (in this model, size "L" processes formats 460 millimeters long by an adjustable width of 50 to 330 millimeters). Operating voltage: It is compatible with AC electrical currents of 110V and 220V (with a variation of ±10V) at frequencies of 50 or 60 Hz.

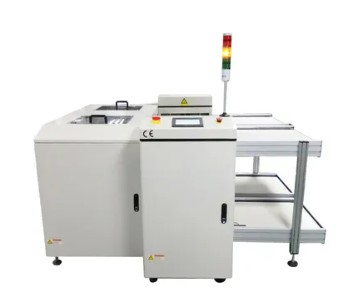

CH3831302

The It functions as a magazine unloader that physically separates circuits according to their approval status. Supported board sizes: It allows working with different board lengths (in this model, size "L" processes formats 460 millimeters long by an adjustable width of 50 to 330 millimeters). Operating voltage: It is compatible with AC electrical currents of 110V and 220V (with a variation of ±10V) at frequencies of 50 or 60 Hz.

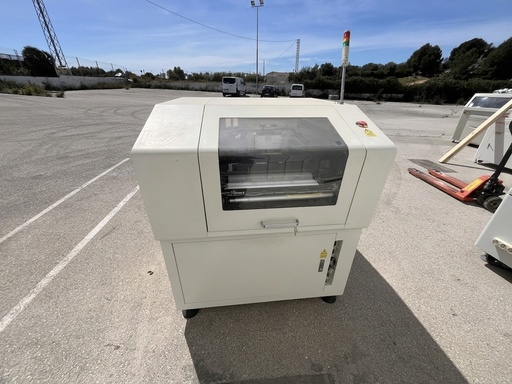

GKG-GL
GL143019

The Juki GKG-GL Achieves a printing accuracy of ±25 micrometers at 6 sigma, ideal for high-density circuits and very small components.
Large format: Supports circuit boards with a maximum size of 510 × 510 mm.
Optimized speed: Offers a very fast center cycle time, typically less than 10 to 12 seconds (excluding cleaning and printing).

U-2007 1956 +Weidmuller 2705000000 - SWITCH ETHERNET IE-SW-EL08-8GT-MINI NO GESTIONADO

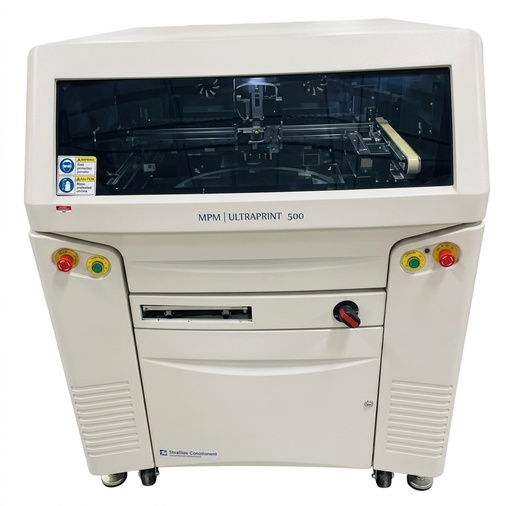

MPM UP1500
15000813

Card capacity: Processes large printed circuit boards up to 23 x 20 inches (584 mm x 508 mm).
Stencil frames: Uses industry-standard 29 x 29 inch (737 mm x 737 mm) frames.
Robust construction: Its welded tubular frame eliminates mechanical stress to maintain stability.
Vision alignment: Features cameras for automatic alignment of cards with the stencil (look-up/look-down system).

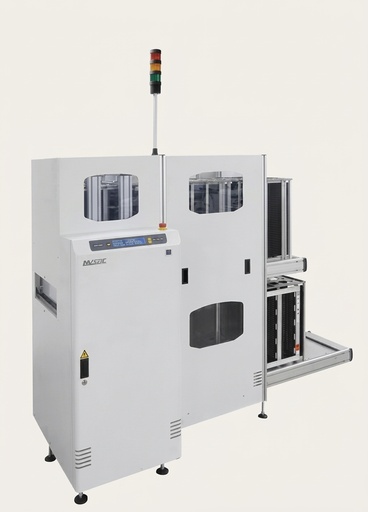

NTM110UL
2001-0259E01

Capacity: It can handle multiple containers simultaneously to maintain continuous operation.
Intelligent Control: It is controlled by an electronic brain (PLC) that ensures smooth movements.
Standard Connection: It uses the SMEMA system to communicate and coordinate with other machines on the SMT line.
Manual Adjustment: The width of the conveyor channel is adjusted to the size of your panels using a manual crank.
Safety: It features LED tower lights to indicate the machine's status and alarms in case of errors.

NTM110LL
2002-0409A01

Automation: Fully automates magazine rack changes to avoid production downtime.
Intelligent Control: Operates via a PLC-controlled system.
Pneumatic Safety: Features magazine rack alignment using upper and lower pneumatic clamps.
Regulated Pressure: The pneumatic pusher operates at controlled pressure to prevent damage to components or PCBs.
Compatibility: Fully compatible with the industry communication standard (SMEMA).

PCB Depaneling Router in-line model: iDPL-S / 1 head (Single table)
RIS1-130307-02

In-Line Configuration: The panels are automatically fed from the upstream machine via conveyor belt, eliminating the need for manual loading by an operator.
Single Table: Unlike models with twin tables, this machine processes one panel at a time on a single, fixed clamping area.
Standard Dual Spindle Head: Although it processes on a single table, the MSTech iDPL-S series comes factory-equipped with a dual spindle system. This allows for automatic tool width adjustment and faster cutting times compared to single spindles.

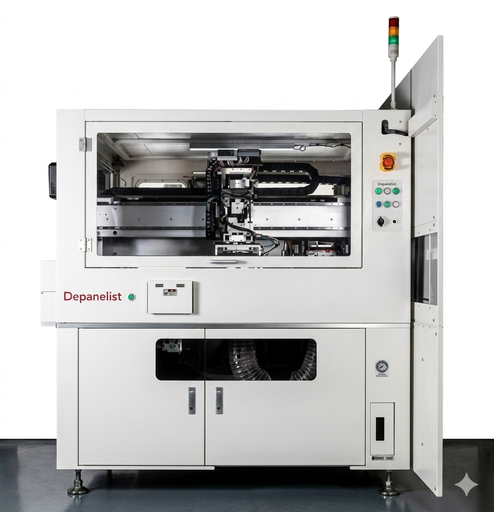

PCB Depaneling Router in-line model: iDPL-S / 1 head (Single table)
RIS1-130307-03

In-Line Configuration: The panels are automatically fed from the upstream machine via conveyor belt, eliminating the need for manual loading by an operator.
Single Table: Unlike models with twin tables, this machine processes one panel at a time on a single, fixed clamping area.
Standard Dual Spindle Head: Although it processes on a single table, the MSTech iDPL-S series comes factory-equipped with a dual spindle system. This allows for automatic tool width adjustment and faster cutting times compared to single spindles.

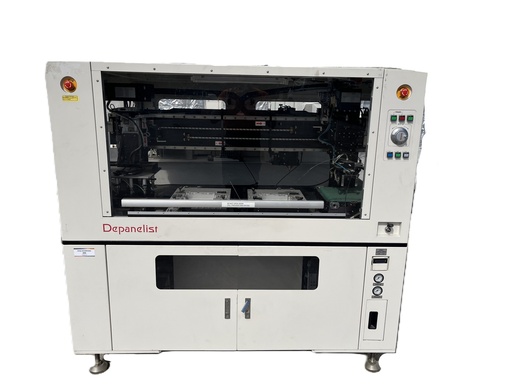

PCB Depaneling Router in-line model: iDPL-S / 1 head (Twin table)
RIS1-130307-04

Factory-installed dual spindle head: The head includes two standard spindles to accelerate cutting speed and improve overall performance. The spindle width is automatically adjusted.
Loader rotation: The loading system can rotate 90 or 180 degrees depending on the model variant. This helps to precisely secure the card to the die or cutting template.
Integrated ionizer as standard: Features an ionized air blower in the cutting area. This protects sensitive components from static electricity and helps to efficiently remove dust. Drill bit life management: Utilizes automatic functions to work with multi-level drill bits (2 to 3 steps).
This extends the life of consumables and reduces operating costs.

PCB Depaneling Router in-line model: iDPL-S / 1 head (Single table)
RIS1-130307-01

In-Line Configuration: The panels are automatically fed from the upstream machine via conveyor belt, eliminating the need for manual loading by an operator.
Single Table: Unlike models with twin tables, this machine processes one panel at a time on a single, fixed clamping area.
Standard Dual Spindle Head: Although it processes on a single table, the MSTech iDPL-S series comes factory-equipped with a dual spindle system. This allows for automatic tool width adjustment and faster cutting times compared to single spindles.

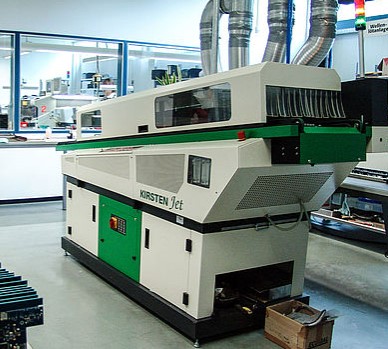

SOLDERING WAVE - K5360 D
53/3257/360

Hollow Jet Wave: Utilizes a special electromagnetic pump with no moving mechanical parts. This creates a very fast, dynamic wave that reaches up to 55 millimeters in height. It prevents failures and guarantees high-quality joints.
Modula Wave System: Its flagship model allows the machine to be configured in individual blocks. This facilitates adding or removing parts quickly according to the factory's needs.
Horizontal Transport: Unlike traditional inclined waves, the plates travel completely flat and horizontally.
Leaders in Lead-Free Soldering: They were pioneered in working with lead-free alloys thanks to their enamelled crucibles that resist corrosion from these materials.

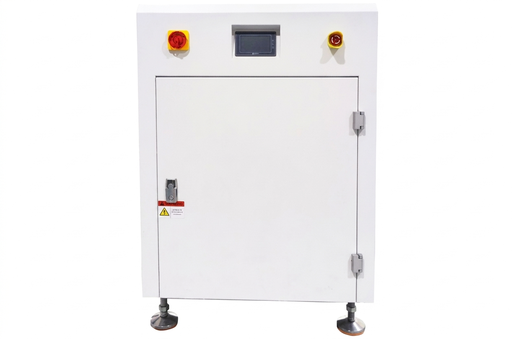

TN-LF550-530 SJ240703002 Lift transport machine max. PCB: 900x550 mm MSTECH SJ240703002

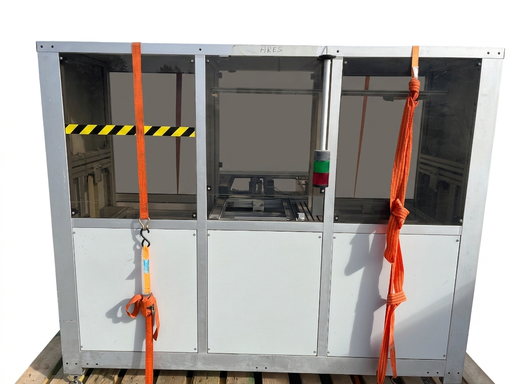

BUFFER LR2R 500V 1604 Weidmuller 2705000000 - SWITCH ETHERNET IE-SW-EL08-8GT-MINI NO GESTIONADO MSTECH 1604

The AUTOLINE BUFFER LR2R 500V 1604 is a PCB handling and buffering unit designed for integration into SMT production lines. It provides temporary board storage and controlled PCB transfer between manufacturing processes, helping to maintain a continuous production flow and reduce line interruptions. The system is intended for automated electronics manufacturing environments and supports efficient material handling between SMT equipment.

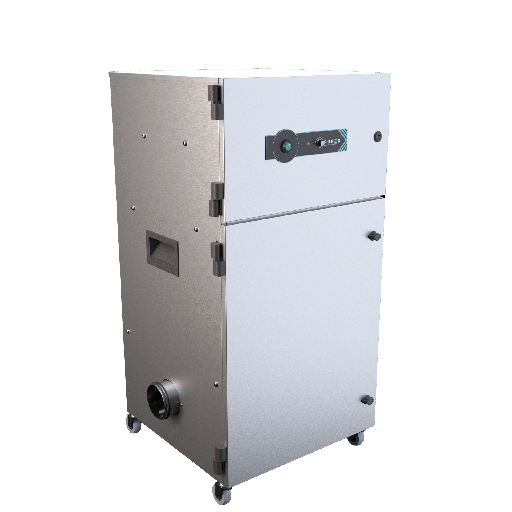

ALPHA DUST 400 24105 ALPHA DUST 400 230V MSTECH 24105

PUREX ALPHA DUST 400 – 230V

The PUREX Alpha Dust 400 (230V) is a compact industrial dust extraction unit designed to remove airborne dust and particulate contaminants generated during manufacturing and processing operations. Featuring automatic electronic flow control, adjustable airflow, and visual/audible filter blockage warnings, the system helps maintain consistent extraction performance while reducing downtime. Its robust stainless-steel construction, quiet operation, and mobile design make it suitable for a wide range of industrial applications. Unlike standard fume extraction models, the Alpha Dust 400 is specifically configured for dust extraction and operates using a pre-filter system without a main HEPA or carbon filter.

Key Specifications

Voltage: 230V
Airflow: up to 400 m³/h
Automatic electronic flow control
Adjustable airflow settings
Visual and audible filter blockage alerts
Stainless steel construction
Mobile unit mounted on castors
Designed for industrial dust extraction applications

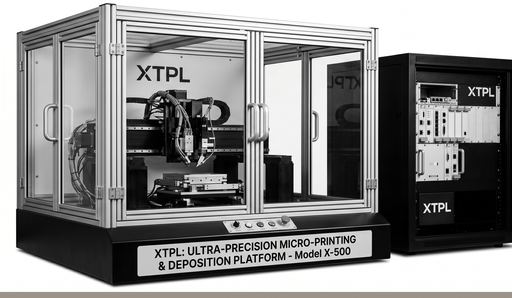

XTPL DELTA 4H9T3WDQ XTPL DELTA MSTECH 4H9T3WDQ

XTPL Delta Printing System

The XTPL Delta Printing System is a high-precision additive manufacturing platform designed for research, development, and prototyping of advanced microelectronic devices. Utilizing XTPL’s proprietary Ultra-Precise Dispensing (UPD) technology, the system enables the direct printing of conductive structures with resolutions down to 1 µm, supporting applications in semiconductors, advanced PCBs, displays, flexible electronics, and microelectronics packaging. The Delta Printing System offers maskless, pressure-based material deposition, compatibility with high-viscosity conductive inks, and precise pattern generation for rapid prototyping and low-volume production environments.

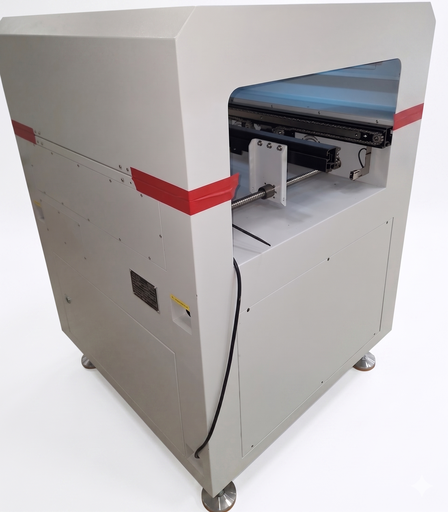

SC-900 AT022887 Seal UV Conveyor SC-900 for max PCB 450 mm MSTECH
Specifications：
1. Maximum PCB width: 450mm
2. Transmission height: 900±20mm
3. Language: English，waterproof with UV light
4. Rail fixing side: front rail
5. Signal Connection: SMEMA head
6. Dimension:900*880*1330mm
7. Weight: 200Kg

Configuration：
1. Voltage: AC220V, 50/60Hz
2. Plug: European Standard
3. Direction: Left to Right
