MST-[SNAPCURE] 395 XXL Gen7

UV LED Curing System, Controller: PLC + HMI, With UV sensor, With detection function( by voltage), without glass and Water Cooling,
Emitting window: 600x600mm, Wavelenght 395nm
395nm：1200mW/cm² (50mm)

MSTECH Europe
MST-[SNAPCURE] UVC Multifrequence M

UV LED Curing System, Controller: PLC + HMI, 2 x Feane without glass Air Cooling
Emitting window: 125x100mm
235nm, 254nm, 275nm
around 20mW/cm2
3 wavelengths be controlled at the same time

MSTECH Europe
MST-[SNAPCURE] UVC Multifrequence L

UV LED Curing System, Controller: PLC + HMI, 2 x Feane without glass Air Cooling
Emitting window: 250x100mm
235nm, 254nm, 275nm
around 20mW/cm2
3 wavelengths be controlled at the same time

MSTECH Europe
MST-[SNAPCURE] UVC Multifrequence XL

UV LED Curing System, Controller: PLC + HMI, 2 x Feane without glass Air Cooling
Emitting window: 400x100mm
235nm, 254nm, 275nm
around 20mW/cm2
3 wavelengths be controlled at the same time

MSTECH Europe

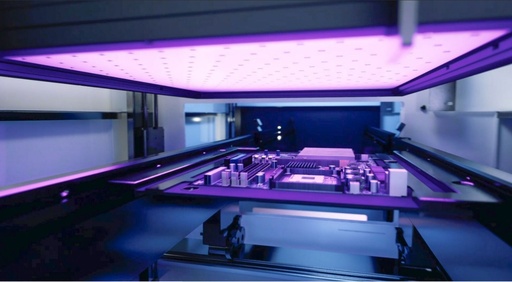

MST-[SNAPCURE] UVC Multifrequence XXL

UV LED Curing System, Controller: PLC + HMI, 2 x Feane without glass Air Cooling
Emitting window: 600x100mm
235nm, 254nm, 275nm
around 20mW/cm2
3 wavelengths be controlled at the same time

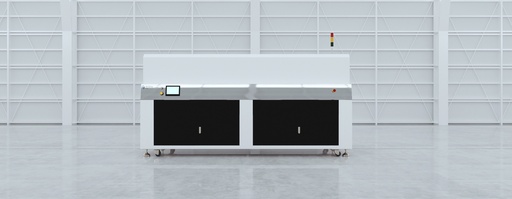

Dimension: 5000 L x 1250 W x 1560 H
Pcb Dimension: Min: 50 L x 50 W / Max 405 W mm
Top/Bottom Max component height: 120 mm
Control System: PLC
Control Panel: Color Touch Screen
Operating System: Dedicated software real time operation
Tunnel composed of IR modules
Chain conveyor
Manual or auto adjustable conveyor width
USB port and LAN Port for loading and unloading profiles
Exahust OUTPUT
SMEMA Connected
Weight: 1600 Kg Approx

MSTECH Europe
LITE IR 2
Specification：
1. Maximum PCB Size: 740*510mm
2. Upper transmission height: 950±20mm Lower transmission height：350±20mm
3. Transmission method: Chain pin length 5mm
4. Maximum PCBA Height: ± 110mm
5. Control mode: touch screen + Panasonic PLC with network port
6. Rail fixing side: front rail
7. Heating zone: up 2/down 0 8.Signal Connection: SMEMA head
8. Dimension: 2000x1230x1400mm 10.Conveyor with auto type lifting door
9. There are 2 strips of LED lights on the door to show the status of the upper and lower boards.
10. CE standard electrical appliances and circuit design

Configuration：
1. Voltage: 3P 380V
2. Direction: Left to Right
3. Heating method: IR
4. Panasonic display

MSTECH Europe
LITE IR 3

Specification：
1. Maximum PCB Size: 740*510mm
2. Upper transmission height: 950±20mm
Lower transmission height：350±20mm
3. Transmission method: Chain pin length 5mm
4. Maximum PCBA Height: ± 110mm
5. Control mode: touch screen + Panasonic PLC with network port
6. Rail fixing side: front rail
7. Heating zone: up 4/down 0
8. Signal Connection: SMEMA head
9. Dimension: 3000x1230x1400mm
10. Conveyor with auto type lifting door
11. There are 2 strips of LED lights on the door to show the status of the upper and lower boards.
12. CE standard electrical appliances and circuit design

Configuration：
1. Voltage: 3P 380V
2. Direction: Left to Right
3. Heating method: IR
4. Panasonic display

MSTECH Europe

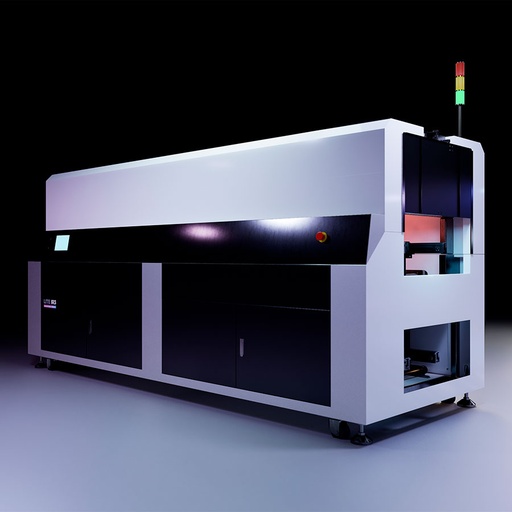

LITE IR 4

Dimension: 3900 L x 1250 W x 1560 H
Pcb Dimension: Min: 50 L x 50 W / Max 405 W mm
Top/Bottom Max component height: 120 mm
Control System: PLC
Control Panel: Color Touch Screen
Operating System: Dedicated software real time operation
Tunnel composed of IR modules
Chain conveyor
Manual or auto adjustable conveyor width
USB port and LAN Port for loading and unloading profiles
Exahust OUTPUT
SMEMA Connected
Weight: 1200 Kg Approx

MSTECH Europe
ULTRA-FAST CURING IN JUST 10 SECONDS

The UV Irradiation Source has world
best efficiency using high power UV
LED panel. It is available either as UV
single frequency or as multi-frequency
spectrum from 265 nm toward 405 nm.

MSTECH Europe

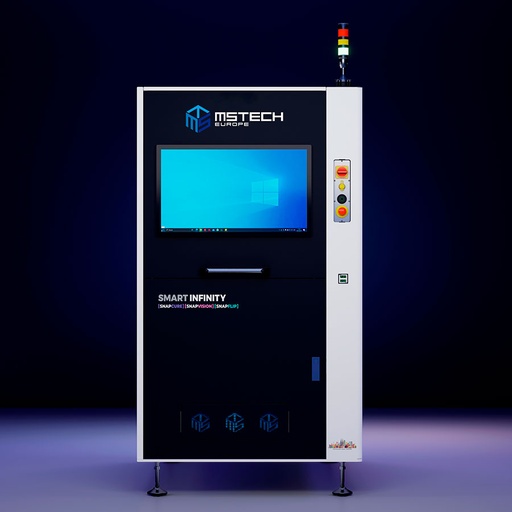

SMART INFINITY SMNAP FLIP SNAP VISION SNAP CURE

CONFIGURATION FLEXIBILITY
» [SNAPVISION][SNAPCURE][SNAPFLIP] inside.
» Multi-language 32’’ tactile HMI.
» No air supply required.
» Multi process sensors closed loop process.
» High resolution multi type inspection.
» 1D/2D barcode reading.
» Multi wavelength curing.
» Single lane capability up to 510 x 460 mm.
PRODUCTIVITY
» Inspection time less than 4 seconds/side.
» Curing time approx. 5 seconds/side.
» Flip less than 2 seconds.
FULL INTERCONNECTED TRACEABILITY (
OPTION)
OPTIMIZATION
→ Floor space & Energy efficient. Eco-friendly.
UNIQUE CONCEPT

MSTECH Europe

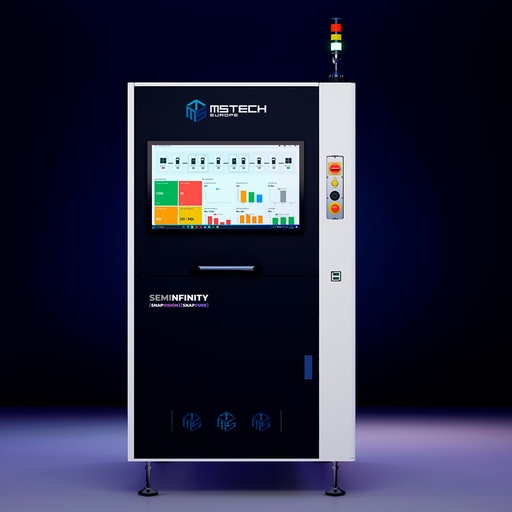

SEMI INFINITY

CONFIGURATION FLEXIBILITY
» [SNAPVISION][SNAPCURE] inside.
» Multi-language 32’’ tactile HMI.
» No air supply required.
» Multi closed-loop processor sensors.
» Fine pitch Datamatrix reading.
» ISO6 (Class 1000) / ESD Level 1 / Full CE / UL.
» Certification / Semi S2/S8 Compliant SECS.
» GEM ready / EMC / F47NPA79.
» Wavelenght controller and closed-loop.radiation.
PRODUCTIVITY
» Less than 2 seconds inspection time.
» Curing time under 5 seconds per tray.
FULL INTERCONNECTED TRACEABILITY (
OPTION)
OPTIMIZATION
» Floor space & Energy efficient. Eco-friendly.
UNIQUE CONCEPT

MSTECH Europe

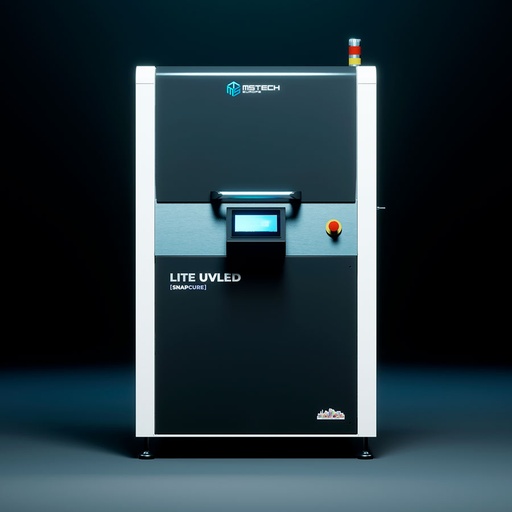

MST-[SNAPCURE] 395 L Gen5

UV LED Curing System, Controller: PLC + HMI, With UV sensor, With detection function( by voltage), 2 x Feane without glass Air Cooling,
Emitting window: 400x250mm, Wavelenght 395nm
395nm：600mW/cm² (50mm)

MSTECH Europe x Peters

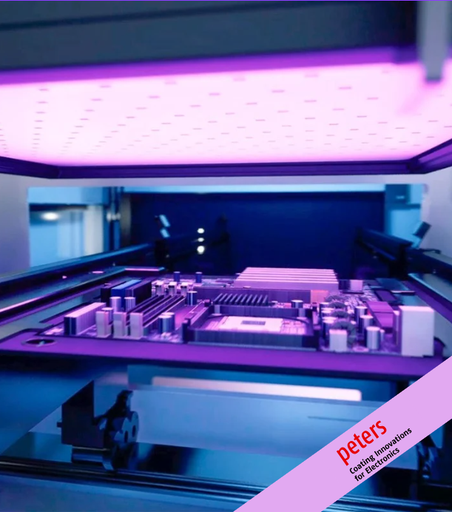

[SNAPCURE] 395 XL Gen5

UV LED Curing System, Controller: PLC + HMI, With UV sensor, With detection function( by voltage), 2 x Feane without glass Air Cooling,
Emitting window: 500x400mm, Wavelenght Wavelenght 395nm
395nm：600mW/cm² (50mm)

MSTECH Europe x Peters
MST[SNAPCURE] 395 XXL Gen5

UV LED Curing System, Controller: PLC + HMI, With UV sensor, With detection function( by voltage), 2 x Feane without glass Air Cooling,
Emitting window: 600x600mm, Wavelenght Wavelenght 395nm
395nm：600mW/cm² (50mm)
