MSTECH Europe

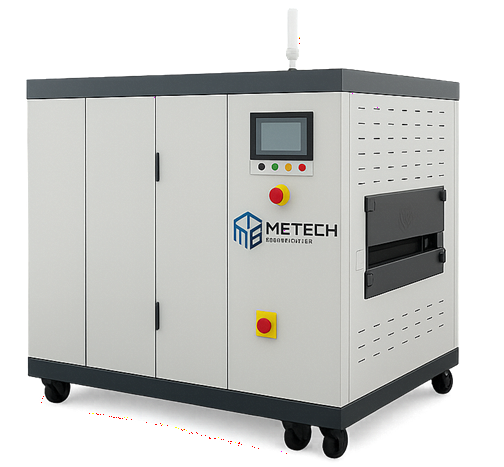

Classic Mecury Oven

The Mercury oven is designed for efficient and uniform curing of coatings, adhesives, and encapsulants in SMT and electronics manufacturing. It ensures controlled heat distribution for reliable curing performance, improving product quality and consistency. With adjustable conveyor speed, it easily adapts to different curing profiles and production requirements, making it suitable for continuous inline processing across a wide range of electronic assemblies.

MSTECH Europe

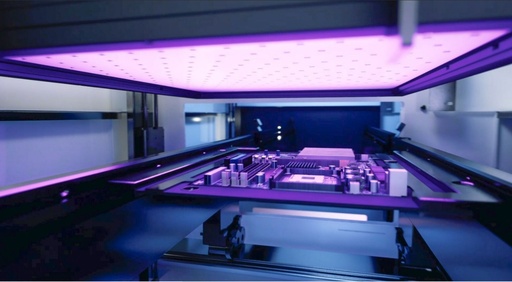

MST- [SNAPCURE] UVA &UVC Multifrequence L
UV LED Curing System, Controller: PLC + HMI, With UVA sensor, With detection function( by voltage), 2 x Feane without glass Air Cooling,
Emitting window: 400x250mm, Wavelenght 254,365nm, 395nm
254nm：30mW/cm² (50mm)
365nm：300mW/cm² (50mm)
395nm：400mW/cm² (50mm)

MSTECH Europe

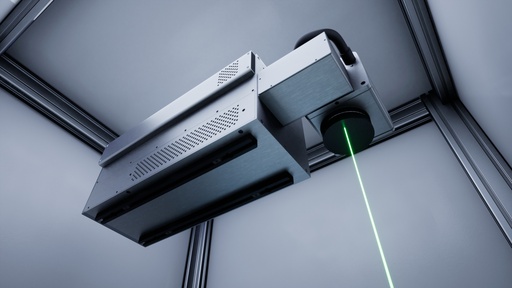

LITE PLUS [SNAPLIGHT][SNAP FLIP]

MULTIFUNCTION LASER
WITH A UNIQUE EXTENDED
FOV, SUITABLE FOR
µMACHINING, SURFACE
PREPARATION, AND
DIGITAL SINTERING

The SNAP LIGHT module expands
the MSTECH software suite with a
high-precision laser system designed
for critical application in electronic &
semicon manufacturing. It performs
ultra- accurate ablation, marking,
sintering, cleaning, and edge-finishing
operations with full digital control.
SNAP LIGHT executes with
micrometric precision, ensuring
maximum efficiency, repeatability, and
reduced process errors.

Features
» Dimensions (WxDxH) : 900 x 1280 x 2148 mm
» INVERT PCBs (180º) FOR DOUBLE-SIDED PROCESS
» Laser spot: ≥ 40 μm.
» Marking area indicator.
» Internal barcode generator.
» Marca full graphics PC Software.
» Available as an OEM Kit or
within MSTECH Europe platform
compatible with SNAP MOTION, and
SMARTBOX and Process Tracker (optional)

MSTECH Europe
MST-[SNAPCURE] UVA &UVC Multifrequence XL
UV LED Curing System, Controller: PLC + HMI, With UVA sensor, With detection function( by voltage), 2 x Feane without glass Air Cooling,
Emitting window: 500x400mm, Wavelenght 254,365nm, 395nm
254nm：30mW/cm² (50mm)
365nm：300mW/cm² (50mm)
395nm：400mW/cm² (50mm)

MSTECH Europe
MST-[SNAPCURE] UVA &UVC Multifrequence XXL

UV LED Curing System, Controller: PLC + HMI, With UVA sensor, With detection function( by voltage), 2 x Feane without glass Air Cooling,
Emitting window: 600x600mm, Wavelenght 254,365nm, 395nm
254nm：30mW/cm² (50mm)
365nm：300mW/cm² (50mm)
395nm：400mW/cm² (50mm)

MSTECH Europe
MST-[SNAPCURE] UVA Multifrequence L
UV LED Curing System, Controller: PLC + HMI, With UV sensor, With detection function( by voltage), 2 x Feane without glass Air Cooling,
Emitting window: 400x250mm, Wavelenght 365nm, 395nm
365nm：300mW/cm² (50mm)
395nm：400mW/cm² (50mm)

MSTECH Europe
MST-[SNAPCURE] UVA Multifrequence XL

UV LED Curing System, Controller: PLC + HMI, With UV sensor, With detection function( by voltage), 2 x Feane without glass Air Cooling,
Emitting window: 500x400mm, Wavelenght 365nm, 395nm
365nm：300mW/cm² (50mm)
395nm：400mW/cm² (50mm)

MSTECH Europe
MST-[SNAPCURE] UVA Multifrequence XXL

UV LED Curing System, Controller: PLC + HMI, With UV sensor, With detection function( by voltage), 2 x Feane without glass Air Cooling,
Emitting window: 600x600mm, Wavelenght 365nm, 395nm
365nm：300mW/cm² (50mm)
395nm：400mW/cm² (50mm)

MSTECH Europe
MST-[SNAPCURE] UVA Multifrequence Wafer 300mm

UV LED Curing System for Wafer applications, Controller: PLC + HMI
With UVA LED Sensor, With detection function( by voltage), 2 x Feane without glass Air Cooling
Emitting window: 300x300mm, Wavelength: 365nm,395nm,405nm
1200mW/cm2 at 20mm

MSTECH Europe
MST-[SNAPCURE] 365 L Gen5

UV LED Curing System, Controller: PLC + HMI, With UV sensor, With detection function( by voltage), 2 x Feane without glass Air Cooling,
Emitting window: 400x250mm, Wavelenght 365nm
365nm：600mW/cm² (50mm)

MSTECH Europe
MST-[SNAPCURE] 365 XL Gen5

UV LED Curing System, Controller: PLC + HMI, With UV sensor, With detection function( by voltage), 2 x Feane without glass Air Cooling,
Emitting window: 500x400mm, Wavelenght Wavelenght 365nm
365nm：600mW/cm² (50mm)

MSTECH Europe
MST-[SNAPCURE] 365 XXL Gen5

UV LED Curing System, Controller: PLC + HMI, With UV sensor, With detection function( by voltage), 2 x Feane without glass Air Cooling,
Emitting window: 600x600mm, Wavelenght Wavelenght 365nm
365nm：600mW/cm² (50mm)

MSTECH Europe
MST-[SNAPCURE] 365 L Gen7

UV LED Curing System, Controller: PLC + HMI, With UV sensor, With detection function( by voltage), without glass and Water Cooling,
Emitting window: 400x250mm, Wavelenght 365nm
365nm：1200mW/cm² (50mm)

MSTECH Europe
MST-[SNAPCURE] 365 XL Gen7

UV LED Curing System, Controller: PLC + HMI, With UV sensor, With detection function( by voltage), without glass and Water Cooling,
Emitting window: 500x400mm, Wavelenght 365nm
365nm：1200mW/cm² (50mm)

MSTECH Europe
MST-[SNAPCURE] 365 XXL Gen7

UV LED Curing System, Controller: PLC + HMI, With UV sensor, With detection function( by voltage), without glass and Water Cooling,
Emitting window: 600x600mm, Wavelenght 365nm
365nm：1200mW/cm² (50mm)

MSTECH Europe
MST-[SNAPCURE] 395 L Gen5

UV LED Curing System, Controller: PLC + HMI, With UV sensor, With detection function( by voltage), 2 x Feane without glass Air Cooling,
Emitting window: 400x250mm, Wavelenght 395nm
395nm：600mW/cm² (50mm)

MSTECH Europe
MST-[SNAPCURE] 395 XL Gen5

UV LED Curing System, Controller: PLC + HMI, With UV sensor, With detection function( by voltage), 2 x Feane without glass Air Cooling,
Emitting window: 500x400mm, Wavelenght Wavelenght 395nm
395nm：600mW/cm² (50mm)

MSTECH Europe
MST[SNAPCURE] 395 XXL Gen5

UV LED Curing System, Controller: PLC + HMI, With UV sensor, With detection function( by voltage), 2 x Feane without glass Air Cooling,
Emitting window: 600x600mm, Wavelenght Wavelenght 395nm
395nm：600mW/cm² (50mm)

MSTECH Europe
MST-[SNAPCURE] 395 L Gen7

UV LED Curing System, Controller: PLC + HMI, With UV sensor, With detection function( by voltage), without glass and Water Cooling,
Emitting window: 400x250mm, Wavelenght 395nm
395nm：1200mW/cm² (50mm)

MSTECH Europe
MST-[SNAPCURE] 395 XL Gen7

UV LED Curing System, Controller: PLC + HMI, With UV sensor, With detection function( by voltage), without glass and Water Cooling,
Emitting window: 500x400mm, Wavelenght 395nm
395nm：1200mW/cm² (50mm)
