Non-Stop Selective Soldering Delivers Results
Choose from the Synchro 3, 5, or 5 XL, offering three or five soldering stations. All Synchro systems process several boards simultaneously, in various quantities, using different alloys and nozzles or a single fixed nozzle size. The system configuration includes a Microdrop drop-jet fluxer and can accommodate multiple solder nozzles to apply lead-free and leaded alloys.

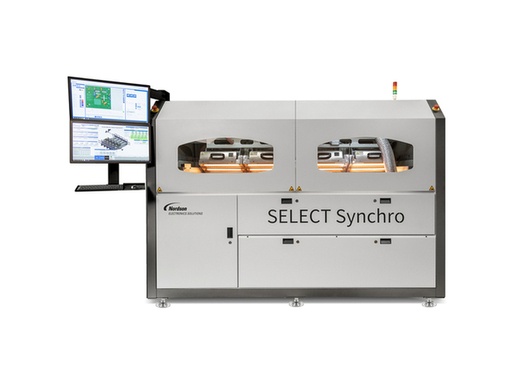

The SELECT Synchro:
• Fast. Boards continuously travel through the system, boosting throughput by 20-40% for most applications, with more gain possible if conveyance and soldering times are comparable.
• Easy to use. Automatically balances soldering work between soldering pots for increased throughput.
• Compact. Due to the minimal pot and fluxer motion in the conveyor direction, all Synchro systems reduce the system footprint, with the Synchro 5 reducing footprint by as much as 60% compared to traditional multi-station systems.
• Flexible.Depending on the system, supports up to three or five solder pots, each with the ability to accommodate different nozzle sizes, eliminating the need to change nozzles.
• Dependable.. Forms reliable solder joints without overheating neighboring components to protect product performance.

Choose a System Package:
• Essential – The Synchro 3 and 5 systems offer non-stop selective soldering productivity for 2500 mm x 460 mm boards.
• Large-Scale – The Synchro 5 XL system offers non-stop selective soldering productivity for 2500 mm x 680 mm boards.

Base model includes:
• Three solder pots (Synchro 3).
• Five solder pots (Synchro 5).
• Independent areas for concurrent fluxing, preheating, and soldering.
• SMEMA compatible with positive board location.
• Automatic conveyor-width adjustment.
• MicroDrop drop-jet fluxer.
• Flux-level sensing.
• Top and bottom heaters.
• Full titanium solder pot and pump assembly.
• Quick-change magnetically coupled solder nozzle.
• SolderWorks Editor software for easy point-and-click programming.

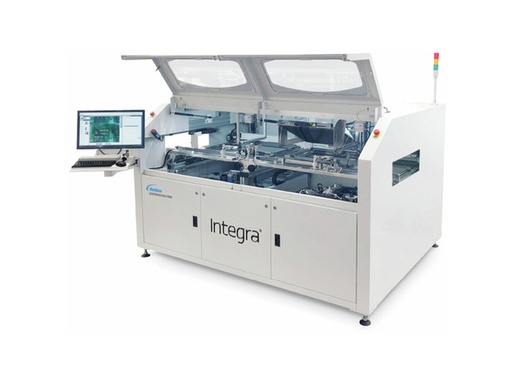

The Integra® 508.3 selective soldering system is ideal for high-volume production.

High Volume, Maximum Productivity
The multi-station, two-solder-pot Integra 508.3 combines fluxing, pre-heating, and soldering to increase throughput and reduce cycle time significantly.
Receive your essential selective soldering system with minimal lead time.

The Integra 508.3:
• Flexibility. The two-segment configuration can solder two boards in-line with two segmented conveyors without the boards being panelized or requiring tooling.
• Parallel processing. In-line parallel processing significantly increases throughput.
• Simple maintenance. Full titanium solder pots compatible with all solder alloys plus easy tool-free maintenance.

Essential System Capabilities
• Productivity – With two solder pots, a MicroDrop drop-jet fluxer, extensive pre-heat capabilities, two solder pots, and two-segment in-line parallel processing, the Integra 508.3 is essential for advanced productivity.

Base model includes:
• MicroDrop drop-jet fluxer.
• Flux-level sensing system.
• Two solder pots.
• Nozzle width measuring.
• Parallel soldering capabilities for panelized and non-panelized boards.
• Small and large nozzle soldering capabilities for boards up to 700 x 508 mm.
• SMEMA conveyor with positive board location.
• All titanium solder pot and pump assembly.
• Quick-change magnetically-coupled solder nozzles.
• SolderWorks Editor and machine control software.

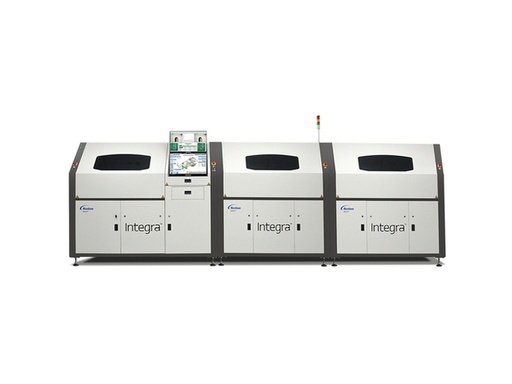

The Integra® 508.4 selective soldering system is ideal for high-volume production.
High Volume, Maximum Productivity
The multi-station, four-solder-pot Integra 508.4 combines fluxing, pre-heating, and soldering to increase throughput and reduce cycle time significantly.
Receive your essential selective soldering system with minimal lead time.

The Integra 508.4:
• Flexibility. The two-segment configuration can solder two boards in-line with two segmented conveyors without the boards being panelized or requiring tooling.
• Parallel processing. In-line parallel processing significantly increases throughput.
• Simple maintenance. Full titanium solder pots compatible with all solder alloys plus easy tool-free maintenance.

Essential System Capabilities
• Productivity Plus – With four solder pots, a MicroDrop drop-jet fluxer, extensive pre-heat capabilities, and two-segment in-line parallel processing, the Integra 508.4 takes advanced productivity to the next level.

Base model includes:
• MicroDrop drop-jet fluxer.
• Flux-level sensing system.
• Four solder pots.
• Nozzle width measuring.
• Parallel soldering capabilities for panelized and non-panelized boards.
• Small and large nozzle soldering capabilities for boards up to 700 x 508 mm.
• SMEMA conveyor with positive board location.
• All titanium solder pot and pump assembly.
• Quick-change magnetically-coupled solder nozzles.
• SolderWorks Editor and machine control software.
