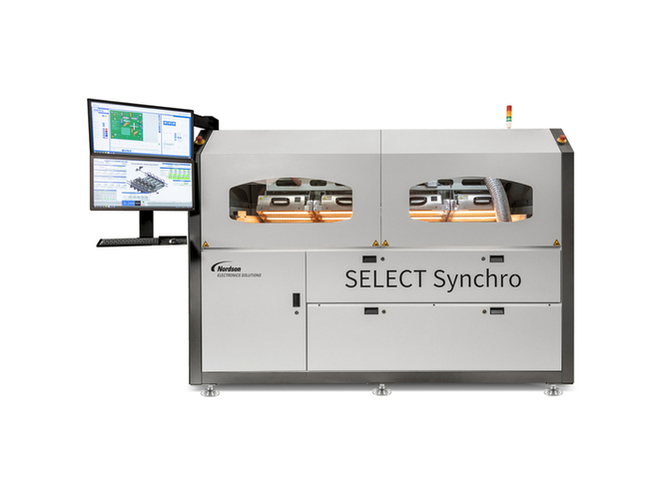

SELECT Synchro

Non-Stop Selective Soldering Delivers Results
Choose from the Synchro 3, 5, or 5 XL, offering three or five soldering stations. All Synchro systems process several boards simultaneously, in various quantities, using different alloys and nozzles or a single fixed nozzle size. The system configuration includes a Microdrop drop-jet fluxer and can accommodate multiple solder nozzles to apply lead-free and leaded alloys.

The SELECT Synchro:
• Fast. Boards continuously travel through the system, boosting throughput by 20-40% for most applications, with more gain possible if conveyance and soldering times are comparable.
• Easy to use. Automatically balances soldering work between soldering pots for increased throughput.
• Compact. Due to the minimal pot and fluxer motion in the conveyor direction, all Synchro systems reduce the system footprint, with the Synchro 5 reducing footprint by as much as 60% compared to traditional multi-station systems.
• Flexible.Depending on the system, supports up to three or five solder pots, each with the ability to accommodate different nozzle sizes, eliminating the need to change nozzles.
• Dependable.. Forms reliable solder joints without overheating neighboring components to protect product performance.

Choose a System Package:
• Essential – The Synchro 3 and 5 systems offer non-stop selective soldering productivity for 2500 mm x 460 mm boards.
• Large-Scale – The Synchro 5 XL system offers non-stop selective soldering productivity for 2500 mm x 680 mm boards.

Base model includes:
• Three solder pots (Synchro 3).
• Five solder pots (Synchro 5).
• Independent areas for concurrent fluxing, preheating, and soldering.
• SMEMA compatible with positive board location.
• Automatic conveyor-width adjustment.
• MicroDrop drop-jet fluxer.
• Flux-level sensing.
• Top and bottom heaters.
• Full titanium solder pot and pump assembly.
• Quick-change magnetically coupled solder nozzle.
• SolderWorks Editor software for easy point-and-click programming.
