The DECAN series models can handle a wide range of components
and maximize productivity with various PCB transfer systems.

· Secures the applicability to components and conveyor flexibility.
· Reduces production time by optimizing the motion sequence.
· Reinforces odd-shape component recognition by applying 3D lighting system

Features

Productivity

Dual Lane PCB Transfer System
Realizes zero PCB loading/unloading time by loading the PCB on the opposite lane and having it stand by during operation (productivity increases by 15% compared to a single lane)


Flexible Production

Supporting Modular Conveyor System for Various Production Environments
Allows optimum combination of conveyor modules by applying a modular conveyor replaceable on site (Shuttle ↔ Dual).


High Reliability

Prevents Reverse Insertion by Recognizing the Polarity Mark at the Bottom Surface of a Component
Recognizes the polarity mark at the bottom surface of a component using the 3-stepped 3D lighting.

Stage Camera 1EA is included

High Performance

Productivity Improvement
Increases the speed and accuracy for placing microchips (03015) Applies dual-lane PCB transfer system (productivity increases by 15% compared to a single lane)
이미지
High Reliability

Adopts a Linear Motor to Realize Low Noise and Vibration
Applies the twin servo control and linear motor to the Y-axis to realize low noise and vibration.

Flexible Production

Supporting Modular Conveyor System for Various Production Environments
Possible to produce various models depending on the Modular Conveyor System replaceable on site.

Easy Operation

Reinforces the Convenience of Machine Software Operation
The built-in optimization software allows a PCB program to be easily created and edited.

The DECAN series models can handle a wide range of components
and maximize productivity with various PCB transfer systems.

· Secures the applicability to components and conveyor flexibility.
· Reduces production time by optimizing the motion sequence.
· Reinforces odd-shape component recognition by applying 3D lighting system

Features

Productivity

Dual Lane PCB Transfer System
Realizes zero PCB loading/unloading time by loading the PCB on the opposite lane and having it stand by during operation (productivity increases by 15% compared to a single lane)


Flexible Production

Supporting Modular Conveyor System for Various Production Environments
Allows optimum combination of conveyor modules by applying a modular conveyor replaceable on site (Shuttle ↔ Dual).


High Reliability

Prevents Reverse Insertion by Recognizing the Polarity Mark at the Bottom Surface of a Component
Recognizes the polarity mark at the bottom surface of a component using the 3-stepped 3D lighting.

Multi-Functional Place

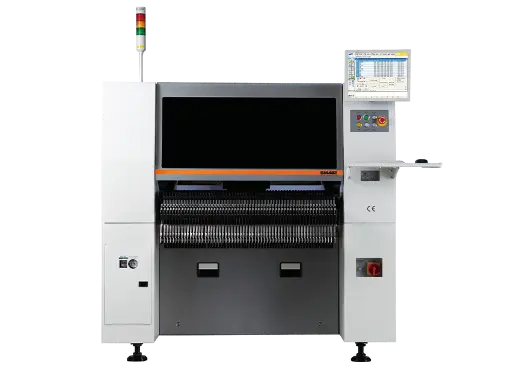

SM series models are the best selling products and have been proven by many customers worldwide.

·Adopts high-pixel vision system allowing accurate placement of IC components.
·Easily registers complex shapes of components with the Polygon function.

Features :

Reliability

Adopts Powerful Camera Algorithm
Improves recognition accuracy with the component image noise removal function and automatic teaching function of components Corrects the pickup position of components such as Chip, TR, BGA and QFP automatically in real time

Easy Operation

Polygon Recognition Algorithm
Allows even the components of a complicated shape to be easily registered by extracting the component shape and recognizing it entirely.

Easy Operation

Multi-Vendor Component Management Function
When the same components are supplied from different component supply devices, allows them to be used without changing a PCB file and downloading it again.

Fast Chip Shooter

SM series models are the best selling products and have been proven by many customers worldwide.

· High-performance chip shooter with a new fly camera
· World's highest speed of 78,000CPH among chip shooters of the same class
· With two gantry dual-lane construction, supports various production modes

Productivity

On-the-fly Placement Method
Possible to recognize a component without stopping while moving after component pickup Minimizes the moving time between pickup and placement positions and ensures zero recognition time
Performance

Dual Lane Shuttle Conveyor
Maximizes the productivity of small boards through dual lane production Secures scalability to large boards using a shuttle conveyor

Reliability

Component Monitoring before/after Placement
Inspect a nozzle for contamination during production to prevent non-inserted and dumped components in advance.

Easy Operation

Easy Component Registration (New Part Editor)
Possible to register component information with the clicking of a mouse by applying a Drag & Drop based component registration system
