Classic-LC10NG-460
Linking conveyor / inspection conveyor, 1000mm length; Motorized width adjustment; NG/OK reject functions; PCB Max(mm): 500x460; PCB Min. (mm): 50x50; Machine Size (mm): 1000x950x1250

Application :

This unit links between SMT machines and cooling down PCB from reflow oven in the SMT line.

This Cooling conveyor for PCB is available to installed a touch screen controlled cooling fans on top or bottom, the cooling time length is available to setup on the touch screen software.

This cooling conveyor is also available to be customized for different customer requirements.

Features

• Panasonic PLC program control

• By-pass mode, inspection mode selectable

• Conveyor width adjustment by using hand crank.

• Cooling fans with high advanced quality on top cover

• Heavy bottom design to prevent shifting

• Conveyor motor is using with stepper motor

• PCB flow direction flows can be customized

• SMEMA compatible

• Cooling time length is available to be setup by timer (optional)

• Conveyor width adjustment automatic by software (optional)

MSTECH Europe

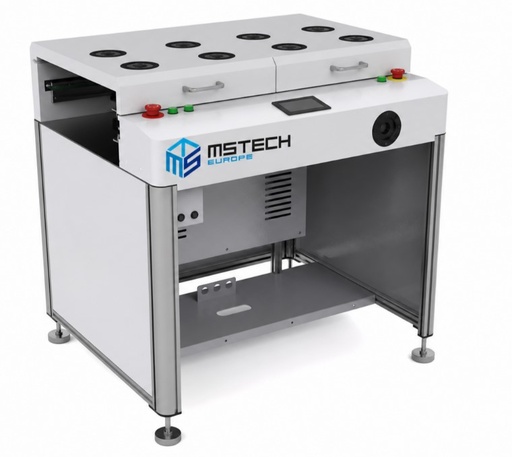

Classic-LC15NG-460
Linking conveyor / inspection conveyor, 1500mm length; Motorized width adjustment; NG/OK reject functions; PCB Max(mm): 500x460; PCB Min. (mm): 50x50; Machine Size (mm): 1500x950x1250

Application :

This unit links between SMT machines and cooling down PCB from reflow oven in the SMT line.

This Cooling conveyor for PCB is available to installed a touch screen controlled cooling fans on top or bottom, the cooling time length is available to setup on the touch screen software.

This cooling conveyor is also available to be customized for different customer requirements.

Features

• Panasonic PLC program control

• By-pass mode, inspection mode selectable

• Conveyor width adjustment by using hand crank.

• Cooling fans with high advanced quality on top cover

• Heavy bottom design to prevent shifting

• Conveyor motor is using with stepper motor

• PCB flow direction flows can be customized

• SMEMA compatible

• Cooling time length is available to be setup by timer (optional)

• Conveyor width adjustment automatic by software (optional)

MSTECH Europe
Classic-CLC10-460
Cooling Linking conveyor, 1000mm length; Motorized width adjustment; PCB Max(mm): 500x460; PCB Min. (mm): 50x50; Machine Size (mm): 1000x950x1250

Application :

This unit links between SMT machines and cooling down PCB from reflow oven in the SMT line.

This Cooling conveyor for PCB is available to installed a touch screen controlled cooling fans on top or bottom, the cooling time length is available to setup on the touch screen software.

This cooling conveyor is also available to be customized for different customer requirements.

Features

• Panasonic PLC program control

• By-pass mode, inspection mode selectable

• Conveyor width adjustment by using hand crank.

• Cooling fans with high advanced quality on top cover

• Heavy bottom design to prevent shifting

• Conveyor motor is using with stepper motor

• PCB flow direction flows can be customized

• SMEMA compatible

• Cooling time length is available to be setup by timer (optional)

• Conveyor width adjustment automatic by software (optional)

MSTECH Europe
Classic-CLC15-460
Cooling Linking conveyor, 1500mm length; Motorized width adjustment; PCB Max(mm): 500x460; PCB Min. (mm): 50x50; Machine Size (mm): 1500x950x1250
Application :

This unit links between SMT machines and cooling down PCB from reflow oven in the SMT line.

This Cooling conveyor for PCB is available to installed a touch screen controlled cooling fans on top or bottom, the cooling time length is available to setup on the touch screen software.

This cooling conveyor is also available to be customized for different customer requirements.

Features

• Panasonic PLC program control

• By-pass mode, inspection mode selectable

• Conveyor width adjustment by using hand crank.

• Cooling fans with high advanced quality on top cover

• Heavy bottom design to prevent shifting

• Conveyor motor is using with stepper motor

• PCB flow direction flows can be customized

• SMEMA compatible

• Cooling time length is available to be setup by timer (optional)

• Conveyor width adjustment automatic by software (optional)

MSTECH Europe
Classic-ST-460
Shuttle conveyor, 630mm travel length; Motorized width adjustment; NG/OK reject functions; PCB Max(mm): 500x460; PCB Min. (mm): 50x50; Machine Size (mm): 1500x650x1250

Application

Shuttle Conveyor /Traverser is used to redirect flow of PCBs into different channels in a production line.It is designed to shuttle PCB's to next process. The conveyor can collect PCB's from two lines to one line/ distribute PCB's from one line to two lines.

Features



• Mitsubishi PLC +Screen touch panel control;

• Closed loop stepper motor providing the accurate transfer

• Working method:

• 1). distribute the boards from one line into two line.
2). Collect the boards from two line into one line.

• Two working modes are selectable in the software.

• Conveyor width adjustment by motorized and software input automatic width adjustments.

• Shuttle speed setting by software.

• Transfer direction: right to left.

• Cycle time: Depends on traversing distance

• Number of Cart: Sigle head transportation

MSTECH Europe

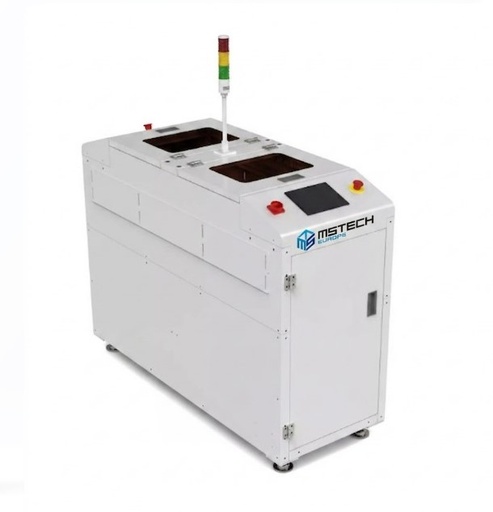

Classic-STD-460
Shuttle conveyor, 630mm travel length, Dual transfert car; Motorized width adjustment; NG/OK reject functions; PCB Max(mm): 500x460; PCB Min. (mm): 50x50; Machine Size (mm): 1500x650x1250

Application

Shuttle Conveyor /Traverser is used to redirect flow of PCBs into different channels in a production line.It is designed to shuttle PCB's to next process. The conveyor can collect PCB's from two lines to one line/ distribute PCB's from one line to two lines.

Features
• Panasonic PLC +Screen touch panel control;

• Closed loop stepper motor providing the accurate transfer

• Working method:

• 1). distribute the boards from one line into two line.
2). Collect the boards from two line into one line.

• Two working modes are selectable in the software.

• Conveyor width adjustment by motorized and software input automatic width adjustments.

• Shuttle speed setting by software.

• Transfer direction: right to left.

• Cycle time: Depends on traversing distance

• Number of Cart: Sigle head transportation

MSTECH Europe
Classic-CLEANS - 460
PCB surface cleaner conveyor, single side cleaner: PCB size
500mm *460mm ( L*W)


The NEW SMT Clean Machine from MSTECH Europe has been specifically designed to remove contamination from bare boards before solder paste, adhesive application and after laser marking.

The design of the machine will ensure full integration into all SMT lines, providing your process with the best contact cleaning system in the world.

MSTECH Europe
Classic-CLEAND - 460
PCB surface cleaner conveyor, double side cleaner

The NEW SMT Clean Machine from MSTECH Europe has been specifically designed to remove contamination from bare boards before solder paste, adhesive application and after laser marking.

The design of the machine will ensure full integration into all SMT lines, providing your process with the best contact cleaning system in the world.

PCB size
500mm *460mm ( L*W)

MSTECH Europe
Classic-XT-459
Non-contact PCB cleaner

MSTECH Europe

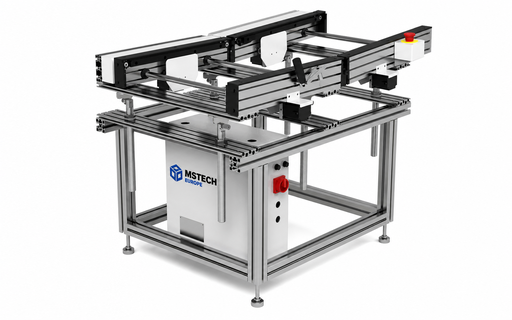

Classic-ICW-460
Infeed conveyor, wave soldering line

Application
Using SMEMA interface, this unit successfully links any machine, this system is special for connection with the wave soldering machine as the infeed conveyor, the conveyor transfer angle is available to adjusted from 4°to 7°by the hand crank wheel.

Features

• Panasonic PLC program control
• Continuous queue feeding PCBs into the wave soldering machine.
• Conveyor width adjustment by using hand crank.
• PCB transfer angle is adjustable
• Heavy bottom design to prevent shifting
• Conveyor motor is using with stepper motor
• Conveyor transfer by chain
• PCB flow direction flows can be customized
• SMEMA compatible

MSTECH Europe

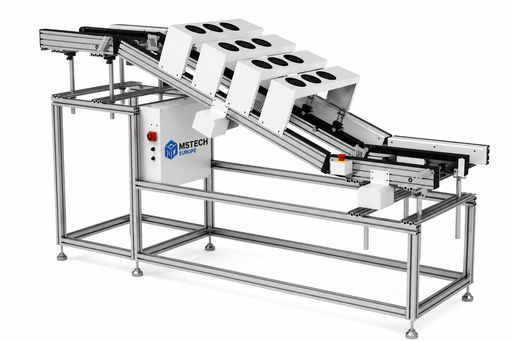

Classic-OCW-460
Outfeed conveyor, wave soldering line

Application :
This unit is special for the unloading conveyors of PCB from the wave soldering machine. The transfer heights are adjustable to meet any kind of wave solder in the market.

Features

• Panasonic PLC program control

• Continuous queue unloading PCBs from the wave soldering machine.

• Conveyor width adjustment by using hand crank.

• PCB transfer angle is adjustable

• Heavy bottom design to prevent shifting

• Conveyor transfer by ESD flat belts or Pin chain conveyor

• PCB flow direction flows can be customized

• SMEMA compatible

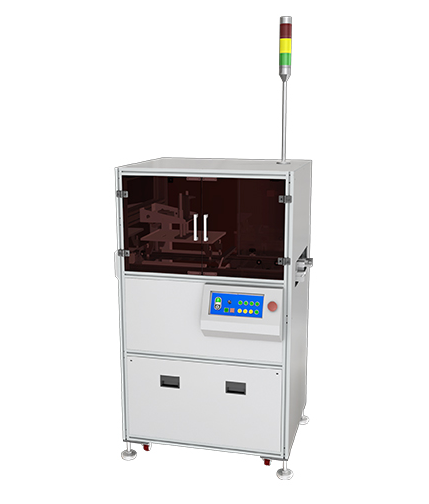

FBL‑800SA‑DE (Bare Board Loader)
Famecs Electronic / Assembly / Board Handling

FBL‑800SA‑DE (Bare Board Loader) from Famecs is an industrial solution designed for electronics manufacturing environments. It supports reliable, repeatable production processes, helping improve quality, productivity and process control. Suitable for professional SMT, PCB assembly, inspection, material handling or related manufacturing applications depending on configuration.

MSTECH Europe
OPTIMIZED PCB HANDLING WITH REPAIR ACCESS

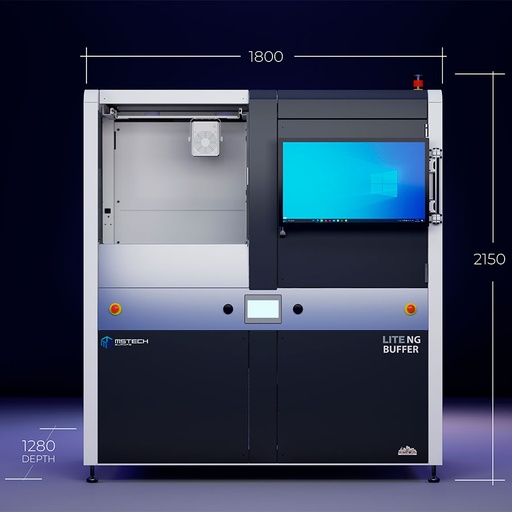

The LITE NG BUFFER is designed to be installed at the rear of an inspection machine. It automatically discharges good PCBs to the next process, while
loading NG (defective) PCBs onto a dedicated rack located on the upper
conveyor. This allows operators to easily access and repair defective boards,
improving efficiency and ensuring process stability

FEATURES
» PLC control for reliable automation.
» Total storage 5 slots 75 mm picht
each.
» LCD touch panel for easy operation.
» Individual lift rack operation.
» Repair zone (upper conveyor) for NG
PCBs.
» Safety-oriented design.
» Improved productivity with stable
quality.
» User-friendly interface

MSTECH Europe

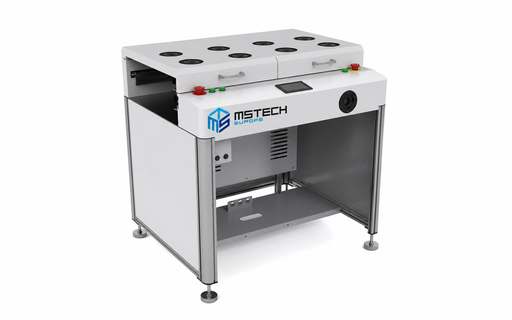

Classic LC10D-460F

Linking conveyor FLASH OFF / inspection UV conveyor, 1000mm length; Motorized width adjustment; FLASH OFF  PROCESS functions; PCB Max(mm): 500x460; PCB Min. (mm): 50x50; Machine Size (mm): 1000x950x1250
