MSTECH Europe

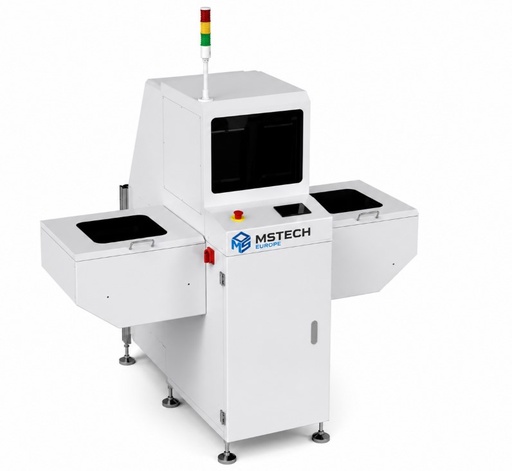

Classic-CLUL-460
Loader & unloader combined system; Motorized width adjustment; NG/OK reject functions; PCB Max(mm): 535x460; PCB Min. (mm): 50x50; Machine Size (mm): 2400x1850x1650; Magazine (mm): 535x530x570

Application
The Multi-Magazine Line Loader & Unloader is designed for loading & unloading of PCBs for SMT lines.

The main operation mode should be like Loader / Unloader at the same side. Like screen printer or AOI with one Loader / Unloader from the left side. It should give the PCB to the screen printer or AOI and then take it back to the magazine to the same position on the magazine and only then move to the next position.

Boards flow : Loading function -> AOI -> Unloading function.
SMEMA: With optional NG OK reject function.

Features

• Panasonic PLC program control

• Loading & Unloading boards from one same side

• Selectable pitch settings from 10mm-80mm

• Tower-light display for machines working status.

• Flexible platform to suit standard magazines

• Exchangeable magazine from the front of machine

• Stepper motorized type pusher to enhance working stability

• Pusher position adjustable to Centre for the boards

• Use the friendly touch screen panel

• Magazine infeed and outfeed are automatically driving by motor on the platform.

• Ability to connect with any brands of AOI tester in the world

• SMEMA compatible

MSTECH Europe

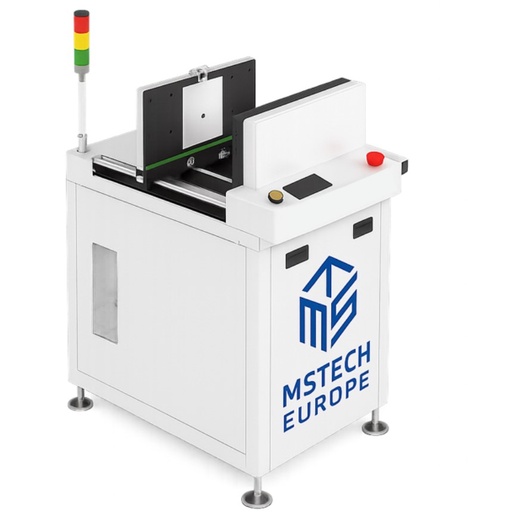

Classic-DL-460
Bare boards loader / destacker, PCB thickness 0.6-2.5mm; Motorized width adjustment; NG/OK reject functions; PCB Max(mm): 500x460; PCB Min. (mm): 50x50; Machine Size (mm): 650x885x1250

Application
This unit is design for loading the bare boards onto the SMT line. Unique separation cams take one PCB from the bottom of the boards stacked, and softly lowering it on the ESD belts to transfer to downstream machine.


Features

• Panasonic PLC program control

• By-pass and Destacker mode are selectable in the software

• Shortest loading cycle time for PCB

• Thickness 0.6 mm PCB available to be handled well

• Uninterrupted PCB charging

• Pre-signal alarm for PCB lower stack heights

• Use the friendly touch screen panel

• Smooth and parallel width adjustment by crank wheel ( Optional: motorized).

• Interlock for all door open to improvement highest safety operation

• SMEMA compatible

MSTECH Europe

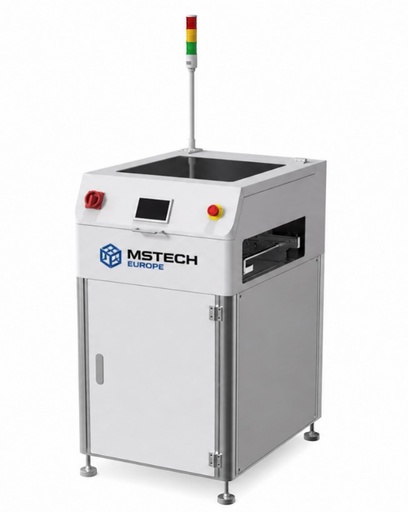

Classic-DUL-460
Push-up stacker for bare boards, PCB thickness 0.6-2.5mm; Motorized width adjustment; NG/OK reject functions; PCB Max(mm): 500x460; PCB Min. (mm): 50x50; Machine Size (mm): 650x885x1250

Application
This unit is design for Unloading the bare boards from the production line and Re-Stacking the bare boards, it is very recommended to use in the laser island of ""Destacker - Laser marking machine -Restacker""

Features

• Panasonic PLC program control

• By-pass and Stacker mode are selectable in the software

• Shortest loading cycle time for PCB

• Pre-signal alarm for PCB stack heights

• Use the friendly touch screen panel

• Smooth and parallel width adjustment by crank wheel ( Optional: motorized).

• Interlock for all door open to improvement highest safety operation

• SMEMA compatible

MSTECH Europe

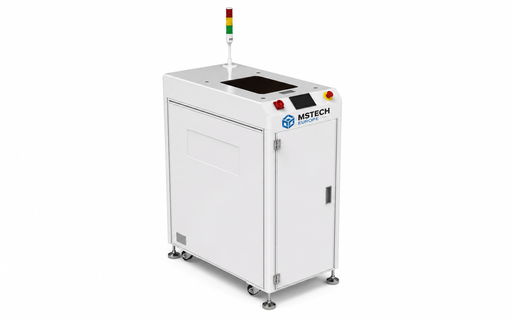

Classic-VL-460
Vacuum loader for bare boards, PCB thickness 0.6-2.5mm; Motorized width adjustment; NG/OK reject functions; PCB Max(mm): 500x460; PCB Min. (mm): 50x50; Machine Size (mm): 600x1140x1250

Application
The vacuum loader is used to load bare boards for SMT production lines. The top PCB is lifted from stack and lowered onto belt segment. The PCB stack is manually loaded into the machine and the individual PCBs are handed over to the downstream system on a transfer conveyor.

Features

• Panasonic PLC program control

• Loader & destacker working mode can be switched exchange.

• Selectable pitch settings

• Tower-light display for machines working status.

• Flexible platform to suit standard magazines

• Exchangeable magazine from the front of machine

• Stepper motorized type pusher to enhance working stability

• Pusher position adjustable to Centre for the boards

• Use the friendly touch screen panel

• Magazine infeed and outfeed are automatically driving by motor on the platform.

• Ability to handle the bare boards by destacker.

SMEMA compatible

MSTECH Europe

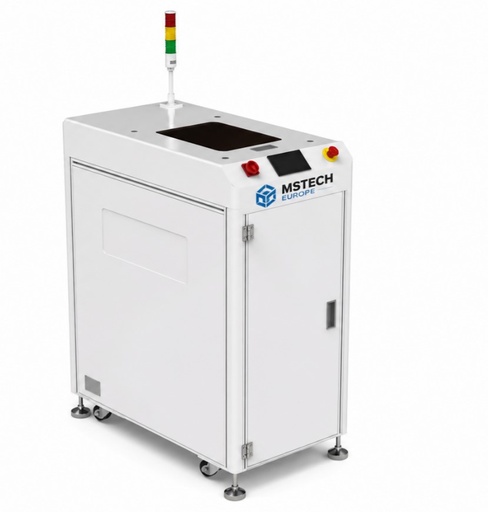

Classic-INV-460
Inverter conveyor for bare boards, PCB thickness 0.6-2.5mm; Motorized width adjustment; NG/OK reject functions; PCB Max(mm): 500x460; PCB Min. (mm): 50x50; Machine Size (mm): 650x1076x1300

Application
This unit is used to inverter flip /PCB’s ( 180 °) for double side process.

Features

• Panasonic PLC program control

• By-pass mode, inverter mode selectable

• Pneumatic stopper to keep the PCB in position during inverting

• Motorized conveyor width adjustment (optional).

• LED signal tower

• Buzzer

• Suitable for boards with many components on the bottom side

• Closed –loop stepper motor providing the rotating driving power

• SMEMA compatible

MSTECH Europe

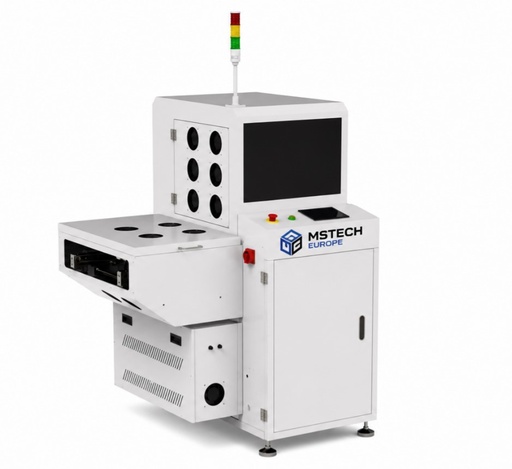

Classic-CBUF-460 - 25P
Vertical buffer, 25 PCS, with infeed conveyor; Motorized width adjustment; NG/OK reject functions; PCB Max(mm): 500x460; PCB Min. (mm): 50x50; Machine Size (mm): 1150x1100x1700

Application
This vertical buffer is designed to have the function as FIFO/ LIFO and by-pass functions, which can be located between SMT machines to improve the working efficiency by buffering. This system is with the built-in magazine which has the special driving ability in each slot to transfer the boards to downstream system when the boards are called for. (Built-in magazine is not exchangeable).

This vertical buffer is equipped with the cooling fans, and the PCB staying time in the buffer rack are available to set up for cooling length. It means even PCBs must reach the cooling time, and then when the downstream machine ask for PCB, the buffer will release the PCB .

Features

• PCB buffer capacity: 25 PCS or 20 PCS

• Working mode:FIFO( first in first out)/ LIFO( last in first out)/By-pass mode

• Infeed conveyor as standard configuration

• Cooling fan: total 16 groups

• Cooling time length: setup in the software.

• Conveyor width adjustment: motorized type

• Control method: PLC+ touch screen control+Taiwan servo motor

• Machine working language: English

• Threshold signal to protect the boards in upstream reflow oven: Standard

• PCB transfer method: 4mm ESD Flat belt to handle PCBs

• Magazine lifting system: precision servo motor system and servo driving system.

• Lifting platform with PCBs weights handling capacity: above 100kg

• Step pitch selectable: 1/2/3 pitch Step by software setting;

• PCB size available: 530mm * 460mm ( L*W) as Max.

• Indexing pitch: 22mm

• PCB transfer flow direction: Left to right

• Conveyor width adjustment: motorized type

• Conveyor fixed rail: Front rail

• Conveyor transfer heights: 900mm+/-50mm

• Conveyor speed: 10m/min adjustable

• Conveyor rail material: aluminum with special hardness treatment for long time usage and the strong PCB holding ability;

• Machine working state display: LED signal tower + audible alarm

• Robust lead screw rod and guide line rod to guarantee the heavy duty loading;

• Safety standard: CE certificates

• Safety cover with interlock functions

• Power: AC220V,50/60 HZ, 1 phase

• Air Pressure: 4-5kgf/cm2

• Machine communication: SMEMA interface

MSTECH Europe

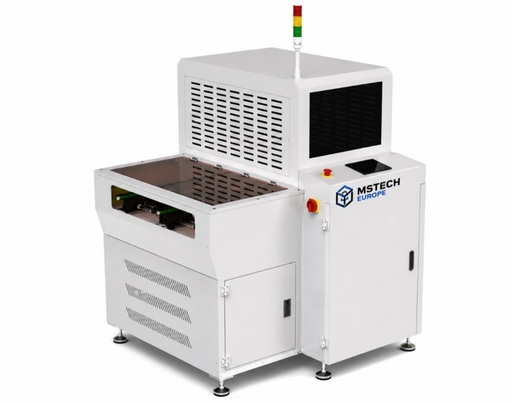

Classic-BUF-460 - 25P
Vertical buffer, 25 PCS, without infeed conveyor; Motorized width adjustment; NG/OK reject functions; PCB Max(mm): 500x460; PCB Min. (mm): 50x50; Machine Size (mm): 750x1100x1700

Application:

This vertical buffer is designed to have the function as FIFO/ LIFO and by-pass functions, which can be located between SMT machines to improve the working efficiency by buffering.

This system is with the built-in magazine which has the special driving ability in each slot to transfer the boards to downstream system when the boards are called for. ( Built-in magazine is not exchangeable).

Features

• PCB buffer capacity: 20 PCS in each lane ( 40PCS at dual lane)

• Working mode:

FIFO( first in first out)

LIFO( last in first out)

By-pass mode

• Infeed conveyor as standard configuration

• Conveyor width adjustment: automatic adjust ( by software input the boards width information;

• Control method: PLC+ touch screen control+Taiwan servo motor

• Machine working language: English

• Threshold signal to protect the boards: Standard

• PCB transfer method: 4mm ESD Flat belt to handle PCB

• Magazine lifting system: precision servo motor system and servo driving system.

• Lifting platform with PCBs weights handling capacity: above 100kg

• Step pitch selectable: 1/2/3 pitch Step by software setting;



• PCB size available:

Dual lane mode

L 50 mm × W 50 mm ～ L 530 mm × W 375 mm

Single mode：

L 50 mm × W 50 mm ～ L 600 mm × W 510 mm

• R1 fixed, R2-R3-R4 moveable

• PCB weights: Max.2.0kg/PCS

• PCB thickness: Max.2.5mm, Min.0.6mm

• Indexing pitch: 30mm

• SMEMA signa

• PCB transfer flow direction: Left to right

• Conveyor width adjustment: motorized type

• Conveyor fixed rail: Front rail

• Conveyor transfer heights: 900mm+/-50mm

• Conveyor speed: 10m/min adjustable

• Conveyor rail material: aluminum with special hardness treatment for long time usage and the strong PCB holding ability;

• Machine working state display: LED signal tower + audible alarm

• Robust lead screw rod and guide line rod to guarantee the heavy duty loading;

• Safety standard: CE certificates

• Safety cover with interlock functions

• Power: AC110V,50/60 HZ, 1 phase

• Air Pressure: 4-5kgf/cm2

• Machine communication: SMEMA interface

• Power supply: 220V,single phase,50/60Hz

MSTECH Europe

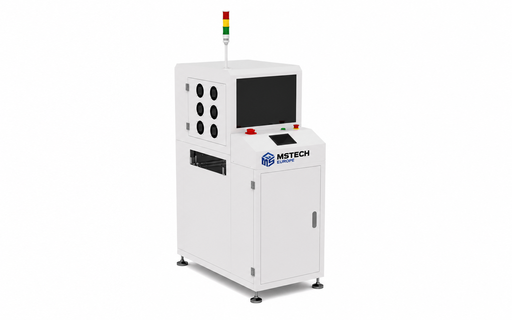

Classic-BUFC-460 - 25P
Vertical buffer, 25 PCS, without infeed conveyor; Motorized width adjustment; NG/OK reject functions; PCB Max(mm): 500x460; PCB Min. (mm): 50x50; Machine Size (mm): 750x1100x1700

Application:

This vertical buffer is designed to have the function as FIFO/ LIFO and by-pass functions. This unit is located between SMT machines to improve the working efficiency by buffering.

Features

• PLC program control

• Servo motor system to improve the working efficiency

• Selectable pitch settings

• Tower-light display for machines working status.

• Built-in Rack structure

• Enclosed CE construction to improve the safety level

• Conveyor & rack adjustment by motorized

• Separately driven buffer conveyors

• 20 PCBs storage capacity

• Use the friendly touch screen panel

• SMEMA compatible

• Threshold signal to protect the PCBs in the upstream oven

MSTECH Europe

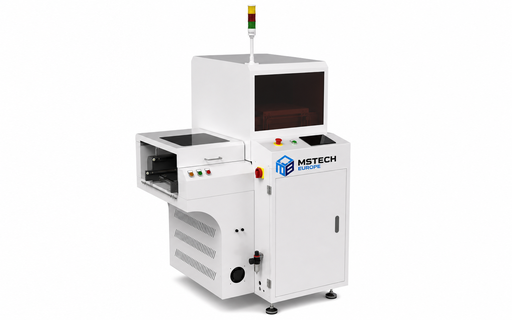

Classic-NGBUF-460 - 20P
SPI/AOI NG/OK vertical buffer, 20 slots; Motorized width adjustment; NG/OK reject functions; PCB Max(mm): 500x460; PCB Min. (mm): 50x50; Machine Size (mm): 1150x1100x1700

Application
This vertical buffer is designed to have the function as FIFO/ LIFO and by-pass functions. This unit is located between SMT machines to improve the working efficiency by buffering.

Features

• PLC program control

• Servo motor system to improve the working efficiency

• Selectable pitch settings

• Tower-light display for machines working status.

• Built-in Rack structure

• Enclosed CE construction to improve the safety level

• Conveyor & rack adjustment by motorized

• Separately driven buffer conveyors

• 20 PCBs storage capacity

• Use the friendly touch screen panel

• SMEMA compatible

• Threshold signal to protect the PCBs in the upstream oven

MSTECH Europe
Classic-TGS-460
Telescope gate conveyor, normal open, 600mm passage distance; Motorized width adjustment; NG/OK reject functions; PCB Max(mm): 500x460; PCB Min. (mm): 50x50; Machine Size (mm): 1500x900x1250

Application
This unit is used when a passage way is required in a production line.

The unit provides a 'normal open' passage in a PCB assembly line. An integrated conveyor segment slides across the opening to deliver PCB to downstream machine.

Features

• Panasonic PLC program control

• Maximum.600mm passage distance

• Buzzer

• SMEMA compatible

• Fully enclosed design.

• Normal Opened or closed

• Electrically driven for smooth extension and retraction.

• Smooth and parallel width adjustment.(lead screw)

MSTECH Europe

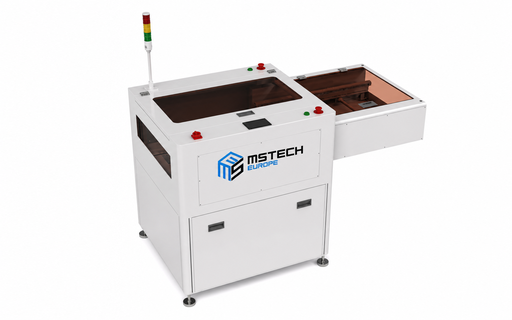

Classic-TGD-460
Telescope gate conveyor, normal closed, 600mm passage distance; Motorized width adjustment; NG/OK reject functions; PCB Max(mm): 500x460; PCB Min. (mm): 50x50; Machine Size (mm): 1500x900x1250

Application
This unit is used when a passage way is required in a production line.

The unit provides a 'normal open' passage in a PCB assembly line. An integrated conveyor segment slides across the opening to deliver PCB to downstream machine.

Features

• Panasonic PLC program control

• Maximum.600mm passage distance

• Buzzer

• SMEMA compatible

• Fully enclosed design.

• Normal Opened or closed

• Electrically driven for smooth extension and retraction.

• Smooth and parallel width adjustment.(lead screw)

MSTECH Europe

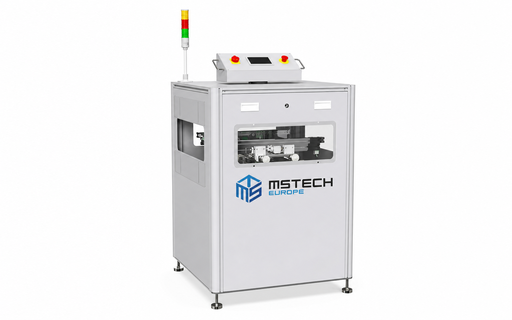

Classic-TC-460
90 degree turning conveyor, left or right; Motorized width adjustment; NG/OK reject functions; PCB Max(mm): 500x460; PCB Min. (mm): 50x50; Machine Size (mm): 840x840x1250

Application
This unit is used to transfer PCBs around corners for continued process flow. Available in clock wise or counter clock wise rotation, and by-pass mode.

Features

• Panasonic PLC program control

• By-Pass mode + 90 degree turning conveyor (Available in clock wise or counter clock wise rotation, and by-pass mode.)

• Motorized conveyor width adjustment

• LED signal tower & Buzzer

• Suitable for boards with many components on the bottom side

• Closed –loop stepper motor providing the rotating driving power

• SMEMA compatible

MSTECH Europe

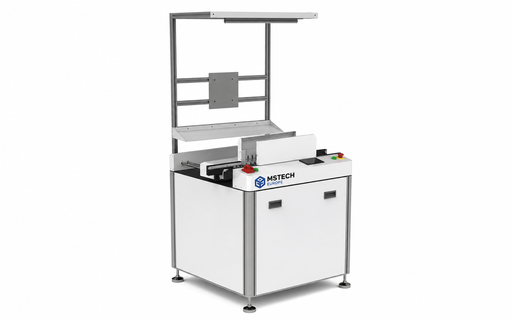

Classic-NGC-460 - 5P
NG reject conveyor, high end, 5 PCS capacity; Motorized width adjustment; NG/OK reject functions; PCB Max(mm): 500x460; PCB Min. (mm): 50x50; Machine Size (mm): 1000x950x1250

Application
This unit is used to automatically separate good boards and NG boards while allowing visual inspection for NG PCBs without any interruption on Good Board flow.It can work with any tester like AOI,SPI.

Features

• Panasonic PLC program control

• Touch screen operation panel

• By-pass mode, inspection,NG reject mode selectable

• Conveyor width adjustment by using hand crank.

• Center PCB stop position

• Heavy bottom design to prevent shifting

• Conveyor motor is using with stepper motor

• Total 5 NG PCBs stock capability

• SMEMA compatible

MSTECH Europe

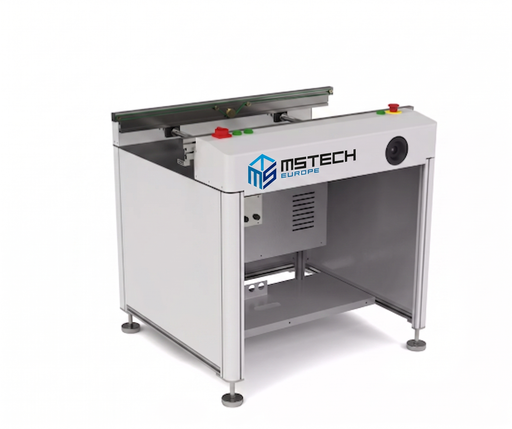

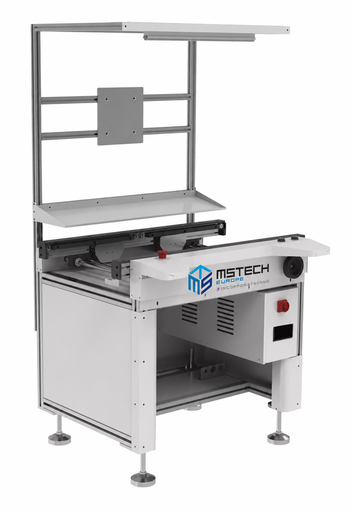

Classic-IC-460 -UV
UV inspection conveyor, 1000mm length; with 2 groups Philips black light; Motorized width adjustment; NG/OK reject functions; PCB Max(mm): 500x460; PCB Min. (mm): 50x50; Machine Size (mm): 1000x950x1250

Application
Using SMEMA interface, this unit successfully links any SMT machine, this system can work on inspection & linking mode.

Features

• Panasonic PLC program control

• By-pass mode, inspection mode selectable

• Conveyor width adjustment by using hand crank.(Standard).

• Center PCB stop position

• Heavy bottom design to prevent shifting

• Conveyor motor is using with stepper motor

• PCB flow direction flows can be customized

• LED light overhead frame (inspection conveyor)

• SMEMA compatible

MSTECH Europe

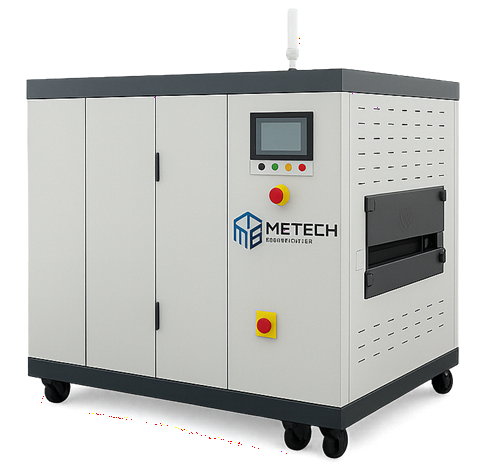

Classic Mecury Oven

The Mercury oven is designed for efficient and uniform curing of coatings, adhesives, and encapsulants in SMT and electronics manufacturing. It ensures controlled heat distribution for reliable curing performance, improving product quality and consistency. With adjustable conveyor speed, it easily adapts to different curing profiles and production requirements, making it suitable for continuous inline processing across a wide range of electronic assemblies.

MSTECH Europe

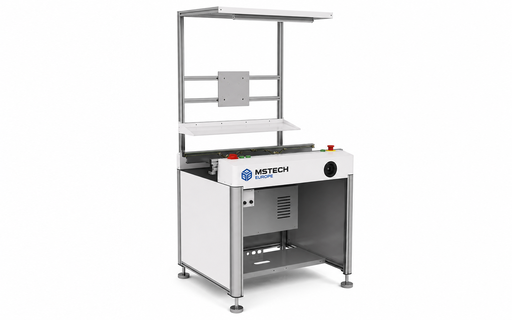

Classic-IC-460 - UVCAM
Semi-automatic camera inspection by Keyence camera + PC/software control; Motorized width adjustment; NG/OK reject functions; PCB Max(mm): 500x460; PCB Min. (mm): 50x50

MSTECH Europe

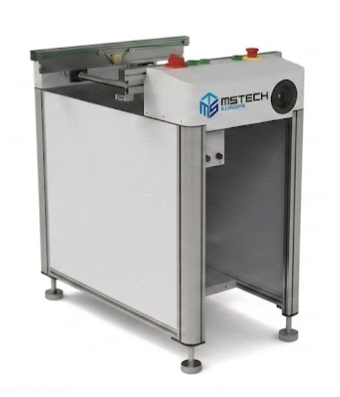

Classic-LC5D-460
Linking conveyor / inspection conveyor, 500mm length; Motorized width adjustment; NG/OK reject functions; PCB Max(mm): 500x460; PCB Min. (mm): 50x50; Machine Size (mm): 500x950x1250

MSTECH Europe

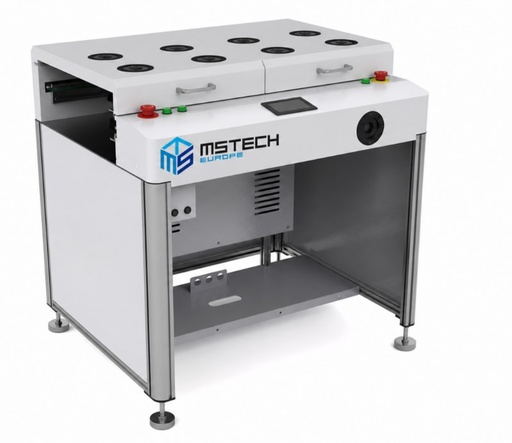

Classic-LC10D-460
Linking conveyor / inspection conveyor, 1000mm length; Motorized width adjustment; NG/OK reject functions; PCB Max(mm): 500x460; PCB Min. (mm): 50x50; Machine Size (mm): 1000x950x1250

Application :

This unit links between SMT machines and cooling down PCB from reflow oven in the SMT line.

This Cooling conveyor for PCB is available to installed a touch screen controlled cooling fans on top or bottom, the cooling time length is available to setup on the touch screen software.

This cooling conveyor is also available to be customized for different customer requirements.

Features

• Panasonic PLC program control

• By-pass mode, inspection mode selectable

• Conveyor width adjustment by using hand crank.

• Cooling fans with high advanced quality on top cover

• Heavy bottom design to prevent shifting

• Conveyor motor is using with stepper motor

• PCB flow direction flows can be customized

• SMEMA compatible

• Cooling time length is available to be setup by timer (optional)

• Conveyor width adjustment automatic by software (optional)

MSTECH Europe
Classic-LC15D-460
Linking conveyor / inspection conveyor, 1500mm length; Motorized width adjustment; NG/OK reject functions; PCB Max(mm): 500x460; PCB Min. (mm): 50x50; Machine Size (mm): 1500x950x1250

Application :

This unit links between SMT machines and cooling down PCB from reflow oven in the SMT line.

This Cooling conveyor for PCB is available to installed a touch screen controlled cooling fans on top or bottom, the cooling time length is available to setup on the touch screen software.

This cooling conveyor is also available to be customized for different customer requirements.

Features

• Panasonic PLC program control

• By-pass mode, inspection mode selectable

• Conveyor width adjustment by using hand crank.

• Cooling fans with high advanced quality on top cover

• Heavy bottom design to prevent shifting

• Conveyor motor is using with stepper motor

• PCB flow direction flows can be customized

• SMEMA compatible

• Cooling time length is available to be setup by timer (optional)

• Conveyor width adjustment automatic by software (optional)

MSTECH Europe

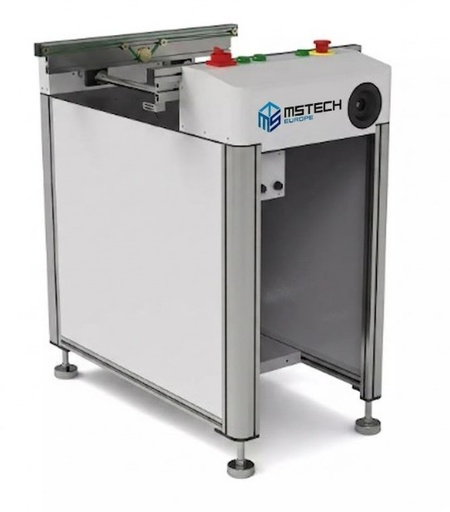

Classic-LC5-460
Linking conveyor / inspection conveyor, 500mm length; Motorized width adjustment; PCB Max(mm): 500x460; PCB Min. (mm): 50x50; Machine Size (mm): 500x950x1250

Application :

This unit links between SMT machines and cooling down PCB from reflow oven in the SMT line.

This Cooling conveyor for PCB is available to installed a touch screen controlled cooling fans on top or bottom, the cooling time length is available to setup on the touch screen software.

This cooling conveyor is also available to be customized for different customer requirements.

Features

• Panasonic PLC program control

• By-pass mode, inspection mode selectable

• Conveyor width adjustment by using hand crank.

• Cooling fans with high advanced quality on top cover

• Heavy bottom design to prevent shifting

• Conveyor motor is using with stepper motor

• PCB flow direction flows can be customized

• SMEMA compatible

• Cooling time length is available to be setup by timer (optional)

• Conveyor width adjustment automatic by software (optional)
