MTU-610

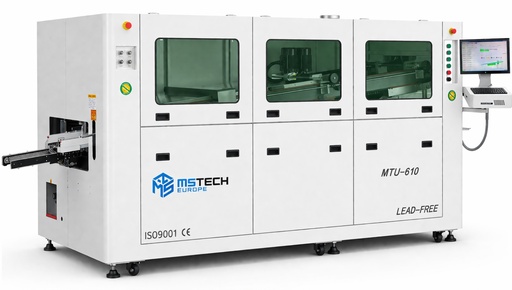

MTU-610 Wave Soldering Machine
The MTU-610 is a large-format, high-capacity wave soldering system designed for extra-wide PCB production and demanding industrial applications. Combining dual-wave soldering, advanced automation, and highly efficient heating technology, it delivers exceptional solder quality, process stability, and productivity for complex assemblies.
Applications
Ideal for very large and complex PCB assemblies, including:

Automotive and power electronics
Industrial control systems and infrastructure
Large-format consumer electronics
EMS high-volume and heavy-duty production lines

Key Features

Extra-wide PCB capability up to 610 mm
Dual wave system: laminar (first) + dancer (second) for optimal soldering performance
High-precision temperature control (±1°C) ensures process stability
4-zone preheating system (1800 mm) with hot air convection
Advanced PLC + PC control system with automation, alarms, and scheduling
Automatic flux spraying system with intelligent PCB detection and adjustable flow
Comprehensive flux management system (recycling, filtration, air curtain)
Automatic finger cleaning system with recyclable alcohol solution
Energy-efficient matrix heating (up to 95%)
Robust enclosed machine design for safety, durability, and easy maintenance
SMEMA compatibility for seamless line integration

MSTECH Europe
Classic-AMML-250

Multi Magazine (mm) loader, space save type; Motorized width adjustment; NG/OK reject functions; PCB Max(mm): 330x250; PCB Min. (mm): 50x50; Machine Size (mm): 1010x1470x1650; Magazine (mm): 355x320x563

Application:

The Magazine Loader is designed for loading of PCBs. The unit loads your production line automatically by pushing PCB’s out of a magazine onto the conveyor of the down-stream machine. Connect with SMT and AI productions line, safety design ensure not to break any PCB when it is pushed and thus reduce defect rate. With high accuracy, automatic counting, fault alram functions, it is required for a full range of automatic equipment.

This multi magazine loader is designed with "L type "to save the SMT production line length without impacting the production throughout capacity.



1.Used in SMT line front, sends PCB from magazine to downstream machine.
2.The unit loads your production line automatically by pushing PCB’s out of the magazine onto the conveyor of the downstream machines. Full magazines are inserted at an ergonomic low level.
3.Located at the first stage of SMT line, this unit transfers PCBs stacked in a magazine rack to the downstream machine using a pneumatic pusher one by one.

Features

• Magazine capacity: Top 1+ Down 2, middle 1, total 4 magazines.

• Full CE regulations safety cover

• Selectable pitch 10mm up to 80mm

• Auto/Manual run modes

• Diameter 3.8mm edge Flat ESD belt

• Component clearance: top 50mm+ bottom 30mm

• Power: AC220V/110V, 50/60 HZ, 1 phase

• Air Pressure: 5kgf/cm2

• PCB Convey Direction: L-R (Or R-L)

• Front rail fixed (or rear rail fixed)

• Conveyor height:900+/-50mm (standard height for SMT application)

• For AI application, please specify the height requirements

MSTECH Europe
Classic-AMML-330

Multi Magazine (mm) loader, space save type; Motorized width adjustment; NG/OK reject functions; PCB Max(mm): 440x330; PCB Min. (mm): 50x50; Machine Size (mm): 1210x1700x1650; Magazine (mm): 460x400x563

Application:

The Magazine Loader is designed for loading of PCBs. The unit loads your production line automatically by pushing PCB’s out of a magazine onto the conveyor of the down-stream machine. Connect with SMT and AI productions line, safety design ensure not to break any PCB when it is pushed and thus reduce defect rate. With high accuracy, automatic counting, fault alram functions, it is required for a full range of automatic equipment.

This multi magazine loader is designed with ""L type ""to save the SMT production line length without impacting the production throughout capacity.



1.Used in SMT line front, sends PCB from magazine to downstream machine.
2.The unit loads your production line automatically by pushing PCB’s out of the magazine onto the conveyor of the downstream machines. Full magazines are inserted at an ergonomic low level.
3.Located at the first stage of SMT line, this unit transfers PCBs stacked in a magazine rack to the downstream machine using a pneumatic pusher one by one.

Features

• Magazine capacity: Top 1+ Down 2, middle 1, total 4 magazines.

• Full CE regulations safety cover

• Selectable pitch 10mm up to 80mm

• Auto/Manual run modes

• Diameter 3.8mm edge Flat ESD belt

• Component clearance: top 50mm+ bottom 30mm

• Power: AC220V/110V, 50/60 HZ, 1 phase

• Air Pressure: 5kgf/cm2

• PCB Convey Direction: L-R (Or R-L)

• Front rail fixed (or rear rail fixed)

• Conveyor height:900+/-50mm (standard height for SMT application)

• For AI application, please specify the height requirements

MSTECH Europe
Classic-AMML-390

Multi Magazine (mm) loader, space save type; Motorized width adjustment; NG/OK reject functions; PCB Max(mm): 530x390; PCB Min. (mm): 50x50; Machine Size (mm): 1390x1700x1650; Magazine (mm): 535x460x570

Application:

The Magazine Loader is designed for loading of PCBs. The unit loads your production line automatically by pushing PCB’s out of a magazine onto the conveyor of the down-stream machine. Connect with SMT and AI productions line, safety design ensure not to break any PCB when it is pushed and thus reduce defect rate. With high accuracy, automatic counting, fault alram functions, it is required for a full range of automatic equipment.

This multi magazine loader is designed with ""L type ""to save the SMT production line length without impacting the production throughout capacity.



1.Used in SMT line front, sends PCB from magazine to downstream machine.
2.The unit loads your production line automatically by pushing PCB’s out of the magazine onto the conveyor of the downstream machines. Full magazines are inserted at an ergonomic low level.
3.Located at the first stage of SMT line, this unit transfers PCBs stacked in a magazine rack to the downstream machine using a pneumatic pusher one by one.

Features

• Magazine capacity: Top 1+ Down 2, middle 1, total 4 magazines.

• Full CE regulations safety cover

• Selectable pitch 10mm up to 80mm

• Auto/Manual run modes

• Diameter 3.8mm edge Flat ESD belt

• Component clearance: top 50mm+ bottom 30mm

• Power: AC220V/110V, 50/60 HZ, 1 phase

• Air Pressure: 5kgf/cm2

• PCB Convey Direction: L-R (Or R-L)

• Front rail fixed (or rear rail fixed)

• Conveyor height:900+/-50mm (standard height for SMT application)

• For AI application, please specify the height requirements

MSTECH Europe
Classic-MMUL-330
Multi Magazine (mm) unloader; Motorized width adjustment; NG/OK reject functions; PCB Max(mm): 440x330; PCB Min. (mm): 50x50; Machine Size (mm): 1580x830x1650; Magazine (mm): 460x400x563

Application:

The Automatic Unloader is designed for unloading of PCBs, an arriving PCB is taken up by the attached conveyor and then pushed into the magazine by a specially designed pusher. The magazine indexes to the next position and is ready for the following unloading cycle. Connect with SMT and AI production line, safety design ensures not to break any PCB when it is pushed and thus reduce defect rate. Agility operation with high accuracy, automatic counting, fault alarm functions, it is required for a full range of automatic equipment.

1.Used in SMT line end, collecting the boards into the magazines from upstream machine.
2.Standard magazine handling capacity : 4 PCS of magazines ( Optional: 5 PCS)

Features

Magazine capacity: Top 1+ Middle 1+Down 2, total 4 magazines. (Optional: 5 magazines)

Full CE regulations safety cover

Selectable pitch 10mm up to 80mm

Auto/Manual run modes

Diameter 3.8mm edge Flat ESD belt

Component clearance: top 50mm, bottom 30mm

Power: AC220V/110V, 50/60 HZ, 1 phase

Air Pressure: 5kgf/cm2

PCB Convey Direction: L-R ( Or R-L)

Front rail fixed ( or rear rail fixed)

Conveyor height:900+/-50mm (Standard height for SMT application)

For AI application, please specify the height requirements

MSTECH Europe
Classic-MMUL-390
Multi Magazine (mm) unloader; Motorized width adjustment; NG/OK reject functions; PCB Max(mm): 530x390; PCB Min. (mm): 50x50; Machine Size (mm): 2300x950x1650; Magazine (mm): 535x460x570

Application:

The Automatic Unloader is designed for unloading of PCBs, an arriving PCB is taken up by the attached conveyor and then pushed into the magazine by a specially designed pusher. The magazine indexes to the next position and is ready for the following unloading cycle. Connect with SMT and AI production line, safety design ensures not to break any PCB when it is pushed and thus reduce defect rate. Agility operation with high accuracy, automatic counting, fault alarm functions, it is required for a full range of automatic equipment.

1.Used in SMT line end, collecting the boards into the magazines from upstream machine.
2.Standard magazine handling capacity : 4 PCS of magazines ( Optional: 5 PCS)

Features

Magazine capacity: Top 1+ Middle 1+Down 2, total 4 magazines. (Optional: 5 magazines)

Full CE regulations safety cover

Selectable pitch 10mm up to 80mm

Auto/Manual run modes

Diameter 3.8mm edge Flat ESD belt

Component clearance: top 50mm, bottom 30mm

Power: AC220V/110V, 50/60 HZ, 1 phase

Air Pressure: 5kgf/cm2

PCB Convey Direction: L-R ( Or R-L)

Front rail fixed ( or rear rail fixed)

Conveyor height:900+/-50mm (Standard height for SMT application)

For AI application, please specify the height requirements

MSTECH Europe
Classic-MMUL-460
Multi Magazine (mm) unloader; Motorized width adjustment; NG/OK reject functions; PCB Max(mm): 535x460; PCB Min. (mm): 50x50; Machine Size (mm): 2300x1020x1650; Magazine (mm): 535x530x570

Application:

The Automatic Unloader is designed for unloading of PCBs, an arriving PCB is taken up by the attached conveyor and then pushed into the magazine by a specially designed pusher. The magazine indexes to the next position and is ready for the following unloading cycle. Connect with SMT and AI production line, safety design ensures not to break any PCB when it is pushed and thus reduce defect rate. Agility operation with high accuracy, automatic counting, fault alarm functions, it is required for a full range of automatic equipment.

1.Used in SMT line end, collecting the boards into the magazines from upstream machine.
2.Standard magazine handling capacity : 4 PCS of magazines ( Optional: 5 PCS)

Features

Magazine capacity: Top 1+ Middle 1+Down 2, total 4 magazines. (Optional: 5 magazines)

Full CE regulations safety cover

Selectable pitch 10mm up to 80mm

Auto/Manual run modes

Diameter 3.8mm edge Flat ESD belt

Component clearance: top 50mm, bottom 30mm

Power: AC220V/110V, 50/60 HZ, 1 phase

Air Pressure: 5kgf/cm2

PCB Convey Direction: L-R ( Or R-L)

Front rail fixed ( or rear rail fixed)

Conveyor height:900+/-50mm (Standard height for SMT application)

For AI application, please specify the height requirements

MSTECH Europe

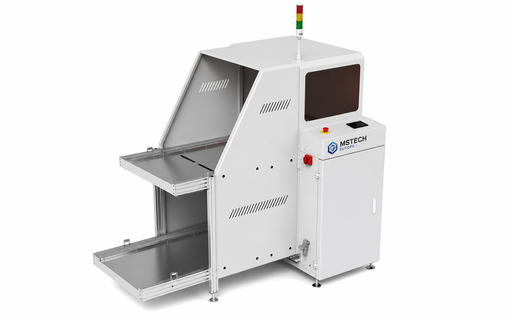

Classic-MMUL-Flex
Available for 355x320x563 / 460x400x563 / 535x460x570 / 535x530x570 (mm); Motorized width adjustment; NG/OK reject functions; PCB Max(mm): All sizes; PCB Min. (mm): 50x50; Magazine (mm): 355x320x563 / 460x400x563 / 535x460x570 / 535x530x570 (mm)

Application:

The Automatic Unloader is designed for unloading of PCBs, an arriving PCB is taken up by the attached conveyor and then pushed into the magazine by a specially designed pusher. The magazine indexes to the next position and is ready for the following unloading cycle. Connect with SMT and AI production line, safety design ensures not to break any PCB when it is pushed and thus reduce defect rate. Agility operation with high accuracy, automatic counting, fault alarm functions, it is required for a full range of automatic equipment.

1.Used in SMT line end, collecting the boards into the magazines from upstream machine.
2.Standard magazine handling capacity : 4 PCS of magazines ( Optional: 5 PCS)

Features

Magazine capacity: Top 1+ Middle 1+Down 2, total 4 magazines. (Optional: 5 magazines)

Full CE regulations safety cover

Selectable pitch 10mm up to 80mm

Auto/Manual run modes

Diameter 3.8mm edge Flat ESD belt

Component clearance: top 50mm, bottom 30mm

Power: AC220V/110V, 50/60 HZ, 1 phase

Air Pressure: 5kgf/cm2

PCB Convey Direction: L-R ( Or R-L)

Front rail fixed ( or rear rail fixed)

Conveyor height:900+/-50mm (Standard height for SMT application)

For AI application, please specify the height requirements

MSTECH Europe

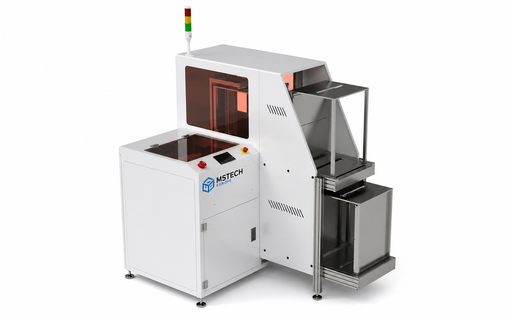

Classic-AMML-460

Multi Magazine (mm) loader, space save type; Motorized width adjustment; NG/OK reject functions; PCB Max(mm): 535x460; PCB Min. (mm): 50x50; Machine Size (mm): 1390x2110x1650; Magazine (mm): 535x530x570

Application:

The Magazine Loader is designed for loading of PCBs. The unit loads your production line automatically by pushing PCB’s out of a magazine onto the conveyor of the down-stream machine. Connect with SMT and AI productions line, safety design ensure not to break any PCB when it is pushed and thus reduce defect rate. With high accuracy, automatic counting, fault alram functions, it is required for a full range of automatic equipment.

This multi magazine loader is designed with ""L type ""to save the SMT production line length without impacting the production throughout capacity.



1.Used in SMT line front, sends PCB from magazine to downstream machine.
2.The unit loads your production line automatically by pushing PCB’s out of the magazine onto the conveyor of the downstream machines. Full magazines are inserted at an ergonomic low level.
3.Located at the first stage of SMT line, this unit transfers PCBs stacked in a magazine rack to the downstream machine using a pneumatic pusher one by one.

Features

• Magazine capacity: Top 1+ Down 2, middle 1, total 4 magazines.

• Full CE regulations safety cover

• Selectable pitch 10mm up to 80mm

• Auto/Manual run modes

• Diameter 3.8mm edge Flat ESD belt

• Component clearance: top 50mm+ bottom 30mm

• Power: AC220V/110V, 50/60 HZ, 1 phase

• Air Pressure: 5kgf/cm2

• PCB Convey Direction: L-R (Or R-L)

• Front rail fixed (or rear rail fixed)

• Conveyor height:900+/-50mm (standard height for SMT application)

• For AI application, please specify the height requirements

MSTECH Europe

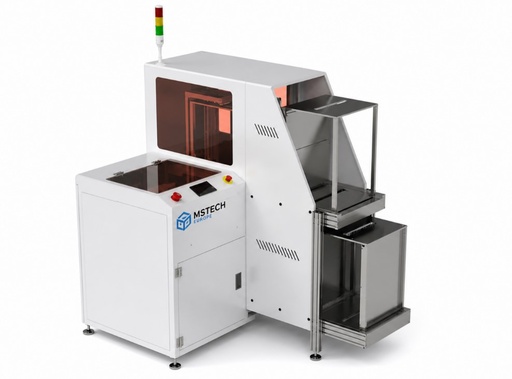

Classic-AMML-Flex

Available for 355x320x563 / 460x400x563 / 535x460x570 / 535x530x570 (mm); Motorized width adjustment; NG/OK reject functions; PCB Max(mm): All sizes; PCB Min. (mm): 50x50; Magazine (mm): 355x320x563 / 460x400x563 / 535x460x570 / 535x530x570 (mm)

Application:

The Magazine Loader is designed for loading of PCBs. The unit loads your production line automatically by pushing PCB’s out of a magazine onto the conveyor of the down-stream machine. Connect with SMT and AI productions line, safety design ensure not to break any PCB when it is pushed and thus reduce defect rate. With high accuracy, automatic counting, fault alram functions, it is required for a full range of automatic equipment.

This multi magazine loader is designed with ""L type ""to save the SMT production line length without impacting the production throughout capacity.



1.Used in SMT line front, sends PCB from magazine to downstream machine.
2.The unit loads your production line automatically by pushing PCB’s out of the magazine onto the conveyor of the downstream machines. Full magazines are inserted at an ergonomic low level.
3.Located at the first stage of SMT line, this unit transfers PCBs stacked in a magazine rack to the downstream machine using a pneumatic pusher one by one.

Features

• Magazine capacity: Top 1+ Down 2, middle 1, total 4 magazines.

• Full CE regulations safety cover

• Selectable pitch 10mm up to 80mm

• Auto/Manual run modes

• Diameter 3.8mm edge Flat ESD belt

• Component clearance: top 50mm+ bottom 30mm

• Power: AC220V/110V, 50/60 HZ, 1 phase

• Air Pressure: 5kgf/cm2

• PCB Convey Direction: L-R (Or R-L)

• Front rail fixed (or rear rail fixed)

• Conveyor height:900+/-50mm (standard height for SMT application)

• For AI application, please specify the height requirements

MSTECH Europe

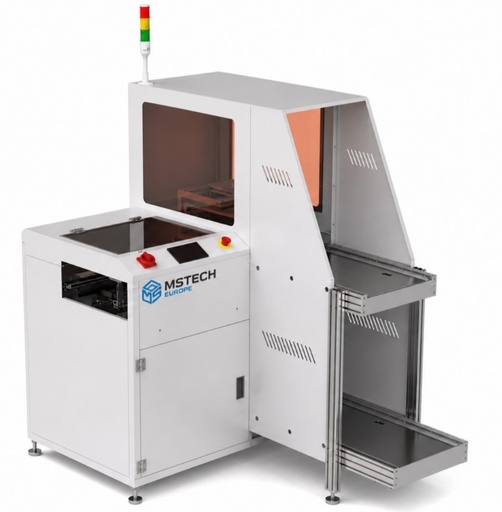

Classic-AMMUL-250
Multi Magazine (mm) unloader, space save type; Motorized width adjustment; NG/OK reject functions; PCB Max(mm): 330x250; PCB Min. (mm): 50x50; Machine Size (mm): 1010x1470x1650; Magazine (mm): 355x320x563

Application:

The Automatic Unloader is designed for unloading of PCBs, an arriving PCB is taken up by the attached conveyor and then pushed into the magazine by a specially designed pusher. The magazine indexes to the next position and is ready for the following unloading cycle. Connect with SMT and AI production line, safety design ensure not to break any PCB when it is pushed and thus reduce defect rate. Agility operation with high accuracy, automatic counting, fault alarm functions, it is required for a full range of automatic equipment.



This Multi magazine Unloader is designed with ""L type ""to save the SMT production line length as much as possible but without impacting the production throughout capacity.



1. Located at the end of SMT line,collecting the PCB from the line into the magazine.
2. Space save type for the SMT line length.

Features

• Magazine capacity: Top 1+ Down 2, middle 1,total 4 magazines.

• Full CE regulations safety cover

• Selectable pitch 10mm up to 80mm

• Auto/Manual run modes

• Diameter 3mm edge Flat ESD belt

• Component clearance: top 50mm bottom 25mm

• Power: AC220V/110V, 50/60 HZ, 1 phase

• Air Pressure: 5kgf/cm2

• PCB Convey Direction: L-R ( Or R-L)

• Front rail fixed ( or rear rail fixed)

• Conveyor height:900+/-50mm( standard height for SMT application)

• For AI application, please specify the height requirements

MSTECH Europe
Classic-AMMUL-330
Multi Magazine (mm) unloader, space save type; Motorized width adjustment; NG/OK reject functions; PCB Max(mm): 440x330; PCB Min. (mm): 50x50; Machine Size (mm): 1210x1700x1650; Magazine (mm): 460x400x563

Application:

The Automatic Unloader is designed for unloading of PCBs, an arriving PCB is taken up by the attached conveyor and then pushed into the magazine by a specially designed pusher. The magazine indexes to the next position and is ready for the following unloading cycle. Connect with SMT and AI production line, safety design ensure not to break any PCB when it is pushed and thus reduce defect rate. Agility operation with high accuracy, automatic counting, fault alarm functions, it is required for a full range of automatic equipment.



This Multi magazine Unloader is designed with ""L type ""to save the SMT production line length as much as possible but without impacting the production throughout capacity.



1. Located at the end of SMT line,collecting the PCB from the line into the magazine.
2. Space save type for the SMT line length.

Features

• Magazine capacity: Top 1+ Down 2, middle 1,total 4 magazines.

• Full CE regulations safety cover

• Selectable pitch 10mm up to 80mm

• Auto/Manual run modes

• Diameter 3mm edge Flat ESD belt

• Component clearance: top 50mm bottom 25mm

• Power: AC220V/110V, 50/60 HZ, 1 phase

• Air Pressure: 5kgf/cm2

• PCB Convey Direction: L-R ( Or R-L)

• Front rail fixed ( or rear rail fixed)

• Conveyor height:900+/-50mm( standard height for SMT application)

• For AI application, please specify the height requirements

MSTECH Europe
Classic-AMMUL-390
Multi Magazine (mm) unloader, space save type; Motorized width adjustment; NG/OK reject functions; PCB Max(mm): 530x390; PCB Min. (mm): 50x50; Machine Size (mm): 1390x1700x1650; Magazine (mm): 535x460x570

Application:

The Automatic Unloader is designed for unloading of PCBs, an arriving PCB is taken up by the attached conveyor and then pushed into the magazine by a specially designed pusher. The magazine indexes to the next position and is ready for the following unloading cycle. Connect with SMT and AI production line, safety design ensure not to break any PCB when it is pushed and thus reduce defect rate. Agility operation with high accuracy, automatic counting, fault alarm functions, it is required for a full range of automatic equipment.



This Multi magazine Unloader is designed with ""L type ""to save the SMT production line length as much as possible but without impacting the production throughout capacity.



1. Located at the end of SMT line,collecting the PCB from the line into the magazine.
2. Space save type for the SMT line length.

Features

• Magazine capacity: Top 1+ Down 2, middle 1,total 4 magazines.

• Full CE regulations safety cover

• Selectable pitch 10mm up to 80mm

• Auto/Manual run modes

• Diameter 3mm edge Flat ESD belt

• Component clearance: top 50mm bottom 25mm

• Power: AC220V/110V, 50/60 HZ, 1 phase

• Air Pressure: 5kgf/cm2

• PCB Convey Direction: L-R ( Or R-L)

• Front rail fixed ( or rear rail fixed)

• Conveyor height:900+/-50mm( standard height for SMT application)

• For AI application, please specify the height requirements

MSTECH Europe
Classic-AMMUL-460
Multi Magazine (mm) unloader, space save type; Motorized width adjustment; NG/OK reject functions; PCB Max(mm): 535x460; PCB Min. (mm): 50x50; Machine Size (mm): 1390x2110x1650; Magazine (mm): 535x530x570

Application:

The Automatic Unloader is designed for unloading of PCBs, an arriving PCB is taken up by the attached conveyor and then pushed into the magazine by a specially designed pusher. The magazine indexes to the next position and is ready for the following unloading cycle. Connect with SMT and AI production line, safety design ensure not to break any PCB when it is pushed and thus reduce defect rate. Agility operation with high accuracy, automatic counting, fault alarm functions, it is required for a full range of automatic equipment.



This Multi magazine Unloader is designed with ""L type ""to save the SMT production line length as much as possible but without impacting the production throughout capacity.



1. Located at the end of SMT line,collecting the PCB from the line into the magazine.
2. Space save type for the SMT line length.

Features

• Magazine capacity: Top 1+ Down 2, middle 1,total 4 magazines.

• Full CE regulations safety cover

• Selectable pitch 10mm up to 80mm

• Auto/Manual run modes

• Diameter 3mm edge Flat ESD belt

• Component clearance: top 50mm bottom 25mm

• Power: AC220V/110V, 50/60 HZ, 1 phase

• Air Pressure: 5kgf/cm2

• PCB Convey Direction: L-R ( Or R-L)

• Front rail fixed ( or rear rail fixed)

• Conveyor height:900+/-50mm( standard height for SMT application)

• For AI application, please specify the height requirement

MSTECH Europe
Classic-AMMUL-Flex
Available for 355x320x563 / 460x400x563 / 535x460x570 / 535x530x570 (mm); Motorized width adjustment; NG/OK reject functions; PCB Max(mm): All sizes; PCB Min. (mm): 50x50; Magazine (mm): 355x320x563 / 460x400x563 / 535x460x570 / 535x530x570 (mm)

Application:

The Automatic Unloader is designed for unloading of PCBs, an arriving PCB is taken up by the attached conveyor and then pushed into the magazine by a specially designed pusher. The magazine indexes to the next position and is ready for the following unloading cycle. Connect with SMT and AI production line, safety design ensure not to break any PCB when it is pushed and thus reduce defect rate. Agility operation with high accuracy, automatic counting, fault alarm functions, it is required for a full range of automatic equipment.



This Multi magazine Unloader is designed with ""L type ""to save the SMT production line length as much as possible but without impacting the production throughout capacity.



1. Located at the end of SMT line,collecting the PCB from the line into the magazine.
2. Space save type for the SMT line length.

Features

• Magazine capacity: Top 1+ Down 2, middle 1,total 4 magazines.

• Full CE regulations safety cover

• Selectable pitch 10mm up to 80mm

• Auto/Manual run modes

• Diameter 3mm edge Flat ESD belt

• Component clearance: top 50mm bottom 25mm

• Power: AC220V/110V, 50/60 HZ, 1 phase

• Air Pressure: 5kgf/cm2

• PCB Convey Direction: L-R ( Or R-L)

• Front rail fixed ( or rear rail fixed)

• Conveyor height:900+/-50mm( standard height for SMT application)

• For AI application, please specify the height requirements

MSTECH Europe
Classic-SML-250
Single Magazine (mm) loader, space save type; Motorized width adjustment; NG/OK reject functions; PCB Max(mm): 330x250; PCB Min. (mm): 50x50; Machine Size (mm): 1024x1260x1650; Magazine (mm): 355x320x563

Application:


This single magazine loader is designed to handle the single magazine efficiently at the customer site who has the factory space limited for SMT line length.

The unit loads your production line automatically by pushing PCB’s out of the magazine onto the conveyor of the downstream machines. Full magazines are inserted at an ergonomic low level.
Located at the first stage of SMT line, this unit transfers PCBs stacked in a magazine rack to the downstream machine using a pneumatic pusher one by one.
Used in SMT line front, sends PCB from magazine to downstream machine

Features

• Magazine capacity: Single magazine

• Full CE regulations safety cover

• Selectable pitch 10mm up to 80mm

• Auto/Manual run modes

• Diameter 3mm edge ESD belt

• Component clearance: top 50mm+bottom 30mm

• Power: AC220V/110V, 50/60 HZ, 1 phase

• Air Pressure: 5kgf/cm2

• PCB Convey Direction: L-R ( Or R-L)

• Front rail fixed (or rear rail fixed)

• Conveyor height:900+/-50 mm (standard height for SMT application)

• For AI application, please specify the height requirements

MSTECH Europe
Classic-SML-330
Single Magazine (mm) loader, space save type; Motorized width adjustment; NG/OK reject functions; PCB Max(mm): 440x330; PCB Min. (mm): 50x50; Machine Size (mm): 1180x1260x1650; Magazine (mm): 460x400x563

Application:


This single magazine loader is designed to handle the single magazine efficiently at the customer site who has the factory space limited for SMT line length.

The unit loads your production line automatically by pushing PCB’s out of the magazine onto the conveyor of the downstream machines. Full magazines are inserted at an ergonomic low level.
Located at the first stage of SMT line, this unit transfers PCBs stacked in a magazine rack to the downstream machine using a pneumatic pusher one by one.
Used in SMT line front, sends PCB from magazine to downstream machine

Features

• Magazine capacity: Single magazine

• Full CE regulations safety cover

• Selectable pitch 10mm up to 80mm

• Auto/Manual run modes

• Diameter 3mm edge ESD belt

• Component clearance: top 50mm+bottom 30mm

• Power: AC220V/110V, 50/60 HZ, 1 phase

• Air Pressure: 5kgf/cm2

• PCB Convey Direction: L-R ( Or R-L)

• Front rail fixed (or rear rail fixed)

• Conveyor height:900+/-50 mm (standard height for SMT application)

• For AI application, please specify the height requirements

MSTECH Europe
Classic-SML-390
Single Magazine (mm) loader, space save type; Motorized width adjustment; NG/OK reject functions; PCB Max(mm): 530x390; PCB Min. (mm): 50x50; Machine Size (mm): 1255x1385x1650; Magazine (mm): 535x460x570

Application:


This single magazine loader is designed to handle the single magazine efficiently at the customer site who has the factory space limited for SMT line length.

The unit loads your production line automatically by pushing PCB’s out of the magazine onto the conveyor of the downstream machines. Full magazines are inserted at an ergonomic low level.
Located at the first stage of SMT line, this unit transfers PCBs stacked in a magazine rack to the downstream machine using a pneumatic pusher one by one.
Used in SMT line front, sends PCB from magazine to downstream machine

Features

• Magazine capacity: Single magazine

• Full CE regulations safety cover

• Selectable pitch 10mm up to 80mm

• Auto/Manual run modes

• Diameter 3mm edge ESD belt

• Component clearance: top 50mm+bottom 30mm

• Power: AC220V/110V, 50/60 HZ, 1 phase

• Air Pressure: 5kgf/cm2

• PCB Convey Direction: L-R ( Or R-L)

• Front rail fixed (or rear rail fixed)

• Conveyor height:900+/-50 mm (standard height for SMT application)

• For AI application, please specify the height requirements

MSTECH Europe
Classic-SML-460
Single Magazine (mm) loader, space save type; Motorized width adjustment; NG/OK reject functions; PCB Max(mm): 535x460; PCB Min. (mm): 50x50; Machine Size (mm): 1255x1455x1650; Magazine (mm): 535x530x570

Application:


This single magazine loader is designed to handle the single magazine efficiently at the customer site who has the factory space limited for SMT line length.

The unit loads your production line automatically by pushing PCB’s out of the magazine onto the conveyor of the downstream machines. Full magazines are inserted at an ergonomic low level.
Located at the first stage of SMT line, this unit transfers PCBs stacked in a magazine rack to the downstream machine using a pneumatic pusher one by one.
Used in SMT line front, sends PCB from magazine to downstream machine

Features

• Magazine capacity: Single magazine

• Full CE regulations safety cover

• Selectable pitch 10mm up to 80mm

• Auto/Manual run modes

• Diameter 3mm edge ESD belt

• Component clearance: top 50mm+bottom 30mm

• Power: AC220V/110V, 50/60 HZ, 1 phase

• Air Pressure: 5kgf/cm2

• PCB Convey Direction: L-R ( Or R-L)

• Front rail fixed (or rear rail fixed)

• Conveyor height:900+/-50 mm (standard height for SMT application)

• For AI application, please specify the height requirements

MSTECH Europe

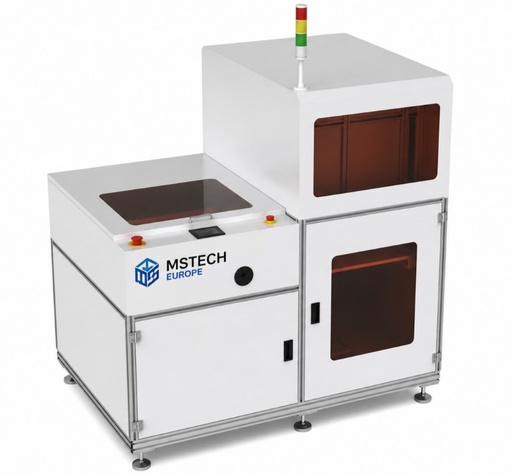

Classic-SML-Flex
All size Magazine (mm) version; Motorized width adjustment; NG/OK reject functions; PCB Max(mm): All sizes; PCB Min. (mm): 50x50; Machine Size (mm): Motorized Magazine (mm) conveyor width + pusher position; Magazine (mm): 355x320x563 / 460x400x563 / 535x460x570 / 535x530x570 (mm)

Application:


This single magazine loader is designed to handle the single magazine efficiently at the customer site who has the factory space limited for SMT line length.

The unit loads your production line automatically by pushing PCB’s out of the magazine onto the conveyor of the downstream machines. Full magazines are inserted at an ergonomic low level.
Located at the first stage of SMT line, this unit transfers PCBs stacked in a magazine rack to the downstream machine using a pneumatic pusher one by one.
Used in SMT line front, sends PCB from magazine to downstream machine

Features

• Magazine capacity: Single magazine

• Full CE regulations safety cover

• Selectable pitch 10mm up to 80mm

• Auto/Manual run modes

• Diameter 3mm edge ESD belt

• Component clearance: top 50mm+bottom 30mm

• Power: AC220V/110V, 50/60 HZ, 1 phase

• Air Pressure: 5kgf/cm2

• PCB Convey Direction: L-R ( Or R-L)

• Front rail fixed (or rear rail fixed)

• Conveyor height:900+/-50 mm (standard height for SMT application)

• For AI application, please specify the height requirements
