MSTECH Europe

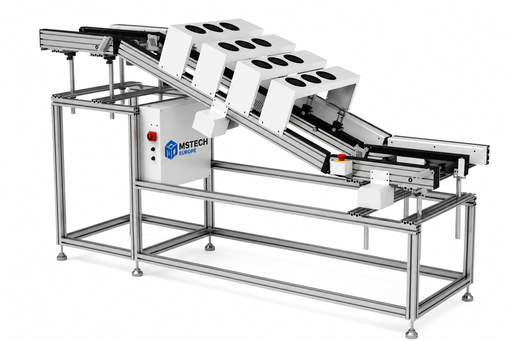

Classic-OCW-460
Outfeed conveyor, wave soldering line

Application :
This unit is special for the unloading conveyors of PCB from the wave soldering machine. The transfer heights are adjustable to meet any kind of wave solder in the market.

Features

• Panasonic PLC program control

• Continuous queue unloading PCBs from the wave soldering machine.

• Conveyor width adjustment by using hand crank.

• PCB transfer angle is adjustable

• Heavy bottom design to prevent shifting

• Conveyor transfer by ESD flat belts or Pin chain conveyor

• PCB flow direction flows can be customized

• SMEMA compatible

MSTECH Europe

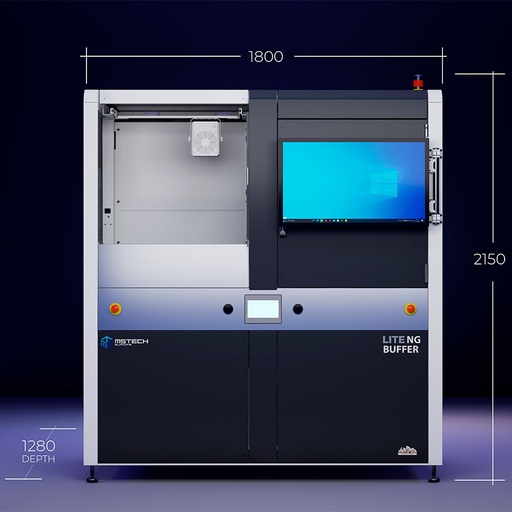

OPTIMIZED PCB HANDLING WITH REPAIR ACCESS


The LITE NG BUFFER is designed to be installed at the rear of an inspection machine. It automatically discharges good PCBs to the next process, while
loading NG (defective) PCBs onto a dedicated rack located on the upper
conveyor. This allows operators to easily access and repair defective boards,
improving efficiency and ensuring process stability

FEATURES
» PLC control for reliable automation.
» Total storage 5 slots 75 mm picht
each.
» LCD touch panel for easy operation.
» Individual lift rack operation.
» Repair zone (upper conveyor) for NG
PCBs.
» Safety-oriented design.
» Improved productivity with stable
quality.
» User-friendly interface

MSTECH Europe

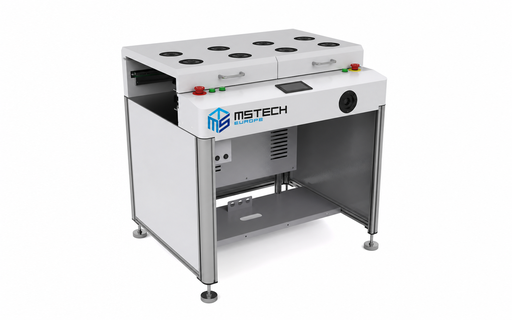

Classic LC10D-460F

Linking conveyor FLASH OFF / inspection UV conveyor, 1000mm length; Motorized width adjustment; FLASH OFF  PROCESS functions; PCB Max(mm): 500x460; PCB Min. (mm): 50x50; Machine Size (mm): 1000x950x1250
