SPARE PART
MSTECH Europe

LITE PLUS [SNAP VISION] [SNAP FLIP]
Miniature photocell

MSTECH Europe

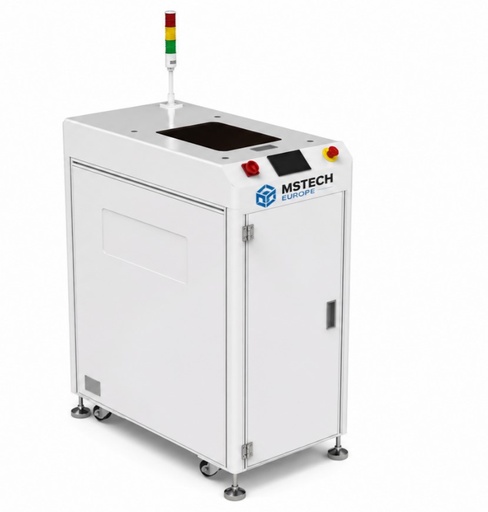

Classic-INV-460

Inverter conveyor for bare boards, PCB thickness 0.6-2.5mm; Motorized width adjustment; NG/OK reject functions; PCB Max(mm): 500x460; PCB Min. (mm): 50x50; Machine Size (mm): 650x1076x1300

Application
This unit is used to inverter flip /PCB’s ( 180 °) for double side process.

Features

• Panasonic PLC program control

• By-pass mode, inverter mode selectable

• Pneumatic stopper to keep the PCB in position during inverting

• Motorized conveyor width adjustment (optional).

• LED signal tower

• Buzzer

• Suitable for boards with many components on the bottom side

• Closed –loop stepper motor providing the rotating driving power

• SMEMA compatible

MSTECH Europe

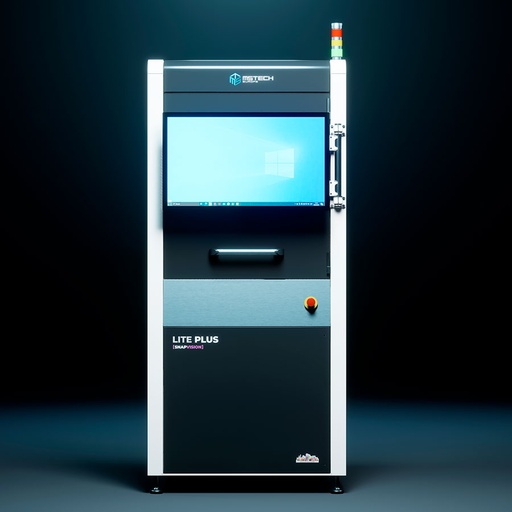

LITE PLUS [SNAP VISION] [SNAP FLIP]

MULTI-PURPOSE
VISION SYSTEM FOR
INTEGRATION INTO
AN EXISTING LINE

Super-fast 2D AOI/ACI inspection
and image analysis with advanced
capabilities, including film thickness
measurement, for coating, dispensing,
component insertion, THT, and wave
soldering process lines.

Features :
■Resolution standard down to 40 um.
■Standard FOV up to 530 x 400 mm.
■Intuitive programming UI.
■Complete inspection time below
than 4 sec. (Depending on FOV).
■Traceability reading while inspection.
■Code Reading: DataMatrix, QR codes.
■UV traceable.
■Thickness trend capability.
■Light source: multi-LED illumination.
■No periodical calibration of camera needs.
■AI based diagnostic.
■Industry 4.0 MES/FIS
and data sharing.

MSTECH Europe

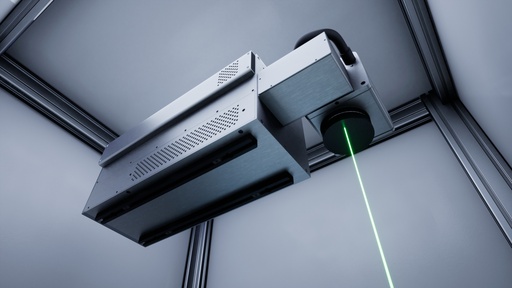

LITE PLUS [SNAP LIGHT] [SNAP FLIP]

MULTIFUNCTION LASER
WITH A UNIQUE EXTENDED
FOV, SUITABLE FOR
µMACHINING, SURFACE
PREPARATION, AND
DIGITAL SINTERING

The SNAP LIGHT module expands
the MSTECH software suite with a
high-precision laser system designed
for critical application in electronic &
semicon manufacturing. It performs
ultra- accurate ablation, marking,
sintering, cleaning, and edge-finishing
operations with full digital control.
SNAP LIGHT executes with
micrometric precision, ensuring
maximum efficiency, repeatability, and
reduced process errors.

Features
» Dimensions (WxDxH) : 900 x 1280 x 2148 mm
» INVERT PCBs (180º) FOR DOUBLE-SIDED PROCESS
» Laser spot: ≥ 40 μm.
» Marking area indicator.
» Internal barcode generator.
» Marca full graphics PC Software.
» Available as an OEM Kit or
within MSTECH Europe platform
compatible with SNAP MOTION, and
SMARTBOX and Process Tracker (optional)

MSTECH Europe

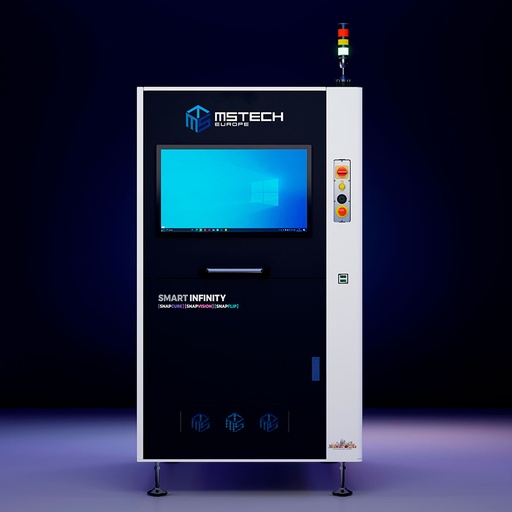

SMART INFINITY SMNAP FLIP SNAP VISION SNAP CURE

CONFIGURATION FLEXIBILITY
» [SNAPVISION][SNAPCURE][SNAPFLIP] inside.
» Multi-language 32’’ tactile HMI.
» No air supply required.
» Multi process sensors closed loop process.
» High resolution multi type inspection.
» 1D/2D barcode reading.
» Multi wavelength curing.
» Single lane capability up to 510 x 460 mm.
PRODUCTIVITY
» Inspection time less than 4 seconds/side.
» Curing time approx. 5 seconds/side.
» Flip less than 2 seconds.
FULL INTERCONNECTED TRACEABILITY (
OPTION)
OPTIMIZATION
→ Floor space & Energy efficient. Eco-friendly.
UNIQUE CONCEPT

NTM310IL
2002-0409E02

Maximum PCB size: Supports boards with a length of 80 to 460 mm and a width of 50 to 407 mm.
Machine dimensions: Measures 653 mm long, 870 mm wide, and 1300 mm high.
Total weight: The equipment weighs approximately 120 kg.
Transport height: Adjusted to the industry standard of 950 mm (with an adjustment range of ± 25 mm).
Cycle time: Takes approximately 8 seconds to receive, flip, and deliver the board.

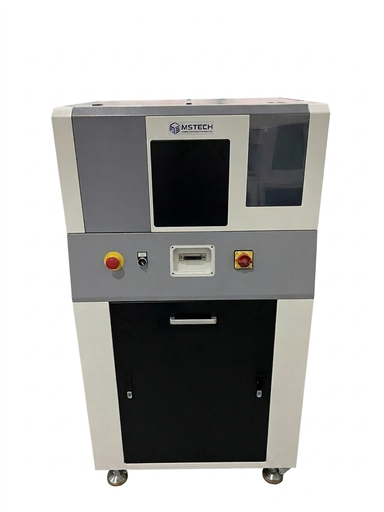

CFD - Flipper
AT022880

Supported PCB size range: Minimum 50 x 50 mm up to a maximum of 750 x 510 mm (or larger).
Track width adjustment: Automatically motorized via ball screw (controlled from the touchscreen) to accurately and evenly support the 510 mm width.
Flipping mechanism: Closed-loop servo motor instead of a standard pneumatic piston. This ensures a smooth, controlled, and vibration-free 180° rotation for large and heavy boards.
Board clamping: Pneumatic clamps or precision stops to prevent the 740 mm long PCB from slipping or warping during rotation.

MSTECH Europe

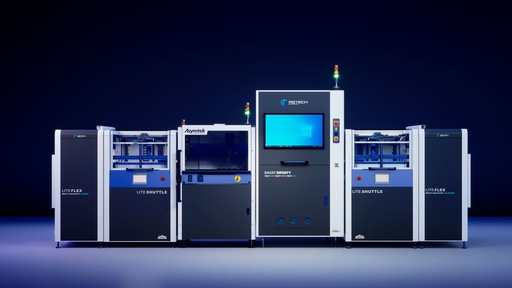

COATING LINE

This coating line is designed for automated conformal coating processes in electronics manufacturing. It integrates precision dispensing, curing, inspection, and board flipping to ensure complete coverage and high reliability. The concept emphasizes automation, flexibility, and traceability, reducing manual intervention and ensuring consistent quality.

SPARE PART
MSTECH Europe

LITE PLUS [SNAP VISION] [SNAP FLIP]

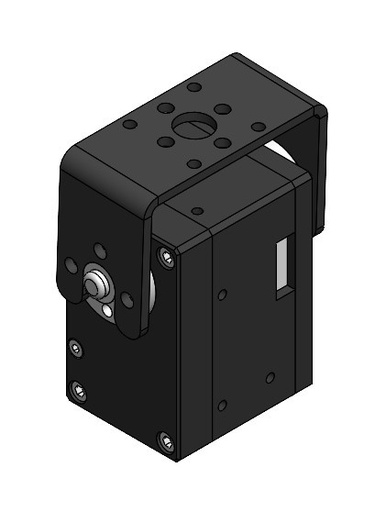

24V 45kg RS485 Modbus-RTU servo

SPARE PART
MSTECH Europe

LITE PLUS [SNAP VISION] [SNAP FLIP]

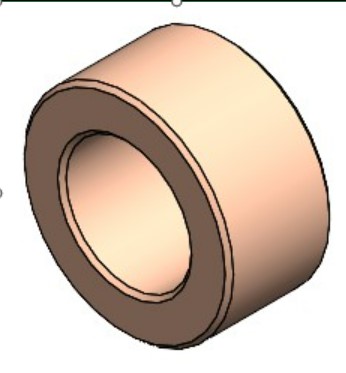

Bronze bushing

SPARE PART
MSTECH Europe
LITE PLUS [SNAP VISION] [SNAP FLIP]

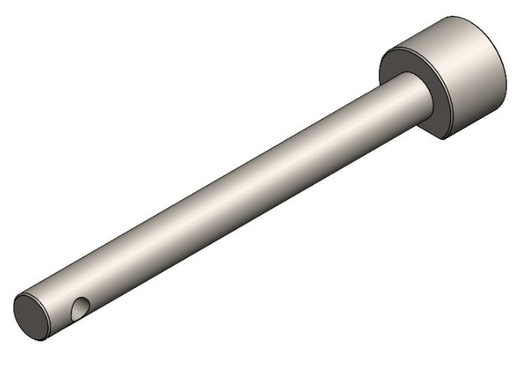

Stopper shaft

SPARE PART
MSTECH Europe

LITE PLUS [SNAP VISION] [SNAP FLIP]

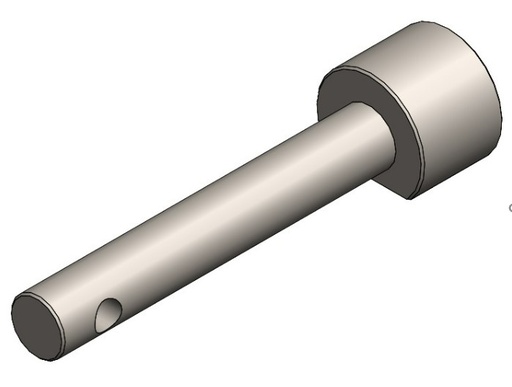

Stopper shaft

SPARE PART
MSTECH Europe

LITE PLUS [SNAP VISION] [SNAP FLIP]

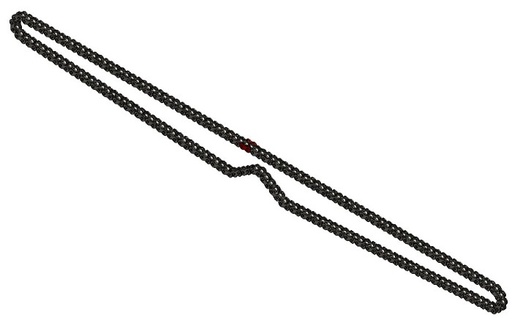

Flip conveyor chain

SPARE PART
MSTECH Europe

LITE PLUS [SNAP VISION] [SNAP FLIP]

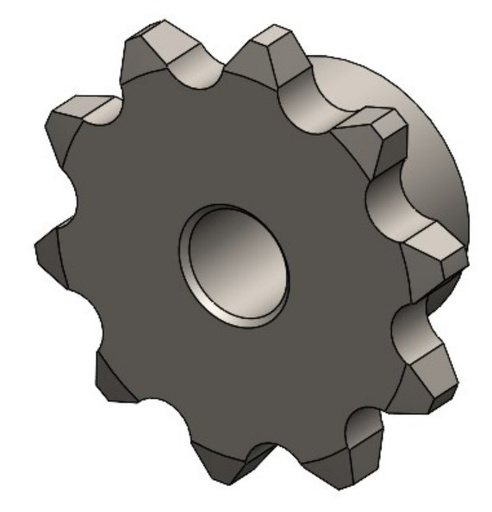

10T sprocket, 06C chain (ASA 35B)

SPARE PART
MSTECH Europe

LITE PLUS [SNAP VISION] [SNAP FLIP]

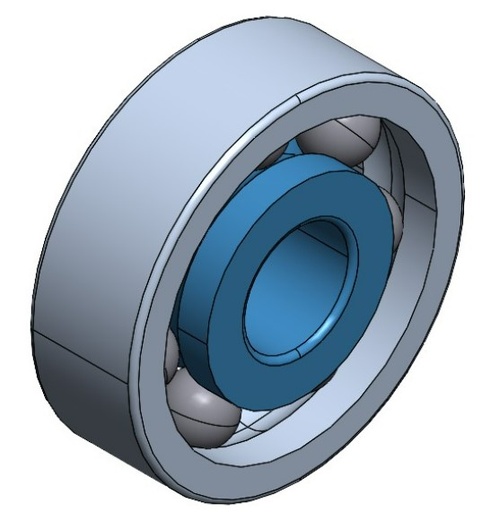

Bearing 626-2RSR

SPARE PART
MSTECH Europe

LITE PLUS [SNAP VISION] [SNAP FLIP]

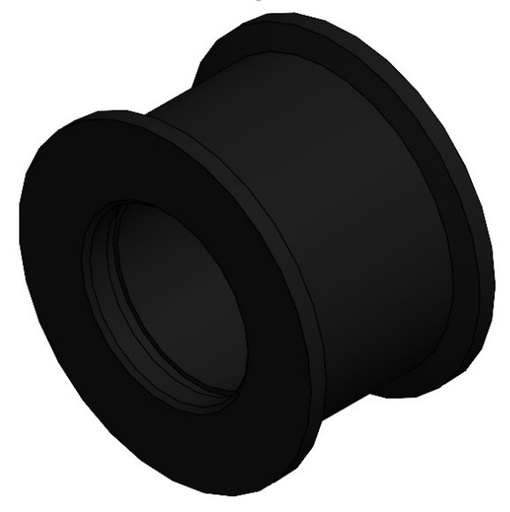

Conveyor belt tensioning pulley

SPARE PART
MSTECH Europe

LITE PLUS [SNAP VISION] [SNAP FLIP]

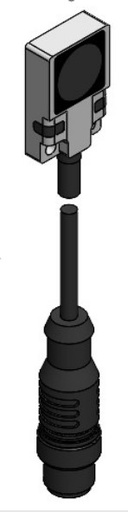

Inductive proximity sensor IQ20-07BPPDQ0S

SPARE PART
MSTECH Europe

LITE PLUS [SNAP VISION] [SNAP FLIP]

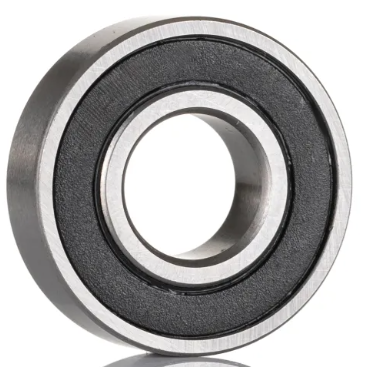

Bearing 61901-2RS

SPARE PART
MSTECH Europe

LITE PLUS [SNAP VISION] [SNAP FLIP]

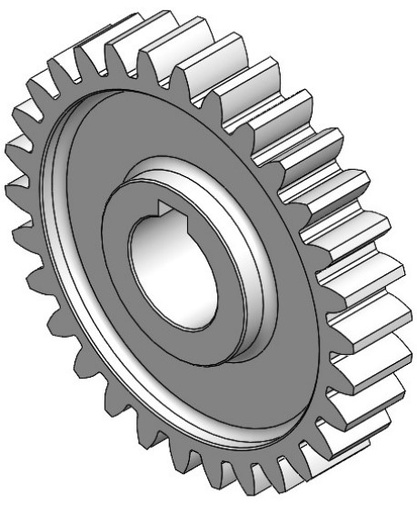

Large gear flip transmission

SPARE PART
MSTECH Europe

LITE PLUS [SNAP VISION] [SNAP FLIP]

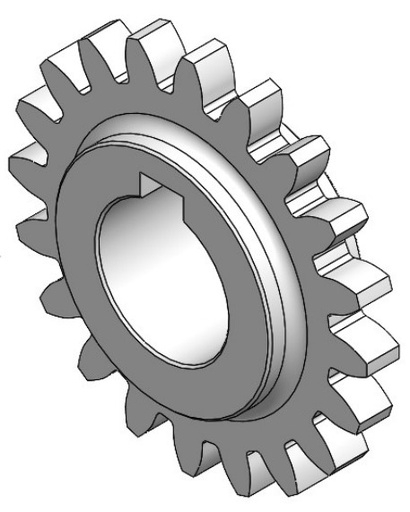

Small gear for flip transmission
