Performance, Reliability, Value.

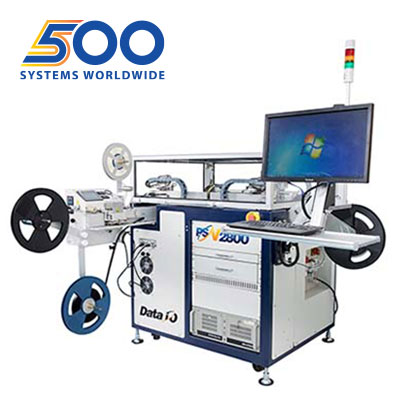

The PSV2800 delivers ultra-fast performance with industry-leading reliability for dedicated high-volume applications at the lowest total cost of ownership.

Programming Technology

FlashCORE III

At the core of all Data I/O's programming systems is the FlashCORE III programming engine. FlashCORE III is the industry’s most trusted universal programming engine with tens of thousands of devices supported.

- Read/write speeds greater than 10 MBytes per second (80 Mbits/s) for capable devices
- Fast downloads over 100 Base-T Ethernet connection
- Configurable FPGA for optimized programming now and in the future

Performance​
Engineered for speed & agility delivering maximum production throughput

- 3000 parts/hour​
- Scalable up to 6 FlashCORE III programming engines for up to 24 sockets​​​
- Integrated tape input and tape output​
- Supports devices from 2mm x 3mm​ up to 21.5mm x 21.5mm

Reliability
Designed for easy set-up & reliable performance

- Integrated systems software and handling technology for highest quality yield
- Simple UI minimizes operator error
- Supports up to two self-regulating ionizers to provide rapid elimination of ESD
- Highest programming yield up to 99.8%

Value
Delivering the lowest total cost of programming

- Scalable from 1-6 FlashCORE III programmers (4 to 24 sockets)​
- Thousands of devices supported
- Investment protection

Productive, Reliable, Affordable.

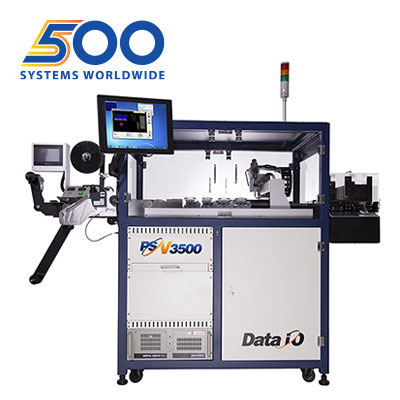

High-quality, automated programming system to deliver trusted performance at a great value. The PSV3500 is the cost-effective entry point for high-quality automated device programming for low-volume applications.

Productive
Ideal for first-time automation

- Handler rated up to 700 parts per hour​
- Scalable from 1 LumenX programmer (8 sockets)​ and up to 2 Flash CORE programmers (8 sockets)
- Integrated media options​
- Fiber laser marking​
- Small parts down to 2mm x 3mm up to 42mm x 42mm​

Reliable
Engineered for highest quality programming, uptime, and production yield

- Highest quality programming results
- Intelligent system design & integration​
- Proven pick and place head​
- Integrated vision system for precise placement​

Affordable
High-quality automated programming for the lowest cost per device

- Save up to 3x cost per programmed part
- Investment protection to meet future production requirements
- Lowest total cost of ownership

Programming Technology

LumenX
Ultra-fast programming delivering revolutionary performance, managed and secure programming at a revolutionary value. LumenX programming technology delivers:

FlashCORE III
At the core of all Data I/O's programming systems is the FlashCORE III programming engine. FlashCORE III is the industry’s most trusted universal programming engine with tens of thousands of devices supported.

Efficient, Reliable, Affordable

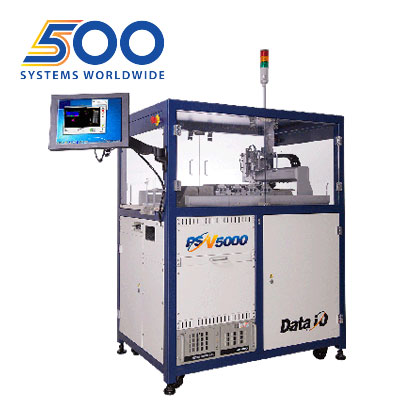

The PSV5000 is a cost-effective entry point for high-performance automated device programming. The PSV5000 delivers trusted performance, flexibility and reliability at an affordable price.

Efficient
Designed for Optimum performance

- Handler rated up to 1300 parts per hour​
-Scalable from 1 to 5 LumenX programmers (1 to 40 socket)​ or 1 - 6 FlashCORE programmers (4 to 24 sockets)
- Integrated media options​
- Fiber laser marking​
- Small parts down to 2mm x 3mm up to 42mm x 42mm​

Reliable
Engineered for highest quality programming, up-time & production yield​

- Highest quality programming results up to 99.8% yield
- Intelligent system design & integration​
- Proven pick and place head​
- Integrated vision system for precise placement​

Affordable
Developed to deliver high quality automated programming for the lowest cost per programmed device

- Up to 50% less cost per programmed part
- Investment protection to meet future production requirements
- Upgrade to SentriX for true security provisioning
- Lowest total cost of ownership

Velocity, Versatility, Value.

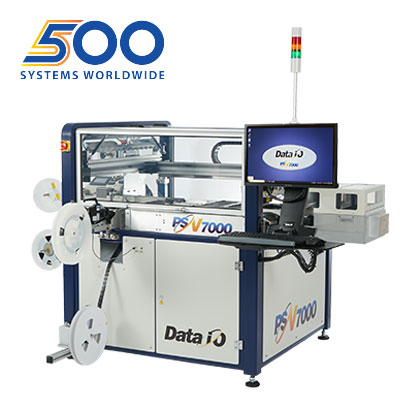

The world's premier automated programming system. The PSV7000 is engineered for speed and accuracy delivering blazing fast throughput, highest up-time, flexibility, and fast changeover to handle complex jobs at up to 50% lower cost.

Velocity
Engineered for speed and accuracy, the PSV7000 gives you blazing fast throughput and the highest uptime

- Up to 2000 devices/hour with tray, tape and tube
- Optimized throughput with Speed Factor
- Alignment-on-the-fly
- Zero mechanical changeover
- Simple, fast, and accurate teach with NexTeach Pro

Versatility
Designed for ultimate flexibility and zero changeover

- Small parts handling down to 1.5mm x 1.5mm
- Greatest socket density: scalable up to 14 LumenX programmer for up to 112 sockets or 24 FlashCORE III programmers for up to 96 sockets
- Concurrently installed media options including dual input tray feeder, tape & tube
- Ergonomic design for easy access
- Upgrade to SentriX for true security provisioning

Value
The PSV7000 delivers unprecedented capability & quality for the lowest total cost of ownership

- Up to 50% less cost per programmed part
- Investment protection to meet future production requirements
- Lowest total cost of ownership

Programming Technology
LumenX
Ultra-fast programming delivering revolutionary performance, managed and secure programming at a revolutionary value. LumenX programming technology delivers

FlashCORE III
At the core of all Data I/O's programming systems is the FlashCORE III programming engine. FlashCORE III is the industry’s most trusted universal programming engine with tens of thousands of devices supported.

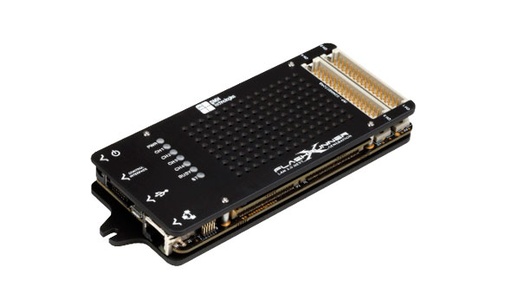

FlashRunner 2.0 technology is revolutionary not only for its performances in terms of fast programming speed, but also for the technological leap that it represents, introducing the concept of production efficiency.
SMH is exclusively focused on technology for the programming of microcontrollers and memories: its decennial experience led to the evolution from a simple programming tool to an actual programming system which finalizes and completes FlashRunner’s performance.

Control
- Production control panel
- Programming times and statistics
- Interface libraries
- Connections pinout

Command
- Project wizard
- File transfer management
- Firmware and software updates
- Windows, Linux and Mac compatible GUI software interface

Security
- Encrypted FRB files to avoid binary hacking
- Dump and compare features of all channels
- LOG file and Production Report file
- User Permission Management
- Tracking of programming cycles number
- Errors with language descriptions

Software Features
FlashRunner 2.0 is based on Linux Embedded operating system, which relays on a real time scheduler and a full featured hardware abstraction layer.
FlashRunner 2.0 is featured with software interfacing libraries which enables customers to achieve a full integration inside their software and across different frameworks, as LabView© and Visual C/C++.

A new, friendly and interactive GUI (Graphic User Interface) which cut off overall configuration efforts, guiding customers creating a working project in few mouse clicks and detecting mismatches between target device and customer firmware, as well as power supply setup.

Hardware Features
- Easy fixture integration thanks to the compact size: 142×17,6x70mm;
- Independent ISP channels supporting several communication protocols (JTAG, SPI, I2C, BDM, UART…);
- 8 digital I/O lines for each channel, coupled with dedicated ground return lines;
- Two programmable output voltage lines;
- 1 GB on-board Dynamic Memory;
- On-board timekeeper and calendar for time-stamped log file;
- Fast Ethernet interface up to 1 Gbit/s (optoisolated, autocrossing feature);
- USB-UART communication interface (optoisolated);
- Fixture dedicated Control interface for standalone mode (optoisolated);
- Power voltage and current measurement for each channel;
- Integrated control for optional Relay Barrier tool;
- Two 48-pin DIN In-System Programming connectors;
- eMMC and NAND memory support:
- Up to 256 GB storage memory;
- Operation status LEDs for each channel;
- USB communication interface (optoisolated).

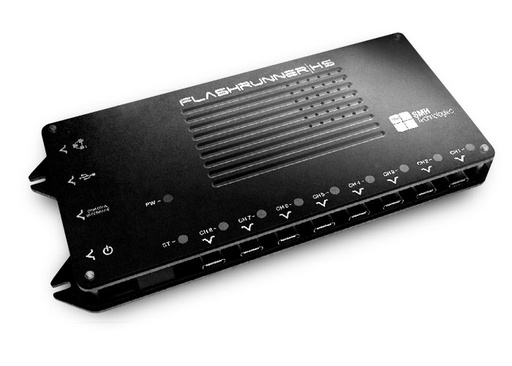

FlashRunner High-Speed combines high-level programming performances and high modularity to obtain a Multi-end programming solution that fits the needs of Pre-Programming and In-System Programming equipment.

The HS Control Unit is the central management which coordinates different technologies for each peripheral Active Module: this organization reflects the Industry 4.0 concept, where a central intelligence creates smart networking and parallel independent process management, reaching high quality levels and optimizing the production process.

The possibility to place the Active Module close to the target devices cuts any distance between the programming system and customer’s board, guaranteeing optimal signal integrity.

Thanks to the high communication frequency, this new member of the FlashRunner family allows to manage big-size data files with up to 80MB/s transfer rate speed, guaranteeing the highest programming performance. This system perfectly complies with the major needs not only of the production lines, but widely involves the whole process management (production quality control, permission management, hacking prevention… etc.).

Control
- Programming cycle time
- Easy wire-wrapping with pinout manager
- Log file Production
- Control Report
- FRB Conversion Report
- Voltage Monitor
- Production batch counter

Command
- Graphical User Interface
- File transfer Management
- One-click driver updates
- Windows and Linux compatible GUI software Interface
- DLL interface libraries for C/C++/C#/Labview/Teststand
- Command line tools

Security
- Encrypted FRB files to avoid binary hacking
- Dump and Compare features of all channels
- User Permission Management
- NDA device management
- FRB integrity check through CRC calculation

Software Features
- Watchdog feeder: square wave generator, frequency trimmable, feeding on-board watchdog;
- Cybersecurity: firmware encryption and secure data transfer;
- DLL (C,C++,C#), easy integration with Teststand/Labview/CVI;
- Voltage Monitor: overvoltages and undervoltages detection during flashing process;
- Serial Numbering: dynamic data flashing, runtime defined;
- Digital lines shuffling: dynamic pinout management;
- Conditional erase: decrease cycle time by adding this option to erase only if device is not blank;
- Online driver knowledgebase: complete online Wiki, daily updated, online video lectures, troubleshooting articles.
