3D AOI

PEMTRON

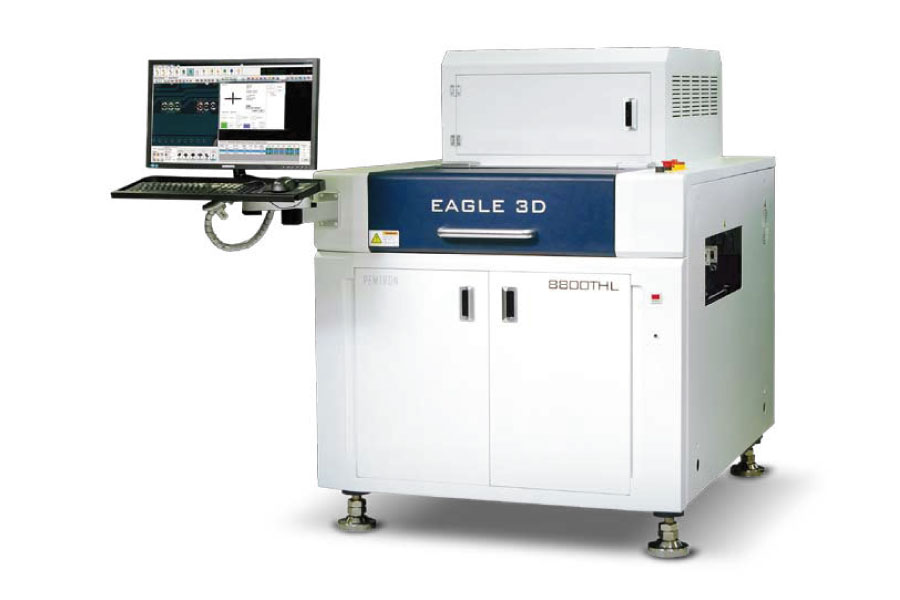

EAGLE 3D 8800

Through Hole 3D AOI System Bottom
Side Head 3D AOI
▶ Bottom Camera Head Gantry
▶ Simultaneous Inspection Algorithm (2D and 3D)
▶ Telecentric Lens offers Higher Detection Accuracy
▶ High-Speed CPU & Image Processing
▶ User-Friendly GUI
▶ Built in Library Management System
▶ Offline Real-Time Debug Station

3D Measurements Free from Shadows and Reflections
-The EAGLE 3D 8800 AOI uses 8-way projection for 3D measurements on all models to minimize
errors due to shadow effects, and performs 100% 2D & 3D concurrently in all FOV areas.
-This significantly reduces the false call while providing near-perfect detection.

Accurate and convenient inspection using side camera
Four high-definition cameras on the side and a dedicated algorithm optimized for both use and
side inspection is available for real-time inspection.

-4-Way Side Camera (Optional)
-Internal bridge detection not found in Top Camera
-Connector internal detectable
-Convenient Teaching Using Existing Algorithm

27mm high part 3D measurement/inspection
EAGLE 3D AOI offers the option of inspecting up to 30mm in height components with a unique PEMTRON technology.
