MSTECH Europe
Classic MTX-450
The MTX-450 Vertical Oven is a high-capacity thermal processing solution designed for larger PCBs, combining space-saving vertical design with precise temperature control and reliable automation.
Key Features

Vertical system with 60 layers for high throughput
8 heating modules (4×2) for consistent heat distribution
Temperature range: up to 200°C
High precision: ±1°C control, ≤±2°C uniformity
Fast cycle time: from 35 seconds per PCB & pallet
Servo-driven lifting system for smooth, accurate handling
Optional Nitrogen (N₂) and cleanroom configuration

Capacity & Handling

Max PCB size: 400 × 450 mm
Product weight: up to 3 kg per layer
Component height: up to 25 mm
Inline entrance & exit conveyors
Manual or automatic rail width adjustment

Technical Specs

Dimensions: 2200 × 2230 × 2160 mm
Weight: ~1800 kg
Heating power: 64 KW (8 × 8 KW)
Conveyor height: 900 ± 30 mm

MSTECH Europe
Classic MTX-650
The MTX-650 Vertical Oven is a high-capacity solution designed for large-format PCB processing, combining a space-saving vertical design with precise temperature control and high throughput performance.
Key Features

Vertical system with 60 layers for maximum productivity
8 heating modules (4×2) for uniform heat distribution
Temperature range: up to 200°C
High precision: ±1°C control, ≤±2°C temperature uniformity
Fast cycle time: from 35 seconds per PCB & pallet
Servo-driven lifting system for smooth, reliable operation
Optional Nitrogen (N₂) and cleanroom configuration

Capacity & Handling

Max PCB size: 600 × 650 mm
Product weight: up to 3 kg per layer
Component height: up to 25 mm
Inline entrance & exit conveyors
Manual or automatic rail width adjustment

Technical Specs

Dimensions: 3000 × 2460 × 2160 mm
Weight: ~2100 kg
Heating power: 72 KW (8 × 9 KW)
Conveyor height: 900 ± 30 mm

MSTECH Europe
LITE [SNAPACTION] Vaccum Plasma

The MSTECH LITE Vacuum Plasma System is a high-performance inline solution designed for precision surface treatment in controlled vacuum environments.
By generating plasma under low pressure, the system ensures uniform, repeatable, and highly controlled treatment, ideal for advanced applications such as microelectronics and semiconductor manufacturing.
It enables multiple processes including cleaning, activation, etching, and coating, significantly improving surface energy, adhesion, and product reliability.
With its compact footprint, inline automation, and high process stability, the LITE Vacuum Plasma system is perfect for high-quality industrial production.


Key Features
✅ Vacuum plasma technology for high precision
✅ Controlled low-pressure environment
✅ Uniform plasma distribution
✅ Inline automation with conveyor system
✅ Supports multiple gases (Ar, O₂, N₂)
✅ Integrated vacuum chamber and pump
✅ Advanced process control (PC-based)
✅ MES integration capability
✅ Compact footprint

Dimension: 5000 L x 1250 W x 1560 H
Pcb Dimension: Min: 50 L x 50 W / Max 405 W mm
Top/Bottom Max component height: 120 mm
Control System: PLC
Control Panel: Color Touch Screen
Operating System: Dedicated software real time operation
Tunnel composed of IR modules
Chain conveyor
Manual or auto adjustable conveyor width
USB port and LAN Port for loading and unloading profiles
Exahust OUTPUT
SMEMA Connected
Weight: 1600 Kg Approx

MSTECH Europe
LITE IR 2
Specification：
1. Maximum PCB Size: 740*510mm
2. Upper transmission height: 950±20mm Lower transmission height：350±20mm
3. Transmission method: Chain pin length 5mm
4. Maximum PCBA Height: ± 110mm
5. Control mode: touch screen + Panasonic PLC with network port
6. Rail fixing side: front rail
7. Heating zone: up 2/down 0 8.Signal Connection: SMEMA head
8. Dimension: 2000x1230x1400mm 10.Conveyor with auto type lifting door
9. There are 2 strips of LED lights on the door to show the status of the upper and lower boards.
10. CE standard electrical appliances and circuit design

Configuration：
1. Voltage: 3P 380V
2. Direction: Left to Right
3. Heating method: IR
4. Panasonic display

MSTECH Europe
LITE IR 3

Specification：
1. Maximum PCB Size: 740*510mm
2. Upper transmission height: 950±20mm
Lower transmission height：350±20mm
3. Transmission method: Chain pin length 5mm
4. Maximum PCBA Height: ± 110mm
5. Control mode: touch screen + Panasonic PLC with network port
6. Rail fixing side: front rail
7. Heating zone: up 4/down 0
8. Signal Connection: SMEMA head
9. Dimension: 3000x1230x1400mm
10. Conveyor with auto type lifting door
11. There are 2 strips of LED lights on the door to show the status of the upper and lower boards.
12. CE standard electrical appliances and circuit design

Configuration：
1. Voltage: 3P 380V
2. Direction: Left to Right
3. Heating method: IR
4. Panasonic display

MSTECH Europe
LITE IR 4

Dimension: 3900 L x 1250 W x 1560 H
Pcb Dimension: Min: 50 L x 50 W / Max 405 W mm
Top/Bottom Max component height: 120 mm
Control System: PLC
Control Panel: Color Touch Screen
Operating System: Dedicated software real time operation
Tunnel composed of IR modules
Chain conveyor
Manual or auto adjustable conveyor width
USB port and LAN Port for loading and unloading profiles
Exahust OUTPUT
SMEMA Connected
Weight: 1200 Kg Approx

MSTECH Europe
SEMI INFINITY

CONFIGURATION FLEXIBILITY
» [SNAPVISION][SNAPCURE] inside.
» Multi-language 32’’ tactile HMI.
» No air supply required.
» Multi closed-loop processor sensors.
» Fine pitch Datamatrix reading.
» ISO6 (Class 1000) / ESD Level 1 / Full CE / UL.
» Certification / Semi S2/S8 Compliant SECS.
» GEM ready / EMC / F47NPA79.
» Wavelenght controller and closed-loop.radiation.
PRODUCTIVITY
» Less than 2 seconds inspection time.
» Curing time under 5 seconds per tray.
FULL INTERCONNECTED TRACEABILITY (
OPTION)
OPTIMIZATION
» Floor space & Energy efficient. Eco-friendly.
UNIQUE CONCEPT

MSTECH Europe

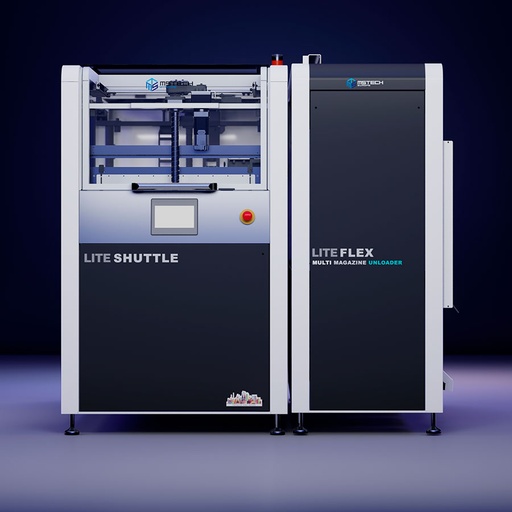

LITE FLEX MULTIUNLOADER AGV

PCBs are extracted from the
magazine by an extraction
mechanism and transferred onto
the handover conveyor. This
conveyor moves laterally on an
integrated shuttle to the handover
position, where the PCB is then
transferred to the next stage.

MSTECH Europe
LITE KIT 600 CHAIN

LITE KIT is an hyper-flexible,
cost-effective conveyor for PCB
transfer in SMT lines. Modular and
lightweight design enables easy
configuration, expansion, and
seamless integration.
600 mm
widths. Ensures smooth, stable,
and reliable product transfer
between processes.

MSTECH Europe

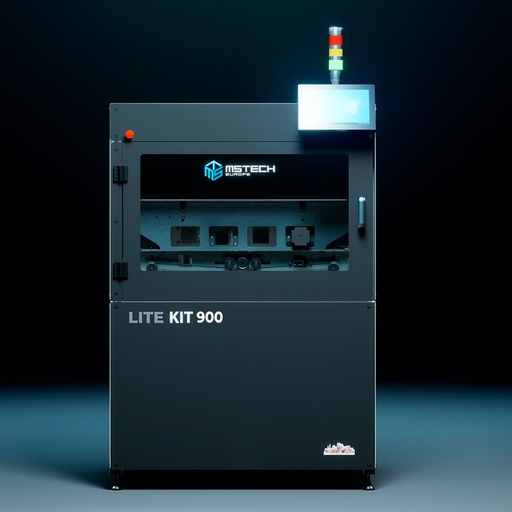

LITE KIT-LC900C

LITE KIT is an hyper-flexible,
cost-effective conveyor for PCB
transfer in SMT lines. Modular and
lightweight design enables easy
configuration, expansion, and
seamless integration.
900 mm
widths. Ensures smooth, stable,
and reliable product transfer
between processes

Depaneling
iDPL-T

Twin Table In-Line Router. In-line depaneling router with twin table, dual spindle, dual transfer, vision system, auto conveyor width, tooling ID recognition and dust collector features.

Depaneling
iDPL-S

Single Table In-Line Router. In-line depaneling router with dual spindle, dual transfer, vision system, auto conveyor width, tooling ID recognition and dust collector features.

KAYO-A6L 2019112502

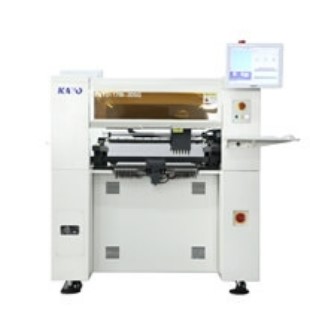

Pick&Place KAYO-A6L

*System features:
The presence of six cameras to recognize and pick&place the components at high speed;
Use high quality and durable nozzles JUKI;
High-precision drives to move the X and Y;
Two 15-inch monitor for concurrent operation of the pick&place from two sides;
Three-piece conveyor to move the board;
Built-in high performance and energy-saving vacuum system;

Specifications:
* Number of feeders 8 mm - 60 pieces;
* Feeders: 8/12/16/24/32 mm, vibratory feeders;
* Number of mounting heads - 6 pieces;
* Mounting accuracy - 0,01 mm;
* Drivers - servomotors Panasonic + ball screw + linear axes X/Y;
* Video recognition - synchronous on 6 heads;
* Max placement speed - 13000 comp/hour;
* Actual placement speed - 6000 - 7000 comp/hour;
* Max axis movement Z - 20 mm;
* Max dimensions of the PCB: 650х370 mm;
* Mounted components - from 0201, 0402 to 40х40 mm, LED, QFP, BGA, step outputs ≥ 0,3 mm;
* Max component height (Z) - 5,5 mm; upgrade to 10 mm
* Monitors - 15";
* OS - Win7;
* Programming - data conversion, step by step, visual;
* Power supply - 1 phase, 220 V, 50 Hz, 750 W;
* Pneumatic pressure - 5 - 6 Bar;
* Machine dimensions - 1335x1230x1420 mm;
* Machine weight - 500 kg;
* Quick release connector: Ø 10 mm.

Standard configuration:
* Monitor 17" x 2 Keyboard + Mouse x 2
* Signal tower (3 colors, 12 V) x 1
* Nozzle 502 x 1
* Nozzle 503 x 6
* Nozzle 504 x 6
* Nozzle 505 x 6
* Nozzle 506 x 1
* Service kit x 1
* User's manual x 1
* Adjustable feet x 4
* Sealing ring x 20

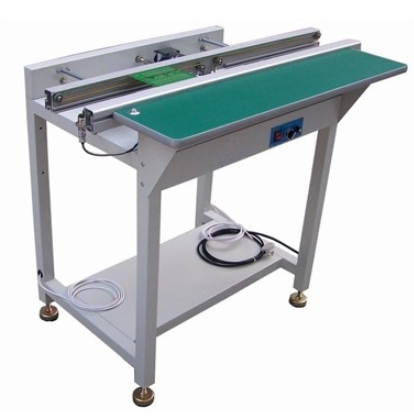

MS TECH EMEA
SC-1500
AT021489

HOLDING - CONVEYOR

MS TECH EMEA
SC-1500
AT021486

HOLDING - CONVEYOR

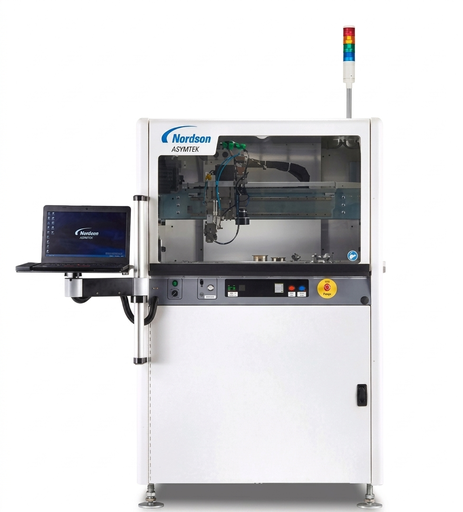

NORDSON ASYMTEK
SL-940E
S22533

Inline Conveyorized
ASYMTEK Select Coat SL-940E Conformal Coating System

As a dependable coating partner for more than 35 years, we understand your time is valuable and that the equipment you select determines your products’ quality, cost, and reliability. The Select Coat® SL-940 Series provides the high-quality coating results and productivity you need for your automated batch or in-line process.

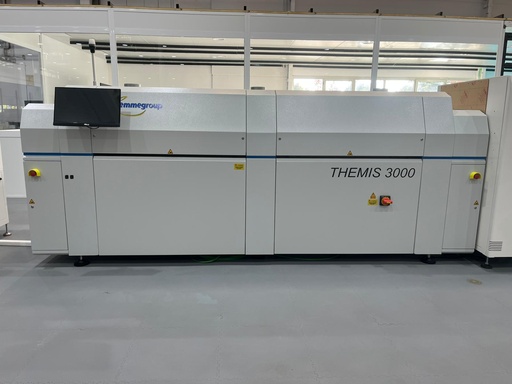

OVEN IR CURING THEMIS 3000 TOP
022AT2025

* Dimension: 3900 L x 1250 W x 1560 H
* Pcb Dimension: Min: 50 L x 50 W / Max 405 W mm
* Top/Bottom Max component height: 120 mm
* Control System: Omron PLC NX Series
* Control Panel: Color Touch Screen 21.5"
* Operating System: Dedicated software real time operation
* Tunnel composed of 6 top IR modules
* IR Tunnel Lenght 3210 mm
* Temperature Range Single Zone: Min 70 C° / Max 320 C°
* Chain conveyor Conveyor speed: 1-150 cm/min
* Manual adjustable conveyor width
* USB port and LAN Port for loading and unloading profiles
* Exahust: > 500 m3/h
* Power supply: 400V + 3PH + N + GND Power install: 14 Kw (Top IR) * Absorption: 29 A
* SMEMA Connected
* Weight: 1200 Kg Approx

SP1-W
S5-0022-CB

±12.5μm at 6 Sigma
5 sec (Excl. Printing Time)
2 min
5 min
330 x 250mm
510(Length) x 460(Width)
50(Length) x 50(Width)
0,4mm to 4mm
1,500kg
Max. ±1.5mm (Excl. Board Thickness)
Left to Right
Right to Left (Option)
Automatic Width adjustment
3 Staged Conveyor. Front Stage, Working Stage, Rear Stage
By-Pass Conveyor (Option)
Edge Clamp + Top Stopper
Electric Clamp Force Regulating (Option)
PCB Vacuum (Option)
Back up Pins
Back up Block (Option)
Vacuum Block (Option)

Print Parameters
Speed: 0.1 ~ 20mm/sec
Distance: 0.2 ~ 3.0mm
Max. 200mm/sec
4 ~ 15kgf
Automatic
Screw + Electric Air Regulating
Single / Double Printing
Manual (Auto : Option)
Metal - 350mm, 250mm
650(Length)mm x 550(Width)mm
Vision
FOV - 10.6mm x 8.0mm
Circle, Triangle, Square, Diamond, Cross
0.5 ~ 4.0mm

Operator Interface
LCD Monitor, Mouse & Keyboard
Windows XP Embedded
Facilities
• Voltage : Single Phase. 220 / 240V (±5%)
• Frequency : 50/60Hz
• Power Consumption: 4.5 kVA
Pressure 4.5~7kgf/cm, Max. 700Nl/pm
1,895mm / 1,945mm (option). (Incl. Signal Lamp)
1,470mm
1,300mm
1,000mm
1,290kg

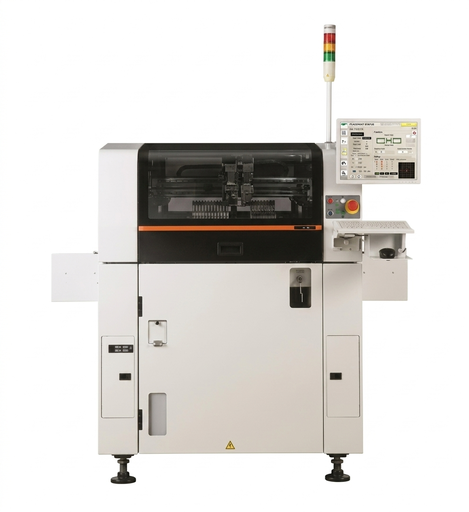

SP1-W
S5-0035-D7

±12.5μm at 6 Sigma
5 sec (Excl. Printing Time)
2 min
5 min
330 x 250mm
510(Length) x 460(Width)
50(Length) x 50(Width)
0,4mm to 4mm
1,500kg
Max. ±1.5mm (Excl. Board Thickness)
Left to Right
Right to Left (Option)
Automatic Width adjustment
3 Staged Conveyor. Front Stage, Working Stage, Rear Stage
By-Pass Conveyor (Option)
Edge Clamp + Top Stopper
Electric Clamp Force Regulating (Option)
PCB Vacuum (Option)
Back up Pins
Back up Block (Option)
Vacuum Block (Option)

Print Parameters
Speed: 0.1 ~ 20mm/sec
Distance: 0.2 ~ 3.0mm
Max. 200mm/sec
4 ~ 15kgf
Automatic
Screw + Electric Air Regulating
Single / Double Printing
Manual (Auto : Option)
Metal - 350mm, 250mm
650(Length)mm x 550(Width)mm
Vision
FOV - 10.6mm x 8.0mm
Circle, Triangle, Square, Diamond, Cross
0.5 ~ 4.0mm

Operator Interface
LCD Monitor, Mouse & Keyboard
Windows XP Embedded
Facilities
• Voltage : Single Phase. 220 / 240V (±5%)
• Frequency : 50/60Hz
• Power Consumption: 4.5 kVA
Pressure 4.5~7kgf/cm, Max. 700Nl/pm
1,895mm / 1,945mm (option). (Incl. Signal Lamp)
1,470mm
1,300mm
1,000mm
1,290kg
