MSTECH Europe
Classic-CL-250
Multi Magazine (mm) loader system for coating line; Motorized width adjustment; NG/OK reject functions; PCB Max(mm): 330x250; PCB Min. (mm): 50x50; Machine Size (mm): 1330x720x1650; Magazine (mm): 355x320x563

Application:

This multi magazine unloader is design special for the coating line, all the machine will be with the seal cover and be equipped with the extraction for the vapors of the coating line.

1.Used in SMT line front, sends PCB from magazine to downstream machine.
2.The unit loads your production line automatically by pushing PCB’s out of the magazine onto the conveyor of the downstream machines.

Features

• External air extraction stop alarm system.

• Full seal cover to enhance the safety friendly working environment in the coating line.

• Panasonic PLC program control

• Selectable pitch settings : 10mm to 80mm

• Tower-light display for machines working status.

• Flexible platform to suit standard magazines

• Exchangeable magazine from the rear of magazine

• Stepper motorized type pusher to enhance working stability

• Pusher position adjustable to Centre for the boards

• Use the friendly touch screen panel

• Magazine infeed and outfeed are automatically driving by motor on the platform.

• SMEMA compatible

MSTECH Europe

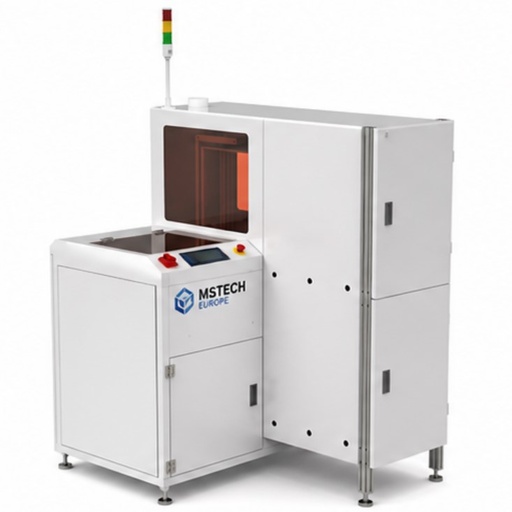

Classic-CL-330
Multi Magazine (mm) loader system for coating line; Motorized width adjustment; NG/OK reject functions; PCB Max(mm): 440x330; PCB Min. (mm): 50x50; Machine Size (mm): 1650x800x1650; Magazine (mm): 460x400x563

Application:

This multi magazine unloader is design special for the coating line, all the machine will be with the seal cover and be equipped with the extraction for the vapors of the coating line.

1.Used in SMT line front, sends PCB from magazine to downstream machine.
2.The unit loads your production line automatically by pushing PCB’s out of the magazine onto the conveyor of the downstream machines.

Features

• External air extraction stop alarm system.

• Full seal cover to enhance the safety friendly working environment in the coating line.

• Panasonic PLC program control

• Selectable pitch settings : 10mm to 80mm

• Tower-light display for machines working status.

• Flexible platform to suit standard magazines

• Exchangeable magazine from the rear of magazine

• Stepper motorized type pusher to enhance working stability

• Pusher position adjustable to Centre for the boards

• Use the friendly touch screen panel

• Magazine infeed and outfeed are automatically driving by motor on the platform.

• SMEMA compatible

MSTECH Europe
Classic-CL-390
Multi Magazine (mm) loader system for coating line; Motorized width adjustment; NG/OK reject functions; PCB Max(mm): 530x390; PCB Min. (mm): 50x50; Machine Size (mm): 1800x950x1650; Magazine (mm): 535x460x570

Application:

This multi magazine unloader is design special for the coating line, all the machine will be with the seal cover and be equipped with the extraction for the vapors of the coating line.

1.Used in SMT line front, sends PCB from magazine to downstream machine.
2.The unit loads your production line automatically by pushing PCB’s out of the magazine onto the conveyor of the downstream machines.

Features

• External air extraction stop alarm system.

• Full seal cover to enhance the safety friendly working environment in the coating line.

• Panasonic PLC program control

• Selectable pitch settings : 10mm to 80mm

• Tower-light display for machines working status.

• Flexible platform to suit standard magazines

• Exchangeable magazine from the rear of magazine

• Stepper motorized type pusher to enhance working stability

• Pusher position adjustable to Centre for the boards

• Use the friendly touch screen panel

• Magazine infeed and outfeed are automatically driving by motor on the platform.

• SMEMA compatible

MSTECH Europe
Classic-CL-460
Multi Magazine (mm) loader system for coating line; Motorized width adjustment; NG/OK reject functions; PCB Max(mm): 535x460; PCB Min. (mm): 50x50; Machine Size (mm): 1800x950x1650; Magazine (mm): 535x530x570

Application:

This multi magazine unloader is design special for the coating line, all the machine will be with the seal cover and be equipped with the extraction for the vapors of the coating line.

1.Used in SMT line front, sends PCB from magazine to downstream machine.
2.The unit loads your production line automatically by pushing PCB’s out of the magazine onto the conveyor of the downstream machines.

Features

• External air extraction stop alarm system.

• Full seal cover to enhance the safety friendly working environment in the coating line.

• Panasonic PLC program control

• Selectable pitch settings : 10mm to 80mm

• Tower-light display for machines working status.

• Flexible platform to suit standard magazines

• Exchangeable magazine from the rear of magazine

• Stepper motorized type pusher to enhance working stability

• Pusher position adjustable to Centre for the boards

• Use the friendly touch screen panel

• Magazine infeed and outfeed are automatically driving by motor on the platform.

• SMEMA compatible

MSTECH Europe

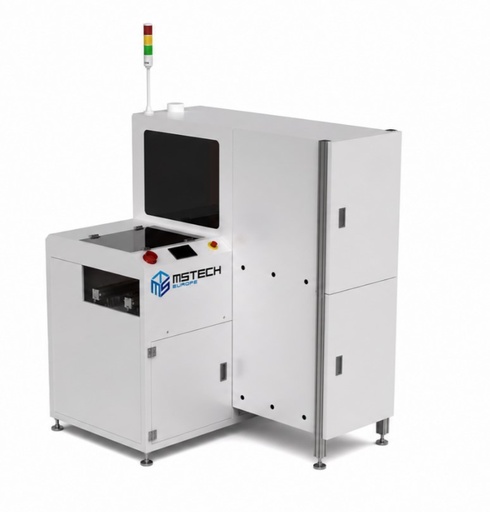

Classic-CLU-250
Multi Magazine (mm) unloader system for coating line; Motorized width adjustment; NG/OK reject functions; PCB Max(mm): 330x250; PCB Min. (mm): 50x50; Machine Size (mm): 1330x720x1650; Magazine (mm): 355x320x563

Application
This multi magazine unloader is design special for the coating line, all the machine will be with the seal cover and be equipped with the extraction for the vapors of the coating line.

1. Located at the end of SMT line,collecting the PCB from the line into the magazine.
2. Space save type for the SMT line length.

Features

• External air extraction stop alarm system.

• Full seal cover to enhance the safety friendly working environment

• Panasonic PLC program control

• Selectable pitch settings : 10mm to 80mm

• Tower-light display for machines working status.

• Flexible platform to suit standard magazines

• Exchangeable magazine from the rear of magazine

• Stepper motorized type pusher to enhance working stability

• Pusher position adjustable to Centre for the boards

• Use the friendly touch screen panel

• Magazine infeed and outfeed are automatically driving by motor on the platform.

• SMEMA compatible

MSTECH Europe
Classic-CLU-330
Multi Magazine (mm) unloader system for coating line; Motorized width adjustment; NG/OK reject functions; PCB Max(mm): 440x330; PCB Min. (mm): 50x50; Machine Size (mm): 1650x800x1650; Magazine (mm): 460x400x563

Application
This multi magazine unloader is design special for the coating line, all the machine will be with the seal cover and be equipped with the extraction for the vapors of the coating line.

1. Located at the end of SMT line,collecting the PCB from the line into the magazine.
2. Space save type for the SMT line length.

Features

• External air extraction stop alarm system.

• Full seal cover to enhance the safety friendly working environment

• Panasonic PLC program control

• Selectable pitch settings : 10mm to 80mm

• Tower-light display for machines working status.

• Flexible platform to suit standard magazines

• Exchangeable magazine from the rear of magazine

• Stepper motorized type pusher to enhance working stability

• Pusher position adjustable to Centre for the boards

• Use the friendly touch screen panel

• Magazine infeed and outfeed are automatically driving by motor on the platform.

• SMEMA compatible

MSTECH Europe
Classic-CLU-390
Multi Magazine (mm) unloader system for coating line; Motorized width adjustment; NG/OK reject functions; PCB Max(mm): 530x390; PCB Min. (mm): 50x50; Machine Size (mm): 1800x950x1650; Magazine (mm): 535x460x570

Application
This multi magazine unloader is design special for the coating line, all the machine will be with the seal cover and be equipped with the extraction for the vapors of the coating line.

1. Located at the end of SMT line,collecting the PCB from the line into the magazine.
2. Space save type for the SMT line length.

Features

• External air extraction stop alarm system.

• Full seal cover to enhance the safety friendly working environment

• Panasonic PLC program control

• Selectable pitch settings : 10mm to 80mm

• Tower-light display for machines working status.

• Flexible platform to suit standard magazines

• Exchangeable magazine from the rear of magazine

• Stepper motorized type pusher to enhance working stability

• Pusher position adjustable to Centre for the boards

• Use the friendly touch screen panel

• Magazine infeed and outfeed are automatically driving by motor on the platform.

• SMEMA compatible

MSTECH Europe
Classic-CLU-460
Multi Magazine (mm) unloader system for coating line; Motorized width adjustment; NG/OK reject functions; PCB Max(mm): 535x460; PCB Min. (mm): 50x50; Machine Size (mm): 1800x950x1650; Magazine (mm): 535x530x570

Application
This multi magazine unloader is design special for the coating line, all the machine will be with the seal cover and be equipped with the extraction for the vapors of the coating line.

1. Located at the end of SMT line,collecting the PCB from the line into the magazine.
2. Space save type for the SMT line length.

Features

• External air extraction stop alarm system.

• Full seal cover to enhance the safety friendly working environment

• Panasonic PLC program control

• Selectable pitch settings : 10mm to 80mm

• Tower-light display for machines working status.

• Flexible platform to suit standard magazines

• Exchangeable magazine from the rear of magazine

• Stepper motorized type pusher to enhance working stability

• Pusher position adjustable to Centre for the boards

• Use the friendly touch screen panel

• Magazine infeed and outfeed are automatically driving by motor on the platform.

• SMEMA compatible

MSTECH Europe

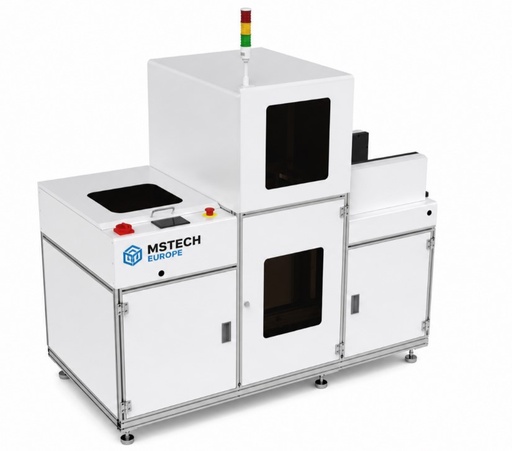

Classic-CLD-250
Single Magazine (mm) loader & destacker combined system; Motorized width adjustment; NG/OK reject functions; PCB Max(mm): 330x250; PCB Min. (mm): 50x50; Machine Size (mm): 1530x850x1650; Magazine (mm): 355x320x563

Application

This system is also designed with the capability of handling the bare boards & PCBA into the production line, a independent bare boards destacker is equipped together with the single magazine loader, working in-line.

1.Used in SMT line front, sends PCB from magazine to downstream machine.
2.The unit loads your production line automatically by pushing PCB’s out of the magazine onto the conveyor of the downstream machines. Full magazines are inserted at an ergonomic low level.
3.Located at the first stage of SMT line, this unit transfers PCBs stacked in a magazine rack to the downstream machine using a pneumatic pusher one by one.
Features

• Panasonic PLC program control

• Loader & destacker working mode can be switched exchange.

• Selectable pitch settings

• Tower-light display for machines working status.

• Flexible platform to suit standard magazines

• Exchangeable magazine loading from the front of machine

• Stepper motorized type pusher to enhance working stability

• Pusher position adjustable to Centre for the boards

• Use the friendly touch screen panel

• Magazine infeed and outfeed are automatically driving by motor on the platform.

• Ability to handle the bare boards by destacker.

• SMEMA compatible

MSTECH Europe
Classic-CLD-330
Single Magazine (mm) loader & destacker combined system; Motorized width adjustment; NG/OK reject functions; PCB Max(mm): 440x330; PCB Min. (mm): 50x50; Machine Size (mm): 1700x850x1650; Magazine (mm): 460x400x563

Application

This system is also designed with the capability of handling the bare boards & PCBA into the production line, a independent bare boards destacker is equipped together with the single magazine loader, working in-line.

1.Used in SMT line front, sends PCB from magazine to downstream machine.
2.The unit loads your production line automatically by pushing PCB’s out of the magazine onto the conveyor of the downstream machines. Full magazines are inserted at an ergonomic low level.
3.Located at the first stage of SMT line, this unit transfers PCBs stacked in a magazine rack to the downstream machine using a pneumatic pusher one by one.
Features

• Panasonic PLC program control

• Loader & destacker working mode can be switched exchange.

• Selectable pitch settings

• Tower-light display for machines working status.

• Flexible platform to suit standard magazines

• Exchangeable magazine loading from the front of machine

• Stepper motorized type pusher to enhance working stability

• Pusher position adjustable to Centre for the boards

• Use the friendly touch screen panel

• Magazine infeed and outfeed are automatically driving by motor on the platform.

• Ability to handle the bare boards by destacker.

• SMEMA compatible

MSTECH Europe
Classic-CLD-390
Single Magazine (mm) loader & destacker combined system; Motorized width adjustment; NG/OK reject functions; PCB Max(mm): 530x390; PCB Min. (mm): 50x50; Machine Size (mm): 1850x950x1650; Magazine (mm): 535x460x570

Application

This system is also designed with the capability of handling the bare boards & PCBA into the production line, a independent bare boards destacker is equipped together with the single magazine loader, working in-line.

1.Used in SMT line front, sends PCB from magazine to downstream machine.
2.The unit loads your production line automatically by pushing PCB’s out of the magazine onto the conveyor of the downstream machines. Full magazines are inserted at an ergonomic low level.
3.Located at the first stage of SMT line, this unit transfers PCBs stacked in a magazine rack to the downstream machine using a pneumatic pusher one by one.
Features

• Panasonic PLC program control

• Loader & destacker working mode can be switched exchange.

• Selectable pitch settings

• Tower-light display for machines working status.

• Flexible platform to suit standard magazines

• Exchangeable magazine loading from the front of machine

• Stepper motorized type pusher to enhance working stability

• Pusher position adjustable to Centre for the boards

• Use the friendly touch screen panel

• Magazine infeed and outfeed are automatically driving by motor on the platform.

• Ability to handle the bare boards by destacker.

• SMEMA compatible

MSTECH Europe
Classic-CLD-460
Single Magazine (mm) loader & destacker combined system; Motorized width adjustment; NG/OK reject functions; PCB Max(mm): 530x460; PCB Min. (mm): 50x50; Machine Size (mm): 1850x950x1650; Magazine (mm): 535x460x570

Application

This system is also designed with the capability of handling the bare boards & PCBA into the production line, a independent bare boards destacker is equipped together with the single magazine loader, working in-line.

1.Used in SMT line front, sends PCB from magazine to downstream machine.
2.The unit loads your production line automatically by pushing PCB’s out of the magazine onto the conveyor of the downstream machines. Full magazines are inserted at an ergonomic low level.
3.Located at the first stage of SMT line, this unit transfers PCBs stacked in a magazine rack to the downstream machine using a pneumatic pusher one by one.
Features

• Panasonic PLC program control

• Loader & destacker working mode can be switched exchange.

• Selectable pitch settings

• Tower-light display for machines working status.

• Flexible platform to suit standard magazines

• Exchangeable magazine loading from the front of machine

• Stepper motorized type pusher to enhance working stability

• Pusher position adjustable to Centre for the boards

• Use the friendly touch screen panel

• Magazine infeed and outfeed are automatically driving by motor on the platform.

• Ability to handle the bare boards by destacker.

• SMEMA compatible

MSTECH Europe
Classic-BUF-460 - 10P
Mini buffer conveyor, 10 PCS stock ability; Motorized width adjustment; NG/OK reject functions; PCB Max(mm): 500x460; PCB Min. (mm): 50x50; Machine Size (mm): 650x950x1550

Application
The Mini buffer consists of a vertical buffer and a 500mm conveyor, and is placed in the line to balance board flow in LIFO buffer mode, act as a line splitter in Loader or Unloader mode, or good/bad board separator in Triggered mode. Width adjustment, work mode, and other functions, are all accessed from the hand control unit, which makes the unit easily managed.

In LIFO mode, boards are received from a preceding machine and are buffered when the subsequent machine is occupied. A board is lowered from the buffer and transported to the subsequent machine as soon as it becomes ready.
In Loader mode, a maximum of 10 boards can be manually loaded in the buffer to provide the subsequent machine with a constant board flow In Unloader mode, a maximum of 10 boards received from the preceding machine, are stored in the buffer for manual removal. In Triggered mode, boards signaled as bad (NG) from the preceding machine are stored in the buffer for manual removal, while good boards continue down the line to the subsequent machine

Features

• Board transport level: 940 ± 30 mm (37 ± 1.2”)

• Board length: 100 - 450 mm (3.9 - 17.7”)

• Board width: 50 - 508 mm (2 - 20”)

• Min. board thickness: 0.7 mm (0.028”)

• Max. board weight: 3 kg (6.6 lbs)

• Max. combined board weight in buffer: 15 kg (33 lbs)

• Components clearance top: 20 mm (0.8”)

• Components clearance bottom: 15 mm (0.6”)

• Board edge clearance: 4 mm

• Voltage: 100 - 240 VAC, 50/60 Hz

• Max. power consumption: 0.3 kWh

• Air supply: 5-10 bar, 200 l/h (70-140 psi, 0.12 cfm)

• Automatic width adjustment

• Auto width control unit

• See order guide for more options

• SMEMA Interface

• Air Pressure: 4-5kgf/cm2

• Machine communication: SMEMA interface

MSTECH Europe
Classic-CLUL-250
Loader & unloader combined system for offline AOI / screen printer / laser ma...; Motorized width adjustment; NG/OK reject functions; PCB Max(mm): 330x250; PCB Min. (mm): 50x50; Machine Size (mm): 1930x1500x1650; Magazine (mm): 355x320x563

Application
The Multi-Magazine Line Loader & Unloader is designed for loading & unloading of PCBs for SMT lines.

The main operation mode should be like Loader / Unloader at the same side. Like screen printer or AOI with one Loader / Unloader from the left side. It should give the PCB to the screen printer or AOI and then take it back to the magazine to the same position on the magazine and only then move to the next position.

Boards flow : Loading function -> AOI -> Unloading function.
SMEMA: With optional NG OK reject function.

Features

• Panasonic PLC program control

• Loading & Unloading boards from one same side

• Selectable pitch settings from 10mm-80mm

• Tower-light display for machines working status.

• Flexible platform to suit standard magazines

• Exchangeable magazine from the front of machine

• Stepper motorized type pusher to enhance working stability

• Pusher position adjustable to Centre for the boards

• Use the friendly touch screen panel

• Magazine infeed and outfeed are automatically driving by motor on the platform.

• Ability to connect with any brands of AOI tester in the world

• SMEMA compatible

MSTECH Europe
Classic-CLUL-330
Loader & unloader combined system; Motorized width adjustment; NG/OK reject functions; PCB Max(mm): 440x330; PCB Min. (mm): 50x50; Machine Size (mm): 2150x1650x1650; Magazine (mm): 460x400x563

Application
The Multi-Magazine Line Loader & Unloader is designed for loading & unloading of PCBs for SMT lines.

The main operation mode should be like Loader / Unloader at the same side. Like screen printer or AOI with one Loader / Unloader from the left side. It should give the PCB to the screen printer or AOI and then take it back to the magazine to the same position on the magazine and only then move to the next position.

Boards flow : Loading function -> AOI -> Unloading function.
SMEMA: With optional NG OK reject function.

Features

• Panasonic PLC program control

• Loading & Unloading boards from one same side

• Selectable pitch settings from 10mm-80mm

• Tower-light display for machines working status.

• Flexible platform to suit standard magazines

• Exchangeable magazine from the front of machine

• Stepper motorized type pusher to enhance working stability

• Pusher position adjustable to Centre for the boards

• Use the friendly touch screen panel

• Magazine infeed and outfeed are automatically driving by motor on the platform.

• Ability to connect with any brands of AOI tester in the world

• SMEMA compatible

MSTECH Europe
Classic-CLUL-390
Loader & unloader combined system; Motorized width adjustment; NG/OK reject functions; PCB Max(mm): 530x390; PCB Min. (mm): 50x50; Machine Size (mm): 2400x1850x1650; Magazine (mm): 535x460x570

Application
The Multi-Magazine Line Loader & Unloader is designed for loading & unloading of PCBs for SMT lines.

The main operation mode should be like Loader / Unloader at the same side. Like screen printer or AOI with one Loader / Unloader from the left side. It should give the PCB to the screen printer or AOI and then take it back to the magazine to the same position on the magazine and only then move to the next position.

Boards flow : Loading function -> AOI -> Unloading function.
SMEMA: With optional NG OK reject function.

Features

• Panasonic PLC program control

• Loading & Unloading boards from one same side

• Selectable pitch settings from 10mm-80mm

• Tower-light display for machines working status.

• Flexible platform to suit standard magazines

• Exchangeable magazine from the front of machine

• Stepper motorized type pusher to enhance working stability

• Pusher position adjustable to Centre for the boards

• Use the friendly touch screen panel

• Magazine infeed and outfeed are automatically driving by motor on the platform.

• Ability to connect with any brands of AOI tester in the world

• SMEMA compatible

MSTECH Europe
Classic-CLUL-460
Loader & unloader combined system; Motorized width adjustment; NG/OK reject functions; PCB Max(mm): 535x460; PCB Min. (mm): 50x50; Machine Size (mm): 2400x1850x1650; Magazine (mm): 535x530x570

Application
The Multi-Magazine Line Loader & Unloader is designed for loading & unloading of PCBs for SMT lines.

The main operation mode should be like Loader / Unloader at the same side. Like screen printer or AOI with one Loader / Unloader from the left side. It should give the PCB to the screen printer or AOI and then take it back to the magazine to the same position on the magazine and only then move to the next position.

Boards flow : Loading function -> AOI -> Unloading function.
SMEMA: With optional NG OK reject function.

Features

• Panasonic PLC program control

• Loading & Unloading boards from one same side

• Selectable pitch settings from 10mm-80mm

• Tower-light display for machines working status.

• Flexible platform to suit standard magazines

• Exchangeable magazine from the front of machine

• Stepper motorized type pusher to enhance working stability

• Pusher position adjustable to Centre for the boards

• Use the friendly touch screen panel

• Magazine infeed and outfeed are automatically driving by motor on the platform.

• Ability to connect with any brands of AOI tester in the world

• SMEMA compatible

MSTECH Europe
Classic-DL-460
Bare boards loader / destacker, PCB thickness 0.6-2.5mm; Motorized width adjustment; NG/OK reject functions; PCB Max(mm): 500x460; PCB Min. (mm): 50x50; Machine Size (mm): 650x885x1250

Application
This unit is design for loading the bare boards onto the SMT line. Unique separation cams take one PCB from the bottom of the boards stacked, and softly lowering it on the ESD belts to transfer to downstream machine.


Features

• Panasonic PLC program control

• By-pass and Destacker mode are selectable in the software

• Shortest loading cycle time for PCB

• Thickness 0.6 mm PCB available to be handled well

• Uninterrupted PCB charging

• Pre-signal alarm for PCB lower stack heights

• Use the friendly touch screen panel

• Smooth and parallel width adjustment by crank wheel ( Optional: motorized).

• Interlock for all door open to improvement highest safety operation

• SMEMA compatible

MSTECH Europe
Classic-DUL-460
Push-up stacker for bare boards, PCB thickness 0.6-2.5mm; Motorized width adjustment; NG/OK reject functions; PCB Max(mm): 500x460; PCB Min. (mm): 50x50; Machine Size (mm): 650x885x1250

Application
This unit is design for Unloading the bare boards from the production line and Re-Stacking the bare boards, it is very recommended to use in the laser island of ""Destacker - Laser marking machine -Restacker""

Features

• Panasonic PLC program control

• By-pass and Stacker mode are selectable in the software

• Shortest loading cycle time for PCB

• Pre-signal alarm for PCB stack heights

• Use the friendly touch screen panel

• Smooth and parallel width adjustment by crank wheel ( Optional: motorized).

• Interlock for all door open to improvement highest safety operation

• SMEMA compatible

MSTECH Europe
Classic-VL-460
Vacuum loader for bare boards, PCB thickness 0.6-2.5mm; Motorized width adjustment; NG/OK reject functions; PCB Max(mm): 500x460; PCB Min. (mm): 50x50; Machine Size (mm): 600x1140x1250

Application
The vacuum loader is used to load bare boards for SMT production lines. The top PCB is lifted from stack and lowered onto belt segment. The PCB stack is manually loaded into the machine and the individual PCBs are handed over to the downstream system on a transfer conveyor.

Features

• Panasonic PLC program control

• Loader & destacker working mode can be switched exchange.

• Selectable pitch settings

• Tower-light display for machines working status.

• Flexible platform to suit standard magazines

• Exchangeable magazine from the front of machine

• Stepper motorized type pusher to enhance working stability

• Pusher position adjustable to Centre for the boards

• Use the friendly touch screen panel

• Magazine infeed and outfeed are automatically driving by motor on the platform.

• Ability to handle the bare boards by destacker.

SMEMA compatible
