MSTECH Europe

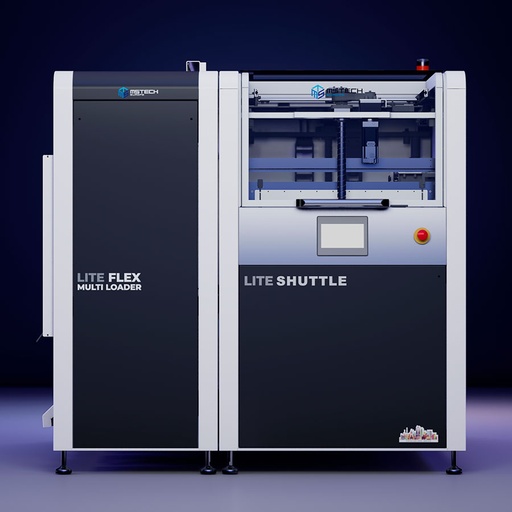

LITE FLEX MULTILOADER AGV

The loading station LITE FLEX
MULTI LOADER is designed to
automatically feed PCBs into
an SMT production line or into
individual process machines
such as depaneling, soldering,
PCBA protection, backend, or test
systems. Adjustable for pcb size since S to XL.

MSTECH Europe

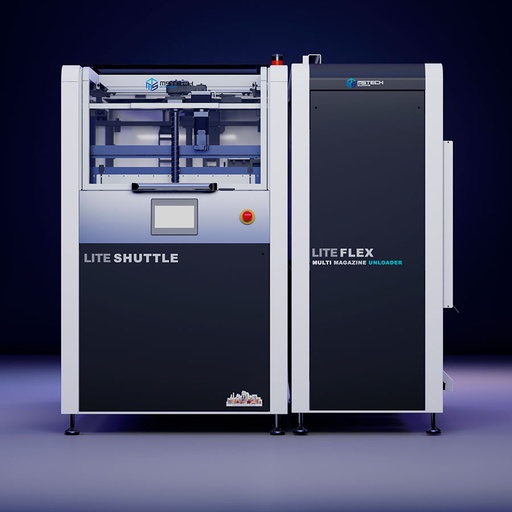

LITE FLEX MULTIUNLOADER AGV

PCBs are extracted from the
magazine by an extraction
mechanism and transferred onto
the handover conveyor. This
conveyor moves laterally on an
integrated shuttle to the handover
position, where the PCB is then
transferred to the next stage.

MU-560A-CT
CH1071901

CHML-460A-CT
CH3831301

PCB Size: 535 x (50 - 460)mm
Magazine Rack: 535 x 530 x 570mm
PLC + Touch Screen Control
Option: cover (included)
The Multi Magazine Loader is used at the starting of the line for loading of PCB’s to the production line. The unit loads the production line automatically by pushing PCB’s out of a magazine onto the conveyor of the downstream machine.

It functions as a magazine unloader that physically separates circuits according to their approval status. Supported board sizes: It allows working with different board lengths (in this model, size "L" processes formats 460 millimeters long by an adjustable width of 50 to 330 millimeters). Operating voltage: It is compatible with AC electrical currents of 110V and 220V (with a variation of ±10V) at frequencies of 50 or 60 Hz.

CH3831302

The It functions as a magazine unloader that physically separates circuits according to their approval status. Supported board sizes: It allows working with different board lengths (in this model, size "L" processes formats 460 millimeters long by an adjustable width of 50 to 330 millimeters). Operating voltage: It is compatible with AC electrical currents of 110V and 220V (with a variation of ±10V) at frequencies of 50 or 60 Hz.

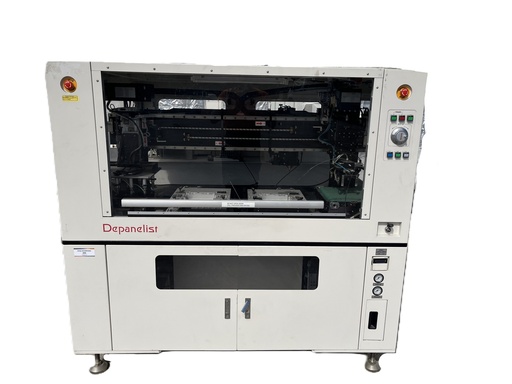

PCB Depaneling Router in-line model: iDPL-S / 1 head (Twin table)
RIS1-130307-04

Factory-installed dual spindle head: The head includes two standard spindles to accelerate cutting speed and improve overall performance. The spindle width is automatically adjusted.
Loader rotation: The loading system can rotate 90 or 180 degrees depending on the model variant. This helps to precisely secure the card to the die or cutting template.
Integrated ionizer as standard: Features an ionized air blower in the cutting area. This protects sensitive components from static electricity and helps to efficiently remove dust. Drill bit life management: Utilizes automatic functions to work with multi-level drill bits (2 to 3 steps).
This extends the life of consumables and reduces operating costs.

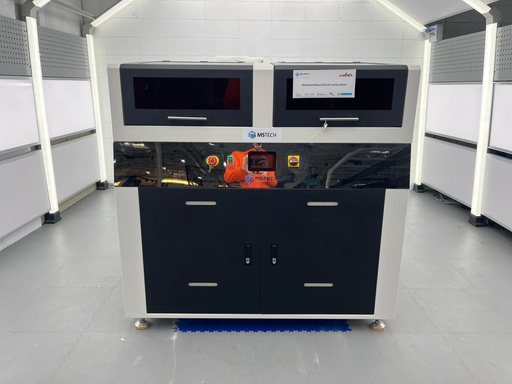

SC-1500
AT022868

Specifications:
1. Max.PCB Size: 740*510mm
2. Upper transmission height: 950±20mm
Lower transmission height：350±20mm
3. Transmission method: Chain pin length 5mm
4. Bearing capacity: 12KG
5. Language: All English logo
6. Rail fixing side: front rail
7. Signal connection: SMEMA head
8. Conveyor cover with saftey sensor(CE)
9. Conveyor with auto type lifting door
10. There are 2 strips of LED lights on the door to show the status of the upper and lower boards.
11. Panasonic touch screen
12. Panasonic PLC with network port
13. CE standard electrical appliances and circuit design
14. With UV detection lamp
15. Dimensions ：1500*1180*1480

Disposition:
1. Voltage: AC220V, 50/60Hz
2. Plug: European standard
3. Transfer direction: Left to Right
4. Panasonic display

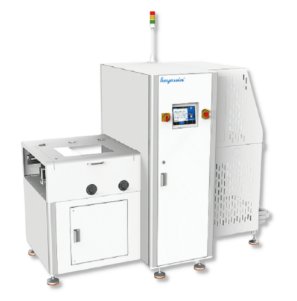

LD-LL AT022497 Loader model: LD-LL MSTECH AT022497
The LD‑LL MSTECH AT022497 is a high‑precision loading system designed for semiconductor and micro‑electronics production lines. It automates the transfer of wafers, substrates, or microchip panels into processing equipment, ensuring clean, stable, and contamination‑free handling throughout the manufacturing cycle.

Built for Class‑controlled environments, this loader delivers exceptional accuracy, smooth motion control, and high throughput, making it ideal for front‑end and back‑end semiconductor processes.

Cleanroom‑Ready Design — Materials and construction suitable for controlled environments used in microchip fabrication.

Precision Loading Mechanism — Ensures gentle, accurate handling of wafers or microchip panels.

Anti‑Static Protection — Prevents electrostatic discharge (ESD) that could damage semiconductor components.

Smart Control Interface — Digital or PLC‑based system for speed, timing, and process configuration.

High Throughput Operation — Optimized for continuous production with minimal downtime.

Seamless Equipment Integration — Compatible with ovens, inspection systems, etching machines, and assembly modules.

IR CURING OVEN-IR3 PC-2022-0138-03

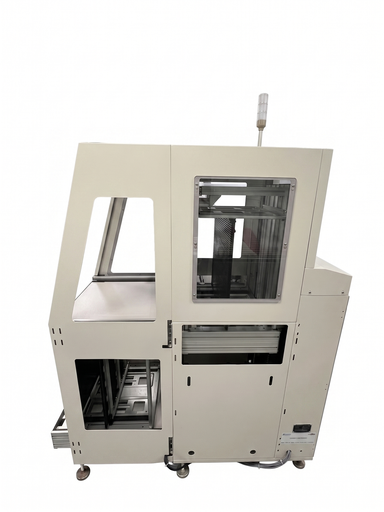

The ETA Holding UL‑LL MSTECH AT022498 is a cleanroom‑ready automated unloader designed for semiconductor, PCB, and micro‑electronics manufacturing. It safely removes processed panels, wafers, or substrates from upstream equipment—such as curing ovens, inspection systems, or assembly modules—while maintaining contamination‑free handling and high throughput.

Its precision motion system, ESD‑safe construction, and intelligent control interface ensure stable, repeatable performance, making it ideal for advanced microchip fabrication environments.

SC-1550 AT021488 Conveyor model: SC-1500 MSTECH

The SC‑1550 (AT021488), based on the SC‑1500 conveyor platform, is a high‑precision transfer conveyor designed for electronics and semiconductor manufacturing.
With its extended length and reinforced frame, it provides reliable board handling, excellent alignment stability, and seamless integration between upstream and downstream equipment such as loaders, unloaders, UV conveyors, curing ovens, and inspection modules.

Its adjustable width system allows it to accommodate a wide range of PCB sizes, making it ideal for modern SMT and microchip production environments that require high throughput and consistent transport quality.

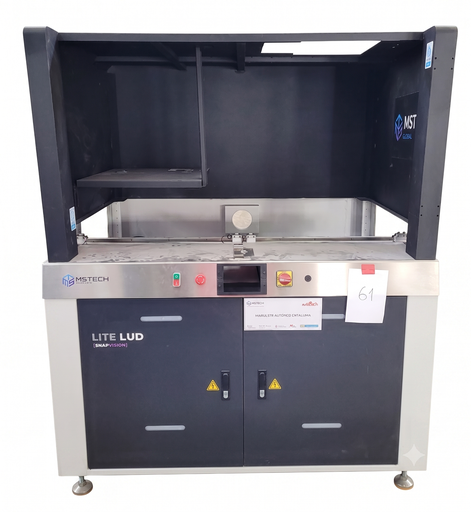

SC-1500 AT022869 Manual Loader-Unloader conveyor with UV light XL MSTECH AT022869
Specifications:
1. Max.PCB Size: 740*510mm
2. Upper transmission height: 950±20mm
Lower transmission height：350±20mm
3. Transmission method: Chain pin length 5mm
4. Bearing capacity: 12KG
5. Language: All English logo
6. Rail fixing side: front rail
7. Signal connection: SMEMA head
8. Conveyor cover with saftey sensor(CE)
9. Conveyor with auto type lifting door
10. There are 2 strips of LED lights on the door to show the status of the upper and lower boards.
11. Panasonic touch screen
12. Panasonic PLC with network port
13. CE standard electrical appliances and circuit design
14. With UV detection lamp
15. Dimensions ：1500*1180*1480

Disposition:
1. Voltage: AC220V, 50/60Hz
2. Plug: European standard
3. Transfer direction: Left to Right
4. Panasonic display

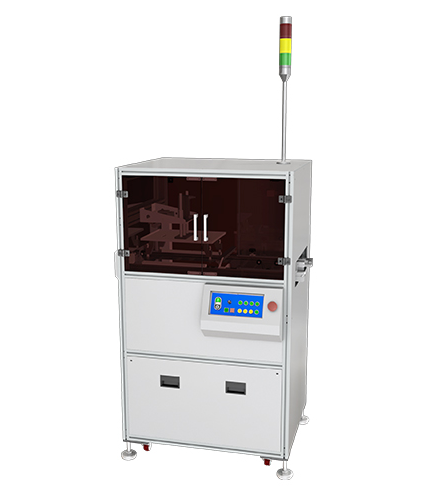

FBL‑800SA‑DE (Bare Board Loader)
Famecs Electronic / Assembly / Board Handling

FBL‑800SA‑DE (Bare Board Loader) from Famecs is an industrial solution designed for electronics manufacturing environments. It supports reliable, repeatable production processes, helping improve quality, productivity and process control. Suitable for professional SMT, PCB assembly, inspection, material handling or related manufacturing applications depending on configuration.
