MSTECH Europe
MST-[SNAPCURE] 395 XXL Gen7

UV LED Curing System, Controller: PLC + HMI, With UV sensor, With detection function( by voltage), without glass and Water Cooling,
Emitting window: 600x600mm, Wavelenght 395nm
395nm：1200mW/cm² (50mm)

MSTECH Europe
MST-[SNAPCURE] UVC Multifrequence M

UV LED Curing System, Controller: PLC + HMI, 2 x Feane without glass Air Cooling
Emitting window: 125x100mm
235nm, 254nm, 275nm
around 20mW/cm2
3 wavelengths be controlled at the same time

MSTECH Europe
MST-[SNAPCURE] UVC Multifrequence L

UV LED Curing System, Controller: PLC + HMI, 2 x Feane without glass Air Cooling
Emitting window: 250x100mm
235nm, 254nm, 275nm
around 20mW/cm2
3 wavelengths be controlled at the same time

MSTECH Europe
MST-[SNAPCURE] UVC Multifrequence XL

UV LED Curing System, Controller: PLC + HMI, 2 x Feane without glass Air Cooling
Emitting window: 400x100mm
235nm, 254nm, 275nm
around 20mW/cm2
3 wavelengths be controlled at the same time

MSTECH Europe
MST-[SNAPCURE] UVC Multifrequence XXL

UV LED Curing System, Controller: PLC + HMI, 2 x Feane without glass Air Cooling
Emitting window: 600x100mm
235nm, 254nm, 275nm
around 20mW/cm2
3 wavelengths be controlled at the same time

MSTECH Europe
ULTRA-FAST CURING IN JUST 10 SECONDS

The UV Irradiation Source has world
best efficiency using high power UV
LED panel. It is available either as UV
single frequency or as multi-frequency
spectrum from 265 nm toward 405 nm.

UV-LED395 CHAIN
F1-0012-1901

The FAMECS F1-0012-1901 UV-LED 395 CHAIN ​​is an in-line (conveyor/chain) ultraviolet curing system manufactured by FAMECS. It operates at a wavelength of 395 nm and is typically used in SMT assembly lines for the rapid curing of temperature-sensitive adhesives, resins, and protective coatings.

UV-LED395 CHAIN
F1-0015-1901

The FAMECS F1-0012-1901 UV-LED 395 CHAIN ​​is an in-line (conveyor/chain) ultraviolet curing system manufactured by FAMECS. It operates at a wavelength of 395 nm and is typically used in SMT assembly lines for the rapid curing of temperature-sensitive adhesives, resins, and protective coatings.

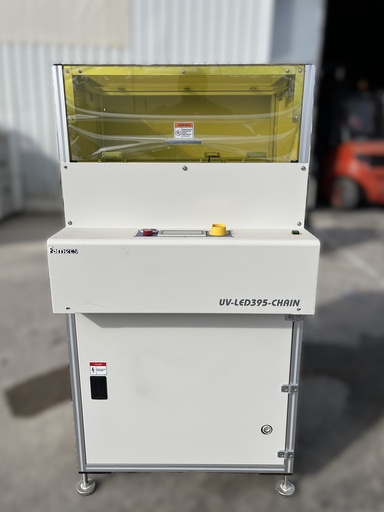

UV-LED395 CHAIN
F1-0014-1901

The FAMECS F1-0012-1901 UV-LED 395 CHAIN ​​is an in-line (conveyor/chain) ultraviolet curing system manufactured by FAMECS. It operates at a wavelength of 395 nm and is typically used in SMT assembly lines for the rapid curing of temperature-sensitive adhesives, resins, and protective coatings.

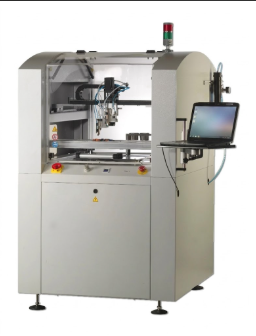

PROTECTOR AT021103 Protector Full Coating Machine MSTECH AT021103
Product Description
The MSTECH AT021103 Protector Full Coating Machine is a high‑precision automated system designed to apply uniform protective coatings on electronic assemblies. Engineered for industrial environments, it delivers consistent quality, high throughput, and maximum reliability for PCB protection.

Key Features
High‑accuracy coating system for PCBs and electronic components

Multi‑axis motion control for precise and repeatable application

Adjustable spray, jet, or film‑coating heads

Integrated curing options (UV / IR / thermal)

Closed‑loop process control ensuring stable coating thickness

Compatible with acrylic, silicone, urethane, and specialized coatings

Benefits
Protects electronics from humidity, dust, chemicals, and mechanical stress

Reduces manual labor and process variability

Ensures long‑term product reliability

Ideal for medium‑ and large‑scale production lines

Can operate as a standalone unit or fully inline

Applications
Consumer electronics manufacturing

Automotive electronics

Industrial control systems

Aerospace and defense electronics

LED and lighting modules

Why Choose This Model
The MSTECH AT021103 stands out for its precision, speed, and integration capabilities, making it a top choice for manufacturers seeking consistent coating quality and efficient production workflows.

PCB Size: 740*510 mm

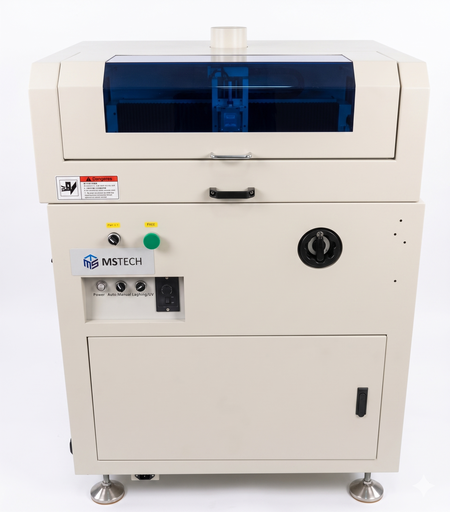

UV-900 AT021043 Curing Conveyor model: CC-900 MSTECH AT021043

Product Description
The MSTECH CC‑900 (AT021043) Curing Conveyor is a high‑performance inline system designed to cure, dry, or stabilize coatings and adhesives applied to electronic assemblies. Its controlled conveyor platform and optimized thermal or UV curing modules ensure consistent results, fast processing, and high reliability for industrial production environments.

Key Features
900 mm curing tunnel for medium‑to‑high production volumes

Adjustable conveyor speed for precise curing control

Uniform thermal or UV curing (depending on configuration)

Energy‑efficient heating and airflow system

Compatible with conformal coatings, adhesives, inks, and resins

Fully inline integration with coating, dispensing, and inspection equipment

Benefits
Ensures stable, repeatable curing quality

Reduces cycle time and increases throughput

Minimizes defects caused by improper drying

Supports continuous automated production

Durable, low‑maintenance industrial design

Applications
PCB conformal coating curing

Adhesive and sealant curing

UV ink and resin polymerization

Electronics assembly and protection processes

Automotive, LED, and industrial electronics manufacturing

Why Choose the CC‑900
The CC‑900 stands out for its precision, speed, and integration flexibility, making it ideal for manufacturers who need consistent curing performance and seamless inline automation.

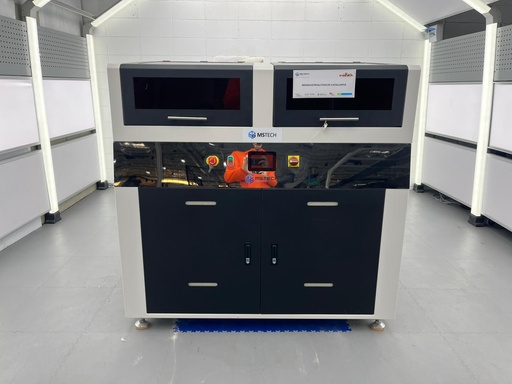

SC-1500
AT022868

Specifications:
1. Max.PCB Size: 740*510mm
2. Upper transmission height: 950±20mm
Lower transmission height：350±20mm
3. Transmission method: Chain pin length 5mm
4. Bearing capacity: 12KG
5. Language: All English logo
6. Rail fixing side: front rail
7. Signal connection: SMEMA head
8. Conveyor cover with saftey sensor(CE)
9. Conveyor with auto type lifting door
10. There are 2 strips of LED lights on the door to show the status of the upper and lower boards.
11. Panasonic touch screen
12. Panasonic PLC with network port
13. CE standard electrical appliances and circuit design
14. With UV detection lamp
15. Dimensions ：1500*1180*1480

Disposition:
1. Voltage: AC220V, 50/60Hz
2. Plug: European standard
3. Transfer direction: Left to Right
4. Panasonic display

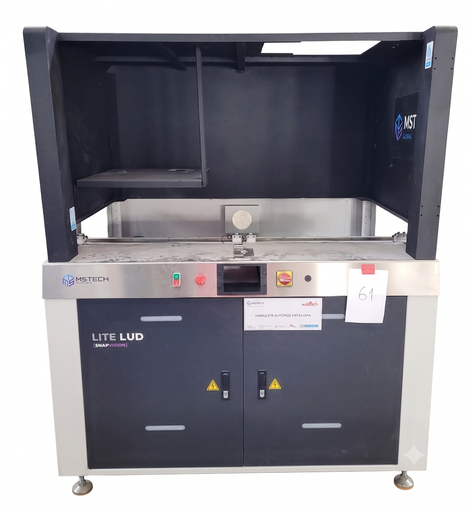

SC-1500 AT022869 Manual Loader-Unloader conveyor with UV light XL MSTECH AT022869
Specifications:
1. Max.PCB Size: 740*510mm
2. Upper transmission height: 950±20mm
Lower transmission height：350±20mm
3. Transmission method: Chain pin length 5mm
4. Bearing capacity: 12KG
5. Language: All English logo
6. Rail fixing side: front rail
7. Signal connection: SMEMA head
8. Conveyor cover with saftey sensor(CE)
9. Conveyor with auto type lifting door
10. There are 2 strips of LED lights on the door to show the status of the upper and lower boards.
11. Panasonic touch screen
12. Panasonic PLC with network port
13. CE standard electrical appliances and circuit design
14. With UV detection lamp
15. Dimensions ：1500*1180*1480

Disposition:
1. Voltage: AC220V, 50/60Hz
2. Plug: European standard
3. Transfer direction: Left to Right
4. Panasonic display

MSTECH Europe
MST-[SNAPCURE] 395 L Gen5

UV LED Curing System, Controller: PLC + HMI, With UV sensor, With detection function( by voltage), 2 x Feane without glass Air Cooling,
Emitting window: 400x250mm, Wavelenght 395nm
395nm：600mW/cm² (50mm)

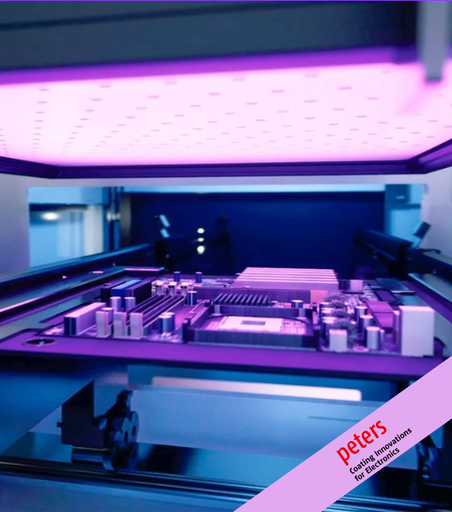

MSTECH Europe x Peters
[SNAPCURE] 395 XL Gen5

UV LED Curing System, Controller: PLC + HMI, With UV sensor, With detection function( by voltage), 2 x Feane without glass Air Cooling,
Emitting window: 500x400mm, Wavelenght Wavelenght 395nm
395nm：600mW/cm² (50mm)

MSTECH Europe x Peters
MST[SNAPCURE] 395 XXL Gen5

UV LED Curing System, Controller: PLC + HMI, With UV sensor, With detection function( by voltage), 2 x Feane without glass Air Cooling,
Emitting window: 600x600mm, Wavelenght Wavelenght 395nm
395nm：600mW/cm² (50mm)

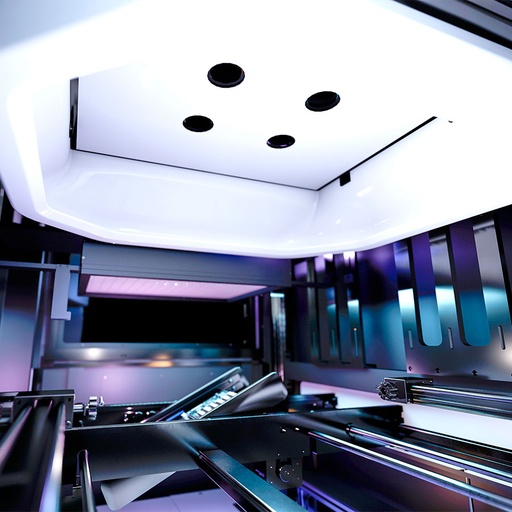

MSTECH Europe
[SNAP VISION]

Multi-purpose vision engine for ultra-high speed inspection.

SNAP VISION L semiconductor.
In-line 2D Automated Optical Inspection (AOI) system for real-time quality control in production environments.
It can be integrated into MSTECH Europe units or third-party machines.

MODEL:
Inspection Area (FOV): 300 x 130 mm.
- Working Distance: 490 mm
- Resolution: 24 μm.
Application: High-resolution inspection for semiconductor and fine-feature detection in compact dual lane configurations.

VISION TECHNOLOGY:
- Intuitive programming UI.
- Typical inspection time: under 4 seconds, depending on the application.
- Coatings thickness trend verification.
- UV traceable.
- Light source: multi-LED illumination.
- No periodical camera calibration needed.
- AI based diagnosis.
- Proactive analysis engine.
- Industry 4.0 MES/FIS and Data sharing.
- Fixed inline AOI module
- Single or dual lane configuration.
- Industrial rigid structure for vibration stability.
- Precision optical alignment.

MSTECH Europe
[SNAP VISION]

Multi-purpose vision engine for ultra-high speed inspection.

SNAP VISION XL for large-format PCBA.
In-line 2D Automated Optical Inspection (AOI) system for real-time quality control in production environments.
It can be integrated into MSTECH Europe units or third-party machines.

MODEL:
Inspection Area (FOV): 530 x 400 mm.
- Working Distance: 860 mm
- Resolution: 40 μm.
Application: Large-format PCBA inspection (coating, marking, general AOI) with extended coverage.

VISION TECHNOLOGY:
- Intuitive programming UI.
- Typical inspection time: under 4 seconds, depending on the application.
- Coatings thickness trend verification.
- UV traceable.
- Light source: multi-LED illumination.
- No periodical camera calibration needed.
- AI based diagnosis.
- Proactive analysis engine.
- Industry 4.0 MES/FIS and Data sharing.
- Fixed inline AOI module
- Single or dual lane configuration.
- Industrial rigid structure for vibration stability.
- Precision optical alignment.

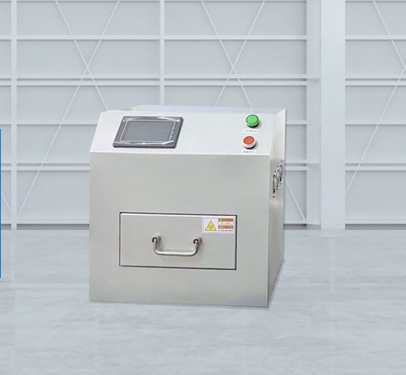

Specifications: Dimensions ：
755*505*452mm,
Voltage: AC220V, 50/60Hz ,
Weight Approx:50kg ,
Power supply: 220VAC/50HZ/250W –
2m cable,
Curing size: inner: 500*400*130mm, P
ower: 1800W, Cooling: Fan cooling, Temperature: ≤50ºC

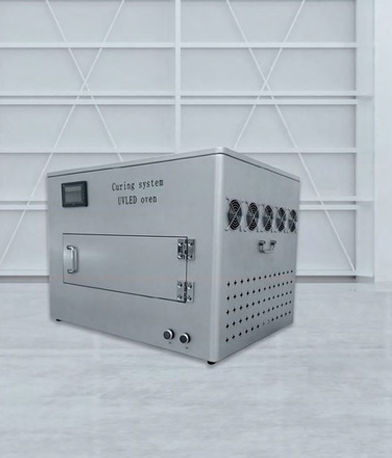

Specifications: Dimensions ：755*505*452mm,
Voltage: AC220V, 50/60Hz ,
Weight Approx:50kg ,
Power supply: 220VAC/50HZ/250W – 2m cable,
Curing size: inner: 500*400*130mm,
Power: 1800W, Cooling: Fan cooling, Temperature: ≤50ºC
