VXS Nitro HK
Rehm Thermal Systems

VisionXS - Medium Range Reflow Oven from Rehm Thermal Systems is an industrial solution designed for electronics manufacturing environments. It supports reliable, repeatable production processes, helping improve quality, productivity and process control. Suitable for professional SMT, PCB assembly, inspection, material handling or related manufacturing applications depending on configuration.

VXS nitro "Inert Reflow Soldering System" with...

- Pin Chain Conveyor nickel plated (pin length 5mm standard)
- PCB-widths from 50-508mm (with CBS 65-508mm)
- manual conveyor width adjustment (electrical - inching operation)
- top and bottom heating
- Fan Speed Regulation 1 included , heating Top
- integr. cooling circuit and heat exchanger for connection to ext. facility water supplies
- Flux Management , CZ MARS & Front FMS
- 1 pcs Gas Probe / Peak)
- flatscreen monitor ( Touch 23" )and signal tower (three-coloured) build-in
- Industrial PC-control with Ethernet-network-interface (RAID hard disk)
- Vicon Software with Windows 11 IoT Enterprise LTSC 2024 (with RAID1-System)
- colour: SN700 (Light Basic)
- Hoods front side / hoods bridge: RAL 7015 (slate grey)
- CE conformity
- incl. transmission zone for finer adjustment of cooling gradient

VXP+ VAC
Rehm Thermal Systems

VisionXP+ - High End Reflow Oven from Rehm Thermal Systems is an industrial solution designed for electronics manufacturing environments. It supports reliable, repeatable production processes, helping improve quality, productivity and process control. Suitable for professional SMT, PCB assembly, inspection, material handling or related manufacturing applications depending on configuration.

VXP+ nitro 3850 (Type 734) VAC, heating zone length 350mm, 4 cooling zones, Single Lane

VXP+ nitro VAC Inert Reflow Soldering System with...
- continuous top and bottom heating
- fan speed control (1x heating top / 1x heating bottom / 1x cooling section)
- Software control for fan speed regulation
- integr. cooling circuit and heat exchanger for connection to ext. Facility water supplies
- pyrolyse integrated
- manual conveyor width adjustment (electrical - inching operation)
- Passage direction left-right (operator side)
- flatscreen monitor and signal tower (three-coloured)
- PCB-width from 55- 536mm (with CBS 65- 536mm) Single Lane
- PCB-width from 2x70-250mm (with CBS 2x70-250mm) Dual Lane
- Rail 1 and 3 fixed, distance rail 7 to 3: 286mm
- PCB length max. 400mm (standard)
- with pin chain conveyor nickel plated (5mm standard)
- integrated Vacuum pump
- PC-control with Ethernet network-interface
- Stand-by modus
- Vicon Software with Windows 11 IoT Enterprise LTSC 2024 (with RAID1-System)
- incl. transmission zone for finer adjustment of cooling gradient
- Basic color: SN 700 light basic
- Hoods front side / hoods bridge: RAL 7015 slate grey
- Rehm Analytics Recorder
- CE conformity

Vakuum Modul integriert in die inerte Prozesskammer (Text siehe SAP)

- Hand over speed of the upstream conveyor has to be identical to the transport speed of the oven (tolerance +/- 10 %)

VXC Nitro HK
Rehm Thermal Systems

VisionXC- Low cost Reflow Oven from Rehm Thermal Systems is an industrial solution designed for electronics manufacturing environments. It supports reliable, repeatable production processes, helping improve quality, productivity and process control. Suitable for professional SMT, PCB assembly, inspection, material handling or related manufacturing applications depending on configuration.

VXC nitro "Inert Reflow Soldering System" with...
- Pin Chain Conveyor nickel plated (pin length 3, 4 or 5 mm)
- PCB-widths from 50-508mm (with CBS 65-508mm)
- manual conveyor width adjustment (electrical - inching operation)
- top and bottom heating
- Fan Speed Regulation 1 included , heating Top
- integr. cooling circuit and heat exchanger for connection to ext. facility water supplies
- Flux Management , CZ MARS & Front FMS
- 1 pcs Gas Probe / Peak)
- flatscreen monitor ( Touch 23" )and signal tower (three-coloured) build-in
- Industrial PC-control with Ethernet-network-interface (RAID hard disk)
- Vicon Software with Windows 11 IoT Enterprise LTSC 2024 (with RAID1-System)
- colour: SN700 (Light Basic)
- Hoods front side / hoods bridge: RAL 7015 (slate grey)
- CE conformity
- incl. transmission zone for finer adjustment of cooling gradient

VXP+ V3
Rehm Thermal Systems

VisionTripleX - Hibryd Reflow Oven from Rehm Thermal Systems is an industrial solution designed for electronics manufacturing environments. It supports reliable, repeatable production processes, helping improve quality, productivity and process control. Suitable for professional SMT, PCB assembly, inspection, material handling or related manufacturing applications depending on configuration.

VXP+ (V3) nitro Inert Reflow Soldering System with...
VXP+ nitro 3500 (Type 734), heating zone length 350mm, 4 cooling zones (V3)


- top and bottom heating
- fan speed control (1x heating top / 1x heating bottom / 1x cooling section)
- Software control for fan speed regulation
- integr. cooling circuit and heat exchanger for connection to ext. facility water supplies
- integrated pyrolyse system
- manual conveyor width adjustment (electrical - inching operation)
- flatscreen monitor and signal tower (three-coloured)
- PCB-width from 55-536mm (with CBS 65-536mm)
- with pin chain conveyor nickel plated 5 mm standard
- Industrial PC-control with Ethernet-network-interface
- Vicon Software with Windows 11 IoT Enterprise LTSC 2024 (with RAID1-System)
- CE conformity
- incl. transmission zone for finer adjustment of cooling gradient
- Basic color: SN 700 light basic
- Hoods front side / hoods bridge: RAL 7015 slate grey
- Rehm Analytics Recorder
- Passage direction left to right

MSTECH Europe
OPTIMIZED PCB HANDLING WITH REPAIR ACCESS

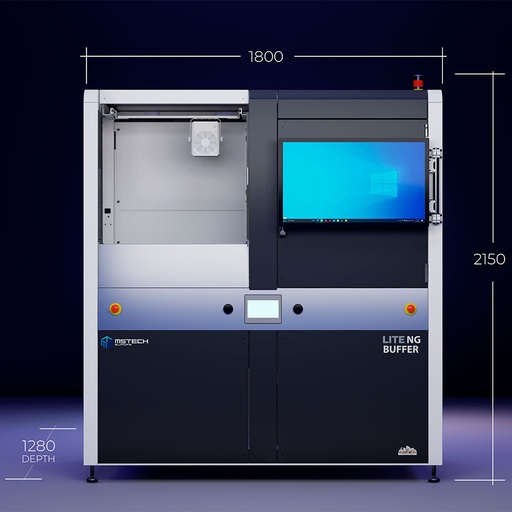

The LITE NG BUFFER is designed to be installed at the rear of an inspection machine. It automatically discharges good PCBs to the next process, while
loading NG (defective) PCBs onto a dedicated rack located on the upper
conveyor. This allows operators to easily access and repair defective boards,
improving efficiency and ensuring process stability

FEATURES
» PLC control for reliable automation.
» Total storage 5 slots 75 mm picht
each.
» LCD touch panel for easy operation.
» Individual lift rack operation.
» Repair zone (upper conveyor) for NG
PCBs.
» Safety-oriented design.
» Improved productivity with stable
quality.
» User-friendly interface

MSTECH Europe

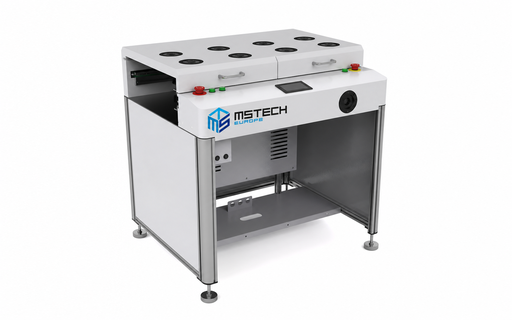

Classic LC10D-460F

Linking conveyor FLASH OFF / inspection UV conveyor, 1000mm length; Motorized width adjustment; FLASH OFF  PROCESS functions; PCB Max(mm): 500x460; PCB Min. (mm): 50x50; Machine Size (mm): 1000x950x1250
