MSTECH Europe
MST-[SNAPCURE] 365 XXL Gen7

UV LED Curing System, Controller: PLC + HMI, With UV sensor, With detection function( by voltage), without glass and Water Cooling,
Emitting window: 600x600mm, Wavelenght 365nm
365nm：1200mW/cm² (50mm)

MSTECH Europe
MST-[SNAPCURE] 395 L Gen5

UV LED Curing System, Controller: PLC + HMI, With UV sensor, With detection function( by voltage), 2 x Feane without glass Air Cooling,
Emitting window: 400x250mm, Wavelenght 395nm
395nm：600mW/cm² (50mm)

MSTECH Europe
MST-[SNAPCURE] 395 XL Gen5

UV LED Curing System, Controller: PLC + HMI, With UV sensor, With detection function( by voltage), 2 x Feane without glass Air Cooling,
Emitting window: 500x400mm, Wavelenght Wavelenght 395nm
395nm：600mW/cm² (50mm)

MSTECH Europe
MST[SNAPCURE] 395 XXL Gen5

UV LED Curing System, Controller: PLC + HMI, With UV sensor, With detection function( by voltage), 2 x Feane without glass Air Cooling,
Emitting window: 600x600mm, Wavelenght Wavelenght 395nm
395nm：600mW/cm² (50mm)

MSTECH Europe
MST-[SNAPCURE] 395 L Gen7

UV LED Curing System, Controller: PLC + HMI, With UV sensor, With detection function( by voltage), without glass and Water Cooling,
Emitting window: 400x250mm, Wavelenght 395nm
395nm：1200mW/cm² (50mm)

MSTECH Europe
MST-[SNAPCURE] 395 XL Gen7

UV LED Curing System, Controller: PLC + HMI, With UV sensor, With detection function( by voltage), without glass and Water Cooling,
Emitting window: 500x400mm, Wavelenght 395nm
395nm：1200mW/cm² (50mm)

MSTECH Europe
MST-[SNAPCURE] 395 XXL Gen7

UV LED Curing System, Controller: PLC + HMI, With UV sensor, With detection function( by voltage), without glass and Water Cooling,
Emitting window: 600x600mm, Wavelenght 395nm
395nm：1200mW/cm² (50mm)

MSTECH Europe
MST-[SNAPCURE] UVC Multifrequence L

UV LED Curing System, Controller: PLC + HMI, 2 x Feane without glass Air Cooling
Emitting window: 250x100mm
235nm, 254nm, 275nm
around 20mW/cm2
3 wavelengths be controlled at the same time

MSTECH Europe
MST-[SNAPCURE] UVC Multifrequence XL

UV LED Curing System, Controller: PLC + HMI, 2 x Feane without glass Air Cooling
Emitting window: 400x100mm
235nm, 254nm, 275nm
around 20mW/cm2
3 wavelengths be controlled at the same time

MSTECH Europe
MST-[SNAPCURE] UVC Multifrequence XXL

UV LED Curing System, Controller: PLC + HMI, 2 x Feane without glass Air Cooling
Emitting window: 600x100mm
235nm, 254nm, 275nm
around 20mW/cm2
3 wavelengths be controlled at the same time

MSTECH Europe
LITE PLUS [SNAP VISION]

Super-fast 2D AOI/ACI inspection
and image analysis with advanced
capabilities, including film thickness
measurement, for coating, dispensing,
component insertion, THT, and wave
soldering process lines.

MSTECH Europe
SMART INFINITY SMNAP FLIP SNAP VISION SNAP CURE

CONFIGURATION FLEXIBILITY
» [SNAPVISION][SNAPCURE][SNAPFLIP] inside.
» Multi-language 32’’ tactile HMI.
» No air supply required.
» Multi process sensors closed loop process.
» High resolution multi type inspection.
» 1D/2D barcode reading.
» Multi wavelength curing.
» Single lane capability up to 510 x 460 mm.
PRODUCTIVITY
» Inspection time less than 4 seconds/side.
» Curing time approx. 5 seconds/side.
» Flip less than 2 seconds.
FULL INTERCONNECTED TRACEABILITY (
OPTION)
OPTIMIZATION
→ Floor space & Energy efficient. Eco-friendly.
UNIQUE CONCEPT

MSTECH Europe
SEMI INFINITY

CONFIGURATION FLEXIBILITY
» [SNAPVISION][SNAPCURE] inside.
» Multi-language 32’’ tactile HMI.
» No air supply required.
» Multi closed-loop processor sensors.
» Fine pitch Datamatrix reading.
» ISO6 (Class 1000) / ESD Level 1 / Full CE / UL.
» Certification / Semi S2/S8 Compliant SECS.
» GEM ready / EMC / F47NPA79.
» Wavelenght controller and closed-loop.radiation.
PRODUCTIVITY
» Less than 2 seconds inspection time.
» Curing time under 5 seconds per tray.
FULL INTERCONNECTED TRACEABILITY (
OPTION)
OPTIMIZATION
» Floor space & Energy efficient. Eco-friendly.
UNIQUE CONCEPT

MSTECH CORP.
MSTKTU-450 SOLDERING
24U45005

UV-LED395 CHAIN
F1-0012-1901

The FAMECS F1-0012-1901 UV-LED 395 CHAIN ​​is an in-line (conveyor/chain) ultraviolet curing system manufactured by FAMECS. It operates at a wavelength of 395 nm and is typically used in SMT assembly lines for the rapid curing of temperature-sensitive adhesives, resins, and protective coatings.

UV-LED395 CHAIN
F1-0015-1901

The FAMECS F1-0012-1901 UV-LED 395 CHAIN ​​is an in-line (conveyor/chain) ultraviolet curing system manufactured by FAMECS. It operates at a wavelength of 395 nm and is typically used in SMT assembly lines for the rapid curing of temperature-sensitive adhesives, resins, and protective coatings.

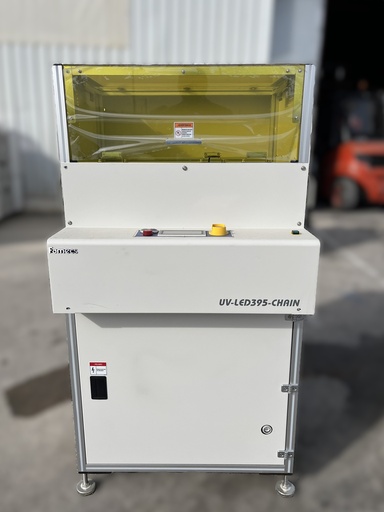

UV-LED395 CHAIN
F1-0014-1901

The FAMECS F1-0012-1901 UV-LED 395 CHAIN ​​is an in-line (conveyor/chain) ultraviolet curing system manufactured by FAMECS. It operates at a wavelength of 395 nm and is typically used in SMT assembly lines for the rapid curing of temperature-sensitive adhesives, resins, and protective coatings.

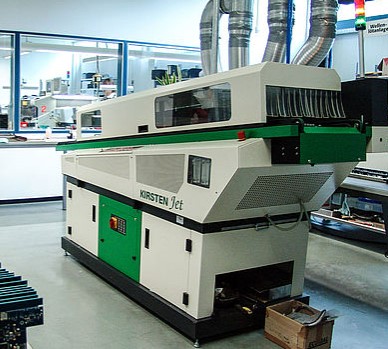

SOLDERING WAVE - K5360 D
53/3257/360

Hollow Jet Wave: Utilizes a special electromagnetic pump with no moving mechanical parts. This creates a very fast, dynamic wave that reaches up to 55 millimeters in height. It prevents failures and guarantees high-quality joints.
Modula Wave System: Its flagship model allows the machine to be configured in individual blocks. This facilitates adding or removing parts quickly according to the factory's needs.
Horizontal Transport: Unlike traditional inclined waves, the plates travel completely flat and horizontally.
Leaders in Lead-Free Soldering: They were pioneered in working with lead-free alloys thanks to their enamelled crucibles that resist corrosion from these materials.

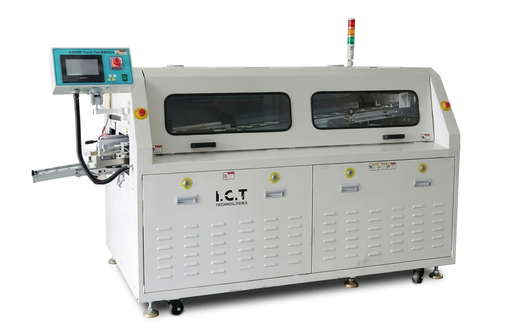

MSTW2
AT021368

2900x1160x1500mm
Weight: 790 kg 3P5W,
380/220V 50Hz 16kw 7kw
Specifications: Max:450x400mm
* With fluxer
* Without fingers
* Transport by chain

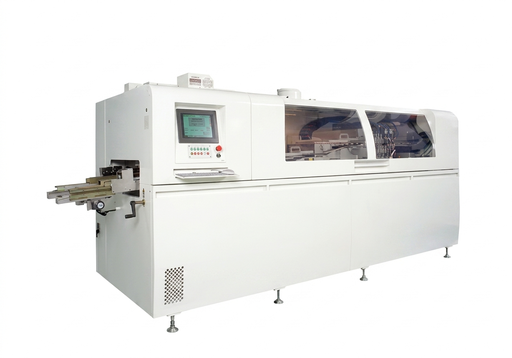

TNW33 TNW40 - Wave N2 (top)
Tamura Electronic / Assembly / Soldering

TNW33 TNW40 - Wave N2 (top) from Tamura is an industrial solution designed for electronics manufacturing environments. It supports reliable, repeatable production processes, helping improve quality, productivity and process control. Suitable for professional SMT, PCB assembly, inspection, material handling or related manufacturing applications depending on configuration.
