Functional End-of-Line Testers

- Cost-effective high-reliability functional test
- Multifunction test capabilities for unmatched coverage
- Wide configurability, full modularity
- Compact & ergonomic design

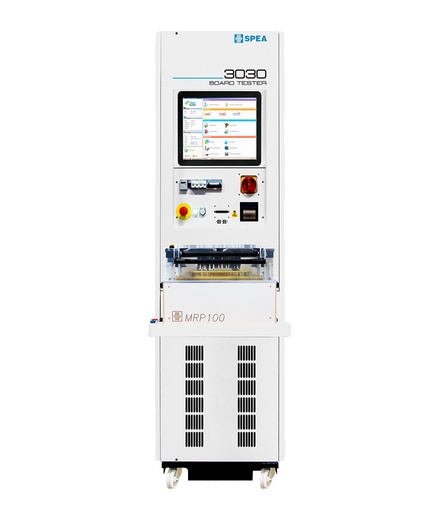

3030T is the new compact tester expressly designed to provide a cost-effective high-coverage functional test of electronic boards and modules.

Standard systems, configurable at will according to the test needs. Or made ad hoc, to meet specific customer needs.
SPEA functional testers are used worldwide for functional testing of finished electronic modules and devices.
Electronic modules, power supplies, inverters, PLCs, smartphones, automotive control units, motor control units are just a few examples of the different applications of this product range.

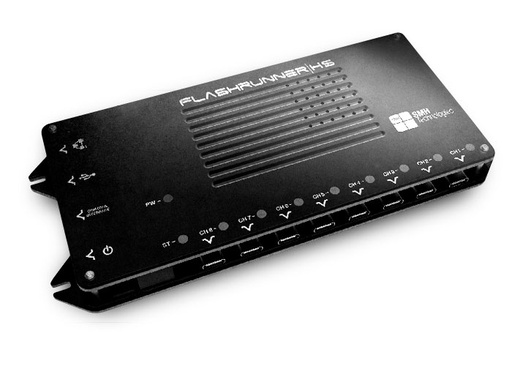

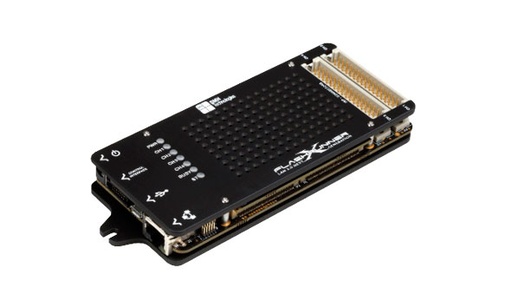

FlashRunner High-Speed combines high-level programming performances and high modularity to obtain a Multi-end programming solution that fits the needs of Pre-Programming and In-System Programming equipment.

The HS Control Unit is the central management which coordinates different technologies for each peripheral Active Module: this organization reflects the Industry 4.0 concept, where a central intelligence creates smart networking and parallel independent process management, reaching high quality levels and optimizing the production process.

The possibility to place the Active Module close to the target devices cuts any distance between the programming system and customer’s board, guaranteeing optimal signal integrity.

Thanks to the high communication frequency, this new member of the FlashRunner family allows to manage big-size data files with up to 80MB/s transfer rate speed, guaranteeing the highest programming performance. This system perfectly complies with the major needs not only of the production lines, but widely involves the whole process management (production quality control, permission management, hacking prevention… etc.).

Control
- Programming cycle time
- Easy wire-wrapping with pinout manager
- Log file Production
- Control Report
- FRB Conversion Report
- Voltage Monitor
- Production batch counter

Command
- Graphical User Interface
- File transfer Management
- One-click driver updates
- Windows and Linux compatible GUI software Interface
- DLL interface libraries for C/C++/C#/Labview/Teststand
- Command line tools

Security
- Encrypted FRB files to avoid binary hacking
- Dump and Compare features of all channels
- User Permission Management
- NDA device management
- FRB integrity check through CRC calculation

Software Features
- Watchdog feeder: square wave generator, frequency trimmable, feeding on-board watchdog;
- Cybersecurity: firmware encryption and secure data transfer;
- DLL (C,C++,C#), easy integration with Teststand/Labview/CVI;
- Voltage Monitor: overvoltages and undervoltages detection during flashing process;
- Serial Numbering: dynamic data flashing, runtime defined;
- Digital lines shuffling: dynamic pinout management;
- Conditional erase: decrease cycle time by adding this option to erase only if device is not blank;
- Online driver knowledgebase: complete online Wiki, daily updated, online video lectures, troubleshooting articles.

Design for Test and Test Coverage Analyzer

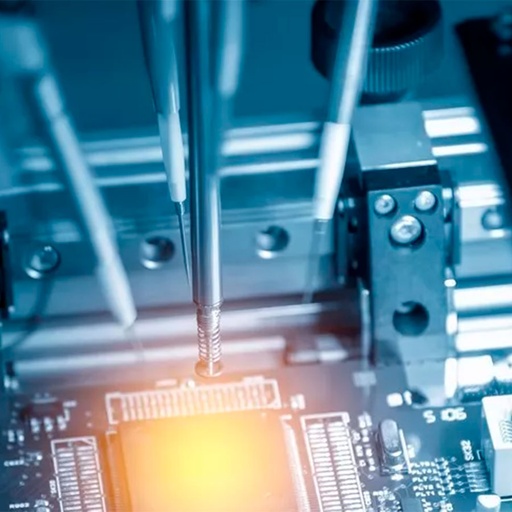

TestWay Express is an integrated DfT and Test Coverage Analysis software that enables designers and manufacturers to prevent and detect defects from design to production.

Test coverage analysis software
- TestWay Express operates from native CAD formats and is powered by QuadView visualization.
- Electrical rules checking enables the identification and rectification of electrical rules violations, before finalizing the board layout.
- Probe analyzer automates probe placement with a comprehensive set of rules to define priorities, clearances and constraints and generate detailed accessibility reports.
- The software simulates test strategies using test machine models to maximize test coverage and optimize test programs to minimize redundancy between strategies.
- The theoretical models estimate the test coverage of each individual stage (SPI, AOI, X-Ray, Boundary scan [BST], In-circuit [ICT], Flying probe [FPT] and Functional test) and optimize the combined results.
- TestWay Express generates the output files, aligned on the simulation results, for programming the assembly, test and inspection machines.
- By importing the post-debug test programs, test engineers can measure the actual coverage and compare this against the early estimation, to identify gaps in the overall strategy.
- twSystem is an add-on module to extend the PCBA viewing and analysis at system level.

Improve product quality
TestWay Express improves product quality by striving to detect and prevent all faults on a product. It analyzes the number of defects detected at each stage in the test process and identifies any shortfall in test coverage.

SPARE PARTS SC400
Nordson ASYMTEK
ASYM6656705

ASSY, SOLENOID, 3WAY, RTD, 1/4-1/4

SPARE PARTS
Nordson Vantage
6655125

KIT, CNVYR SERVICE, 6MM, 1STN, VTG

SPARE PARTS
Nordson Vantage
6655143

KIT, CNVYR SERVICE, 6MM, 2/3STN, VTG

SPARE PARTS
Nordson NexJe8
Referencia Internal ASYM6655161

CLEANING VIALS, RT CARTRIDGE & DJ-9500

SPARE PARTS
Nordson DJ9500
Referencia Internal ASYM7208892

NOZZLE, 0.700 MM (.028 IN)

SPARE PARTS
Nordson DJ9500
Referencia Internal ASYM7201612

NOZZLE, 0.400 MM (.016 IN)

SPARE PARTS
Nordson Vantage
383818

BOOT, VAC .045 ID GREEN

SPARE PARTS
Nordson Vantage
381522

BOOT, VAC .031 ID PINK

SPARE PARTS
HANWHA
POWER_SUPPLYPOWER_SUPPLY

SPARE PARTS
Nordson DJ9500
Referencia Internal ASYM7214830

KIT, O-RING CH, TAN SEAL, DJ-9500

SPARE PARTS
Nordson DJ9500
Referencia Internal ASYM6655208

KIT, DJ-9500 SERVICE

SPARE PARTS
Nordson ASYMTEK
Refrencia interna ASYM6651923

FRU, CONVEYOR WIDTH REBUILD, SL-940

SPARE PARTS SC400
Nordson ASYMTEK
ASYM198130

FITTING, MALE 1/8 NPT, 1/4OD

SPARE PARTS SC280
Nordson ASYMTEK
Refrencia interna ASYM6655431

PKG, O-RING, SC-280 BODY, FFKM, -010

SPARE PARTS SC280
Nordson ASYMTEK
Refrencia interna ASYM6655253

KIT, SC-280 MOUNT BRKT W/SPACER
