KAYO-A6L 2019112502
Pick&Place KAYO-A6L

*System features:
The presence of six cameras to recognize and pick&place the components at high speed;
Use high quality and durable nozzles JUKI;
High-precision drives to move the X and Y;
Two 15-inch monitor for concurrent operation of the pick&place from two sides;
Three-piece conveyor to move the board;
Built-in high performance and energy-saving vacuum system;

Specifications:
* Number of feeders 8 mm - 60 pieces;
* Feeders: 8/12/16/24/32 mm, vibratory feeders;
* Number of mounting heads - 6 pieces;
* Mounting accuracy - 0,01 mm;
* Drivers - servomotors Panasonic + ball screw + linear axes X/Y;
* Video recognition - synchronous on 6 heads;
* Max placement speed - 13000 comp/hour;
* Actual placement speed - 6000 - 7000 comp/hour;
* Max axis movement Z - 20 mm;
* Max dimensions of the PCB: 650х370 mm;
* Mounted components - from 0201, 0402 to 40х40 mm, LED, QFP, BGA, step outputs ≥ 0,3 mm;
* Max component height (Z) - 5,5 mm; upgrade to 10 mm
* Monitors - 15";
* OS - Win7;
* Programming - data conversion, step by step, visual;
* Power supply - 1 phase, 220 V, 50 Hz, 750 W;
* Pneumatic pressure - 5 - 6 Bar;
* Machine dimensions - 1335x1230x1420 mm;
* Machine weight - 500 kg;
* Quick release connector: Ø 10 mm.

Standard configuration:
* Monitor 17" x 2 Keyboard + Mouse x 2
* Signal tower (3 colors, 12 V) x 1
* Nozzle 502 x 1
* Nozzle 503 x 6
* Nozzle 504 x 6
* Nozzle 505 x 6
* Nozzle 506 x 1
* Service kit x 1
* User's manual x 1
* Adjustable feet x 4
* Sealing ring x 20

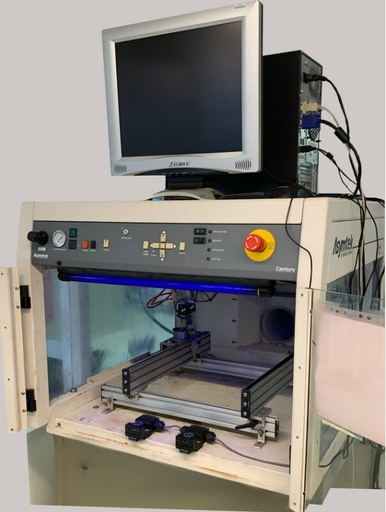

C-341
20.814

Batch System for selectively applying conformal coating materials
patented technology replaces traditional dip, brush, handgun and aerosol spraystems
Dispensarea 458x458mm, 457x457mm with solvent and purge
Windows XP Software

SC-1500
AT021489

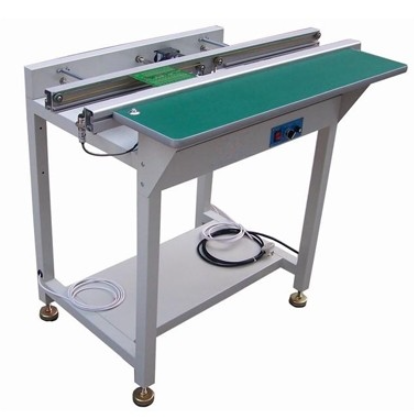

HOLDING - CONVEYOR

SC-1500
AT021486

HOLDING - CONVEYOR

SL-940E
S22533

Inline Conveyorized

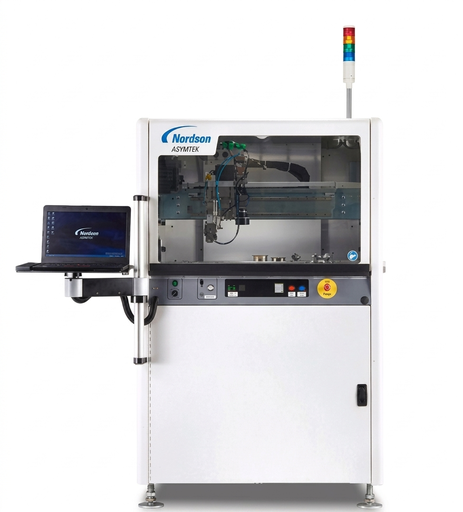

ASYMTEK Select Coat SL-940E Conformal Coating System

As a dependable coating partner for more than 35 years, we understand your time is valuable and that the equipment you select determines your products’ quality, cost, and reliability. The Select Coat® SL-940 Series provides the high-quality coating results and productivity you need for your automated batch or in-line process.

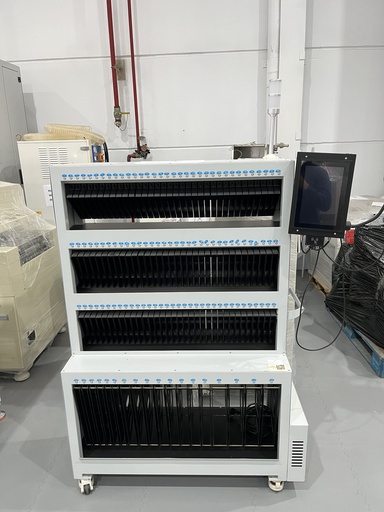

INTELRACK
AT021151

In addition to organization, visibility, and process reliability in handling your SMT feeders

ASPIRADORA
AP-200/629

Air-pulse dust collector with easy filter management
Applications: Secondary battery process, mixing, powder feeding, sanding, bagging, PCB machining, metalworking, casting, blending, drilling, cutting, trimming, shredding, stone engraving, etc.

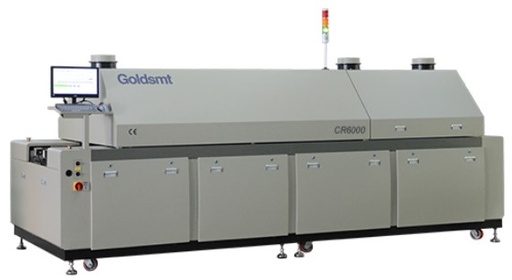

HORNO 6 ZONAS
AT080203

with rail and mesh, 350mm rail+mesh
400mm,PLC+Computer,Top&Bot:Air.
Direction: from left to right
Upper and lower independent temp control
Full screen profile display

C-708
10582

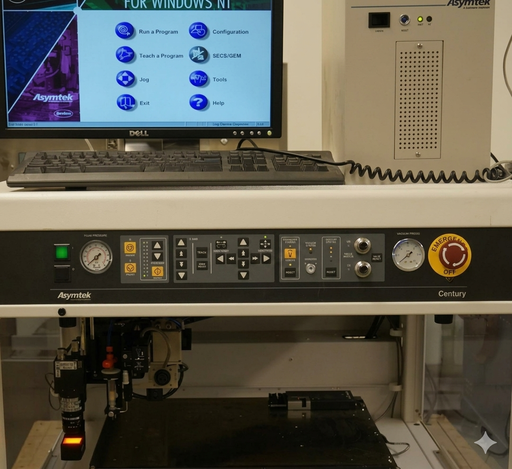

The Nordson Asymtek Century C-708 Fluid Dispensing System is an automated benchtop fluid dispensing system used in electronic assembly and semiconductor manufacturing.

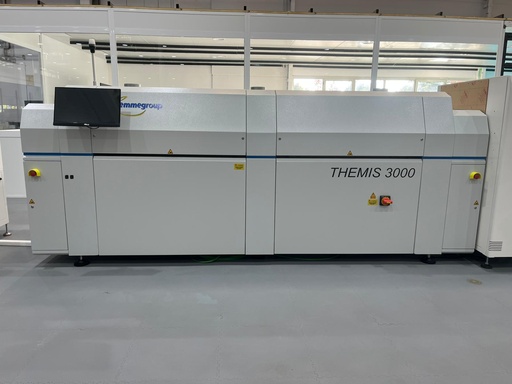

OVEN IR CURING THEMIS 3000 TOP
022AT2025

* Dimension: 3900 L x 1250 W x 1560 H
* Pcb Dimension: Min: 50 L x 50 W / Max 405 W mm
* Top/Bottom Max component height: 120 mm
* Control System: Omron PLC NX Series
* Control Panel: Color Touch Screen 21.5"
* Operating System: Dedicated software real time operation
* Tunnel composed of 6 top IR modules
* IR Tunnel Lenght 3210 mm
* Temperature Range Single Zone: Min 70 C° / Max 320 C°
* Chain conveyor Conveyor speed: 1-150 cm/min
* Manual adjustable conveyor width
* USB port and LAN Port for loading and unloading profiles
* Exahust: > 500 m3/h
* Power supply: 400V + 3PH + N + GND Power install: 14 Kw (Top IR) * Absorption: 29 A
* SMEMA Connected
* Weight: 1200 Kg Approx

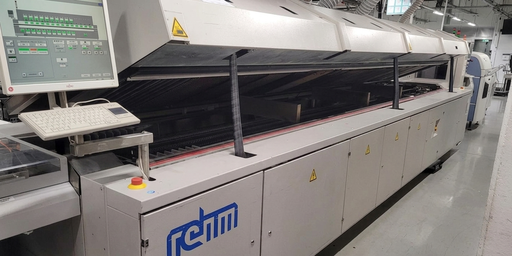

HORNO VXS NITRO 3500
4565

7 preheating zones
3 peak zones
4 cooling zones
chain transport
center support
transport direction: left - right
Smema interface

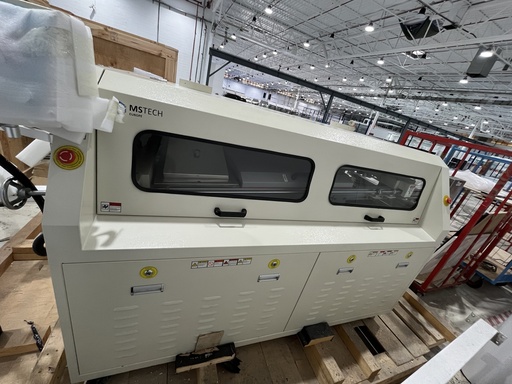

MSTKTU-450 SOLDERING
24U45005

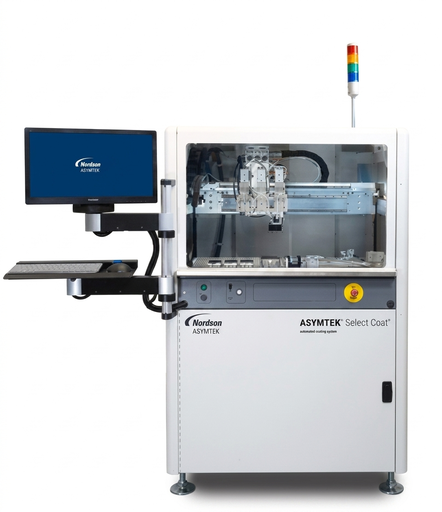

SL-1040
S100120

SL-1040
S100011

With Select Coat SL-1040, we retained the time-tested functionality of the Select Coat SL-940 and added significant system-level advancements to enhance automation, control, accuracy, and preventative maintenance for improved performance and uptime.

SL-1040
S100012

With Select Coat SL-1040, we retained the time-tested functionality of the Select Coat SL-940 and added significant system-level advancements to enhance automation, control, accuracy, and preventative maintenance for improved performance and uptime.

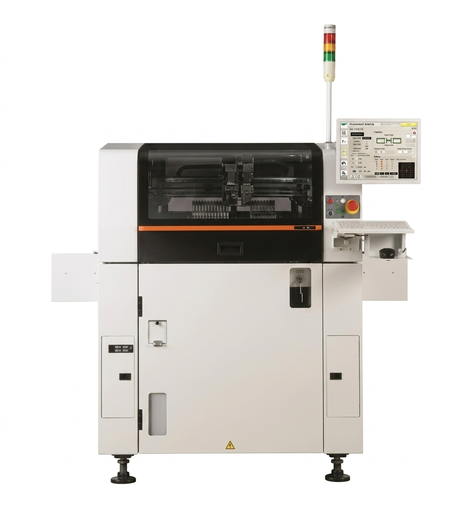

SP1-W
S5-0022-CB

±12.5μm at 6 Sigma
5 sec (Excl. Printing Time)
2 min
5 min
330 x 250mm
510(Length) x 460(Width)
50(Length) x 50(Width)
0,4mm to 4mm
1,500kg
Max. ±1.5mm (Excl. Board Thickness)
Left to Right
Right to Left (Option)
Automatic Width adjustment
3 Staged Conveyor. Front Stage, Working Stage, Rear Stage
By-Pass Conveyor (Option)
Edge Clamp + Top Stopper
Electric Clamp Force Regulating (Option)
PCB Vacuum (Option)
Back up Pins
Back up Block (Option)
Vacuum Block (Option)

Print Parameters
Speed: 0.1 ~ 20mm/sec
Distance: 0.2 ~ 3.0mm
Max. 200mm/sec
4 ~ 15kgf
Automatic
Screw + Electric Air Regulating
Single / Double Printing
Manual (Auto : Option)
Metal - 350mm, 250mm
650(Length)mm x 550(Width)mm
Vision
FOV - 10.6mm x 8.0mm
Circle, Triangle, Square, Diamond, Cross
0.5 ~ 4.0mm

Operator Interface
LCD Monitor, Mouse & Keyboard
Windows XP Embedded
Facilities
• Voltage : Single Phase. 220 / 240V (±5%)
• Frequency : 50/60Hz
• Power Consumption: 4.5 kVA
Pressure 4.5~7kgf/cm, Max. 700Nl/pm
1,895mm / 1,945mm (option). (Incl. Signal Lamp)
1,470mm
1,300mm
1,000mm
1,290kg

SP1-W
S5-0035-D7

±12.5μm at 6 Sigma
5 sec (Excl. Printing Time)
2 min
5 min
330 x 250mm
510(Length) x 460(Width)
50(Length) x 50(Width)
0,4mm to 4mm
1,500kg
Max. ±1.5mm (Excl. Board Thickness)
Left to Right
Right to Left (Option)
Automatic Width adjustment
3 Staged Conveyor. Front Stage, Working Stage, Rear Stage
By-Pass Conveyor (Option)
Edge Clamp + Top Stopper
Electric Clamp Force Regulating (Option)
PCB Vacuum (Option)
Back up Pins
Back up Block (Option)
Vacuum Block (Option)

Print Parameters
Speed: 0.1 ~ 20mm/sec
Distance: 0.2 ~ 3.0mm
Max. 200mm/sec
4 ~ 15kgf
Automatic
Screw + Electric Air Regulating
Single / Double Printing
Manual (Auto : Option)
Metal - 350mm, 250mm
650(Length)mm x 550(Width)mm
Vision
FOV - 10.6mm x 8.0mm
Circle, Triangle, Square, Diamond, Cross
0.5 ~ 4.0mm

Operator Interface
LCD Monitor, Mouse & Keyboard
Windows XP Embedded
Facilities
• Voltage : Single Phase. 220 / 240V (±5%)
• Frequency : 50/60Hz
• Power Consumption: 4.5 kVA
Pressure 4.5~7kgf/cm, Max. 700Nl/pm
1,895mm / 1,945mm (option). (Incl. Signal Lamp)
1,470mm
1,300mm
1,000mm
1,290kg

SI-F209
209741005

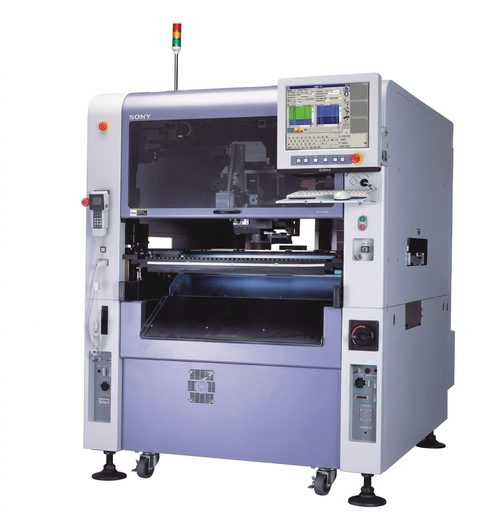

The Sony SI-F209 is a high-speed SMT pick and place machine designed to deliver precise, efficient, and stable component placement for modern PCB assembly lines. Based on Sony's proven high-speed assembly platform, the SI-F209 integrates an advanced vision alignment system, fast-moving placement heads, and a rigid mechanical structure to ensure consistent accuracy during continuous, high-throughput production. Supporting components from metric 0201 ultraminiature devices to medium-to-large-sized integrated circuits (ICs), BGAs, QFPs, connectors, and LED packages, the SI-F209 is suitable for both high-mix production environments and medium-to-high-volume SMT environments.

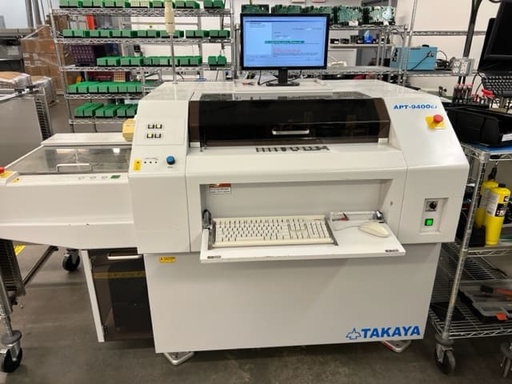

APT-9400CE-A
V2F0C103
The Takaya APT-9400CE-A is an advanced, high-precision flying probe tester manufactured. Takaya designed the APT-9400 series to deliver fixtureless electrical and mechanical testing for mounted printed circuit board (PCB) assemblies and electronic components

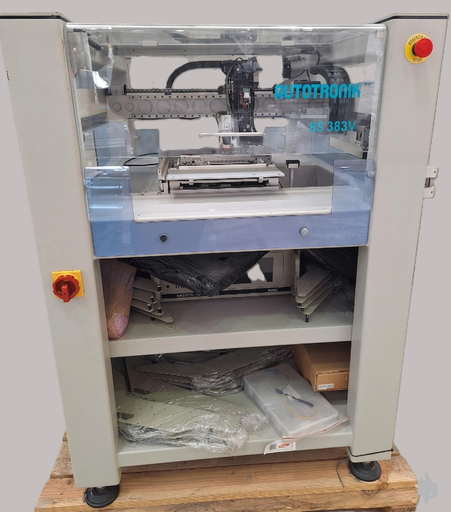

BS383V1-V
383N1V16V1046

- Fully Automated
- Windows 2000
- Ball Screw System
- Universal CAD Conversion
- Vision on the Fly Alignment System
- Bottom Vision Alignment System
- Built-in Camera System with Auto Fiducial Mark Learning
