MSTECH Europe

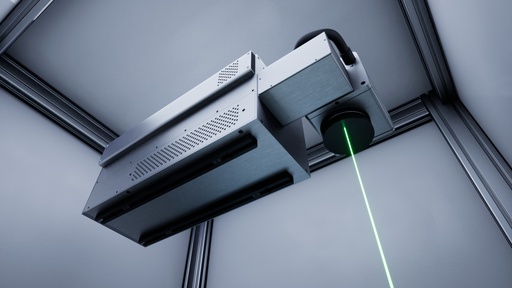

LITE PLUS [SNAPLIGHT][SNAP FLIP]

MULTIFUNCTION LASER
WITH A UNIQUE EXTENDED
FOV, SUITABLE FOR
µMACHINING, SURFACE
PREPARATION, AND
DIGITAL SINTERING

The SNAP LIGHT module expands
the MSTECH software suite with a
high-precision laser system designed
for critical application in electronic &
semicon manufacturing. It performs
ultra- accurate ablation, marking,
sintering, cleaning, and edge-finishing
operations with full digital control.
SNAP LIGHT executes with
micrometric precision, ensuring
maximum efficiency, repeatability, and
reduced process errors.

Features
» Dimensions (WxDxH) : 900 x 1280 x 2148 mm
» INVERT PCBs (180º) FOR DOUBLE-SIDED PROCESS
» Laser spot: ≥ 40 μm.
» Marking area indicator.
» Internal barcode generator.
» Marca full graphics PC Software.
» Available as an OEM Kit or
within MSTECH Europe platform
compatible with SNAP MOTION, and
SMARTBOX and Process Tracker (optional)

Depaneling

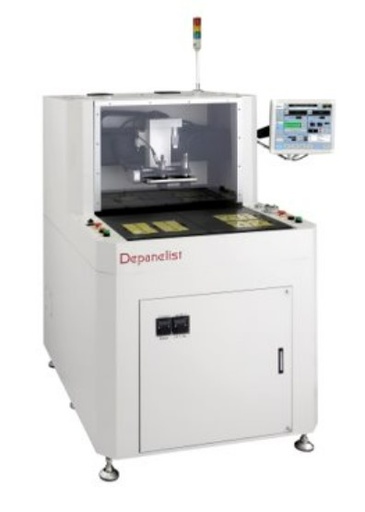

nDPL-T

Twin Table Off-Line Router. Depaneling router system with twin table, dual spindle, compact design, camera aid teaching, ionizer system, safety sensor, multi-bit lifetime management and user-friendly GUI. Standard max panel size: 350 x 400 mm; 300 x 350 mm available; nDPL-T-500: 500 x 500 mm option.

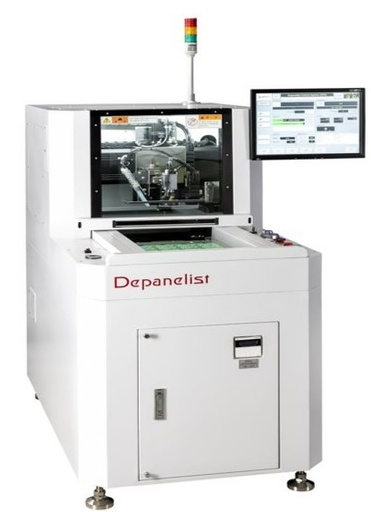

Depaneling
nDPL-S

Single Table Off-Line Router. Depaneling router system with single table architecture; features include dual spindle, compact design, camera aid teaching, ionizer system, safety sensor, multi-bit management and user-friendly GUI.

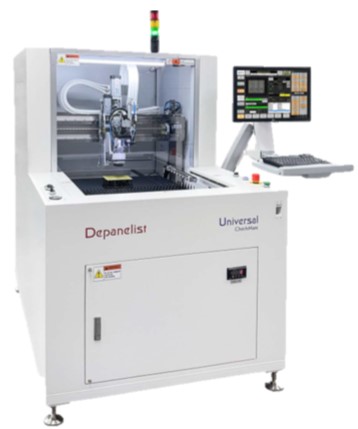

Depaneling
cDPL-S

Compact Off-Line Router. Depaneling router system positioned in the MSTECH off-line router line-up for compact depaneling applications.

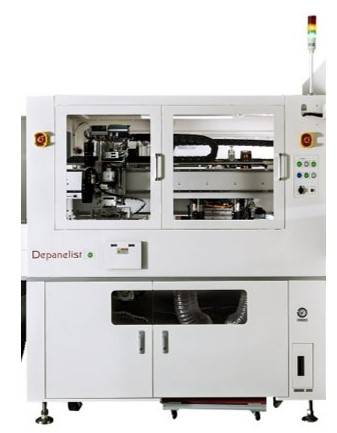

Depaneling
iDPL-T

Twin Table In-Line Router. In-line depaneling router with twin table, dual spindle, dual transfer, vision system, auto conveyor width, tooling ID recognition and dust collector features.

Depaneling

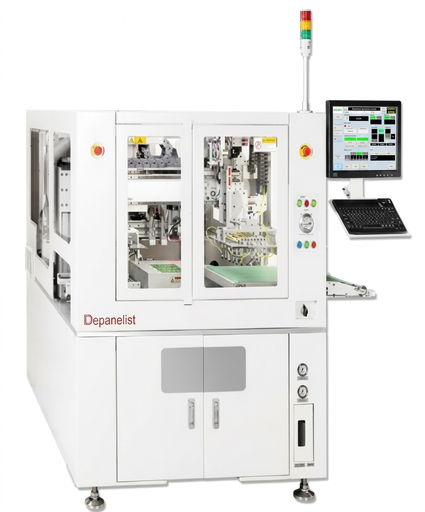

iDPL-S

Single Table In-Line Router. In-line depaneling router with dual spindle, dual transfer, vision system, auto conveyor width, tooling ID recognition and dust collector features.

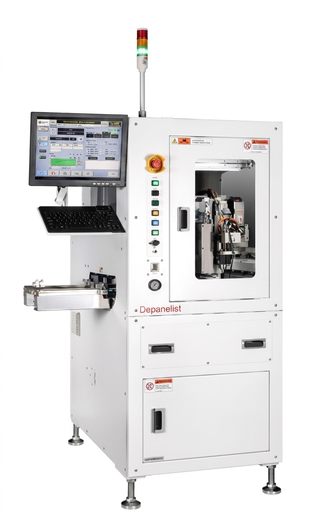

Depaneling
iDPL-C

In-Line Router. Depaneling router reference included in MSTECH Korea in-line router line-up.

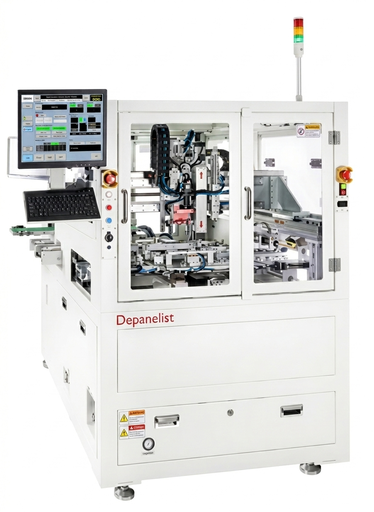

Depaneling
iDPL-U

Universal In-Line Router. Depaneling router reference included in MSTECH Korea in-line router line-up.

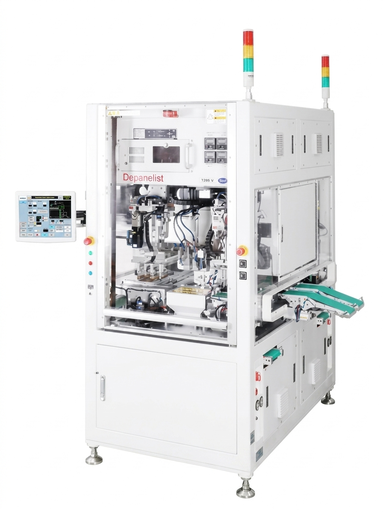

Depaneling
iDPL-D

Dual In-Line Router. Depaneling router reference included in MSTECH Korea in-line router line-up.

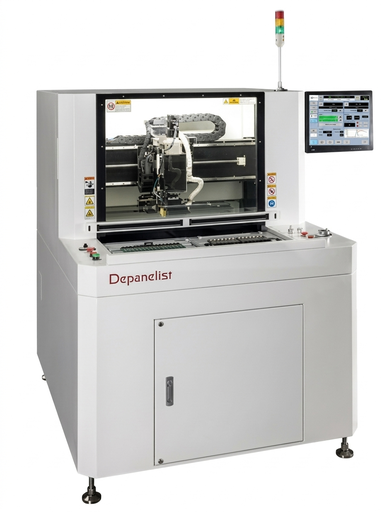

Depaneling
nDPL-TW

Off-Line Sawing System, Twin Tables. MSTECH Korea sawing depaneling system; features include sawing system, dual dust removal, dual transfer and vision system where specified in the sawing product section.

Depaneling
nDPL-SW

Off-Line Sawing System, Single Table. MSTECH Korea sawing depaneling system; features include sawing system, dual dust removal, dual transfer and vision system where specified in the sawing product section.

Depaneling
iDPL-TW

In-Line Sawing System, Twin Tables. MSTECH Korea sawing depaneling system; features include sawing system, dual dust removal, dual transfer and vision system where specified in the sawing product section.

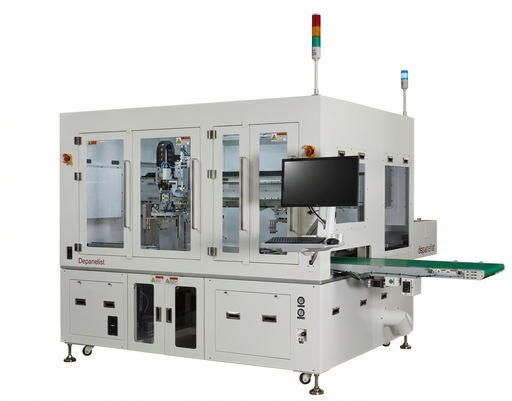

Depaneling
iDPL-SW

In-Line Sawing System. MSTECH Korea sawing depaneling system; features include sawing system, dual dust removal, dual transfer and vision system where specified in the sawing product section.
