MSTECH Europe
MTU-350

The MTU-350 is a high-performance wave soldering machine designed for precise, stable, and efficient PCB assembly. Featuring advanced heating technology, dual-wave soldering, and intelligent control systems, it ensures consistent, high-quality solder joints while optimizing production throughput.
Applications
Ideal for through-hole and mixed-technology PCB assembly in:

Consumer electronics
Automotive electronics
Industrial electronics manufacturing
EMS and high-volume production lines

Key Features

Dual wave system: laminar + dancer for optimal solder quality
High-precision temperature control (±1°C) for stable processes
4-zone preheating system (1800 mm) with hot air convection
Supports PCB widths from 50 to 350 mm
PLC + PC control with automatic alarms and scheduling
Automatic flux spraying system with adjustable flow rate
Automatic finger cleaning system with recyclable solution
Energy-efficient operation with matrix heating (up to 95% efficiency)
SMEMA interface for easy line integration

MSTECH Europe
MTU-450

MTU-450 Wave Soldering Machine
The MTU-450 is a high-capacity wave soldering machine designed for wide PCB applications, delivering precise, stable, and efficient soldering performance. With advanced dual-wave technology, intelligent control systems, and robust construction, it ensures consistent high-quality results for demanding production environments.
Applications
Ideal for large-format and high-density PCB assembly, including:

Consumer electronics
Automotive electronics
Industrial and power electronics
EMS and high-volume production lines

Key Features

Extended PCB handling up to 450 mm width
Dual wave system: laminar + dancer for superior solder quality
High-precision temperature control (±1°C)
4-zone preheating system (1800 mm) with hot air convection
PLC + PC control system with alarms, automation, and scheduling
Automatic flux spraying system with intelligent detection and adjustable flow
Advanced flux management with recycling and exhaust filtration system
Automatic finger cleaning system with recyclable alcohol solution
Energy-efficient matrix heating (up to 95%)
Robust, fully enclosed design for safety and ease of maintenance
SMEMA interface for seamless production line integration

MSTECH Europe,
MTU-500

The MTU-500 is a large-format, high-capacity wave soldering machine designed for demanding PCB production environments. Built for maximum throughput and precision, it combines advanced dual-wave technology, intelligent automation, and efficient thermal management to deliver excellent soldering quality on complex and wide PCBs.
Applications
Ideal for extra-wide and complex PCB assemblies, including:

Automotive and power electronics
Industrial equipment and control systems
Large consumer electronics boards
EMS high-volume production lines

Key Features

Extended PCB capacity up to 500 mm width for large-format boards
Dual wave system: laminar (first) + dancer (second) for optimal soldering results
High-precision temperature control (±1°C)
4-zone preheating system (1800 mm) with hot air convection
Advanced PLC + PC control system with intelligent automation and alarms
Automatic flux spraying system with detection and adjustable flow
Enhanced flux management system with recycling, air curtain, and filtration
Automatic finger cleaning system with recyclable alcohol solution
Energy-efficient matrix heating (up to 95%)
Robust enclosed structure for durability, safety, and easy maintenance
SMEMA interface for seamless integration into production lines

MSTECH Europe
MTU-610

MTU-610 Wave Soldering Machine
The MTU-610 is a large-format, high-capacity wave soldering system designed for extra-wide PCB production and demanding industrial applications. Combining dual-wave soldering, advanced automation, and highly efficient heating technology, it delivers exceptional solder quality, process stability, and productivity for complex assemblies.
Applications
Ideal for very large and complex PCB assemblies, including:

Automotive and power electronics
Industrial control systems and infrastructure
Large-format consumer electronics
EMS high-volume and heavy-duty production lines

Key Features

Extra-wide PCB capability up to 610 mm
Dual wave system: laminar (first) + dancer (second) for optimal soldering performance
High-precision temperature control (±1°C) ensures process stability
4-zone preheating system (1800 mm) with hot air convection
Advanced PLC + PC control system with automation, alarms, and scheduling
Automatic flux spraying system with intelligent PCB detection and adjustable flow
Comprehensive flux management system (recycling, filtration, air curtain)
Automatic finger cleaning system with recyclable alcohol solution
Energy-efficient matrix heating (up to 95%)
Robust enclosed machine design for safety, durability, and easy maintenance
SMEMA compatibility for seamless line integration

MSTECH Europe

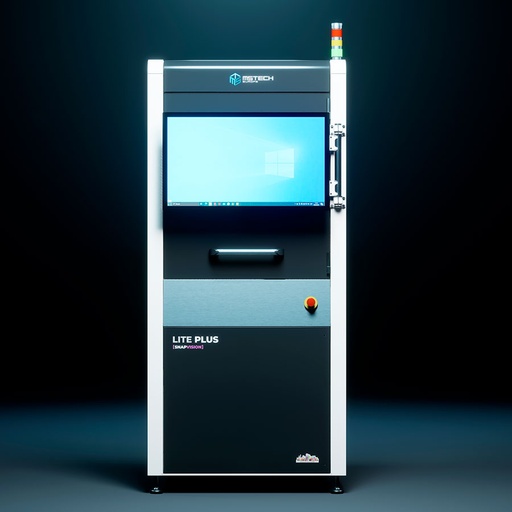

LITE PLUS [SNAP VISION] [SNAP FLIP]

MULTI-PURPOSE
VISION SYSTEM FOR
INTEGRATION INTO
AN EXISTING LINE

Super-fast 2D AOI/ACI inspection
and image analysis with advanced
capabilities, including film thickness
measurement, for coating, dispensing,
component insertion, THT, and wave
soldering process lines.

Features :
■Resolution standard down to 40 um.
■Standard FOV up to 530 x 400 mm.
■Intuitive programming UI.
■Complete inspection time below
than 4 sec. (Depending on FOV).
■Traceability reading while inspection.
■Code Reading: DataMatrix, QR codes.
■UV traceable.
■Thickness trend capability.
■Light source: multi-LED illumination.
■No periodical calibration of camera needs.
■AI based diagnostic.
■Industry 4.0 MES/FIS
and data sharing.

MSTECH Europe

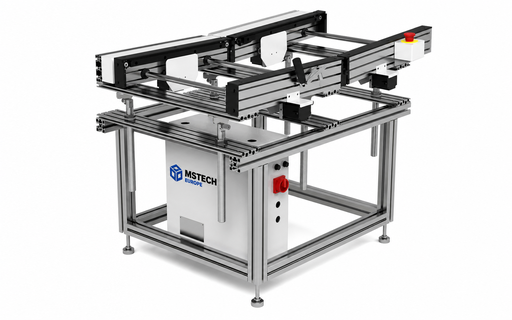

Classic-ICW-460
Infeed conveyor, wave soldering line

Application
Using SMEMA interface, this unit successfully links any machine, this system is special for connection with the wave soldering machine as the infeed conveyor, the conveyor transfer angle is available to adjusted from 4°to 7°by the hand crank wheel.

Features

• Panasonic PLC program control
• Continuous queue feeding PCBs into the wave soldering machine.
• Conveyor width adjustment by using hand crank.
• PCB transfer angle is adjustable
• Heavy bottom design to prevent shifting
• Conveyor motor is using with stepper motor
• Conveyor transfer by chain
• PCB flow direction flows can be customized
• SMEMA compatible

MSTECH Europe

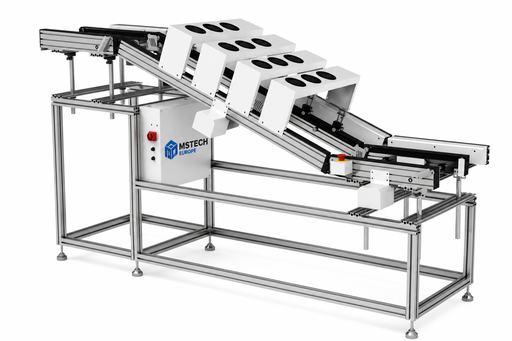

Classic-OCW-460
Outfeed conveyor, wave soldering line

Application :
This unit is special for the unloading conveyors of PCB from the wave soldering machine. The transfer heights are adjustable to meet any kind of wave solder in the market.

Features

• Panasonic PLC program control

• Continuous queue unloading PCBs from the wave soldering machine.

• Conveyor width adjustment by using hand crank.

• PCB transfer angle is adjustable

• Heavy bottom design to prevent shifting

• Conveyor transfer by ESD flat belts or Pin chain conveyor

• PCB flow direction flows can be customized

• SMEMA compatible

MSTECH Europe
MST- [SNAPCURE] UVA &UVC Multifrequence L
UV LED Curing System, Controller: PLC + HMI, With UVA sensor, With detection function( by voltage), 2 x Feane without glass Air Cooling,
Emitting window: 400x250mm, Wavelenght 254,365nm, 395nm
254nm：30mW/cm² (50mm)
365nm：300mW/cm² (50mm)
395nm：400mW/cm² (50mm)

MSTECH Europe
MST-[SNAPCURE] UVA &UVC Multifrequence XL
UV LED Curing System, Controller: PLC + HMI, With UVA sensor, With detection function( by voltage), 2 x Feane without glass Air Cooling,
Emitting window: 500x400mm, Wavelenght 254,365nm, 395nm
254nm：30mW/cm² (50mm)
365nm：300mW/cm² (50mm)
395nm：400mW/cm² (50mm)

MSTECH Europe
MST-[SNAPCURE] UVA &UVC Multifrequence XXL

UV LED Curing System, Controller: PLC + HMI, With UVA sensor, With detection function( by voltage), 2 x Feane without glass Air Cooling,
Emitting window: 600x600mm, Wavelenght 254,365nm, 395nm
254nm：30mW/cm² (50mm)
365nm：300mW/cm² (50mm)
395nm：400mW/cm² (50mm)

MSTECH Europe
MST-[SNAPCURE] UVA Multifrequence L
UV LED Curing System, Controller: PLC + HMI, With UV sensor, With detection function( by voltage), 2 x Feane without glass Air Cooling,
Emitting window: 400x250mm, Wavelenght 365nm, 395nm
365nm：300mW/cm² (50mm)
395nm：400mW/cm² (50mm)

MSTECH Europe
MST-[SNAPCURE] UVA Multifrequence XL

UV LED Curing System, Controller: PLC + HMI, With UV sensor, With detection function( by voltage), 2 x Feane without glass Air Cooling,
Emitting window: 500x400mm, Wavelenght 365nm, 395nm
365nm：300mW/cm² (50mm)
395nm：400mW/cm² (50mm)

MSTECH Europe
MST-[SNAPCURE] UVA Multifrequence XXL

UV LED Curing System, Controller: PLC + HMI, With UV sensor, With detection function( by voltage), 2 x Feane without glass Air Cooling,
Emitting window: 600x600mm, Wavelenght 365nm, 395nm
365nm：300mW/cm² (50mm)
395nm：400mW/cm² (50mm)

MSTECH Europe
MST-[SNAPCURE] UVA Multifrequence Wafer 300mm

UV LED Curing System for Wafer applications, Controller: PLC + HMI
With UVA LED Sensor, With detection function( by voltage), 2 x Feane without glass Air Cooling
Emitting window: 300x300mm, Wavelength: 365nm,395nm,405nm
1200mW/cm2 at 20mm

MSTECH Europe
MST-[SNAPCURE] 365 L Gen5

UV LED Curing System, Controller: PLC + HMI, With UV sensor, With detection function( by voltage), 2 x Feane without glass Air Cooling,
Emitting window: 400x250mm, Wavelenght 365nm
365nm：600mW/cm² (50mm)

MSTECH Europe
MST-[SNAPCURE] 365 XL Gen5

UV LED Curing System, Controller: PLC + HMI, With UV sensor, With detection function( by voltage), 2 x Feane without glass Air Cooling,
Emitting window: 500x400mm, Wavelenght Wavelenght 365nm
365nm：600mW/cm² (50mm)

MSTECH Europe
MST-[SNAPCURE] 365 XXL Gen5

UV LED Curing System, Controller: PLC + HMI, With UV sensor, With detection function( by voltage), 2 x Feane without glass Air Cooling,
Emitting window: 600x600mm, Wavelenght Wavelenght 365nm
365nm：600mW/cm² (50mm)

MSTECH Europe
MST-[SNAPCURE] 365 L Gen7

UV LED Curing System, Controller: PLC + HMI, With UV sensor, With detection function( by voltage), without glass and Water Cooling,
Emitting window: 400x250mm, Wavelenght 365nm
365nm：1200mW/cm² (50mm)

MSTECH Europe

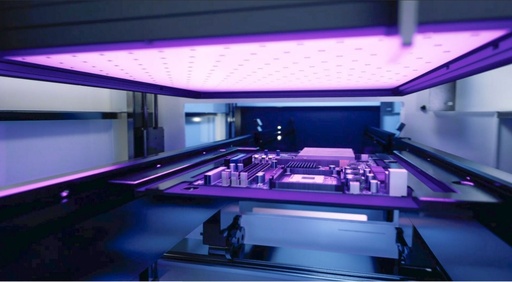

MST-[SNAPCURE] 365 XL Gen7

UV LED Curing System, Controller: PLC + HMI, With UV sensor, With detection function( by voltage), without glass and Water Cooling,
Emitting window: 500x400mm, Wavelenght 365nm
365nm：1200mW/cm² (50mm)

MSTECH Europe
MST-[SNAPCURE] 365 XXL Gen7

UV LED Curing System, Controller: PLC + HMI, With UV sensor, With detection function( by voltage), without glass and Water Cooling,
Emitting window: 600x600mm, Wavelenght 365nm
365nm：1200mW/cm² (50mm)
