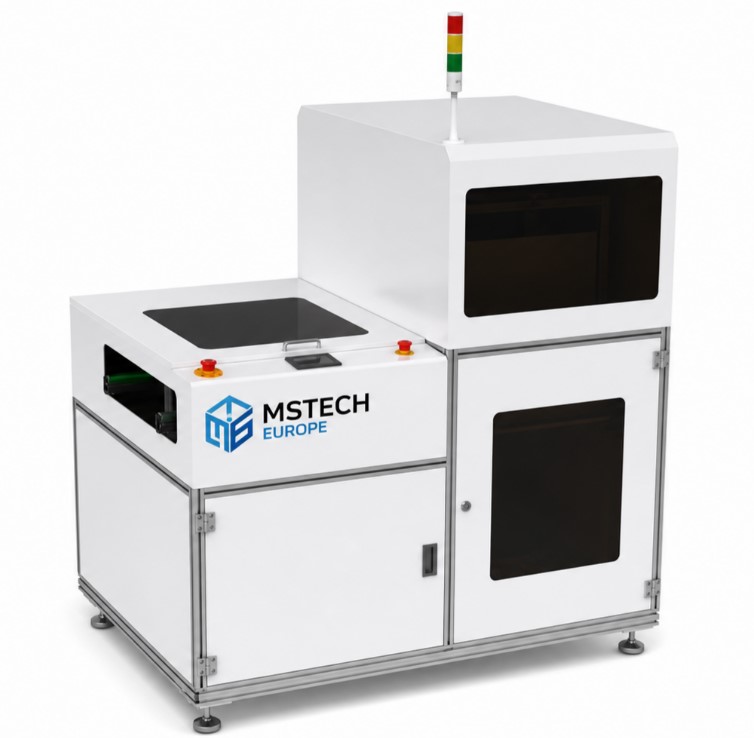

Single Magazine (mm) unloader PCB Max(mm): 530x390

MSTECH Europe
Classic-SMUL-390

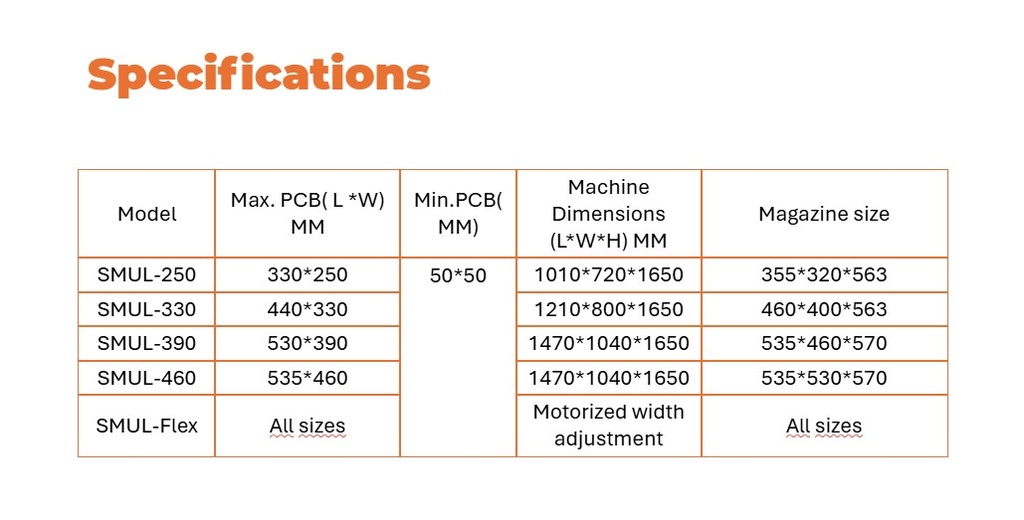

Single Magazine (mm) unloader, space save type; Motorized width adjustment; NG/OK reject functions; PCB Max(mm): 530x390; PCB Min. (mm): 50x50; Machine Size (mm): 1255x1385x1650; Magazine (mm): 535x460x570

Application:

The single magazine Unloader is designed for unloading of PCBs, an arriving PCB is taken up by the attached conveyor and then pushed into the magazine by a specially designed pusher. The magazine indexes to the next position and is ready for the following unloading cycle.



1. The unit provides automatic magazine change-over for continuous line unloading. PCB’s are collected from an upstream pusher conveyor (ordered separately) and pushed into the magazine. Full magazines are offloaded at an ergonomic low level.

2. Used in SMT line end, received and stores PCB into magazine one by one.

3. Located at the final stage of SMT line, this unit stacks PCBs in an empty magazine rack using a motorized pusher one by one.

4. Space save type of single magazine Unloader

Features

• Mitsubishi PLC program control

• Selectable pitch settings

• Tower-light display for machines working status.

• Flexible platform to suit standard magazines

• Exchangeable magazine

• Stepper motorized type pusher to enhance working stability

• Pusher position adjustable to Centre for the boards

• Use the friendly touch screen panel

• Magazine infeed and outfeed are automatically driving by motor on the platform.

• SMEMA compatible
