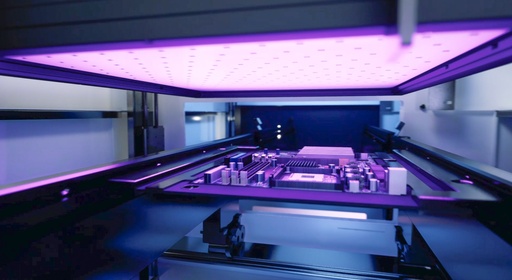

MSTECH Europe
MST-[SNAPCURE] 395 L Gen5

UV LED Curing System, Controller: PLC + HMI, With UV sensor, With detection function( by voltage), 2 x Feane without glass Air Cooling,
Emitting window: 400x250mm, Wavelenght 395nm
395nm：600mW/cm² (50mm)

MSTECH Europe

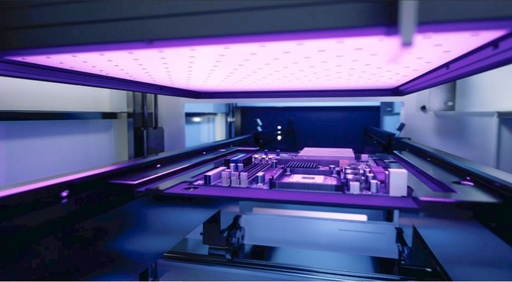

MST-[SNAPCURE] 395 XL Gen5

UV LED Curing System, Controller: PLC + HMI, With UV sensor, With detection function( by voltage), 2 x Feane without glass Air Cooling,
Emitting window: 500x400mm, Wavelenght Wavelenght 395nm
395nm：600mW/cm² (50mm)

MSTECH Europe
MST[SNAPCURE] 395 XXL Gen5

UV LED Curing System, Controller: PLC + HMI, With UV sensor, With detection function( by voltage), 2 x Feane without glass Air Cooling,
Emitting window: 600x600mm, Wavelenght Wavelenght 395nm
395nm：600mW/cm² (50mm)

MSTECH Europe
MST-[SNAPCURE] 395 L Gen7

UV LED Curing System, Controller: PLC + HMI, With UV sensor, With detection function( by voltage), without glass and Water Cooling,
Emitting window: 400x250mm, Wavelenght 395nm
395nm：1200mW/cm² (50mm)

MSTECH Europe
MST-[SNAPCURE] 395 XL Gen7

UV LED Curing System, Controller: PLC + HMI, With UV sensor, With detection function( by voltage), without glass and Water Cooling,
Emitting window: 500x400mm, Wavelenght 395nm
395nm：1200mW/cm² (50mm)

MSTECH Europe
MST-[SNAPCURE] 395 XXL Gen7

UV LED Curing System, Controller: PLC + HMI, With UV sensor, With detection function( by voltage), without glass and Water Cooling,
Emitting window: 600x600mm, Wavelenght 395nm
395nm：1200mW/cm² (50mm)

MSTECH Europe
MST-[SNAPCURE] UVC Multifrequence L

UV LED Curing System, Controller: PLC + HMI, 2 x Feane without glass Air Cooling
Emitting window: 250x100mm
235nm, 254nm, 275nm
around 20mW/cm2
3 wavelengths be controlled at the same time

MSTECH Europe
MST-[SNAPCURE] UVC Multifrequence XL

UV LED Curing System, Controller: PLC + HMI, 2 x Feane without glass Air Cooling
Emitting window: 400x100mm
235nm, 254nm, 275nm
around 20mW/cm2
3 wavelengths be controlled at the same time

MSTECH Europe
MST-[SNAPCURE] UVC Multifrequence XXL

UV LED Curing System, Controller: PLC + HMI, 2 x Feane without glass Air Cooling
Emitting window: 600x100mm
235nm, 254nm, 275nm
around 20mW/cm2
3 wavelengths be controlled at the same time

MSTECH Europe

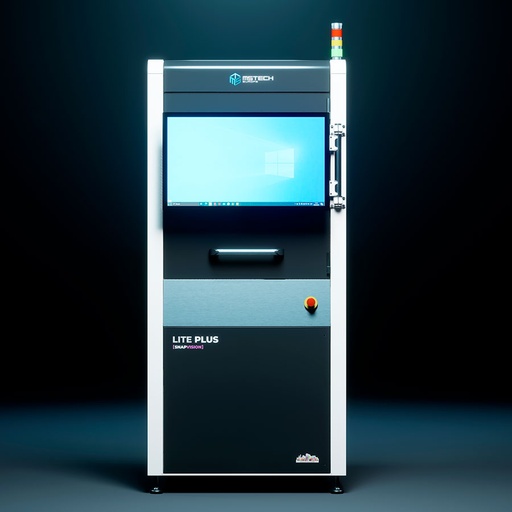

LITE PLUS [SNAP VISION]

Super-fast 2D AOI/ACI inspection
and image analysis with advanced
capabilities, including film thickness
measurement, for coating, dispensing,
component insertion, THT, and wave
soldering process lines.

MSTECH Europe

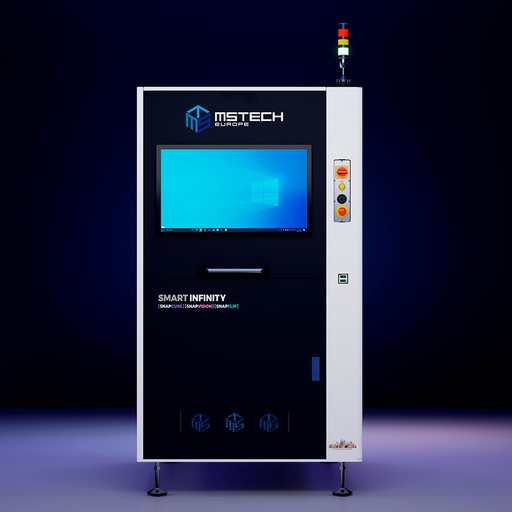

SMART INFINITY SMNAP FLIP SNAP VISION SNAP CURE

CONFIGURATION FLEXIBILITY
» [SNAPVISION][SNAPCURE][SNAPFLIP] inside.
» Multi-language 32’’ tactile HMI.
» No air supply required.
» Multi process sensors closed loop process.
» High resolution multi type inspection.
» 1D/2D barcode reading.
» Multi wavelength curing.
» Single lane capability up to 510 x 460 mm.
PRODUCTIVITY
» Inspection time less than 4 seconds/side.
» Curing time approx. 5 seconds/side.
» Flip less than 2 seconds.
FULL INTERCONNECTED TRACEABILITY (
OPTION)
OPTIMIZATION
→ Floor space & Energy efficient. Eco-friendly.
UNIQUE CONCEPT

MSTECH Europe

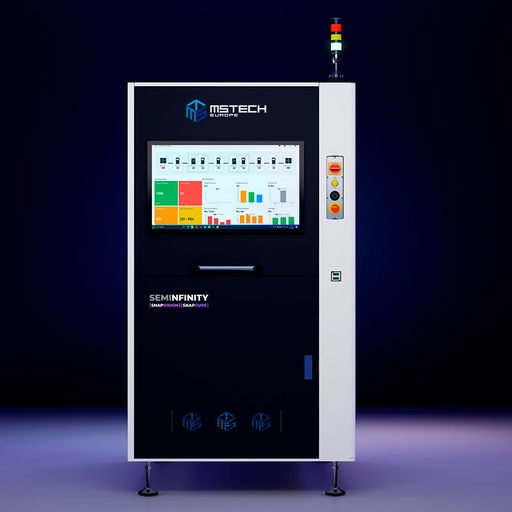

SEMI INFINITY

CONFIGURATION FLEXIBILITY
» [SNAPVISION][SNAPCURE] inside.
» Multi-language 32’’ tactile HMI.
» No air supply required.
» Multi closed-loop processor sensors.
» Fine pitch Datamatrix reading.
» ISO6 (Class 1000) / ESD Level 1 / Full CE / UL.
» Certification / Semi S2/S8 Compliant SECS.
» GEM ready / EMC / F47NPA79.
» Wavelenght controller and closed-loop.radiation.
PRODUCTIVITY
» Less than 2 seconds inspection time.
» Curing time under 5 seconds per tray.
FULL INTERCONNECTED TRACEABILITY (
OPTION)
OPTIMIZATION
» Floor space & Energy efficient. Eco-friendly.
UNIQUE CONCEPT

MSTECH Europe
MST-[SNAPCURE] 395 L Gen5

UV LED Curing System, Controller: PLC + HMI, With UV sensor, With detection function( by voltage), 2 x Feane without glass Air Cooling,
Emitting window: 400x250mm, Wavelenght 395nm
395nm：600mW/cm² (50mm)

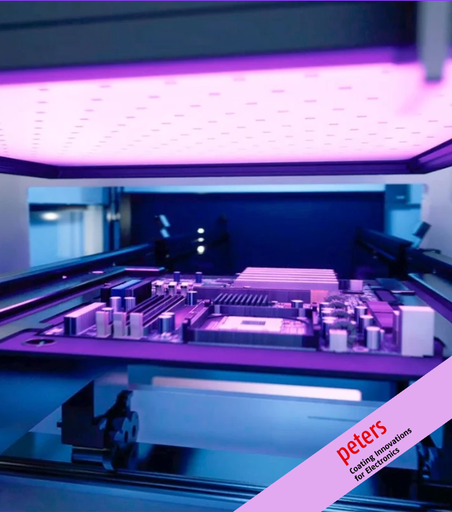

MSTECH Europe x Peters
[SNAPCURE] 395 XL Gen5

UV LED Curing System, Controller: PLC + HMI, With UV sensor, With detection function( by voltage), 2 x Feane without glass Air Cooling,
Emitting window: 500x400mm, Wavelenght Wavelenght 395nm
395nm：600mW/cm² (50mm)

MSTECH Europe x Peters
MST[SNAPCURE] 395 XXL Gen5

UV LED Curing System, Controller: PLC + HMI, With UV sensor, With detection function( by voltage), 2 x Feane without glass Air Cooling,
Emitting window: 600x600mm, Wavelenght Wavelenght 395nm
395nm：600mW/cm² (50mm)

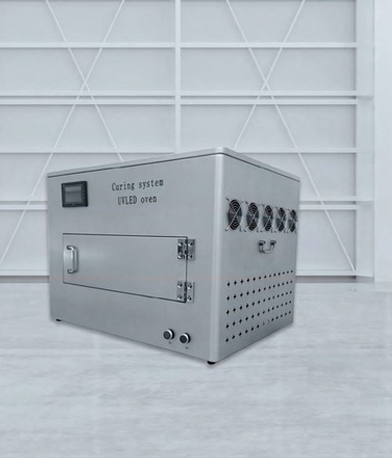

Specifications: Dimensions ：755*505*452mm,
Voltage: AC220V, 50/60Hz ,
Weight Approx:50kg ,
Power supply: 220VAC/50HZ/250W – 2m cable,
Curing size: inner: 500*400*130mm,
Power: 1800W, Cooling: Fan cooling, Temperature: ≤50ºC

SNAP CURE
MSTECH Europe

• Wave length 395nm
• Power: 2.1 KW
• Voltage: 220 V AC +/- 10%
• Irradiation: 200-300 mW/cm2
• LED Surface: 400x250mm
