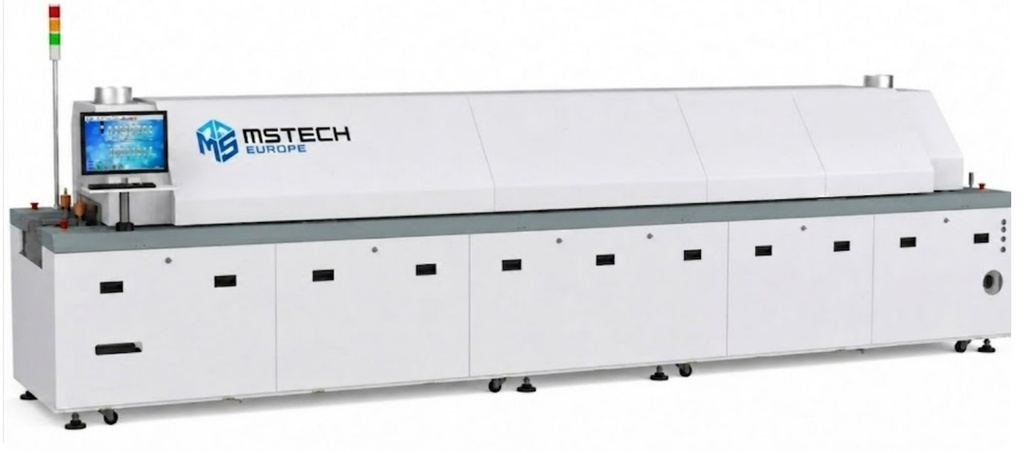

MTR-600 Reflow Oven

MSTECH Europe
Classic MTR-600
The MTR-600 is a high-performance SMT reflow oven designed for precise and reliable lead-free soldering. It combines advanced hot air convection heating with an industrial control system to ensure consistent thermal results and efficient production.
Key Features

12 heating zones (6 top / 6 bottom) + 2 cooling zones
Temperature range: Ambient to 300°C
High accuracy: ±1°C (control), ±1.5°C PCB deviation
Fast warm-up: ~30 minutes
Industrial PC control with profile storage & real-time monitoring
Energy efficient: ~5KW operating consumption
Built-in UPS for power failure protection
MES & LAN connectivity

Conveyor & Capacity

PCB width: 50–460 mm
Speed: 300–2000 mm/min (adjustable)
Chain + mesh conveyor with automatic lubrication
Component height: up to 30 mm (top & bottom)

Cooling & Performance

Forced air cooling, PCB exit ≤ 70°C
Stable heat balance and fast response time (≤20s)

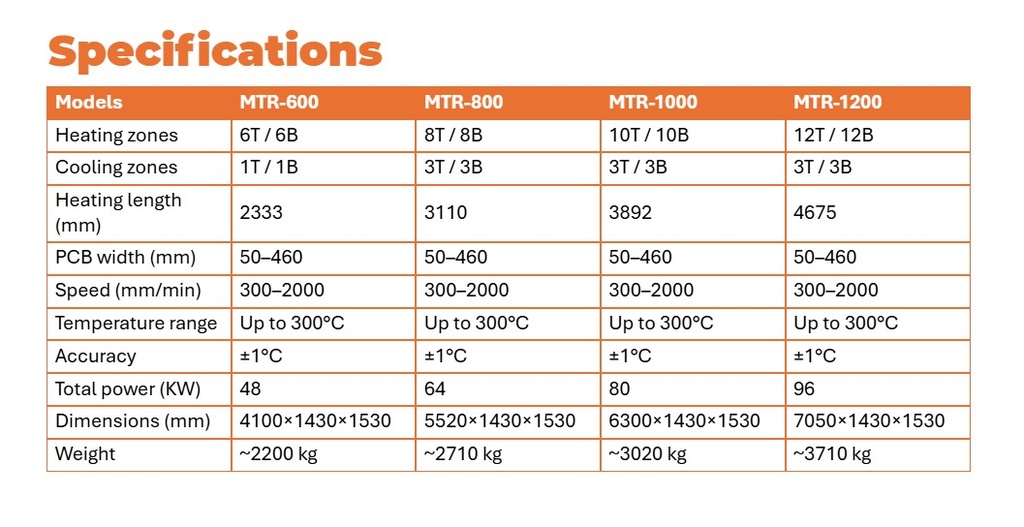

Technical Specs

Dimensions: 4100 × 1430 × 1530 mm
Weight: ~2200 kg
Power supply: 3P 380V / 220V, 50/60Hz
Total power: 48KW
