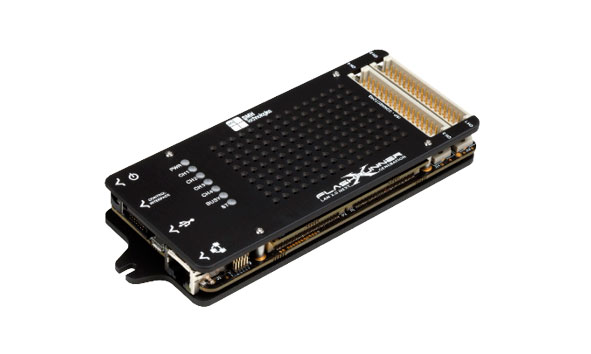

FlashRunner LAN 2.0 NXG

FlashRunner 2.0 technology is revolutionary not only for its performances in terms of fast programming speed, but also for the technological leap that it represents, introducing the concept of production efficiency.
SMH is exclusively focused on technology for the programming of microcontrollers and memories: its decennial experience led to the evolution from a simple programming tool to an actual programming system which finalizes and completes FlashRunner’s performance.

Control
- Production control panel
- Programming times and statistics
- Interface libraries
- Connections pinout

Command
- Project wizard
- File transfer management
- Firmware and software updates
- Windows, Linux and Mac compatible GUI software interface

Security
- Encrypted FRB files to avoid binary hacking
- Dump and compare features of all channels
- LOG file and Production Report file
- User Permission Management
- Tracking of programming cycles number
- Errors with language descriptions

Software Features
FlashRunner 2.0 is based on Linux Embedded operating system, which relays on a real time scheduler and a full featured hardware abstraction layer.
FlashRunner 2.0 is featured with software interfacing libraries which enables customers to achieve a full integration inside their software and across different frameworks, as LabView© and Visual C/C++.

A new, friendly and interactive GUI (Graphic User Interface) which cut off overall configuration efforts, guiding customers creating a working project in few mouse clicks and detecting mismatches between target device and customer firmware, as well as power supply setup.

Hardware Features
- Easy fixture integration thanks to the compact size: 142×17,6x70mm;
- Independent ISP channels supporting several communication protocols (JTAG, SPI, I2C, BDM, UART…);
- 8 digital I/O lines for each channel, coupled with dedicated ground return lines;
- Two programmable output voltage lines;
- 1 GB on-board Dynamic Memory;
- On-board timekeeper and calendar for time-stamped log file;
- Fast Ethernet interface up to 1 Gbit/s (optoisolated, autocrossing feature);
- USB-UART communication interface (optoisolated);
- Fixture dedicated Control interface for standalone mode (optoisolated);
- Power voltage and current measurement for each channel;
- Integrated control for optional Relay Barrier tool;
- Two 48-pin DIN In-System Programming connectors;
- eMMC and NAND memory support:
- Up to 256 GB storage memory;
- Operation status LEDs for each channel;
- USB communication interface (optoisolated).
