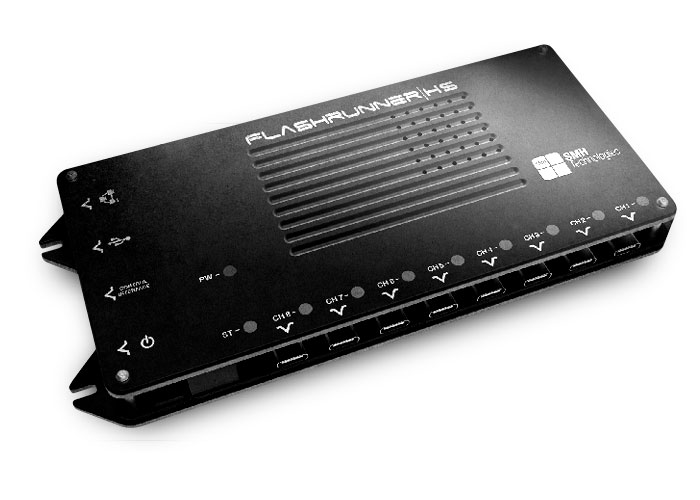

FlashRunner High-Speed

FlashRunner High-Speed combines high-level programming performances and high modularity to obtain a Multi-end programming solution that fits the needs of Pre-Programming and In-System Programming equipment.

The HS Control Unit is the central management which coordinates different technologies for each peripheral Active Module: this organization reflects the Industry 4.0 concept, where a central intelligence creates smart networking and parallel independent process management, reaching high quality levels and optimizing the production process.

The possibility to place the Active Module close to the target devices cuts any distance between the programming system and customer’s board, guaranteeing optimal signal integrity.

Thanks to the high communication frequency, this new member of the FlashRunner family allows to manage big-size data files with up to 80MB/s transfer rate speed, guaranteeing the highest programming performance. This system perfectly complies with the major needs not only of the production lines, but widely involves the whole process management (production quality control, permission management, hacking prevention… etc.).

Control
- Programming cycle time
- Easy wire-wrapping with pinout manager
- Log file Production
- Control Report
- FRB Conversion Report
- Voltage Monitor
- Production batch counter

Command

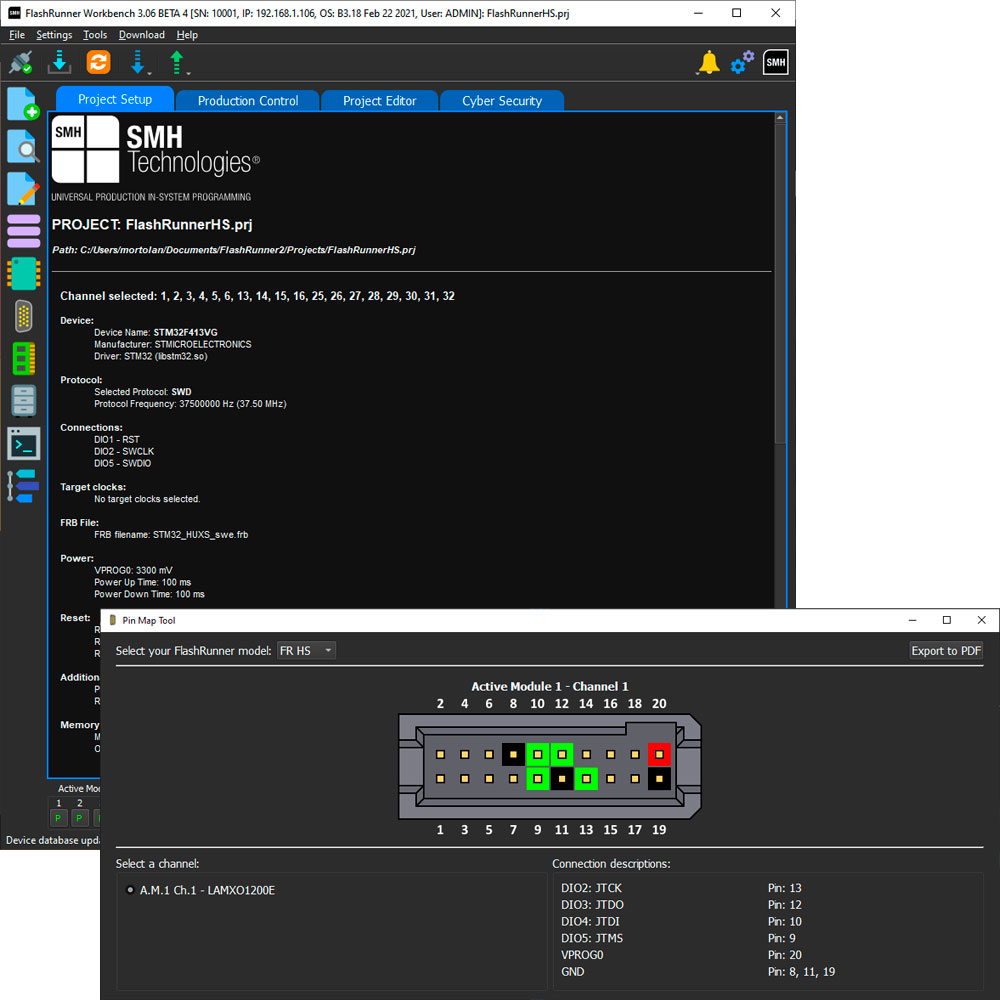

- Graphical User Interface
- File transfer Management
- One-click driver updates
- Windows and Linux compatible GUI software Interface
- DLL interface libraries for C/C++/C#/Labview/Teststand
- Command line tools

Security
- Encrypted FRB files to avoid binary hacking
- Dump and Compare features of all channels
- User Permission Management
- NDA device management
- FRB integrity check through CRC calculation

Software Features
- Watchdog feeder: square wave generator, frequency trimmable, feeding on-board watchdog;
- Cybersecurity: firmware encryption and secure data transfer;
- DLL (C,C++,C#), easy integration with Teststand/Labview/CVI;
- Voltage Monitor: overvoltages and undervoltages detection during flashing process;
- Serial Numbering: dynamic data flashing, runtime defined;
- Digital lines shuffling: dynamic pinout management;
- Conditional erase: decrease cycle time by adding this option to erase only if device is not blank;
- Online driver knowledgebase: complete online Wiki, daily updated, online video lectures, troubleshooting articles.
