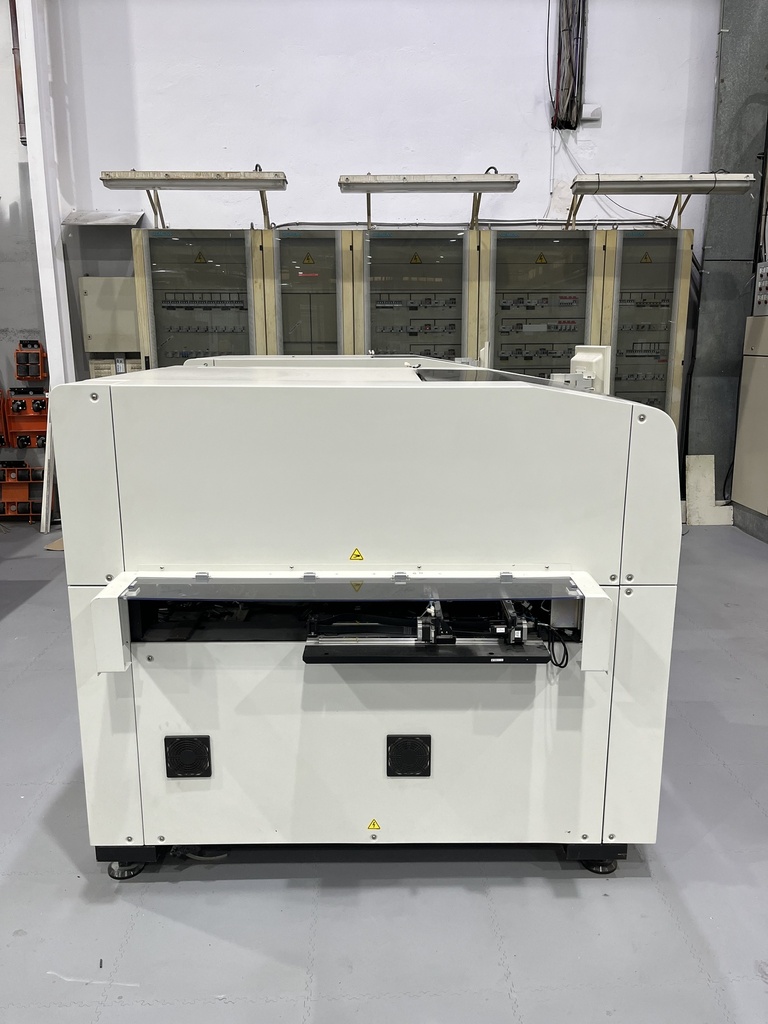

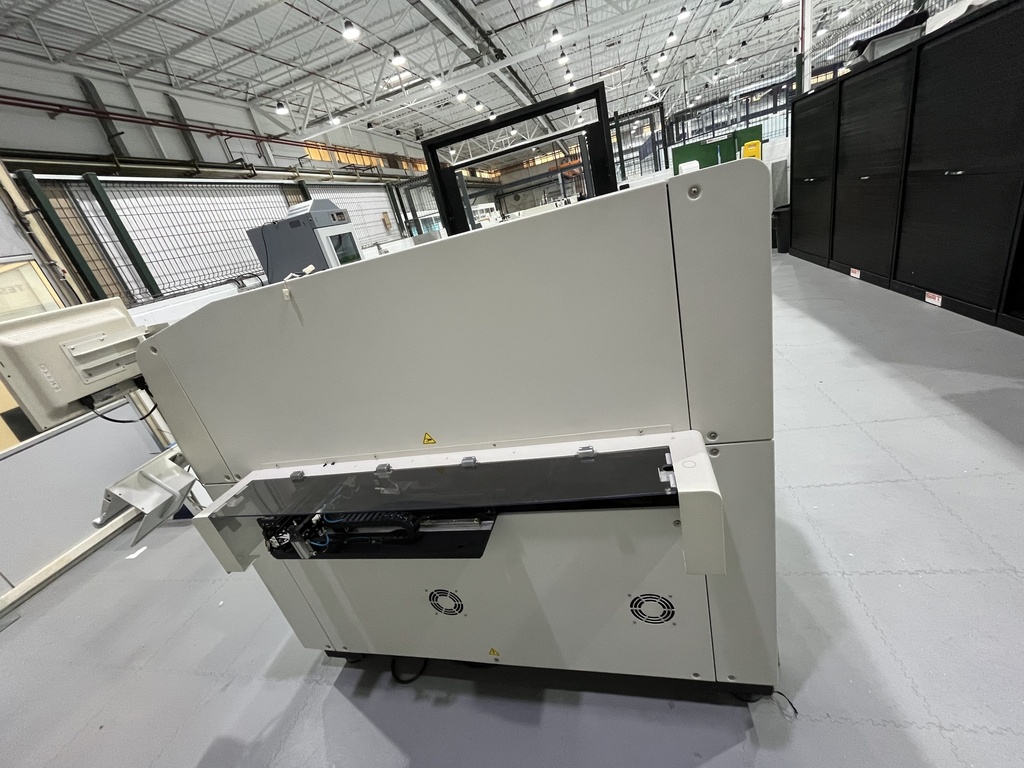

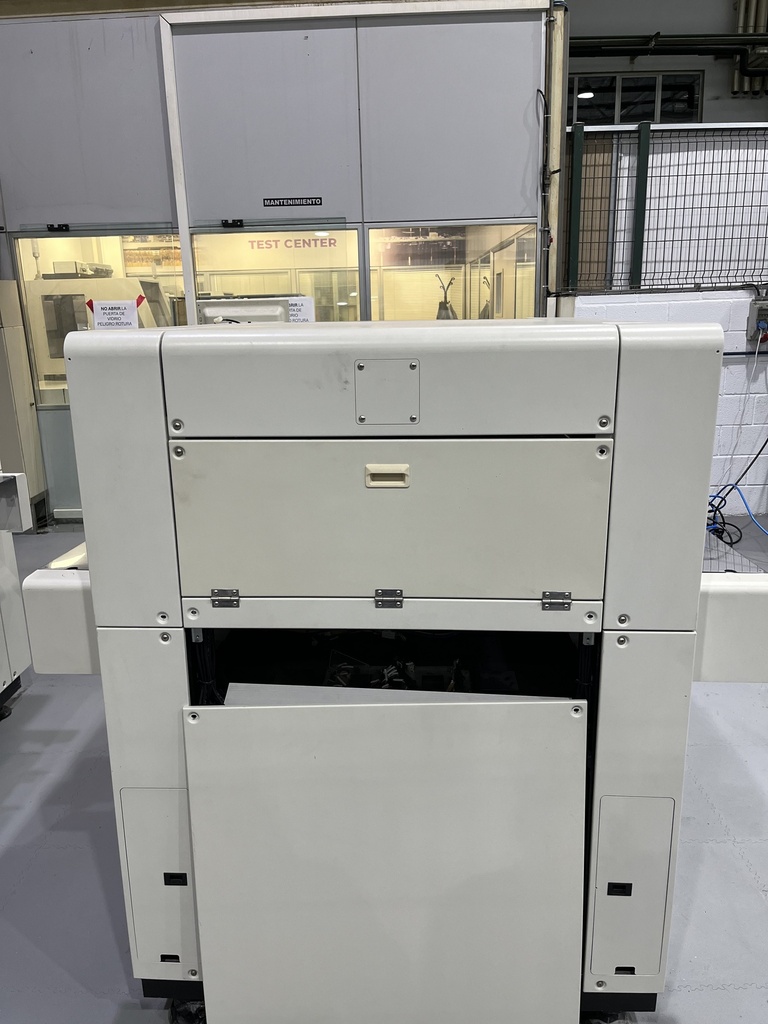

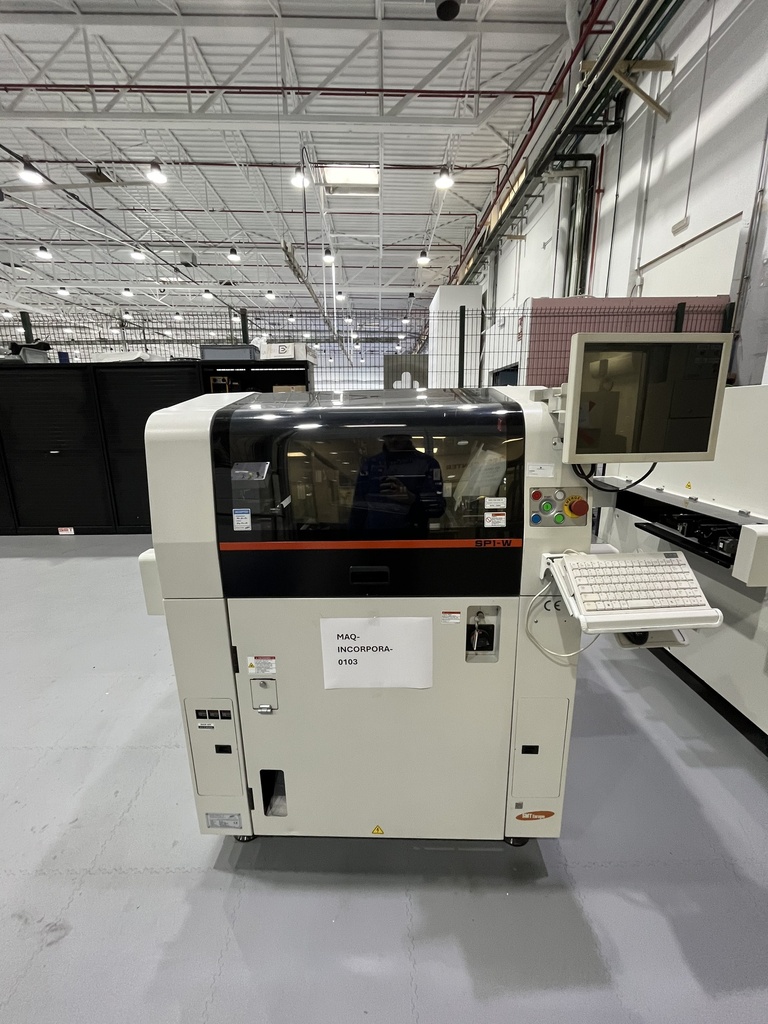

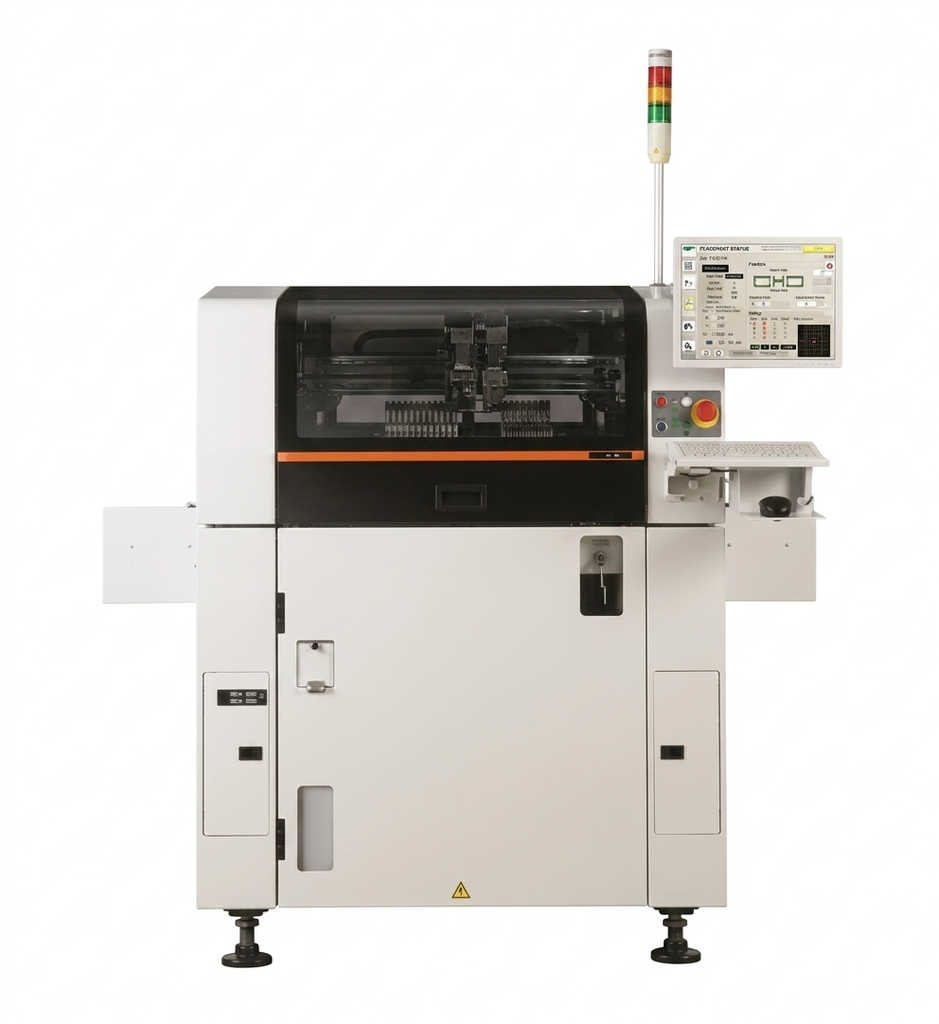

Second Hand HANWHA SP1-W

SP1-W

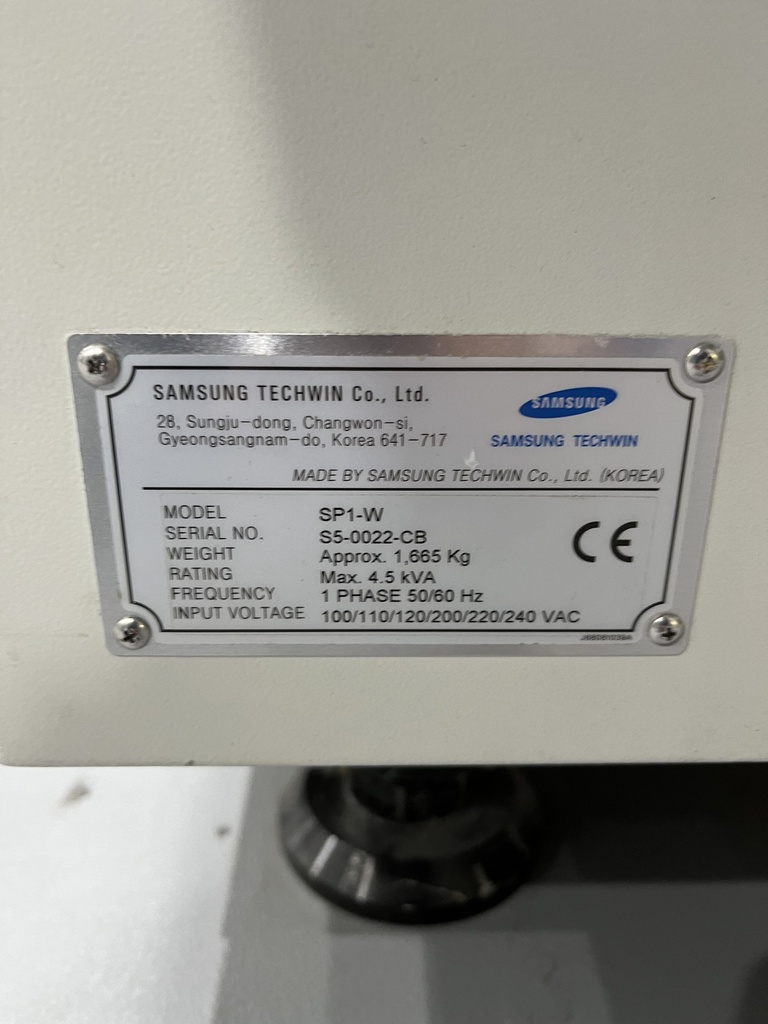

S5-0022-CB

±12.5μm at 6 Sigma
5 sec (Excl. Printing Time)
2 min
5 min
330 x 250mm
510(Length) x 460(Width)
50(Length) x 50(Width)
0,4mm to 4mm
1,500kg
Max. ±1.5mm (Excl. Board Thickness)
Left to Right
Right to Left (Option)
Automatic Width adjustment
3 Staged Conveyor. Front Stage, Working Stage, Rear Stage
By-Pass Conveyor (Option)
Edge Clamp + Top Stopper
Electric Clamp Force Regulating (Option)
PCB Vacuum (Option)
Back up Pins
Back up Block (Option)
Vacuum Block (Option)

Print Parameters
Speed: 0.1 ~ 20mm/sec
Distance: 0.2 ~ 3.0mm
Max. 200mm/sec
4 ~ 15kgf
Automatic
Screw + Electric Air Regulating
Single / Double Printing
Manual (Auto : Option)
Metal - 350mm, 250mm
650(Length)mm x 550(Width)mm
Vision
FOV - 10.6mm x 8.0mm
Circle, Triangle, Square, Diamond, Cross
0.5 ~ 4.0mm

Operator Interface
LCD Monitor, Mouse & Keyboard
Windows XP Embedded
Facilities
• Voltage : Single Phase. 220 / 240V (±5%)
• Frequency : 50/60Hz
• Power Consumption: 4.5 kVA
Pressure 4.5~7kgf/cm, Max. 700Nl/pm
1,895mm / 1,945mm (option). (Incl. Signal Lamp)
1,470mm
1,300mm
1,000mm
1,290kg
