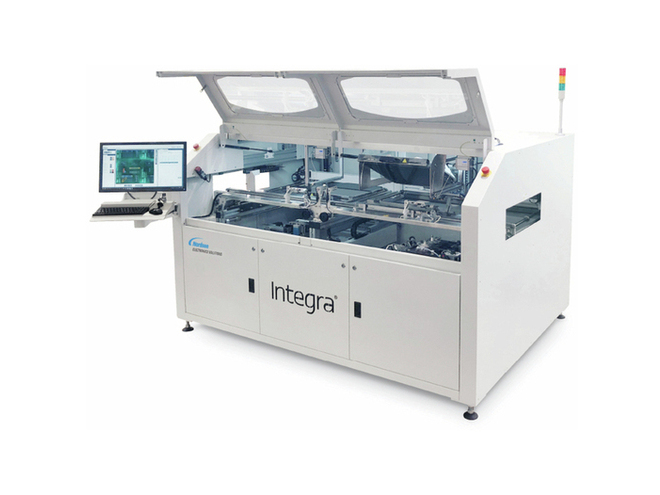

SELECT Integra 508.3

The Integra® 508.3 selective soldering system is ideal for high-volume production.

High Volume, Maximum Productivity
The multi-station, two-solder-pot Integra 508.3 combines fluxing, pre-heating, and soldering to increase throughput and reduce cycle time significantly.
Receive your essential selective soldering system with minimal lead time.

The Integra 508.3:
• Flexibility. The two-segment configuration can solder two boards in-line with two segmented conveyors without the boards being panelized or requiring tooling.
• Parallel processing. In-line parallel processing significantly increases throughput.
• Simple maintenance. Full titanium solder pots compatible with all solder alloys plus easy tool-free maintenance.

Essential System Capabilities
• Productivity – With two solder pots, a MicroDrop drop-jet fluxer, extensive pre-heat capabilities, two solder pots, and two-segment in-line parallel processing, the Integra 508.3 is essential for advanced productivity.

Base model includes:
• MicroDrop drop-jet fluxer.
• Flux-level sensing system.
• Two solder pots.
• Nozzle width measuring.
• Parallel soldering capabilities for panelized and non-panelized boards.
• Small and large nozzle soldering capabilities for boards up to 700 x 508 mm.
• SMEMA conveyor with positive board location.
• All titanium solder pot and pump assembly.
• Quick-change magnetically-coupled solder nozzles.
• SolderWorks Editor and machine control software.
