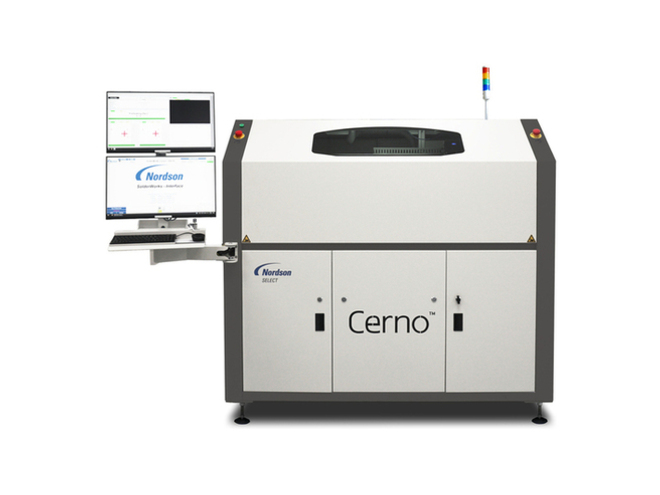

SELECT Cerno 508.1

Selective Soldering Versatility
The Cerno 508.1 is an all-in-one system that combines fluxing, preheating, and soldering for easy integration into batch or in-line production.
Receive your selective soldering system with minimal lead time.

The Cerno 508.1:
Single or dual processing. Choice of single drop-jet fluxer and solder pot or dual drop-jet fluxers and dual solder pots for independent double processing.
Simple maintenance. Full titanium solder pots compatible with all solder alloys plus easy tool-free maintenance.
Flexibility. The two-segment configuration can solder two boards in-line with two segmented conveyors without the boards being panelized or requiring tooling.

Choose a System Package:
Essential – The Cerno 508.1 S offers single-pot selective soldering for batch and in-line production, accommodating boards up to 508 x 508 mm (20 x 20 in.).
Flexible Efficiency – The Cerno 508.1 Two-Segment offers dual-pot selective soldering in three modes for batch and in-line production, accommodating boards up to 350 x 508 mm (13.8 x 20 in.).

Base model includes:
MicroDrop drop-jet fluxer.
Flux-level sensing system.
One solder pot.
Nozzle width measuring.
SMEMA conveyor with positive board location.
All titanium solder pot and pump assembly.
Quick-change magnetically coupled solder nozzles.
SolderWorks Editor and machine control software.
