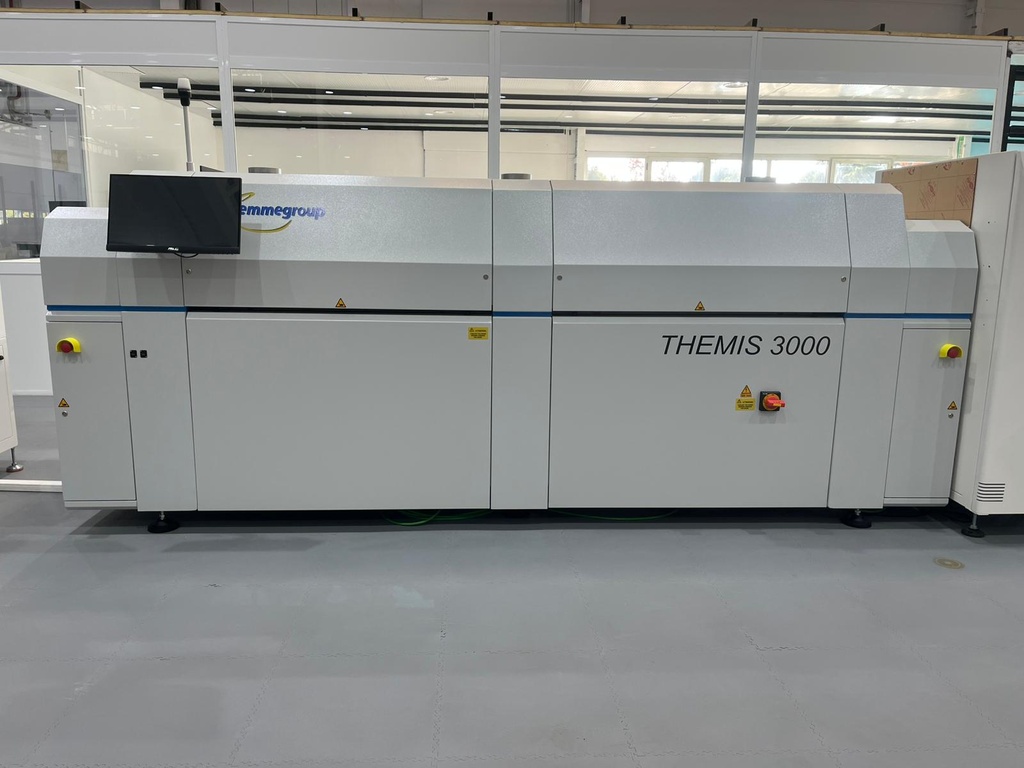

OVEN IR CURING THEMIS 3000 TOP
022AT2025

* Dimension: 3900 L x 1250 W x 1560 H
* Pcb Dimension: Min: 50 L x 50 W / Max 405 W mm
* Top/Bottom Max component height: 120 mm
* Control System: Omron PLC NX Series
* Control Panel: Color Touch Screen 21.5"
* Operating System: Dedicated software real time operation
* Tunnel composed of 6 top IR modules
* IR Tunnel Lenght 3210 mm
* Temperature Range Single Zone: Min 70 C° / Max 320 C°
* Chain conveyor Conveyor speed: 1-150 cm/min
* Manual adjustable conveyor width
* USB port and LAN Port for loading and unloading profiles
* Exahust: > 500 m3/h

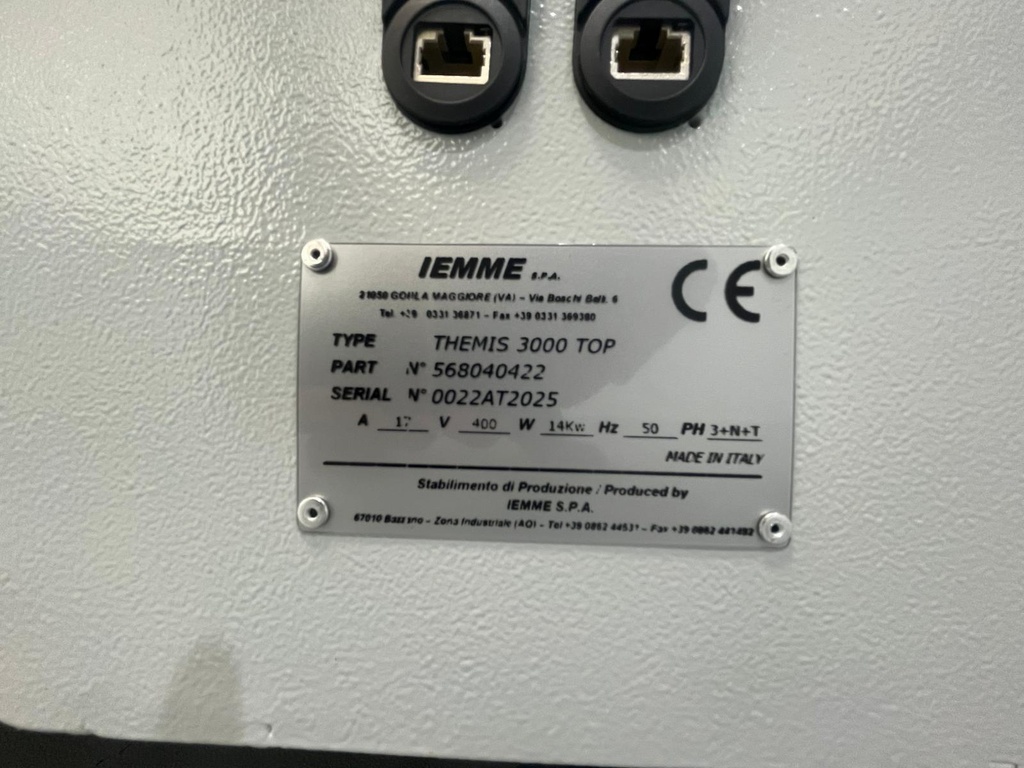

* Power supply: 400V + 3PH + N + GND Power install: 14 Kw (Top IR) * Absorption: 29 A
* SMEMA Connected
* Weight: 1200 Kg Approx
