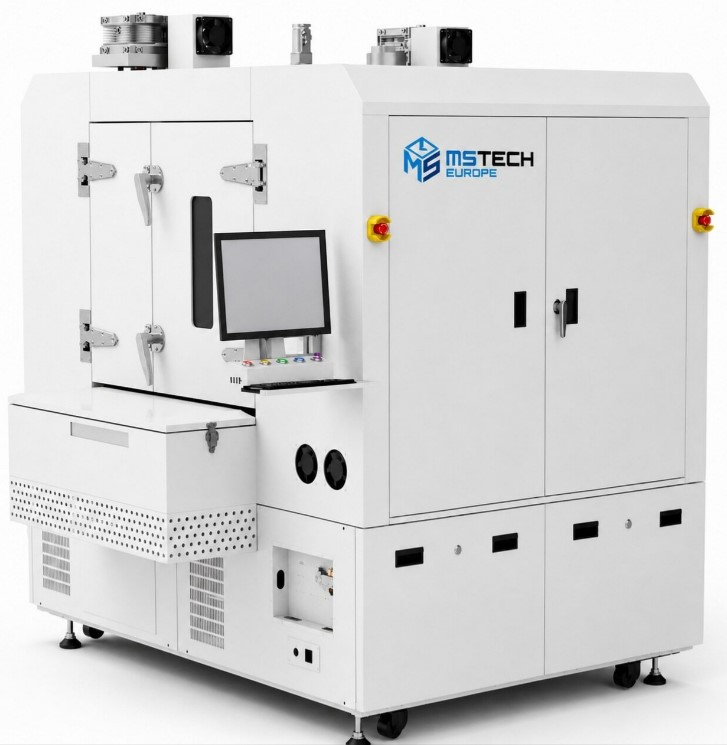

MTX-650 Vertical Oven

MSTECH Europe
Classic MTX-650
The MTX-650 Vertical Oven is a high-capacity solution designed for large-format PCB processing, combining a space-saving vertical design with precise temperature control and high throughput performance.
Key Features

Vertical system with 60 layers for maximum productivity
8 heating modules (4×2) for uniform heat distribution
Temperature range: up to 200°C
High precision: ±1°C control, ≤±2°C temperature uniformity
Fast cycle time: from 35 seconds per PCB & pallet
Servo-driven lifting system for smooth, reliable operation
Optional Nitrogen (N₂) and cleanroom configuration

Capacity & Handling

Max PCB size: 600 × 650 mm
Product weight: up to 3 kg per layer
Component height: up to 25 mm
Inline entrance & exit conveyors
Manual or automatic rail width adjustment

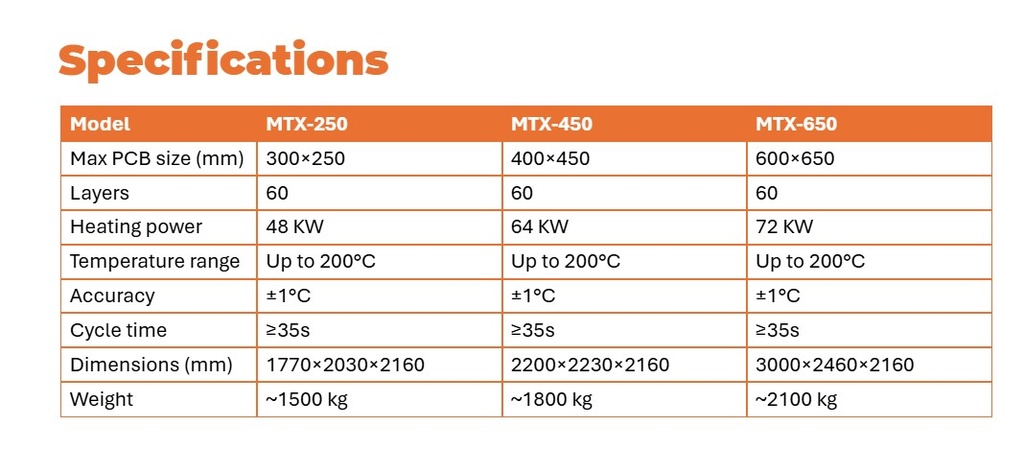

Technical Specs

Dimensions: 3000 × 2460 × 2160 mm
Weight: ~2100 kg
Heating power: 72 KW (8 × 9 KW)
Conveyor height: 900 ± 30 mm
