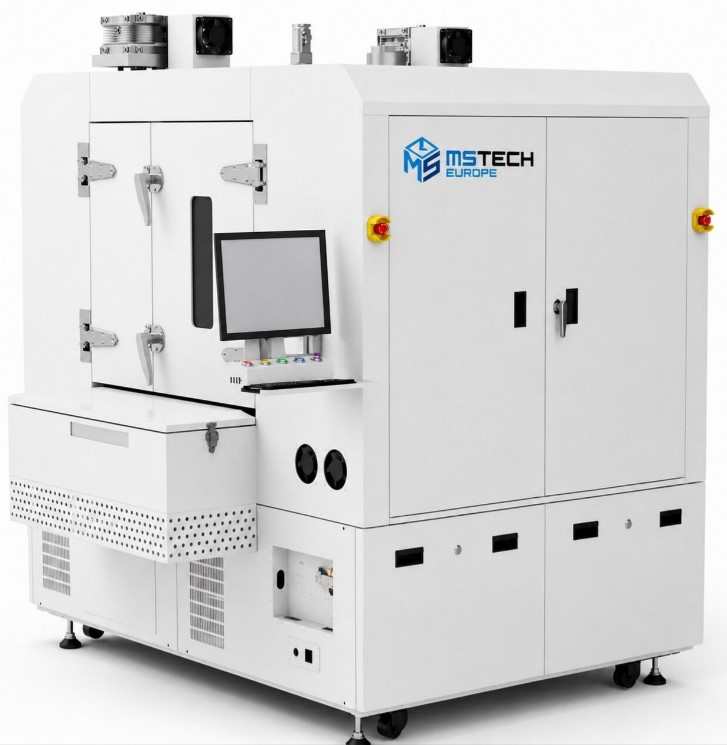

MTX-450 Vertical Oven

MSTECH Europe
Classic MTX-450
The MTX-450 Vertical Oven is a high-capacity thermal processing solution designed for larger PCBs, combining space-saving vertical design with precise temperature control and reliable automation.
Key Features

Vertical system with 60 layers for high throughput
8 heating modules (4×2) for consistent heat distribution
Temperature range: up to 200°C
High precision: ±1°C control, ≤±2°C uniformity
Fast cycle time: from 35 seconds per PCB & pallet
Servo-driven lifting system for smooth, accurate handling
Optional Nitrogen (N₂) and cleanroom configuration

Capacity & Handling

Max PCB size: 400 × 450 mm
Product weight: up to 3 kg per layer
Component height: up to 25 mm
Inline entrance & exit conveyors
Manual or automatic rail width adjustment

Technical Specs

Dimensions: 2200 × 2230 × 2160 mm
Weight: ~1800 kg
Heating power: 64 KW (8 × 8 KW)
Conveyor height: 900 ± 30 mm
