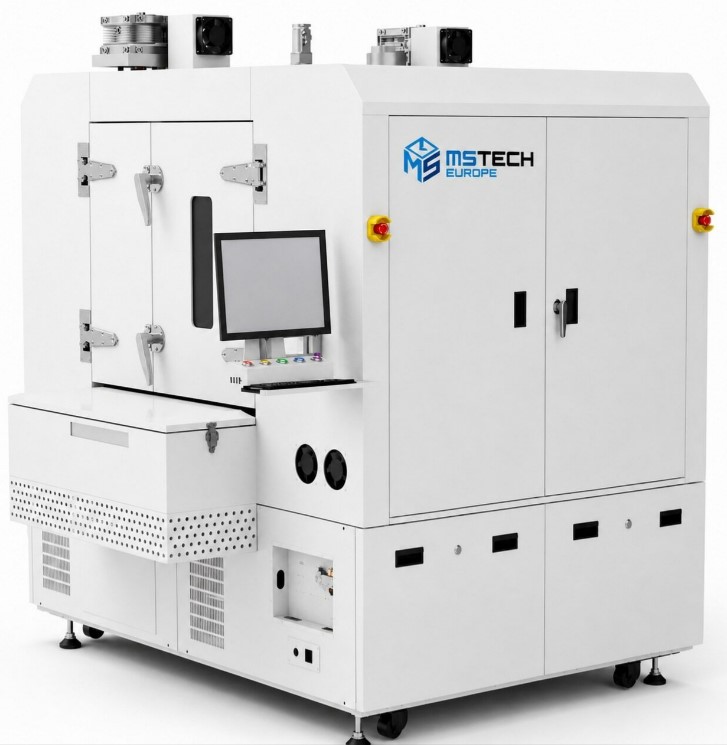

MTX-250 Vertical Oven

MSTECH Europe
Classic MTX-250
The MTX-250 Vertical Oven is a compact and efficient solution for PCB thermal processing, designed to maximize floor space while ensuring precise temperature control and stable production flow.
Key Features

Vertical design with 60 layers for high-capacity processing
8 heating modules (4×2) for uniform heat distribution
Temperature range: up to 200°C
High precision: ±1°C control, ≤±2°C uniformity
Fast throughput: minimum 35 seconds per PCB & pallet
Servo-driven lifting system for smooth and reliable operation
Optional Nitrogen (N₂) and cleanroom configuration

Capacity & Handling

Max PCB size: 300 × 250 mm
Product weight: up to 3 kg per layer
Component height: up to 25 mm
Inline entrance & exit conveyors
Manual or automatic rail width adjustment

Technical Specs

Dimensions: 1770 × 2030 × 2160 mm
Weight: ~1500 kg
Heating power: 48 KW (8 × 6 KW)
Conveyor height: 900 ± 30 mm
