Wave Soldering Oven-PCBmax : 50*610 mm

MSTECH Europe
MTU-610

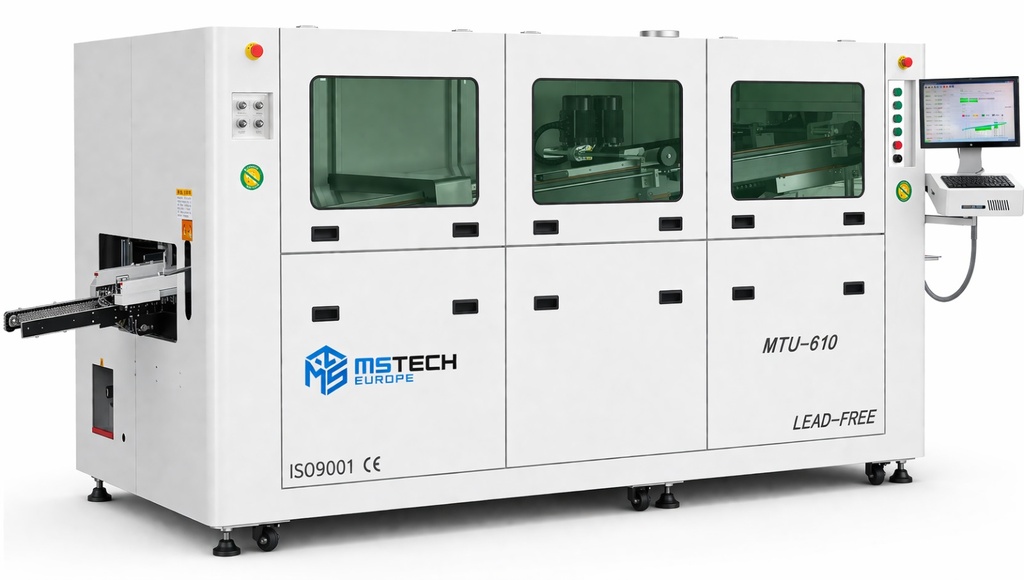

MTU-610 Wave Soldering Machine
The MTU-610 is a large-format, high-capacity wave soldering system designed for extra-wide PCB production and demanding industrial applications. Combining dual-wave soldering, advanced automation, and highly efficient heating technology, it delivers exceptional solder quality, process stability, and productivity for complex assemblies.
Applications
Ideal for very large and complex PCB assemblies, including:

Automotive and power electronics
Industrial control systems and infrastructure
Large-format consumer electronics
EMS high-volume and heavy-duty production lines

Key Features

Extra-wide PCB capability up to 610 mm
Dual wave system: laminar (first) + dancer (second) for optimal soldering performance
High-precision temperature control (±1°C) ensures process stability
4-zone preheating system (1800 mm) with hot air convection
Advanced PLC + PC control system with automation, alarms, and scheduling
Automatic flux spraying system with intelligent PCB detection and adjustable flow
Comprehensive flux management system (recycling, filtration, air curtain)
Automatic finger cleaning system with recyclable alcohol solution
Energy-efficient matrix heating (up to 95%)
Robust enclosed machine design for safety, durability, and easy maintenance
SMEMA compatibility for seamless line integration
