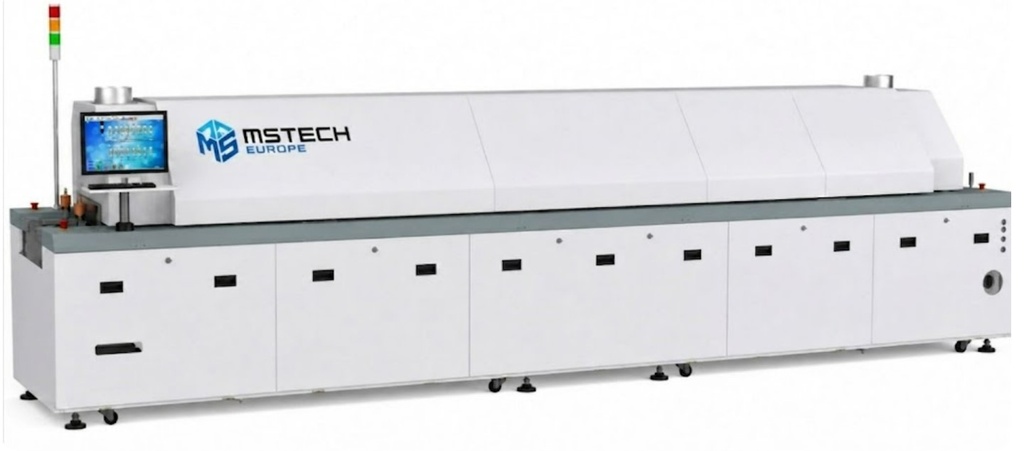

MTR-800 Reflow Oven

MSTECH Europe
Classic MTR-800
The MTR-800 is a high-capacity SMT reflow oven engineered for precision lead-free soldering and high-throughput production. With extended heating zones and advanced control, it ensures excellent thermal uniformity and process stability.
Key Features

16 heating zones (8 top / 8 bottom) + 6 cooling zones
Temperature range: Ambient to 300°C
High precision: ±1°C control, ±1.5°C PCB deviation
Fast warm-up: ~30 minutes
Industrial PC control with profile storage and monitoring
Energy consumption: ~9KW
UPS, MES & LAN connectivity

Conveyor & Capacity

PCB width: 50–460 mm
Speed: 300–2000 mm/min
Chain + mesh conveyor with automatic lubrication
Component height: up to 30 mm (top & bottom)

Cooling & Performance

3-zone forced air cooling (960 mm)
PCB exit temperature ≤ 70°C
Fast thermal response (≤20s)

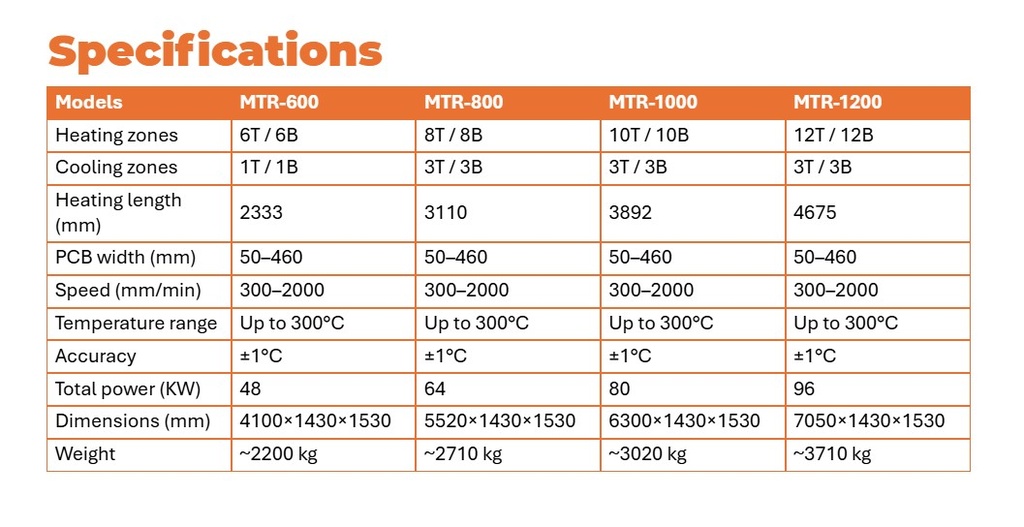

Technical Specs

Dimensions: 5520 × 1430 × 1530 mm
Weight: ~2710 kg
Power supply: 3P 380V / 220V, 50/60Hz
Total power: 64KW
