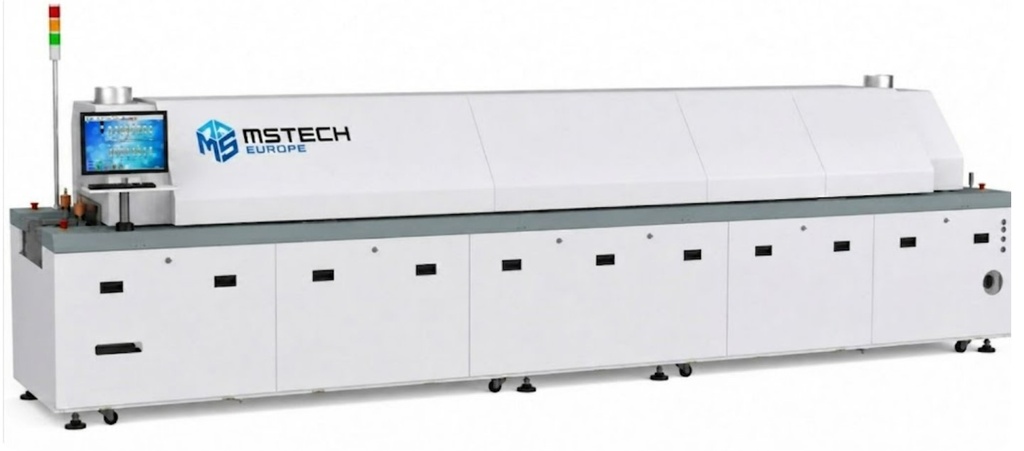

MTR-1200 Reflow Oven

MSTECH Europe
Classic MTR-1200
The MTR-1200 is a high-end SMT reflow oven designed for maximum throughput and thermal performance, ideal for complex and high-volume lead-free soldering applications.
Key Features

24 heating zones (12 top / 12 bottom) + 6 cooling zones
Temperature range: Ambient to 300°C
High precision: ±1°C control, ±1.5°C PCB deviation
Fast warm-up: ~30 minutes
Industrial PC control with profile storage & monitoring
Energy consumption: ~13KW
UPS, MES & LAN connectivity

Conveyor & Capacity

PCB width: 50–460 mm
Speed: 300–2000 mm/min
Chain + mesh conveyor with automatic lubrication
Component height: up to 30 mm (top & bottom)

Cooling & Performance

3-zone forced air cooling (960 mm)
PCB exit temperature ≤ 70°C
Fast thermal response (≤20s)

Technical Specs

Dimensions: 7050 × 1430 × 1530 mm
Weight: ~3710 kg
Power supply: 3P 380V / 220V, 50/60Hz
Total power: 96KW
