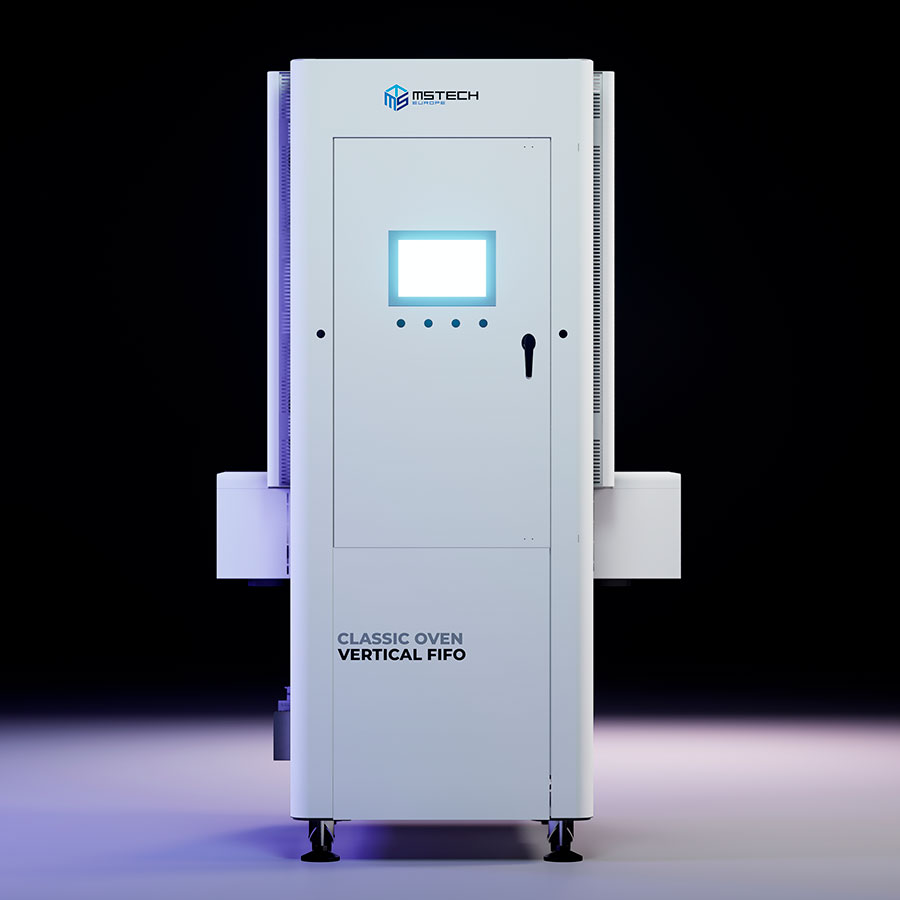

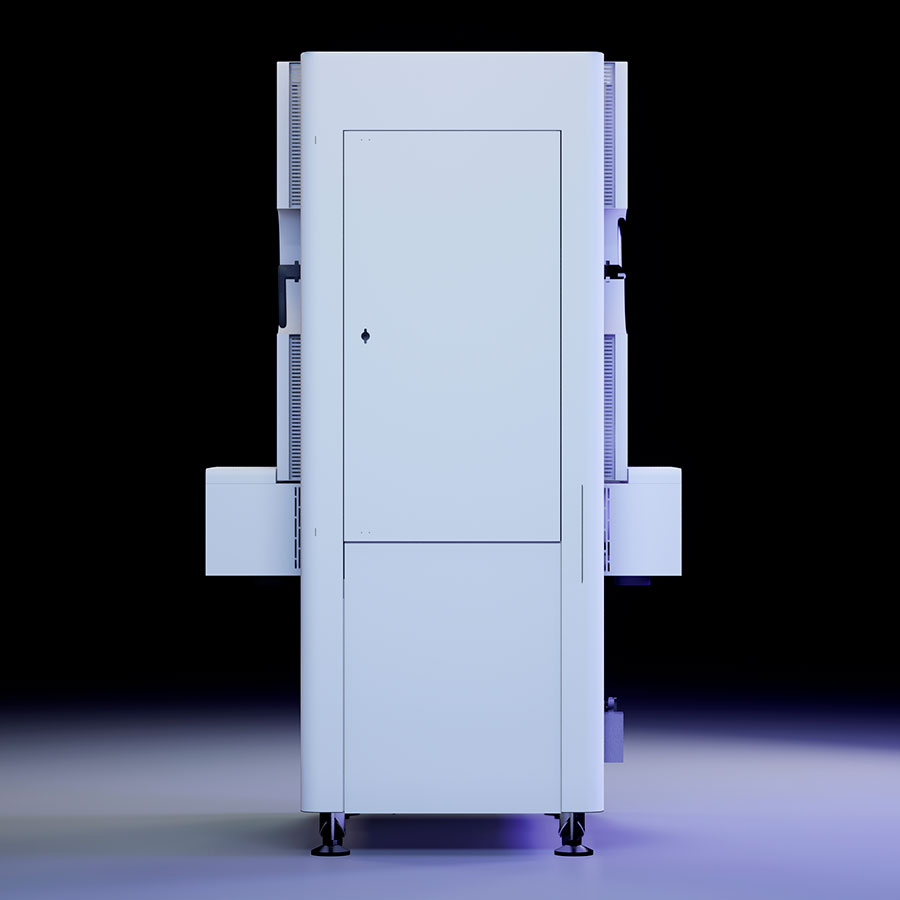

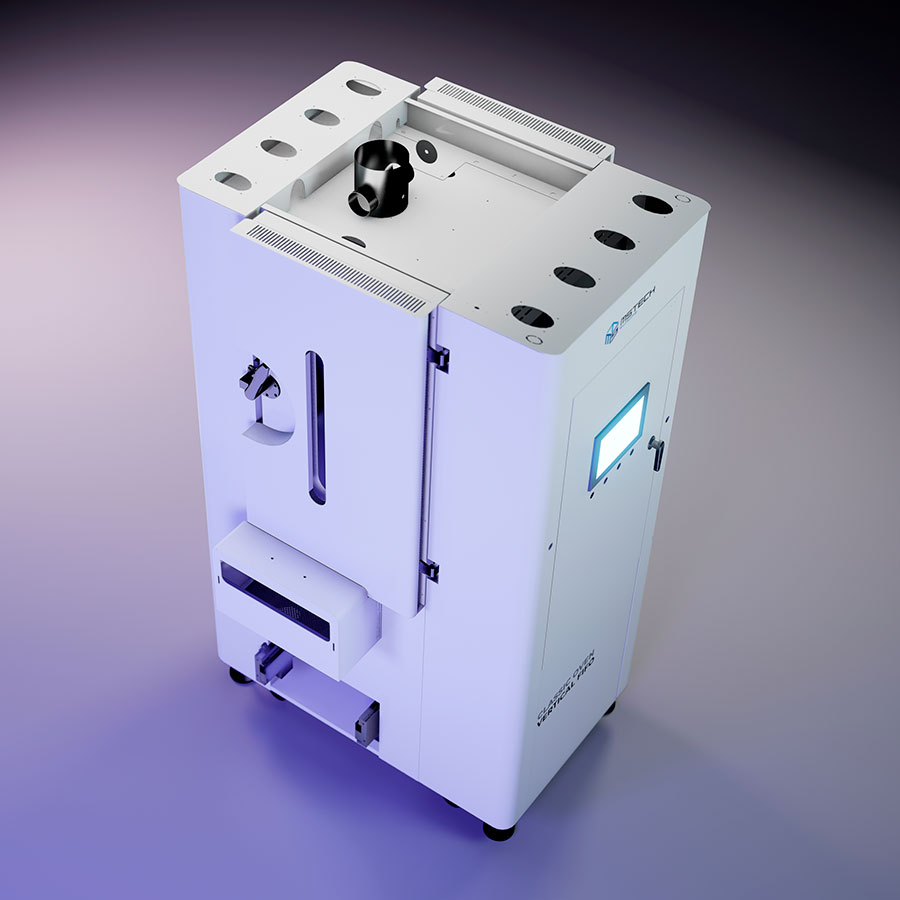

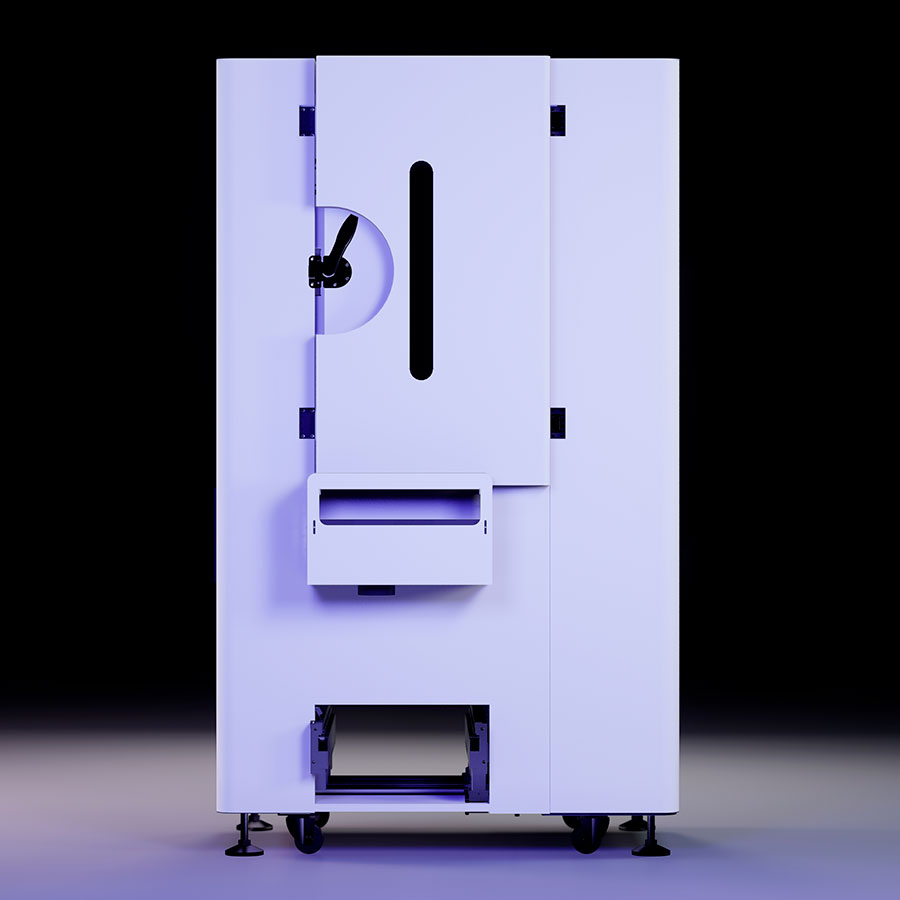

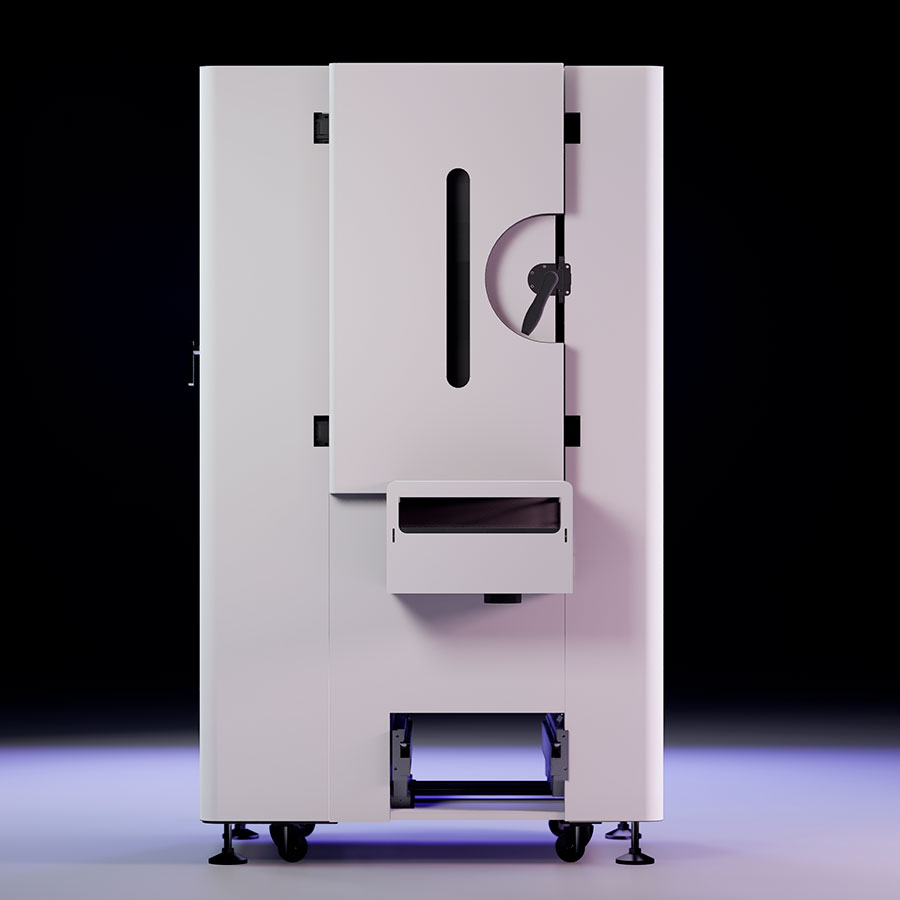

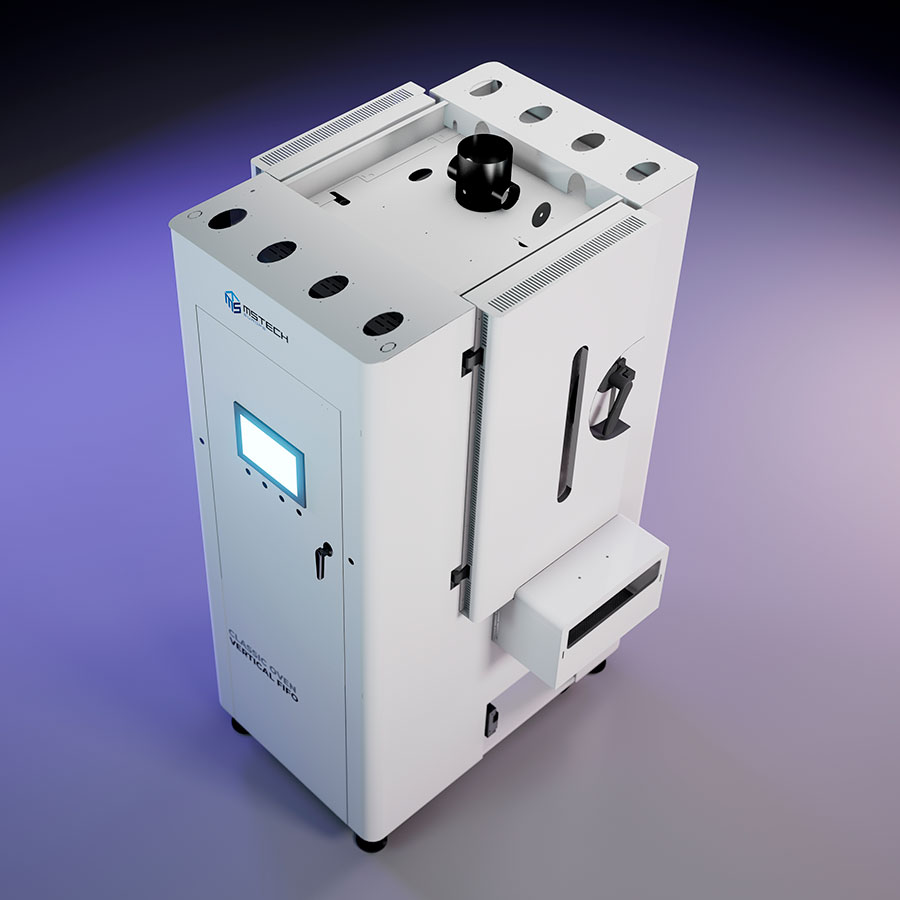

CLASSIC OVEN VERTICAL FIFO

VERTICAL OVEN FIFO
MSTECH Europe

The CLASSIC OVEN VERTICAL FIFO design transforms the flat heating space into a three-dimensional one, saving both energy and floor space without compromising high-precision temperature control. Its user-friendly touchscreen interface ensures reliable operation, continuous curing processes, and fully adjustable curing times.
CONFIGURATION FLEXIBILITY
» PCB size (LxW): 710x450 mm.
» Conveyor height: 900±20 mm.
» Up to 4 temperature sensors in entry conveyor.
» Heating layers: up to 20 layers.
» Perfect width adjustment mechanism.
PRODUCTIVITY
» High thermal efficiency and uniformity.
» Unique horizontal + up & down air transportation.
» Conveyor: Top and bottom return.
» The 3 level protection heating system prevents overheating.
» Multi product loading capability per slot.
» Adjustable inter slot distance
» Lifting.
» Weight: Up to 5 kg per slot.
» Layer height: 700 mm. Standard: 20 layers.
» CE-compliant safety measures and protection devices.
FULL INTERCONNECTED TRACEABILITY
SMARTBOX OPTION
OPTIMIZATION
» Floor space & facility savings.
» Energy efficient.




(with barcode reader support, EPA filter, nitrogen system, 2 conveyors, 4 sensors), PCBA's or Pallet Size : L700mm×W450mm
( Weight Approx:1500kg Dimension L1500*W1000*2200mm,Total power 20KW), Exhaust capacity - 5 ㎡/min,
