LITE IR 2
Specification：
1. Maximum PCB Size: 740*510mm
2. Upper transmission height: 950±20mm Lower transmission height：350±20mm
3. Transmission method: Chain pin length 5mm
4. Maximum PCBA Height: ± 110mm
5. Control mode: touch screen + Panasonic PLC with network port
6. Rail fixing side: front rail
7. Heating zone: up 2/down 0 8.Signal Connection: SMEMA head

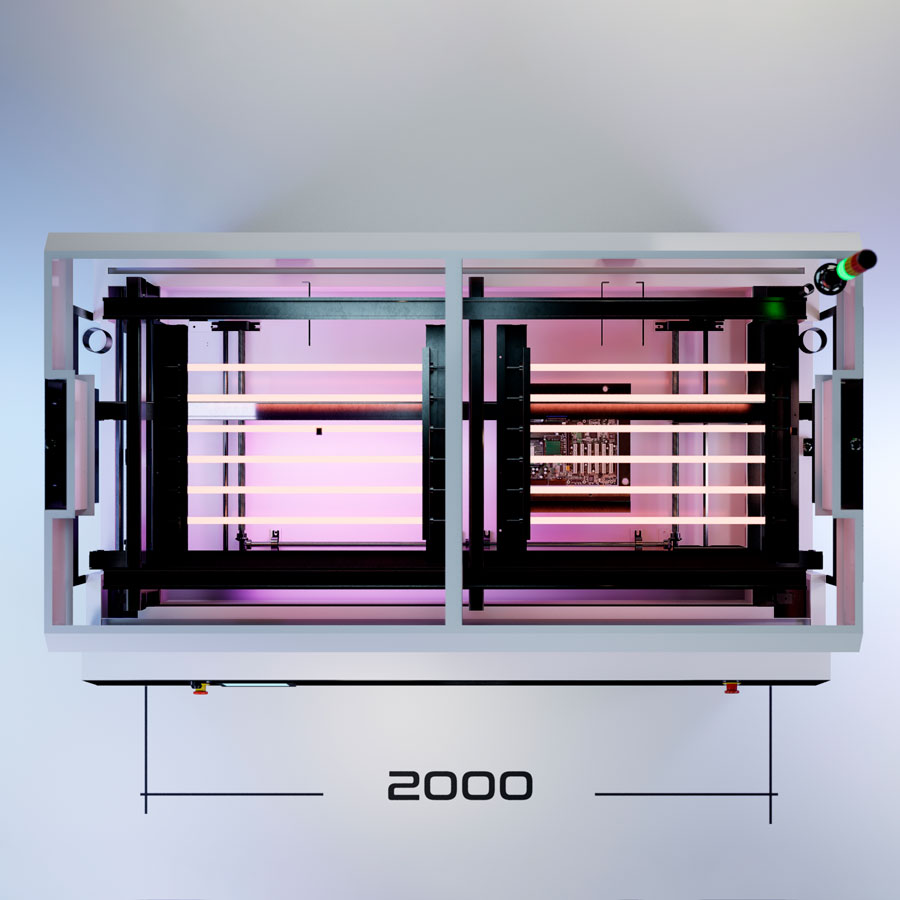

8. Dimension: 2000x1230x1400mm 10.Conveyor with auto type lifting door
9. There are 2 strips of LED lights on the door to show the status of the upper and lower boards.
10. CE standard electrical appliances and circuit design

Configuration：
1. Voltage: 3P 380V
2. Direction: Left to Right

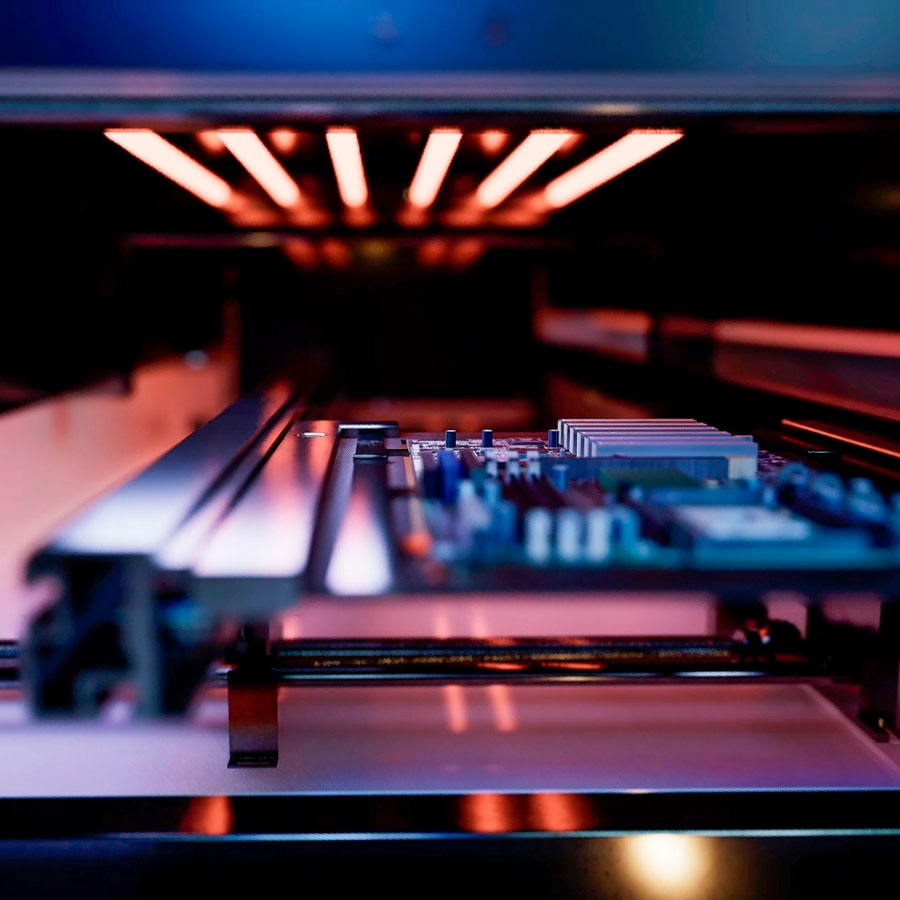

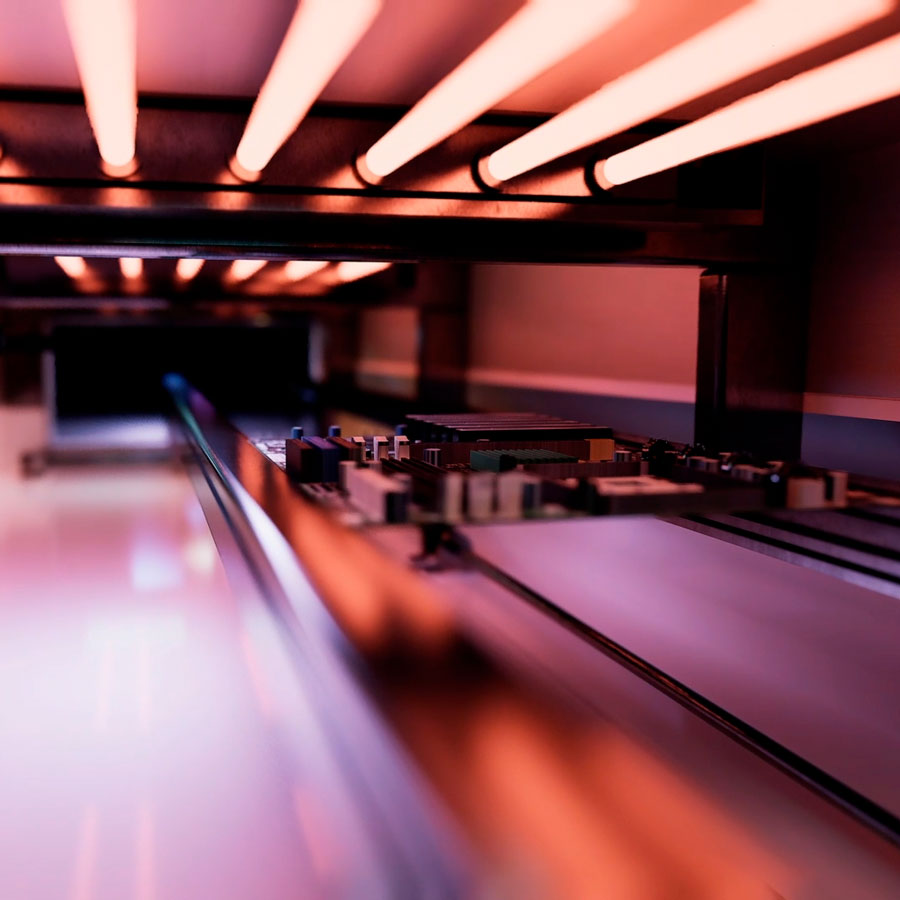

3. Heating method: IR
4. Panasonic display
