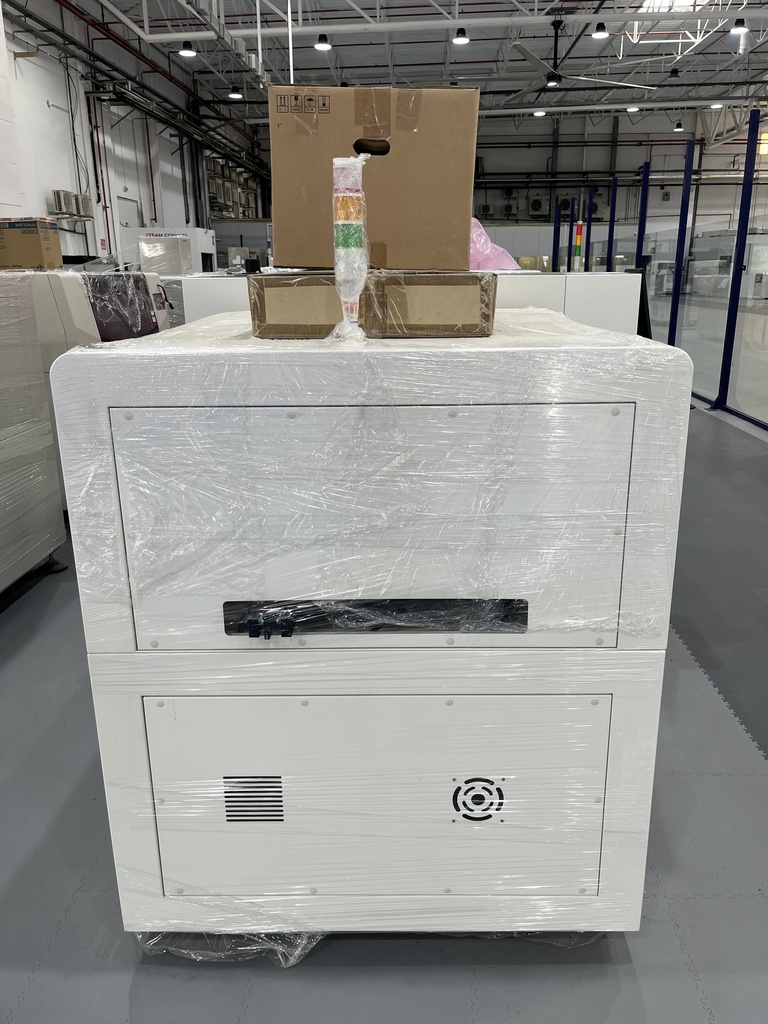

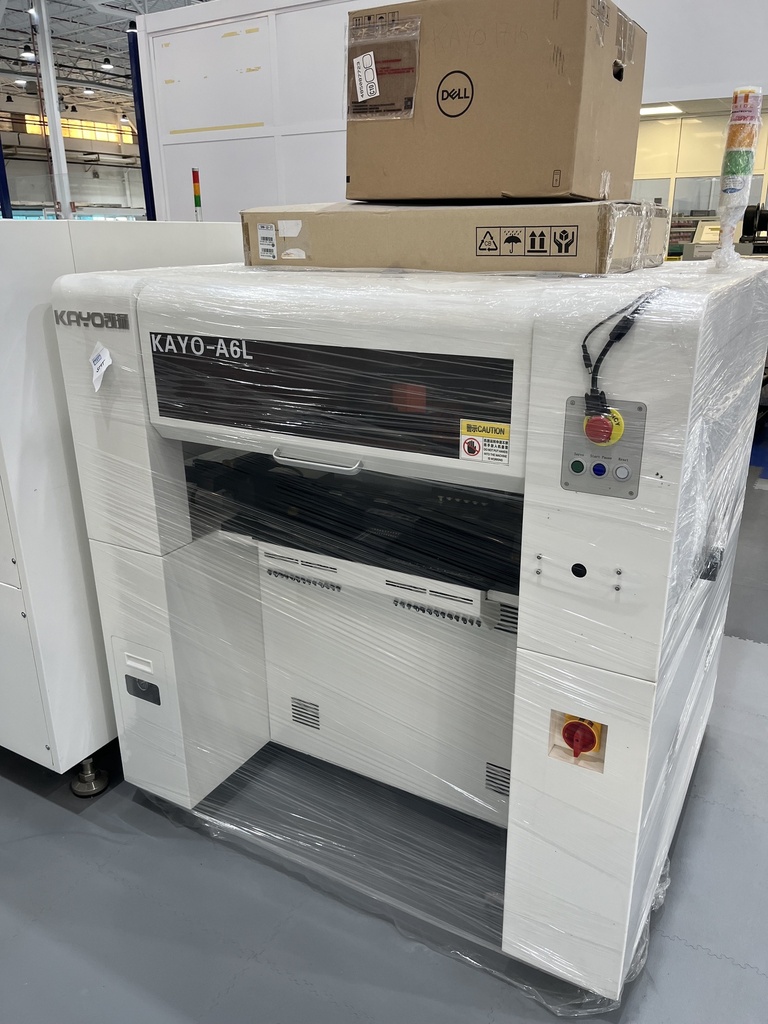

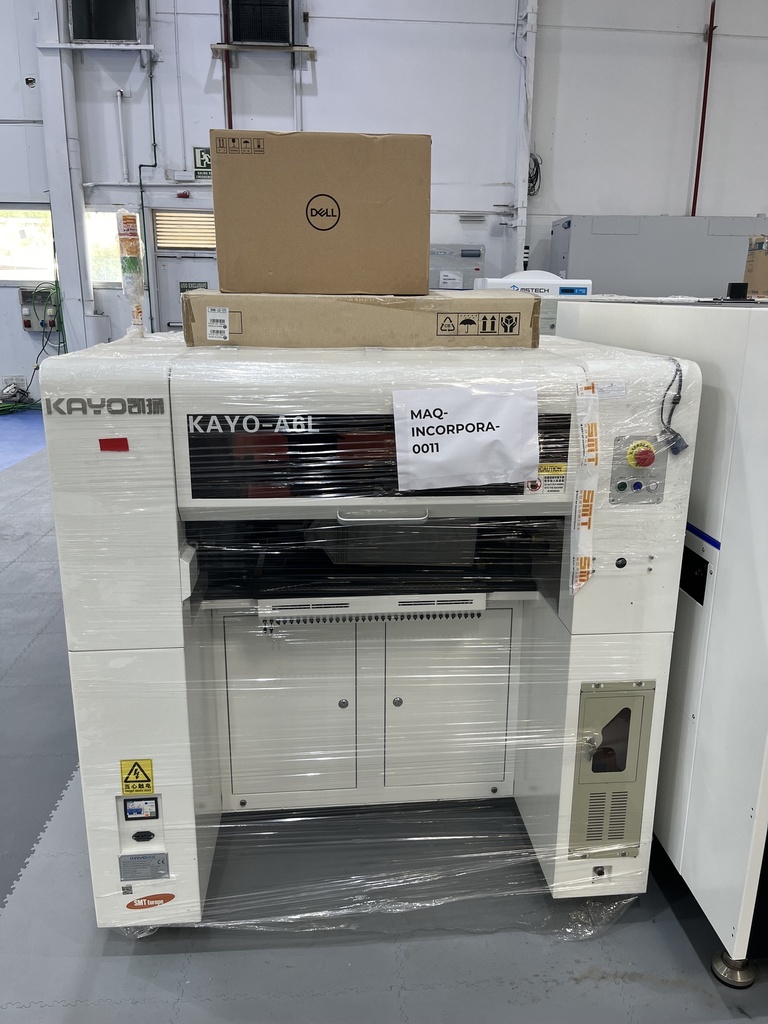

Second Hand KAYO KAYO-A6L

KAYO-A6L 2019112502

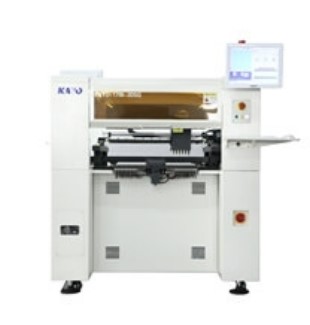

Pick&Place KAYO-A6L

*System features:
The presence of six cameras to recognize and pick&place the components at high speed;
Use high quality and durable nozzles JUKI;
High-precision drives to move the X and Y;
Two 15-inch monitor for concurrent operation of the pick&place from two sides;
Three-piece conveyor to move the board;
Built-in high performance and energy-saving vacuum system;

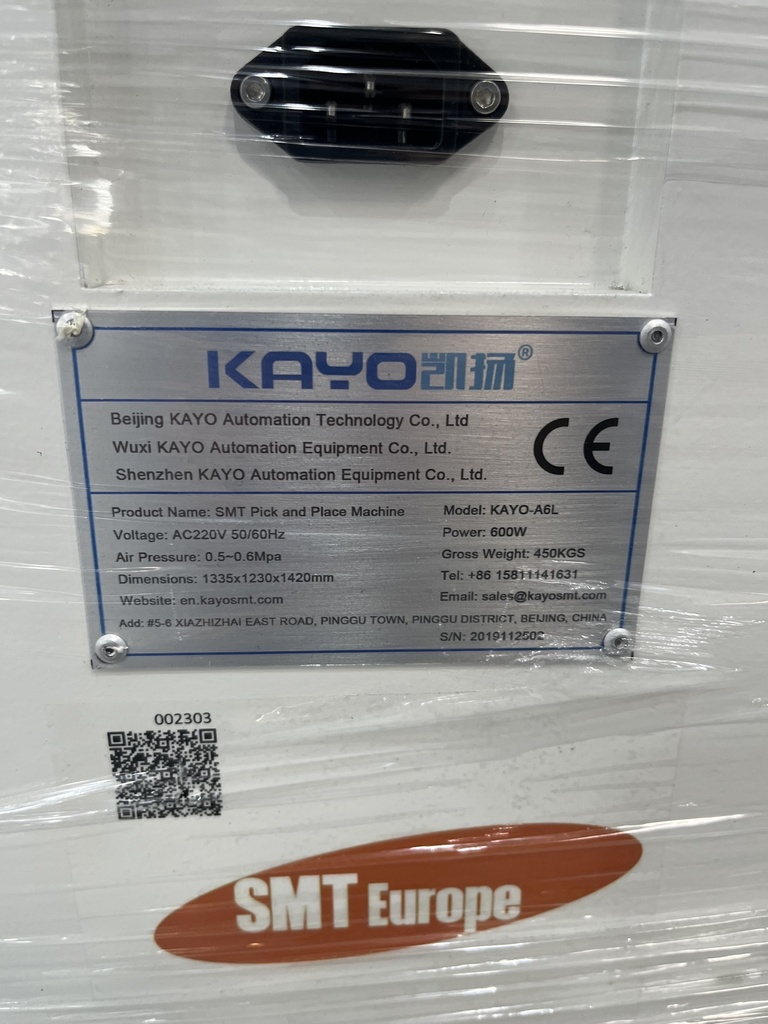

Specifications:
* Number of feeders 8 mm - 60 pieces;
* Feeders: 8/12/16/24/32 mm, vibratory feeders;
* Number of mounting heads - 6 pieces;
* Mounting accuracy - 0,01 mm;
* Drivers - servomotors Panasonic + ball screw + linear axes X/Y;
* Video recognition - synchronous on 6 heads;
* Max placement speed - 13000 comp/hour;
* Actual placement speed - 6000 - 7000 comp/hour;
* Max axis movement Z - 20 mm;
* Max dimensions of the PCB: 650х370 mm;
* Mounted components - from 0201, 0402 to 40х40 mm, LED, QFP, BGA, step outputs ≥ 0,3 mm;
* Max component height (Z) - 5,5 mm; upgrade to 10 mm
* Monitors - 15";
* OS - Win7;
* Programming - data conversion, step by step, visual;
* Power supply - 1 phase, 220 V, 50 Hz, 750 W;
* Pneumatic pressure - 5 - 6 Bar;
* Machine dimensions - 1335x1230x1420 mm;
* Machine weight - 500 kg;
* Quick release connector: Ø 10 mm.

Standard configuration:
* Monitor 17" x 2 Keyboard + Mouse x 2
* Signal tower (3 colors, 12 V) x 1
* Nozzle 502 x 1
* Nozzle 503 x 6
* Nozzle 504 x 6
* Nozzle 505 x 6
* Nozzle 506 x 1
* Service kit x 1
* User's manual x 1
* Adjustable feet x 4
* Sealing ring x 20
