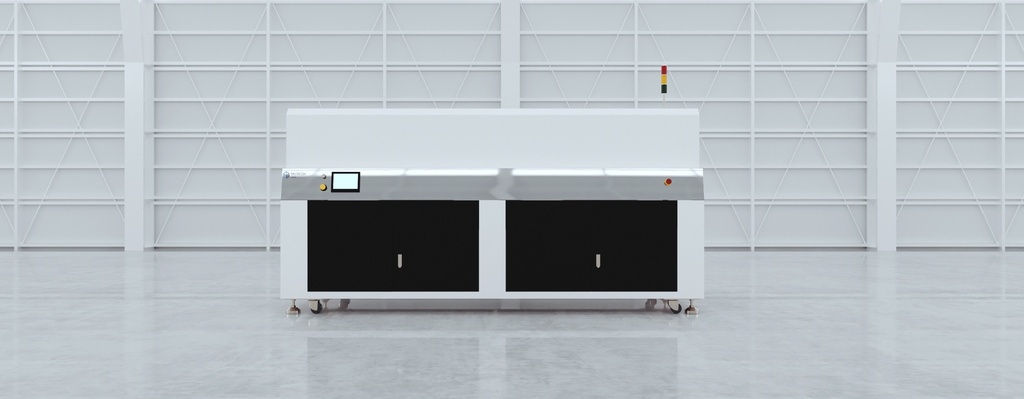

IR5 Curing Oven SMT

Dimension: 5000 L x 1250 W x 1560 H
Pcb Dimension: Min: 50 L x 50 W / Max 405 W mm
Top/Bottom Max component height: 120 mm
Control System: PLC
Control Panel: Color Touch Screen
Operating System: Dedicated software real time operation
Tunnel composed of IR modules
Chain conveyor
Manual or auto adjustable conveyor width
USB port and LAN Port for loading and unloading profiles
Exahust OUTPUT
SMEMA Connected
Weight: 1600 Kg Approx
