Bare Board Handling PCB Max(mm): 500x460

MSTECH Europe

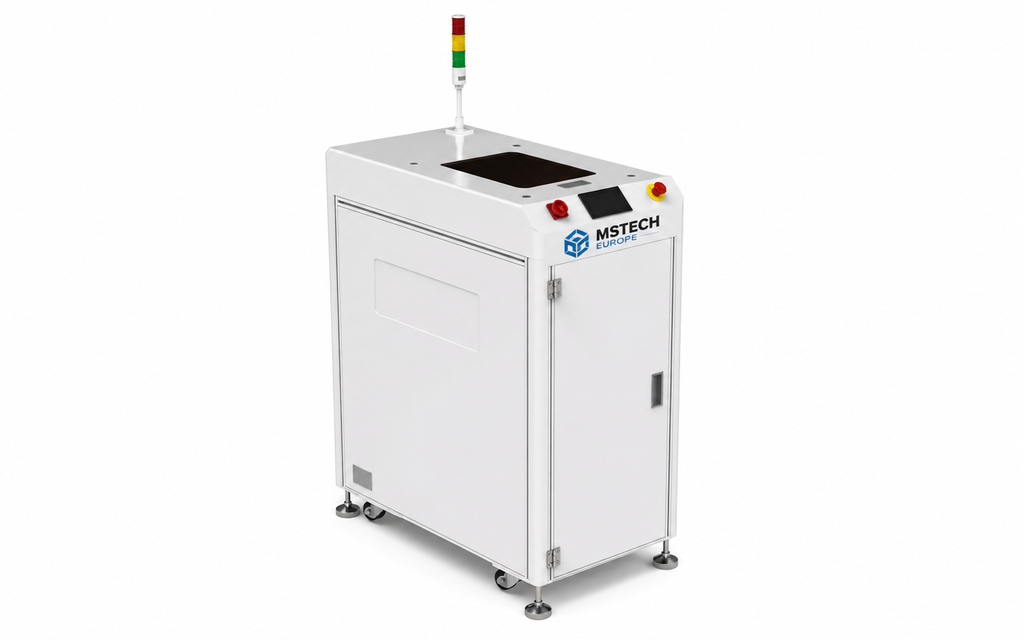

Classic-VL-460
Vacuum loader for bare boards, PCB thickness 0.6-2.5mm; Motorized width adjustment; NG/OK reject functions; PCB Max(mm): 500x460; PCB Min. (mm): 50x50; Machine Size (mm): 600x1140x1250

Application
The vacuum loader is used to load bare boards for SMT production lines. The top PCB is lifted from stack and lowered onto belt segment. The PCB stack is manually loaded into the machine and the individual PCBs are handed over to the downstream system on a transfer conveyor.

Features

• Panasonic PLC program control

• Loader & destacker working mode can be switched exchange.

• Selectable pitch settings

• Tower-light display for machines working status.

• Flexible platform to suit standard magazines

• Exchangeable magazine from the front of machine

• Stepper motorized type pusher to enhance working stability

• Pusher position adjustable to Centre for the boards

• Use the friendly touch screen panel

• Magazine infeed and outfeed are automatically driving by motor on the platform.

• Ability to handle the bare boards by destacker.

SMEMA compatible
