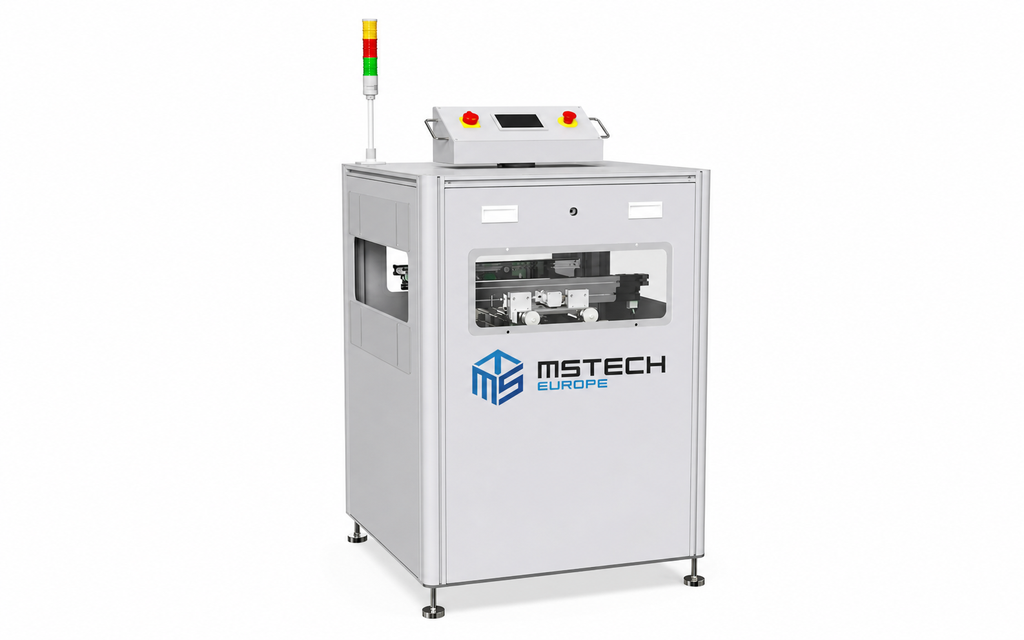

Turn Conveyor PCB Max(mm): 500x460

MSTECH Europe
Classic-TC-460
90 degree turning conveyor, left or right; Motorized width adjustment; NG/OK reject functions; PCB Max(mm): 500x460; PCB Min. (mm): 50x50; Machine Size (mm): 840x840x1250

Application
This unit is used to transfer PCBs around corners for continued process flow. Available in clock wise or counter clock wise rotation, and by-pass mode.

Features

• Panasonic PLC program control

• By-Pass mode + 90 degree turning conveyor (Available in clock wise or counter clock wise rotation, and by-pass mode.)

• Motorized conveyor width adjustment

• LED signal tower & Buzzer

• Suitable for boards with many components on the bottom side

• Closed –loop stepper motor providing the rotating driving power

• SMEMA compatible
