Single Shuttle

MSTECH Europe

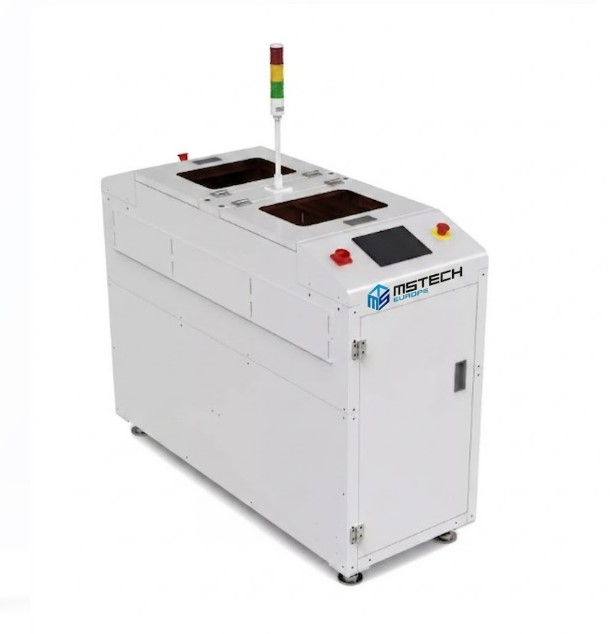

Classic-ST-460

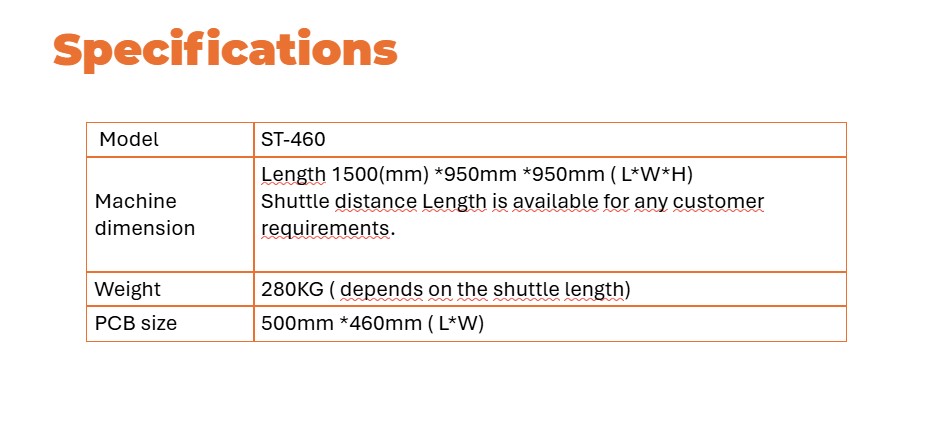

Shuttle conveyor, 630mm travel length; Motorized width adjustment; NG/OK reject functions; PCB Max(mm): 500x460; PCB Min. (mm): 50x50; Machine Size (mm): 1500x650x1250

Application

Shuttle Conveyor /Traverser is used to redirect flow of PCBs into different channels in a production line.It is designed to shuttle PCB's to next process. The conveyor can collect PCB's from two lines to one line/ distribute PCB's from one line to two lines.

Features



• Mitsubishi PLC +Screen touch panel control;

• Closed loop stepper motor providing the accurate transfer

• Working method:

• 1). distribute the boards from one line into two line.
2). Collect the boards from two line into one line.

• Two working modes are selectable in the software.

• Conveyor width adjustment by motorized and software input automatic width adjustments.

• Shuttle speed setting by software.

• Transfer direction: right to left.

• Cycle time: Depends on traversing distance

• Number of Cart: Sigle head transportation
